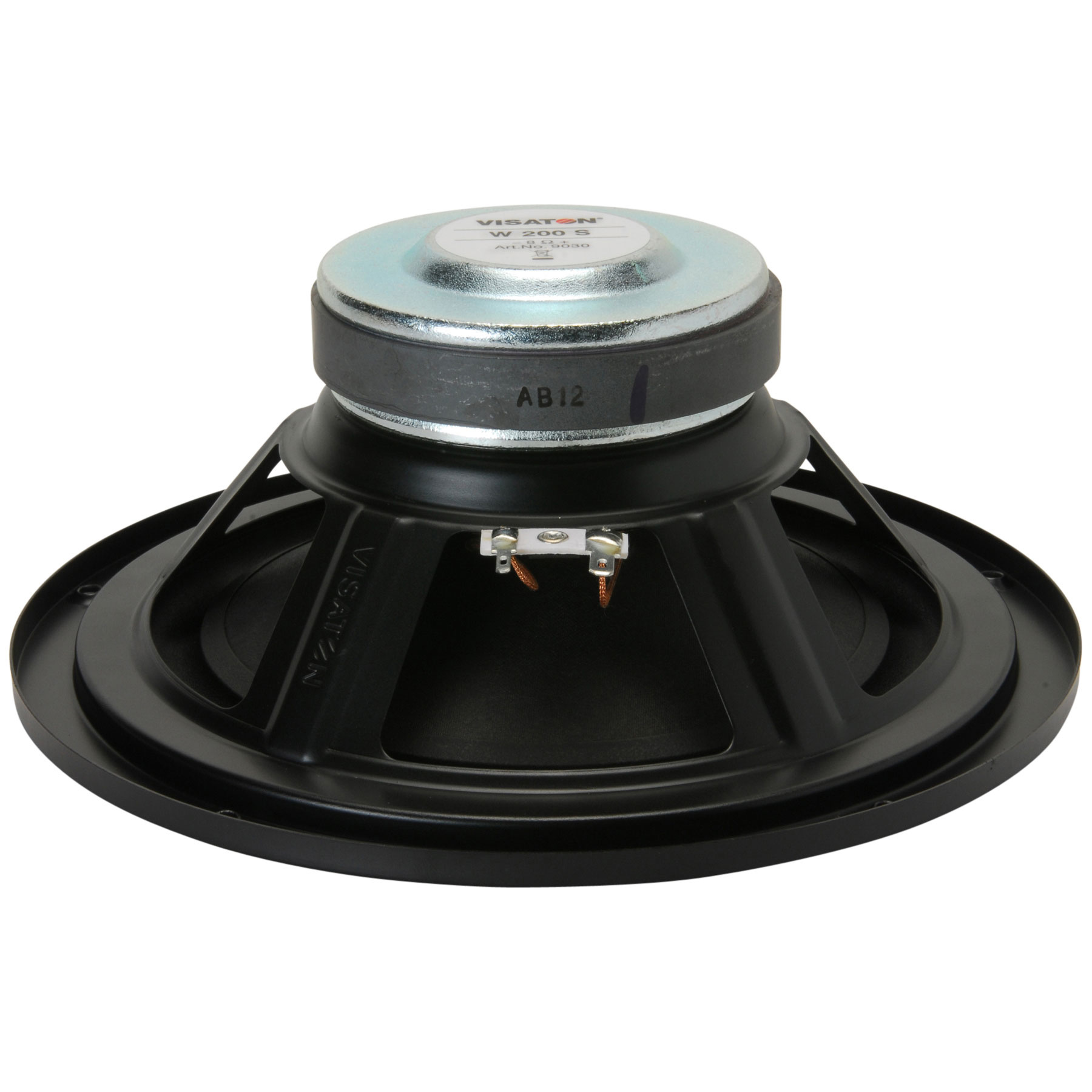

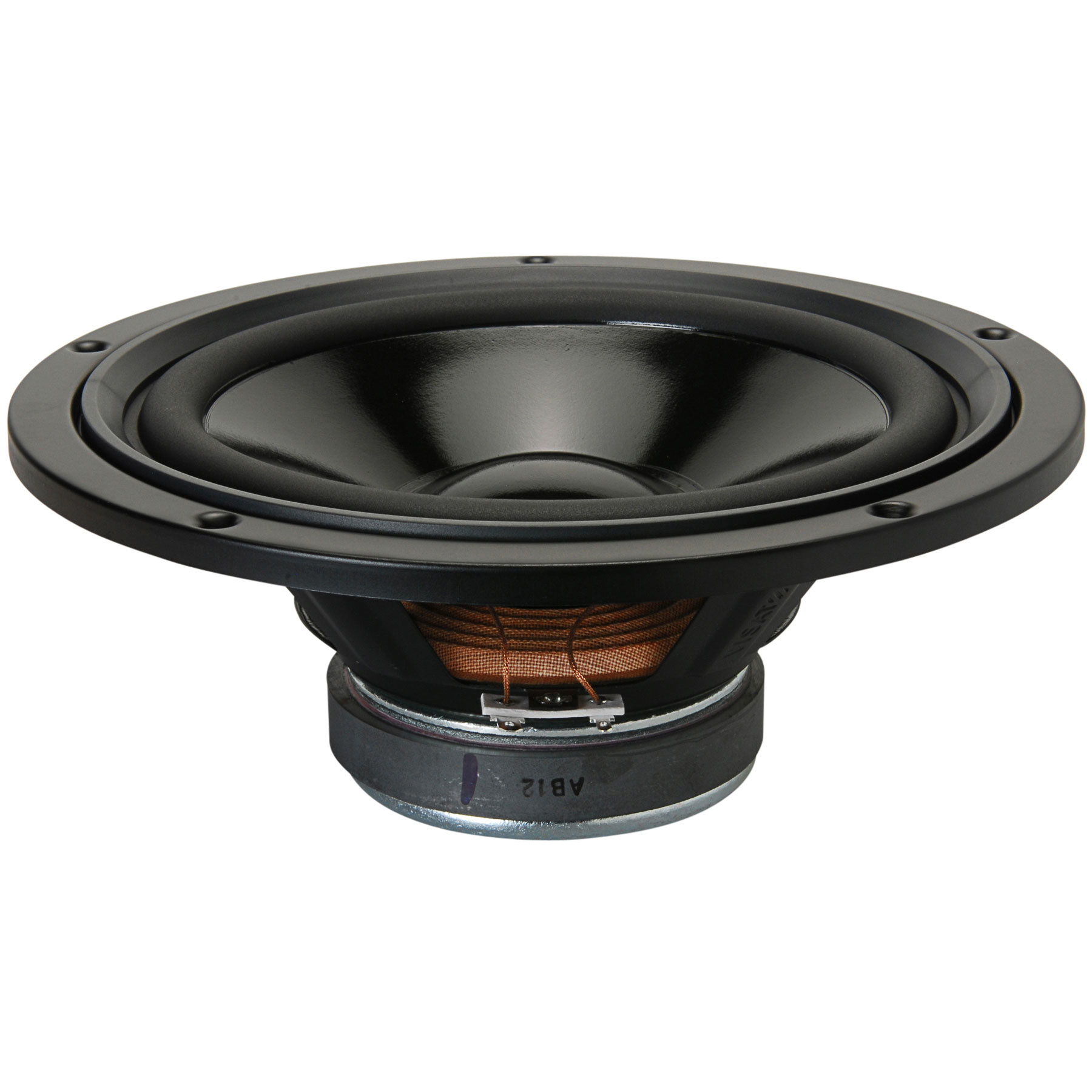

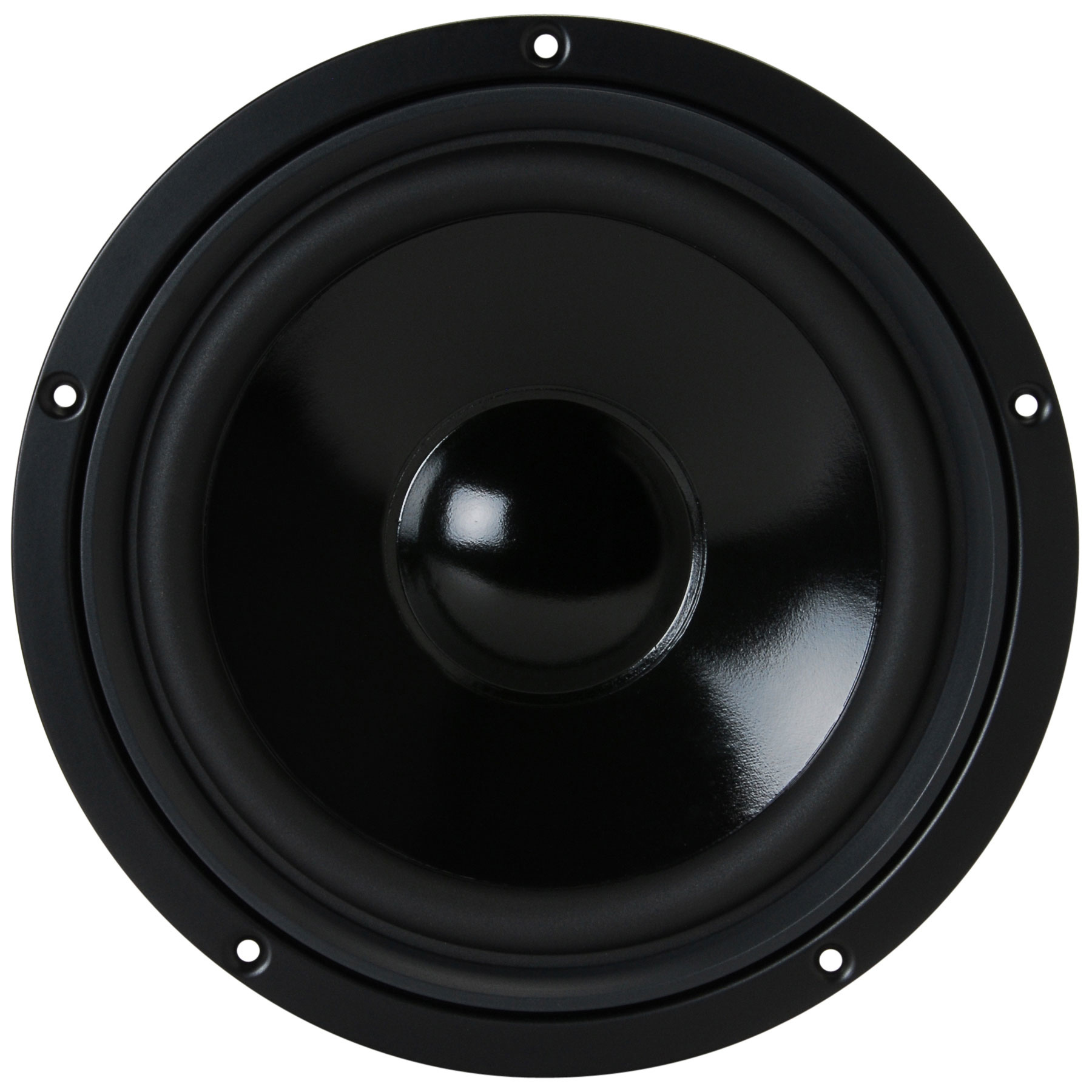

Visaton W 200 S - 8 8" HiFi Woofer 8 Ohm

1 reviews

Brand: Visaton

Show all Woofer

Compare

8" | 8 Ω

€ 53,68€ 64,95 6 In stock

24h express shipping available
Same day shipping
In-house technical support
45 days worry-free returns

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

20 cm (8") HiFi woofer with strong drive, extended rear pole plate and 35 mm voice-coil for high power handling.

Highlights

High-value HiFi woofer
Super-low 30 Hz Fs and 0.33 Qts specifications
Deep bass in a moderate-sized enclosure

Product details

Visaton W 200 S 8" HiFi Woofer 8 Ohm

Visaton's W 200 S 8" woofer features a coated paper cone, durable rubber surround, and a bumped back plate to allow an excursion limit of ±10 mm. A balanced design approach between sensitivity, smooth frequency response (cross it over as high as 2,800 Hz), and extended bass allows this driver to be used as a woofer in two and three-way speaker systems or as a subwoofer.

Specifications

Article number: W 200 S - 8
Woofer Series: HiFi Series
Woofer Type: Midwoofer
Nominal Diameter: 8"
Power Handling (RMS): 75 Watts
Power Handling (max): 115 Watts
Impedance (Z): 8 ohms
Sensitivity: 88 dB (1 W/1 m)
Frequency Response: 30 - 6,000 Hz
Voice Coil Diameter: 35 mm
DC Resistance (Re): 6 ohms
Voice Coil Inductance (Le): 2.2 mH
Resonant Frequency (Fs): 30 Hz
Mechanical Q (Qms): 3.59
Electromagnetic Q (Qes): 0.36
Total Q (Qts): 0.33
Diaphragm Mass Inc. Airload (Mms): 26g
Surface Area of Cone (Sd): 214 cm2
BL Product (BL): 9.0 Tm
Compliance Equivalent Volume (Vas): 70 liters
Maximum Linear Excursion (Xmax): 3.5 mm
Cone / Diaphragm Material: Treated Paper
Surround Material: Rubber
Overall Outside Diameter: 232 mm
Overall Depth: 94 mm
Baffle Cutout Diameter: 184 mm
Bolt Circle Diameter: 218 mm
# Mounting Holes: 5
Mounting Hole Diameter: 5 mm
Sealed Volume: 13.6 liters
Sealed F3: 73 Hz
Vented Volume: 28.3 liters
Vented F3: 44 Hz

Reviews

1 reviews

5 from 5Based on 1 reviews

Review this product

5 of 5

Dit is een prima woofer met een uitstekende prijs/kwaliteit verhouding; ook uitermate geschikt om de Woofer in een Bose 301 series II te vervangen. Volume en Bas output blijven vrijwel gelijk, maar overall krijg je een betere - 'rijkere' output met deze woofer. Let wel op dat je deze 'S' variant neemt en niet de goedkopere 'W 200'.

By JRE on 4 August 2022
