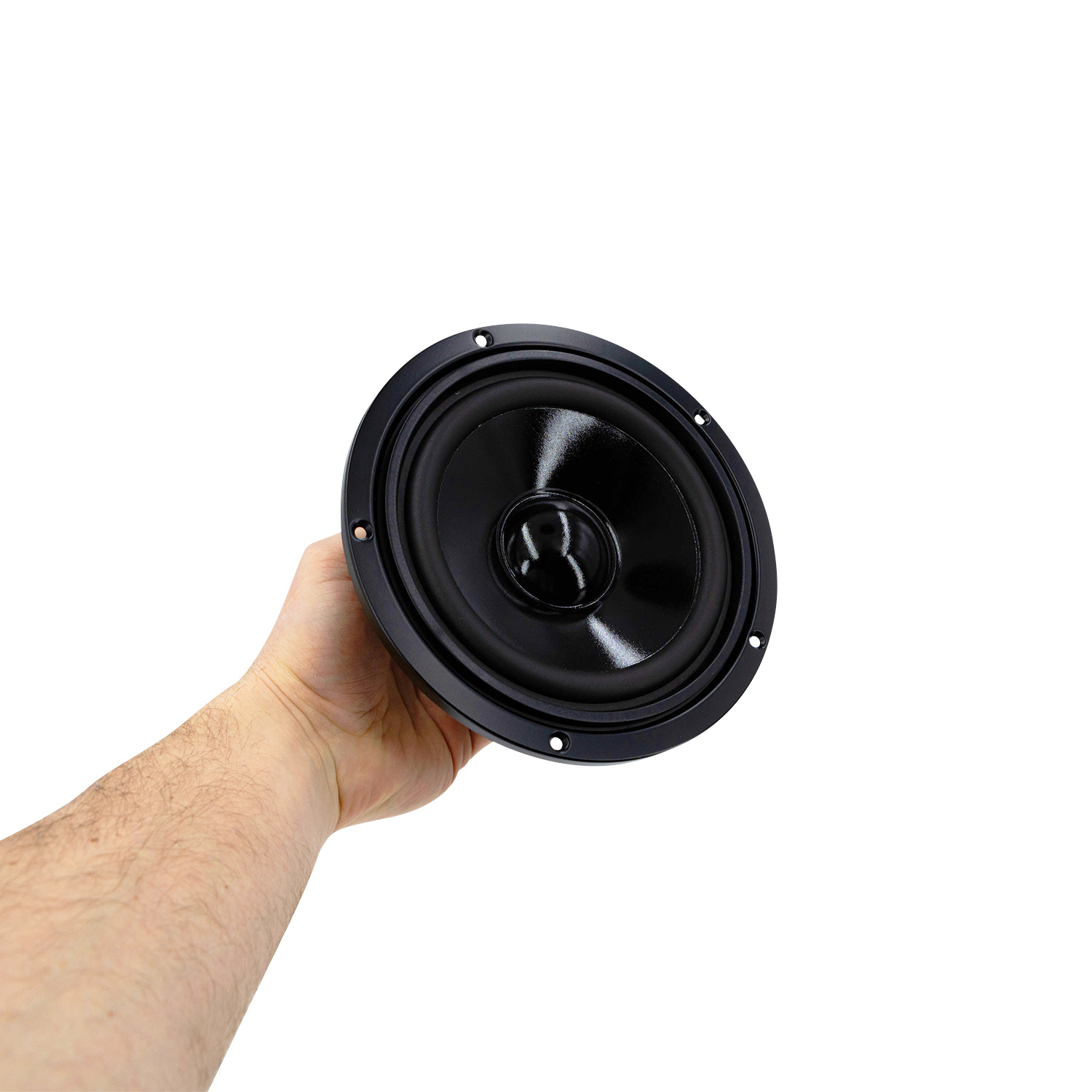

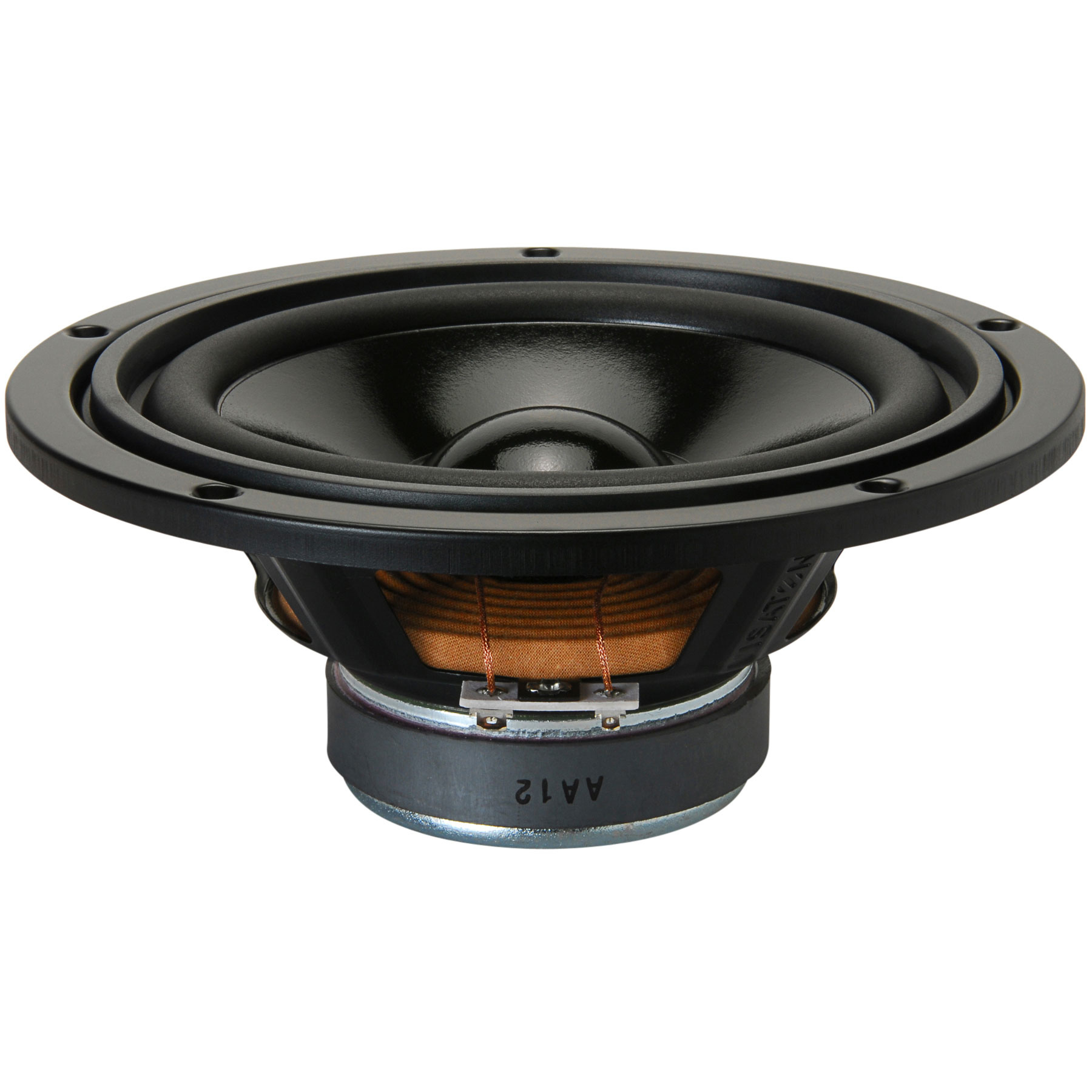

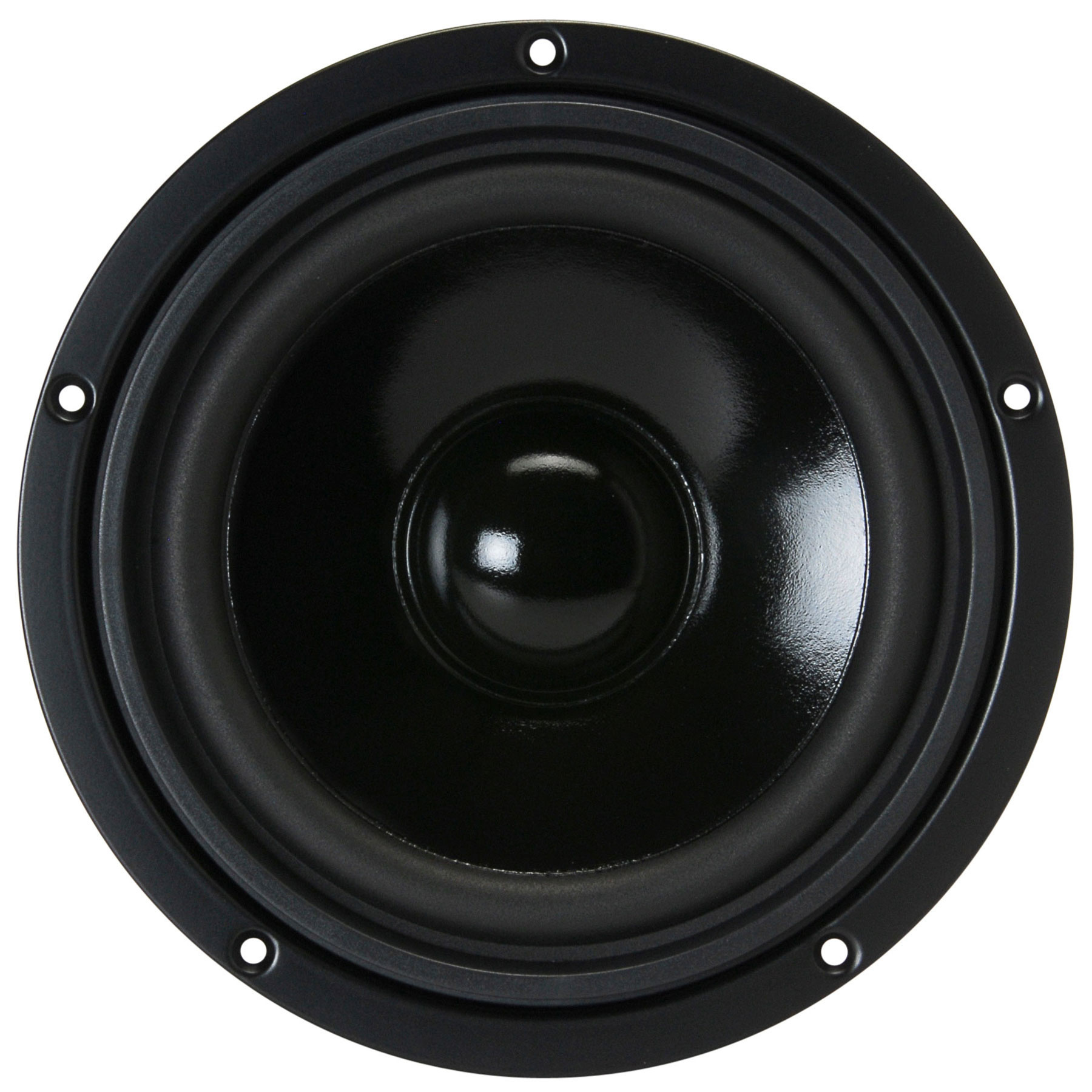

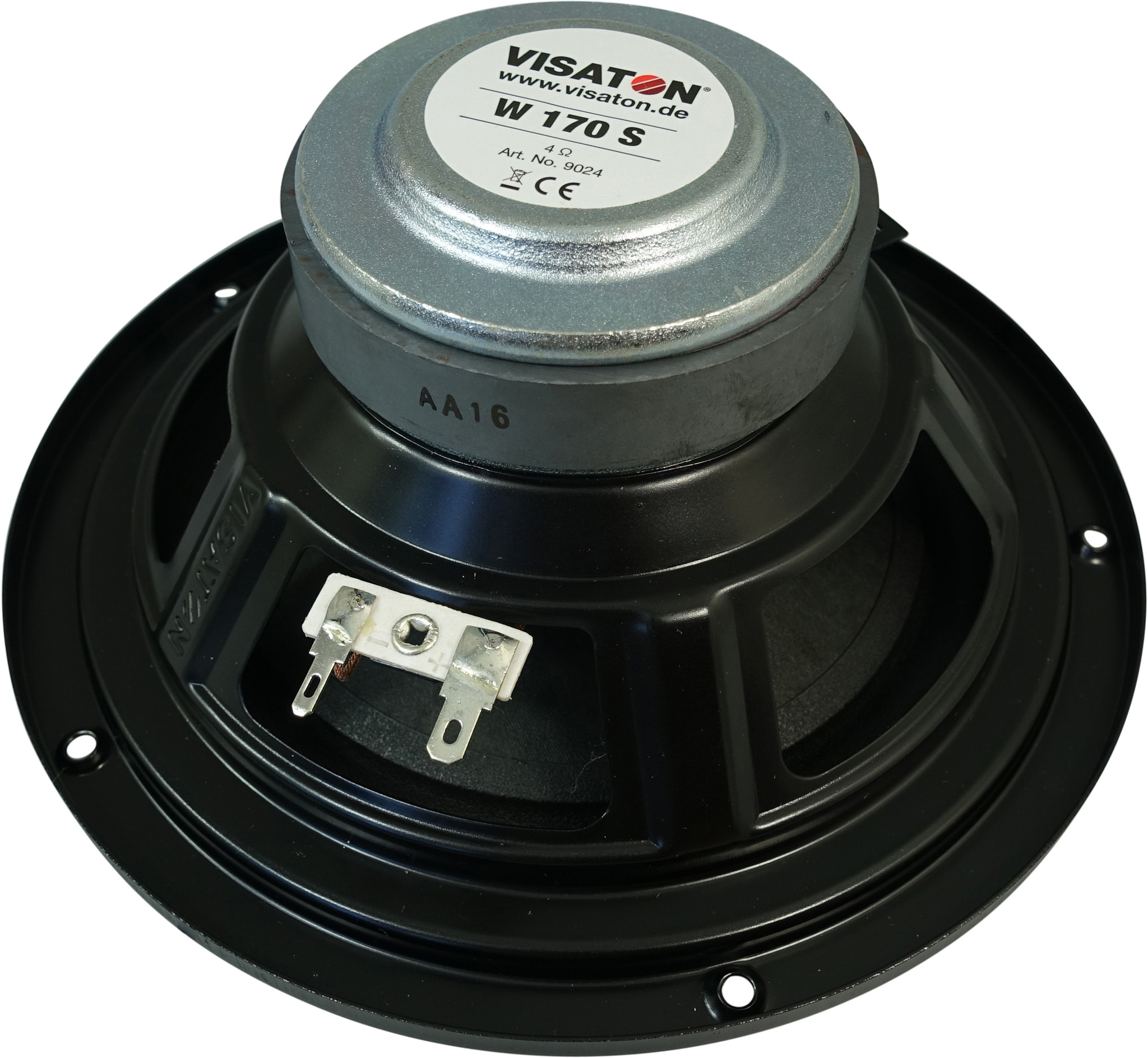

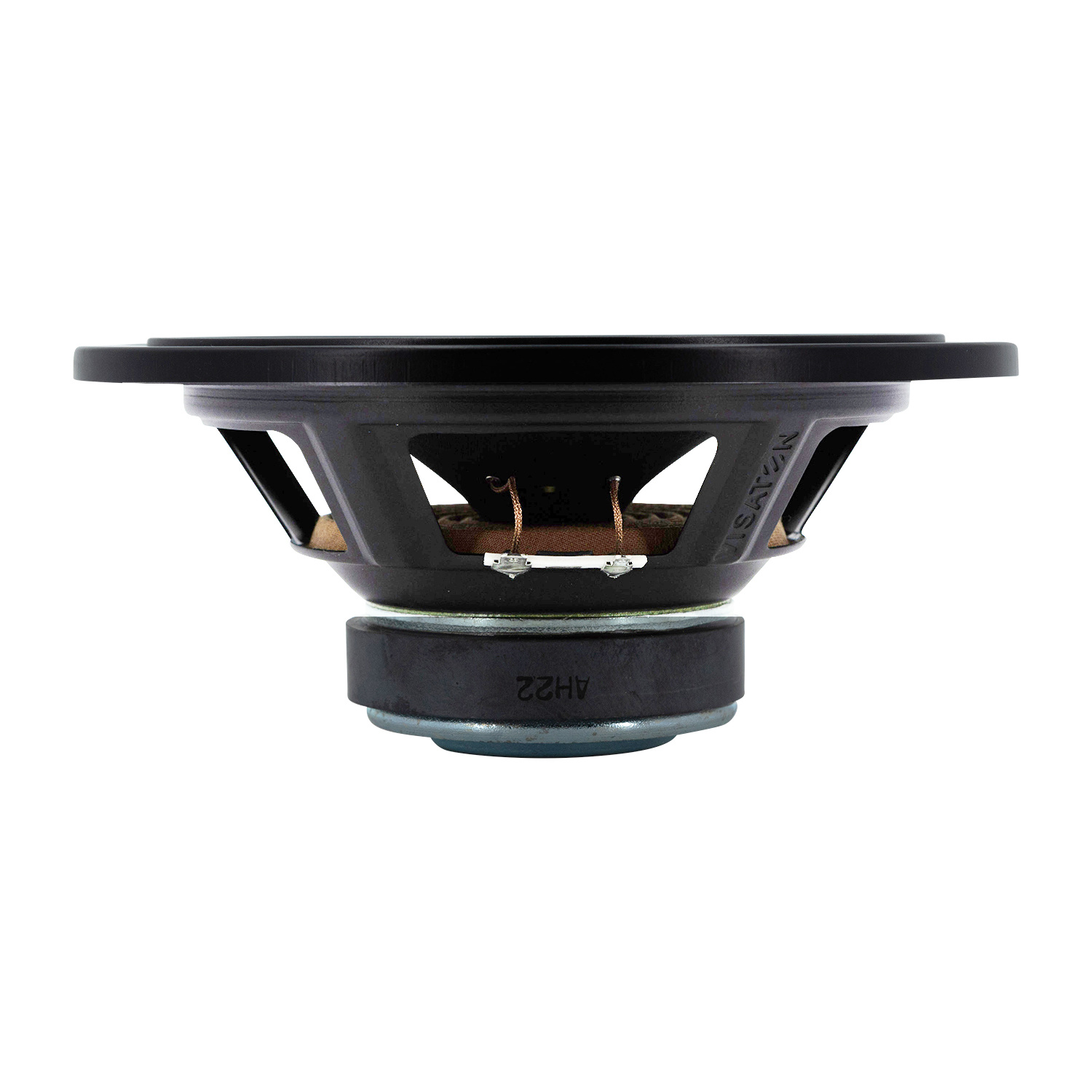

    Visaton W 170 S - 4 6.5" HiFi Woofer 4 Ohm

    € 33,45 3 In stock: delivery time 1-4 business days
    17 cm (6.5") HiFi woofer with coated paper cone, powerful drive and extended rear pole plate.... Show more
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €31,78 per piece
    • Shipping always fully insured and with track & trace
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    17 cm (6.5") HiFi woofer with coated paper cone, powerful drive and extended rear pole plate.



    Highlights

    • Extremely well balanced woofer
    • Easy to design into many different speaker systems
    • Great price/performance ratio



    Product details

    Visaton W 170 S 6,5" HiFi Woofer 4 Ohm



    This woofer features a coated paper cone, durable rubber surround, and a bumped back plate to allow for an excursion limit of ±10 mm. A very balanced and extended frequency response allows the W 170 S to be used as a woofer in small two-way speakers or a midbass/midrange in three-way speakers, with a crossover point as high as 6,800 Hz, or even as a small form-factor subwoofer! This allows you to build a surround sound system with large speakers for front and left, while maintaining the same voicing in smaller surround satellite speakers.

    Specifications

    Article number
    W 170 S - 4
    Woofer Series
    HiFi Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    6.5 "
    Power Handling (RMS)
    50 Watts
    Power Handling (max)
    80 Watts
    Impedance
    4 ohms
    Sensitivity
    86 dB (1 W/1 m)
    Frequency Response
    36 - 8,000 Hz
    Voice Coil Diameter
    25 mm
    DC Resistance (Re)
    3.2 ohms
    Voice Coil Inductance (Le)
    0.6 mH
    Resonant Frequency (Fs)
    36 Hz
    Mechanical Q (Qms)
    2.16
    Electromagnetic Q (Qes)
    0.51
    Total Q (Qts)
    0.41
    Diaphragm Mass Inc. Airload (Mms)
    12g
    Surface Area of Cone (Sd)
    129 cm2
    BL Product (BL)
    4.4 Tm
    Compliance Equivalent Volume (Vas)
    38 liters
    Maximum Linear Excursion (Xmax)
    4.25 mm
    Cone / Diaphragm Material
    Paper
    Surround Material
    Rubber
    Overall Outside Diameter
    187.3 mm
    Overall Depth
    81 mm
    Baffle Cutout Diameter
    148 mm
    Bolt Circle Diameter
    175.8 mm
    # Mounting Holes
    5
    Mounting Hole Diameter
    4.4 mm
    Sealed Volume
    13 liters
    Sealed F3
    69 Hz
    Vented Volume
    33.4 liters
    Vented F3
    37 Hz
