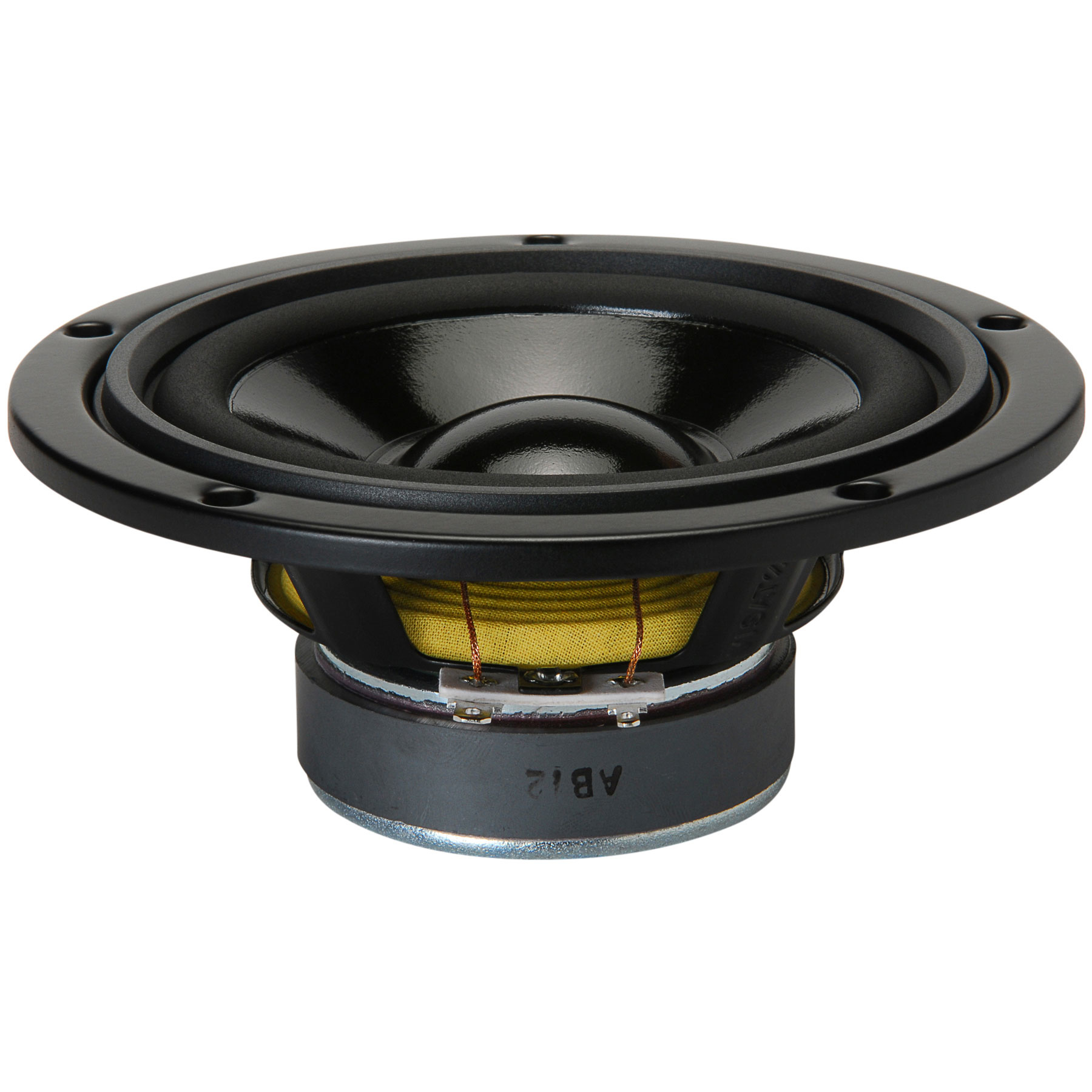

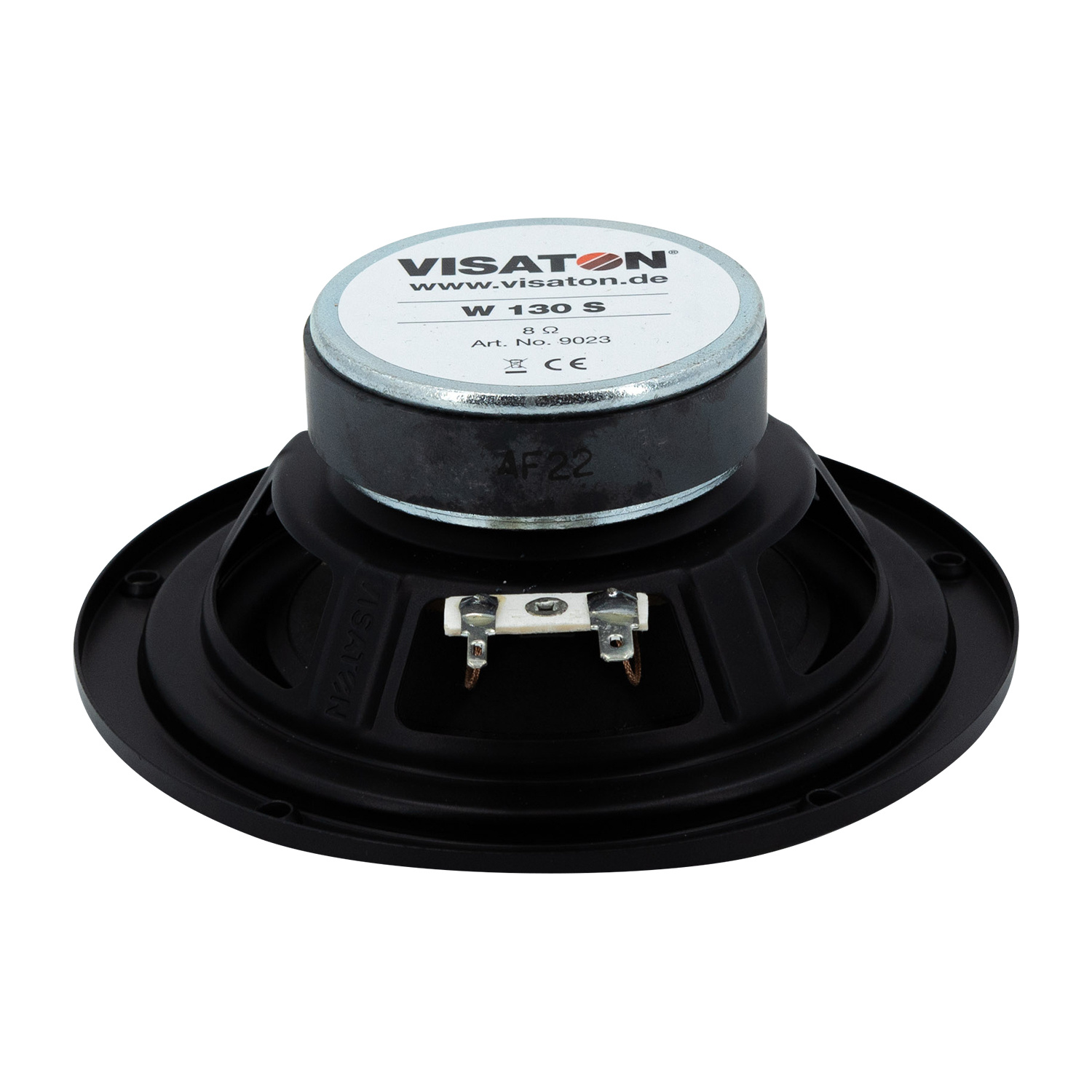

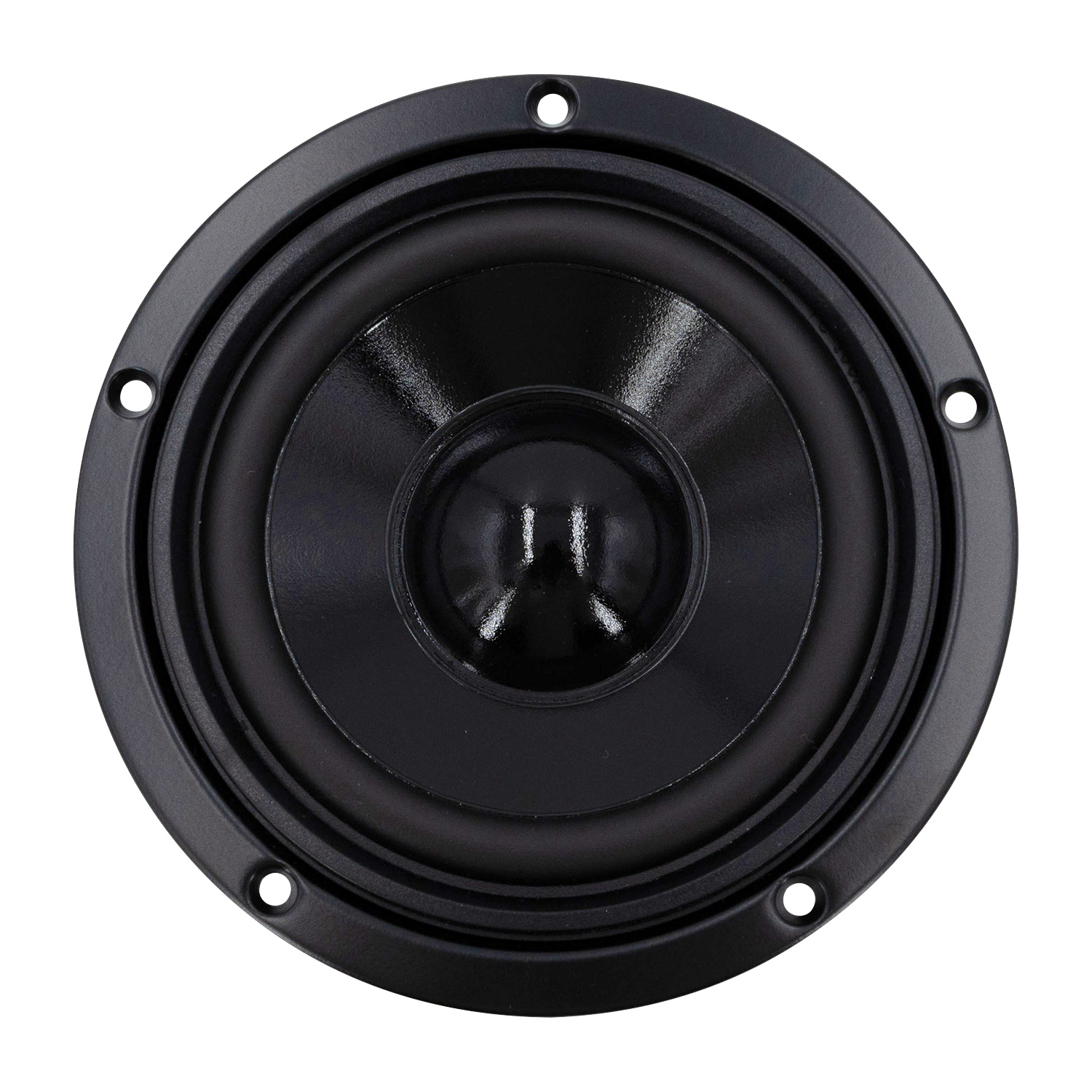

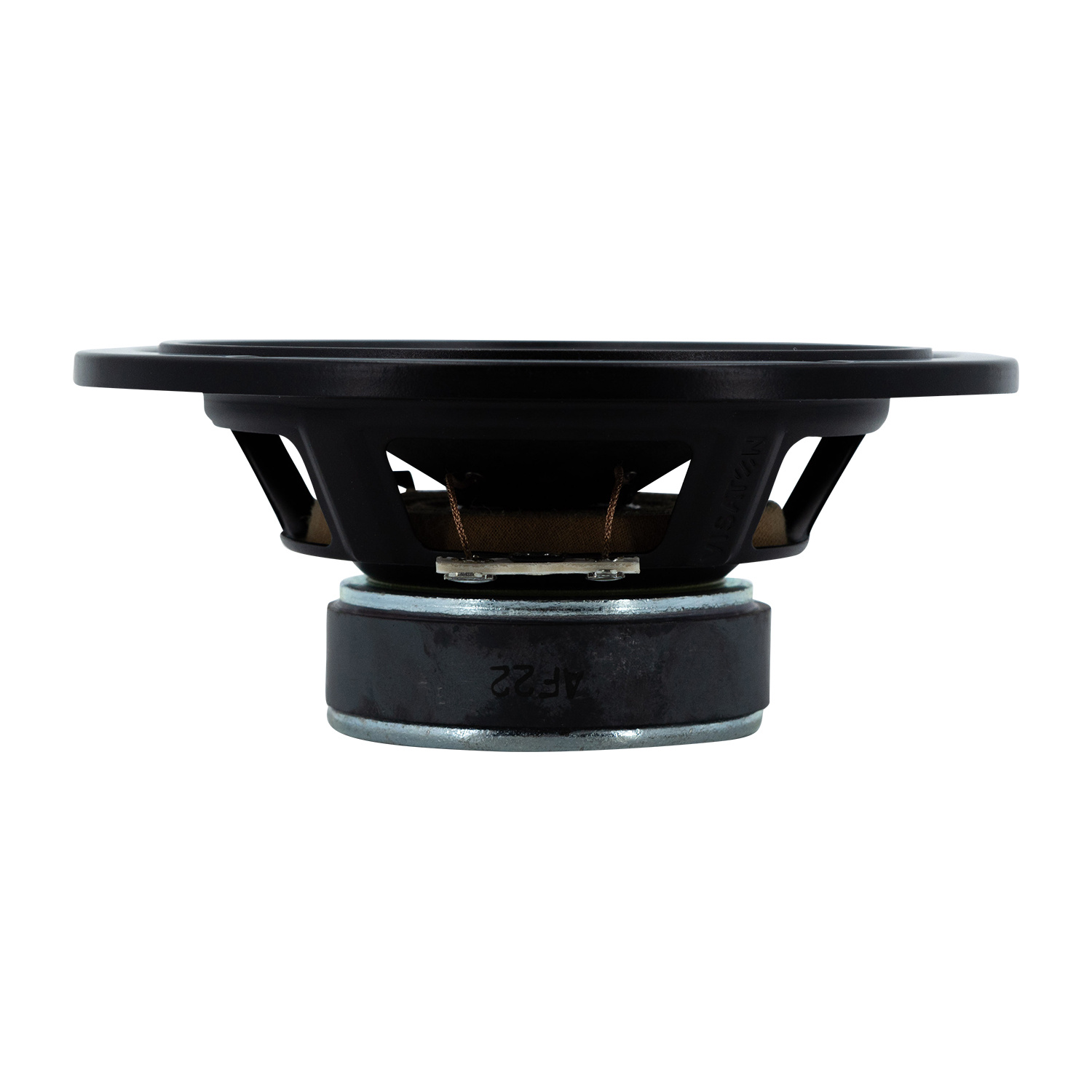

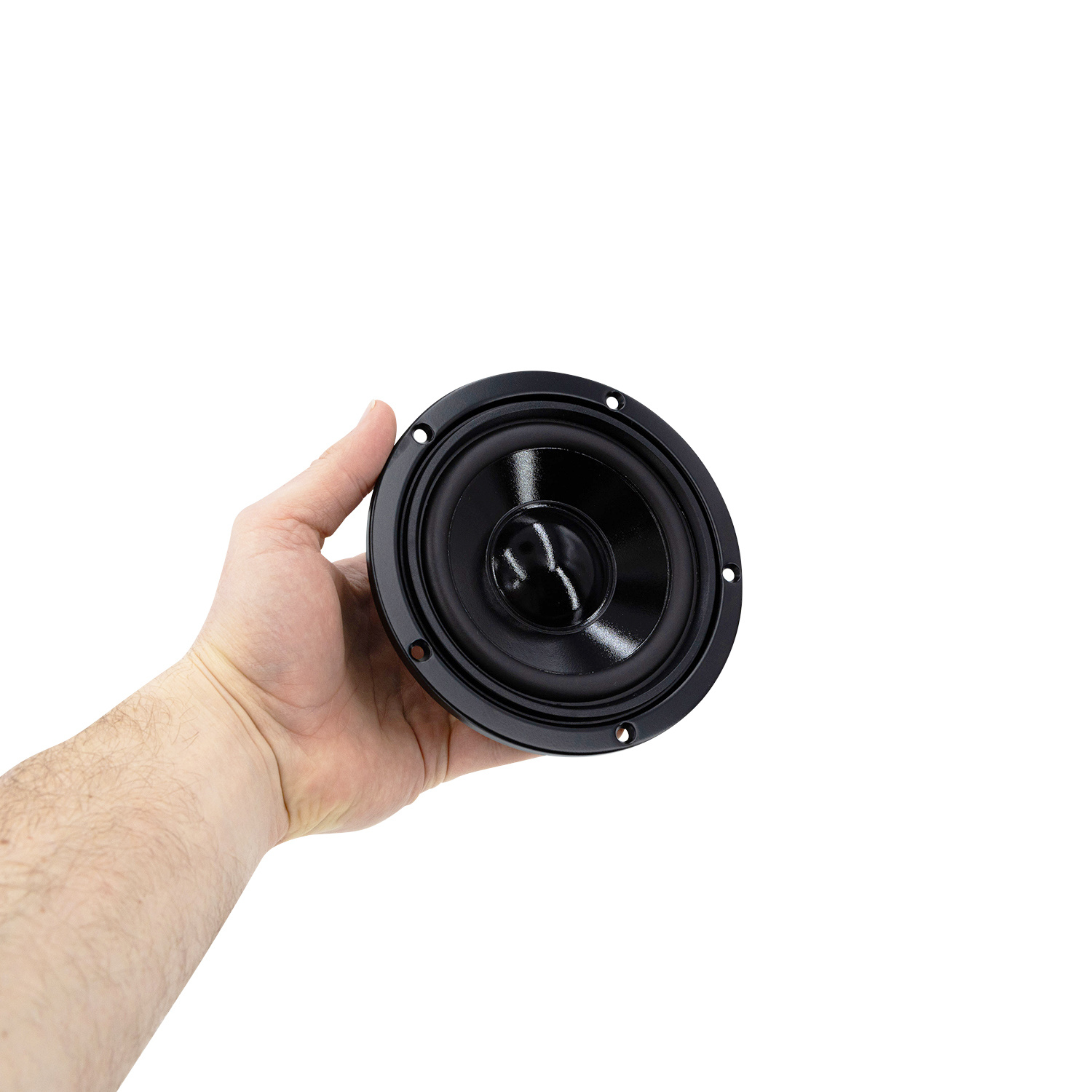

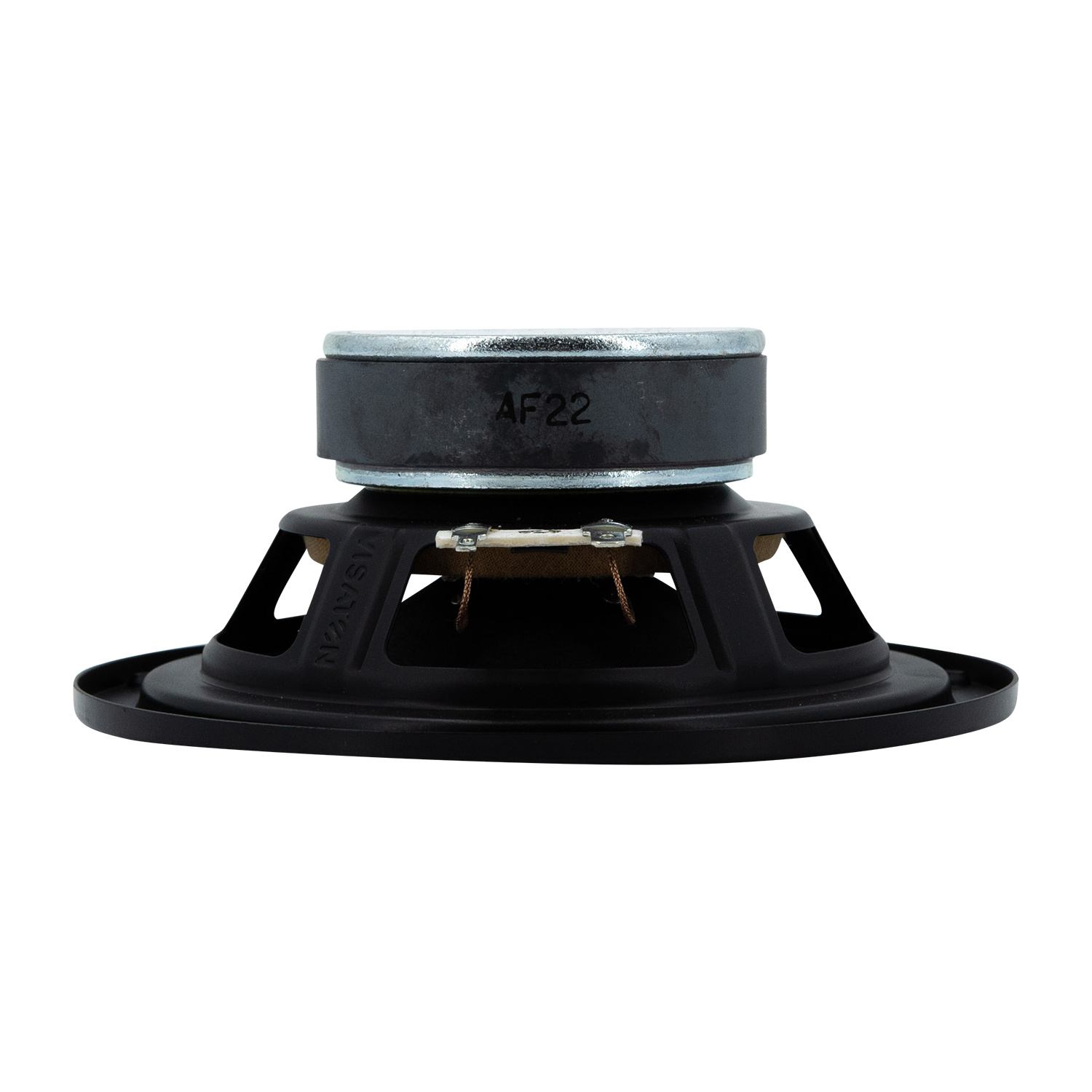

        Visaton W 130 S - 8 5" Woofer 8 Ohm

        0 reviews
        Brand: Visaton
        Show all Bass-mid woofer
        5" | 8 Ω
        W 130 S - 8 5" Woofer 8 Ohm
        W 130 S - 8 5" Woofer 8 Ohm
        W 130 S - 8 5" Woofer 8 Ohm
        W 130 S - 8 5" Woofer 8 Ohm
        W 130 S - 8 5" Woofer 8 Ohm
        W 130 S - 8 5" Woofer 8 Ohm
        € 31,78€ 38,45 4 In stock
        • -5% Order 4 for only € 36,53 per piece
        +-
        Add to cart

        Buy now, pay later

        • 24h express shipping available
        • Same day shipping
        • In-house technical support
        • 45 days worry-free returns
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        W 130 S - 8 5" Woofer 8 Ohm
        W 130 S - 8 5" Woofer 8 Ohm
        W 130 S - 8 5" Woofer 8 Ohm
        W 130 S - 8 5" Woofer 8 Ohm
        W 130 S - 8 5" Woofer 8 Ohm
        W 130 S - 8 5" Woofer 8 Ohm

        Product description

        Highlights

        • Relatively flat frequency response from 80 to 4,000 Hz
        • Able to play below 40 Hz in a proper vented cabinet
        • Great power handling and Xmax



        Product details

        Visaton W 130 S - 8 5" Woofer 8 Ohm



        Visaton's 9023 W130S 5" woofer features a coated paper cone and durable rubber surround. A very balanced frequency response allows the W130S to be used as a woofer in small two-way speakers or a midbass/midrange in three-way speakers, with a crossover point as high as 4,000 Hz. This allows you to build a surround sound system with large speakers for front and left, while maintaining the same voicing in smaller surround satellite speakers.



        For best bass performance, install the W130S into one of the following cabinets: A 0.25 cubic foot sealed cabinet (F3 is 86 Hz with a Qtc of 0.75) • A 0.71 cubic foot cabinet tuned to 44 Hz with a 1-1/4" diameter port that is 1-9/16" long • A 1.06 cubic foot cabinet tuned to 39 Hz with a 2-3/8" diameter port that is 4-3/4"" long.

        Show more

        Specifications

        Article number
        W 130 S - 8
        Woofer Series
        HiFi Series
        Woofer Type
        Bass-mid woofer
        Nominal Diameter
        5"
        Power Handling (RMS)
        50 watts
        Power Handling (max)
        80 watts
        Impedance (Z)
        8 ohms
        Sensitivity
        87 dB 1W/1m
        Frequency Response
        52 - 12,000 Hz
        Voice Coil Diameter
        1"
        DC Resistance (Re)
        6 ohms
        Voice Coil Inductance (Le)
        0.6 mH
        Resonant Frequency (Fs)
        52 Hz
        Mechanical Q (Qms)
        2.26
        Electromagnetic Q (Qes)
        0.59
        Total Q (Qts)
        0.47
        Compliance Equivalent Volume (Vas)
        0.42 ft.³
        Maximum Linear Excursion (Xmax)
        2.25 mm
        Cone / Diaphragm Material
        Treated Paper
        Surround Material
        Rubber
        Overall Outside Diameter
        146 mm
        Overall Depth
        53.1 mm
        Baffle Cutout Diameter
        106.9 mm
        # Mounting Holes
        5
        Sealed Volume
        5.95 liters
        Sealed F3
        88 Hz
        Vented Volume
        15.86 liters
        Vented F3
        43 Hz
