    Visaton W 130 S - 4 5" Woofer 4 Ohm

    € 24,75€ 29,95 3 In stock: delivery time 1-4 business days
    The W 130 S 5" woofer from Visaton delivers amazing bass, Xmax, and midrange performance not normally found in drivers at its price point. The 4-ohm impedance is perfect for series pair use in MTM and center-channel speakers.... Show more
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €28,45 per piece
    • Shipping always fully insured and with track & trace
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    The 9022 W130S 5" woofer from Visaton delivers amazing bass, Xmax, and midrange performance not normally found in drivers at its price point. The 4-ohm impedance is perfect for series pair use in MTM and center-channel speakers.



    Highlights

    • Relatively flat frequency response from 80 to 4,000 Hz
    • Able to play below 40 Hz in a proper vented cabinet
    • Great power handling and Xmax
    • 4-ohm impedance is perfect for series pair use in MTM and center-channel speakers



    Product details

    Visaton W 130 S - 4 5" Woofer 4 Ohm

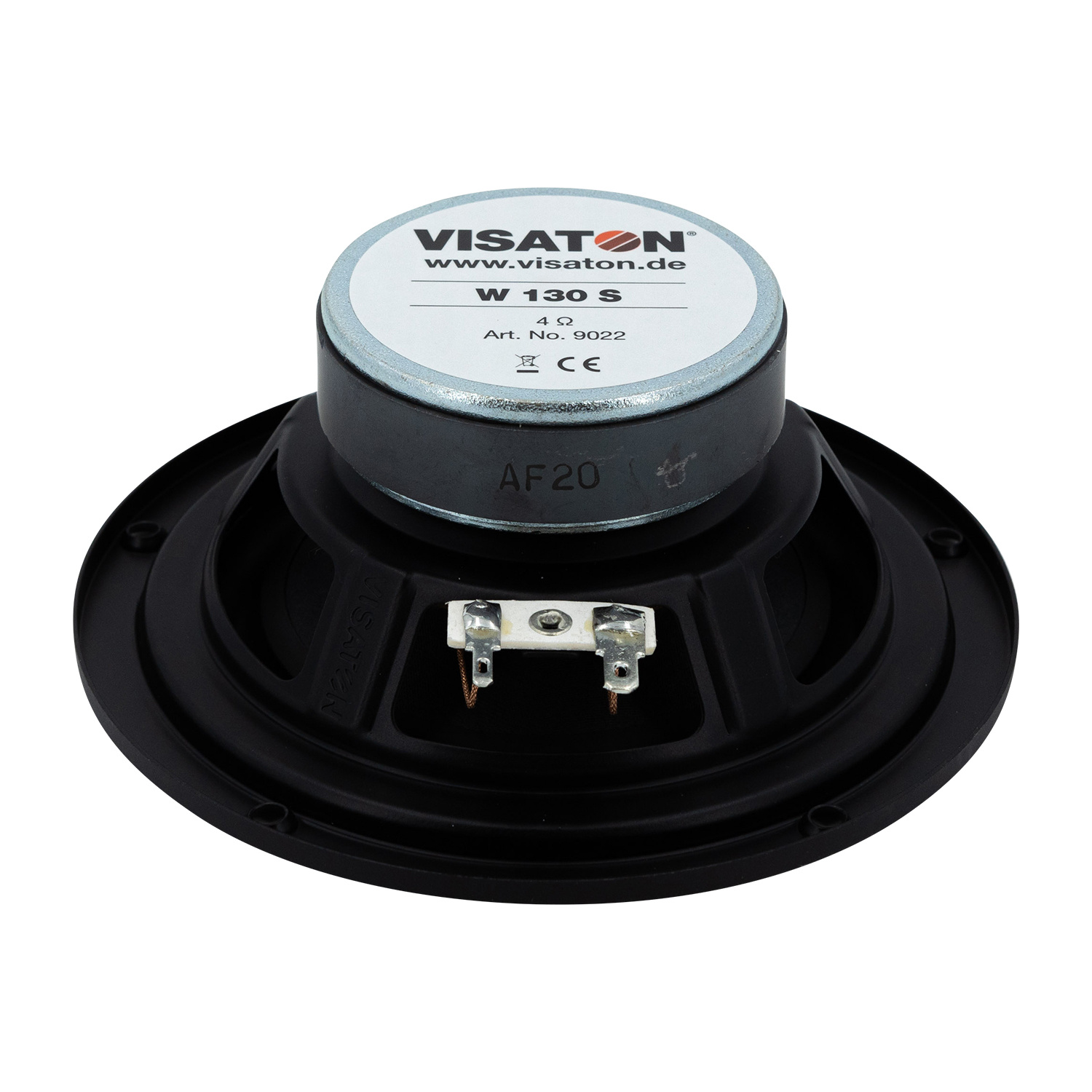

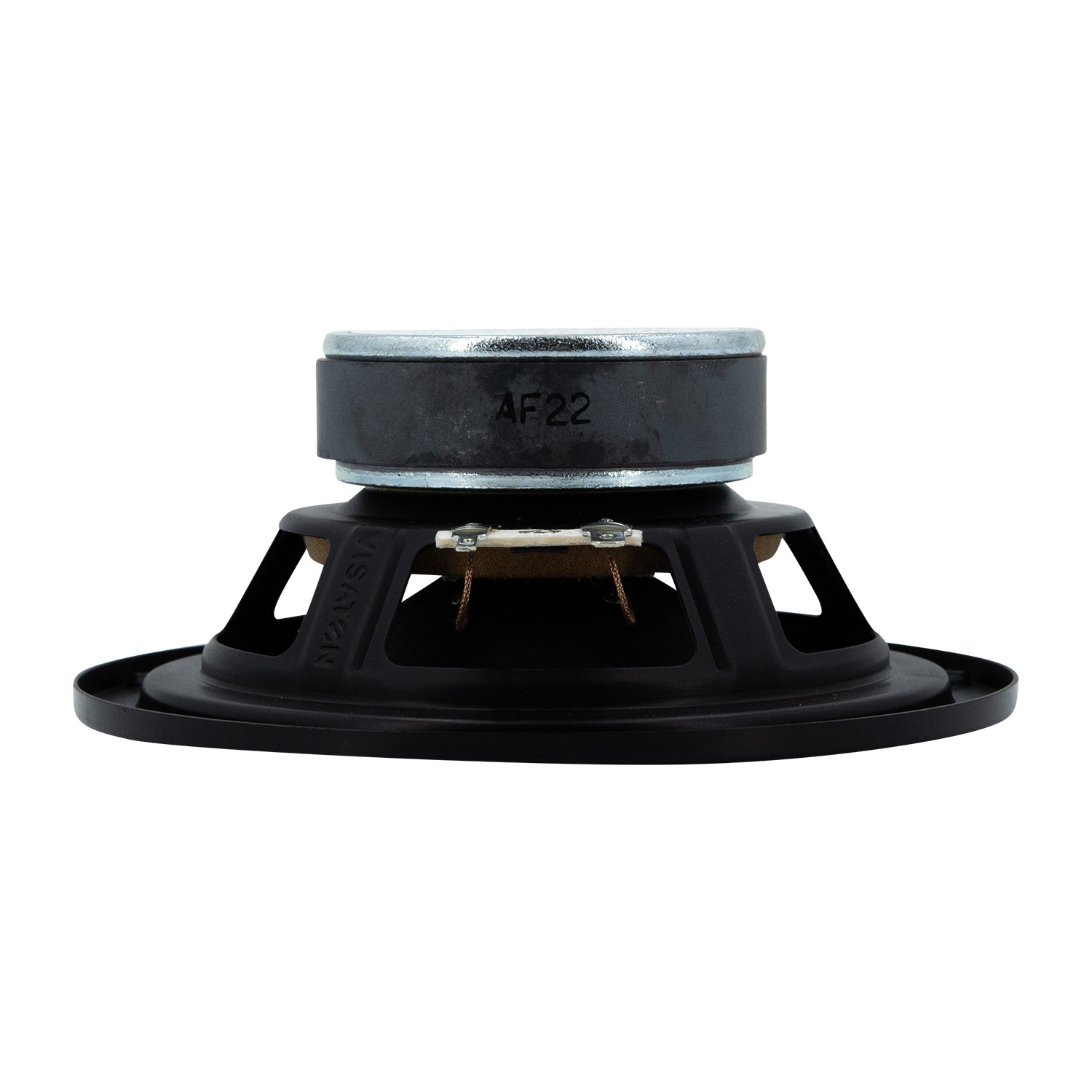

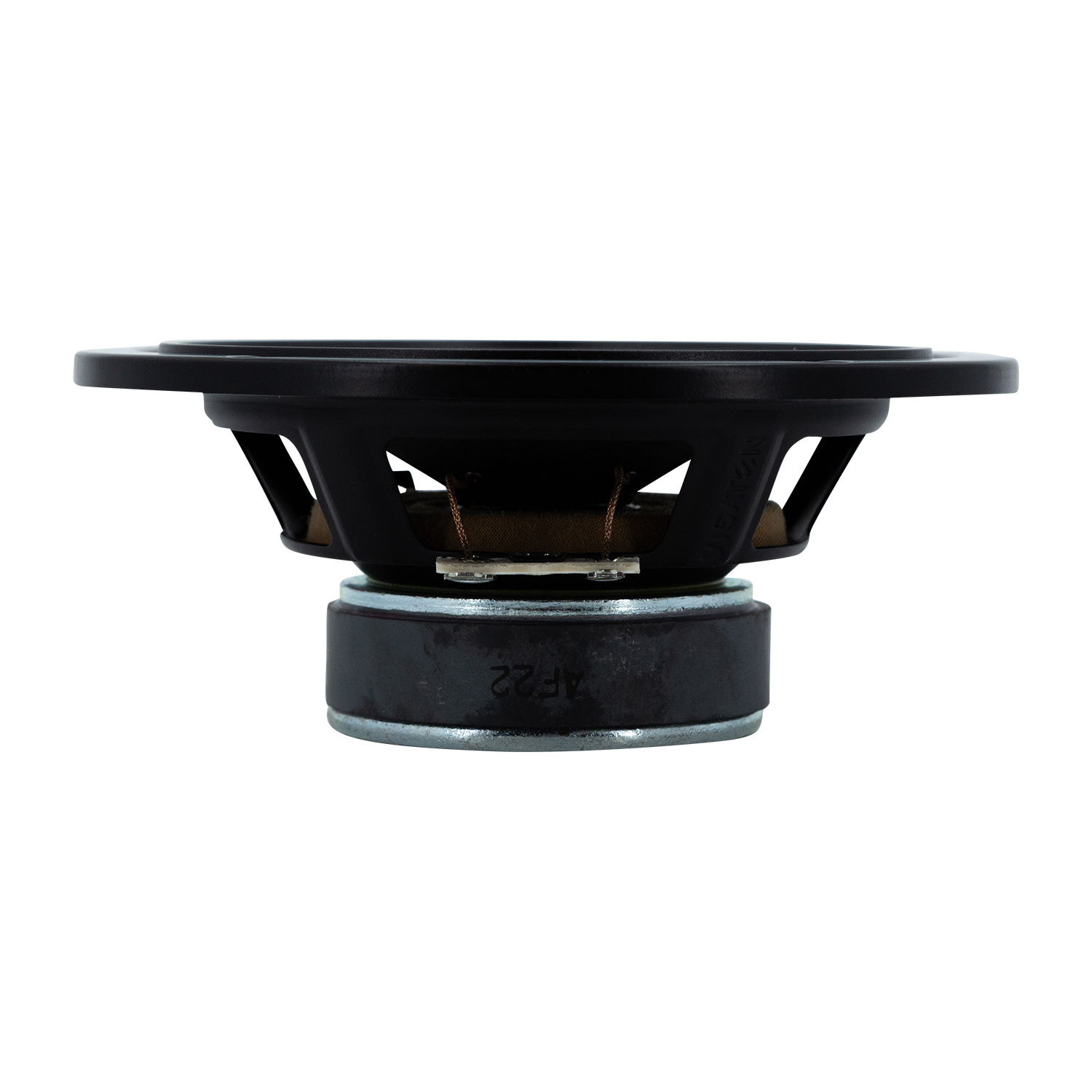

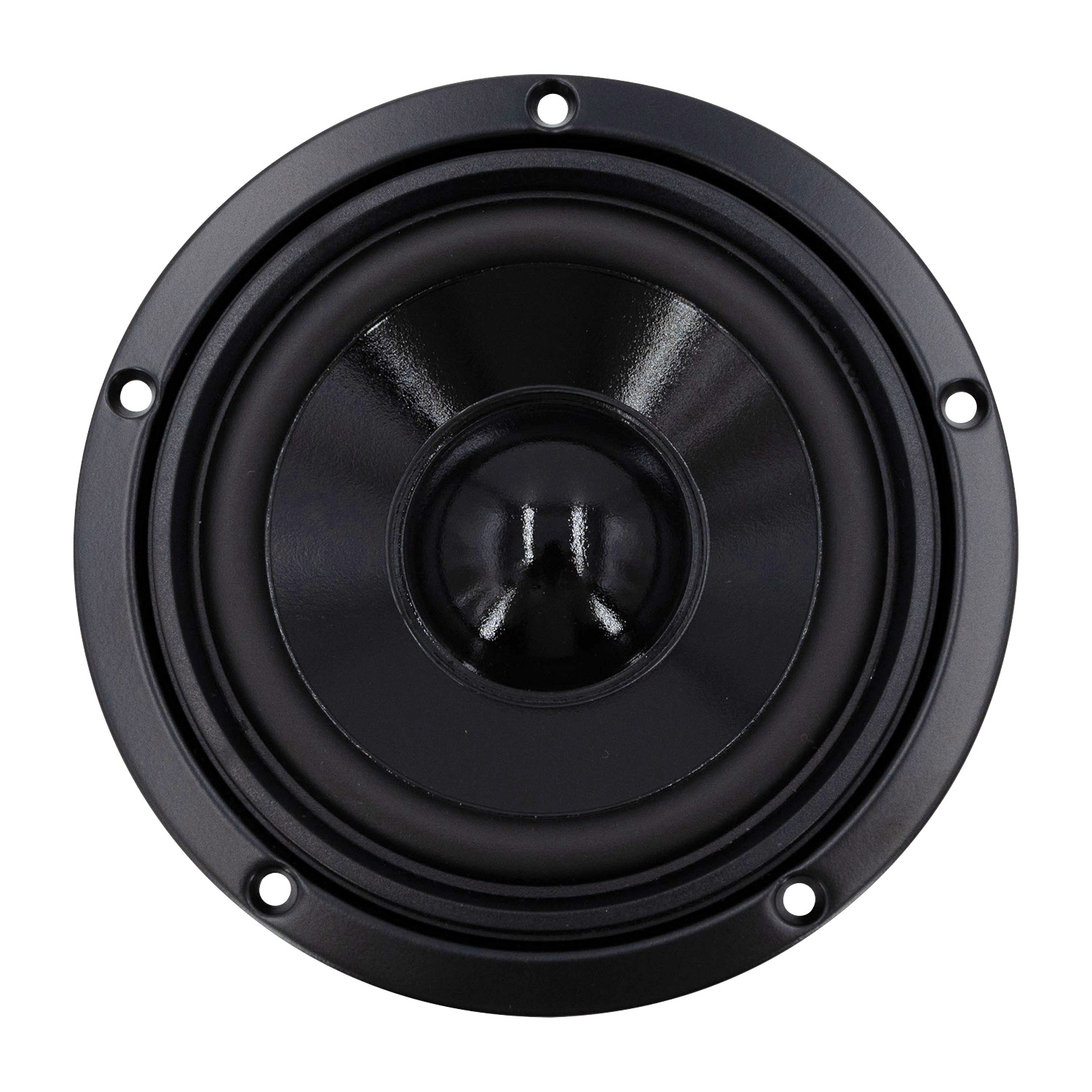

    Visaton's 9022 W130S 5" woofer features a coated paper cone and durable rubber surround. A very balanced frequency response allows the W130S to be used as a woofer in small two-way speakers or a midbass/midrange in three-way speakers, with a crossover point as high as 4,000 Hz. This allows you to build a surround sound system with large speakers for front and left, while maintaining the same voicing in smaller surround satellite speakers. The 4-ohm impedance is perfect for series pair use in MTM and center-channel speakers.



    For best bass performance, install the W130S into one of the following cabinets: • A 0.25 cubic foot sealed cabinet (F3 is 86 Hz with a Qtc of 0.75) • A 0.71 cubic foot cabinet tuned to 44 Hz with a 1-1/4" diameter port that is 1-9/16" long • A 1.06 cubic foot cabinet tuned to 39 Hz with a 2-3/8" diameter port that is 4-3/4" long.

    Specifications

    Article number
    W 130 S - 4
    Woofer Series
    HiFi Series
    Woofer Type
    Bass-mid woofer
    Nominal Diameter
    5"
    Power Handling (RMS)
    50 watts
    Power Handling (max)
    80 watts
    Impedance
    4 ohms
    Sensitivity
    86 dB 1W/1m
    Frequency Response
    50 - 12.000 Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    3.5 ohms
    Voice Coil Inductance (Le)
    0.6 mH
    Resonant Frequency (Fs)
    50 Hz
    Mechanical Q (Qms)
    2.54
    Electromagnetic Q (Qes)
    0.55
    Total Q (Qts)
    0.45
    Compliance Equivalent Volume (Vas)
    13.87 liters
    Maximum Linear Excursion (Xmax)
    2.25 mm
    Cone / Diaphragm Material
    Treated Paper
    Surround Material
    Rubber
    Overall Outside Diameter
    146.1 mm
    Overall Depth
    53.1 mm
    Baffle Cutout Diameter
    107 mm
    # Mounting Holes
    5
    Sealed Volume
    6.23 liters
    Sealed F3
    88 Hz
    Vented Volume
    16.71 liters
    Vented F3
    44 Hz

    Reviews

    5 from 5Based on 2 reviews
    Review this product
    5 van 5
    Een oude bekende voor mij die nog steeds heel veel waarde geeft voor zijn prijs.
    Een diep laag met een ver doorlopend middengebied. Mijn meest dankbare unit voor simpele 2 weg, d'apolito of spreekgebied in 3 weg systemen.
    By Edwin V. on 13 May 2021
    4 van 5
    Opmerkelijke prestaties voor een 'lilliputter' woofer !
    By Joost W. on 6 June 2020
