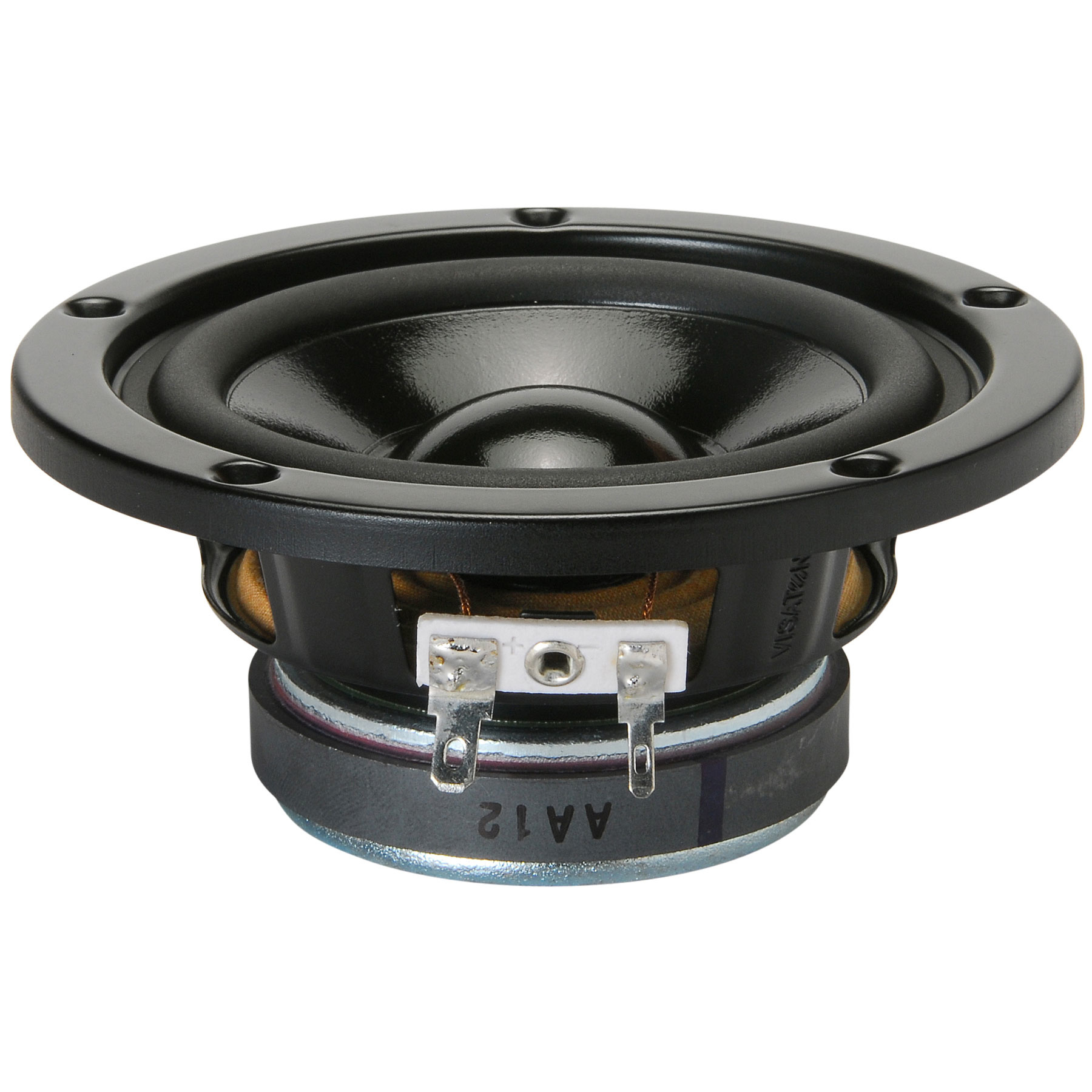

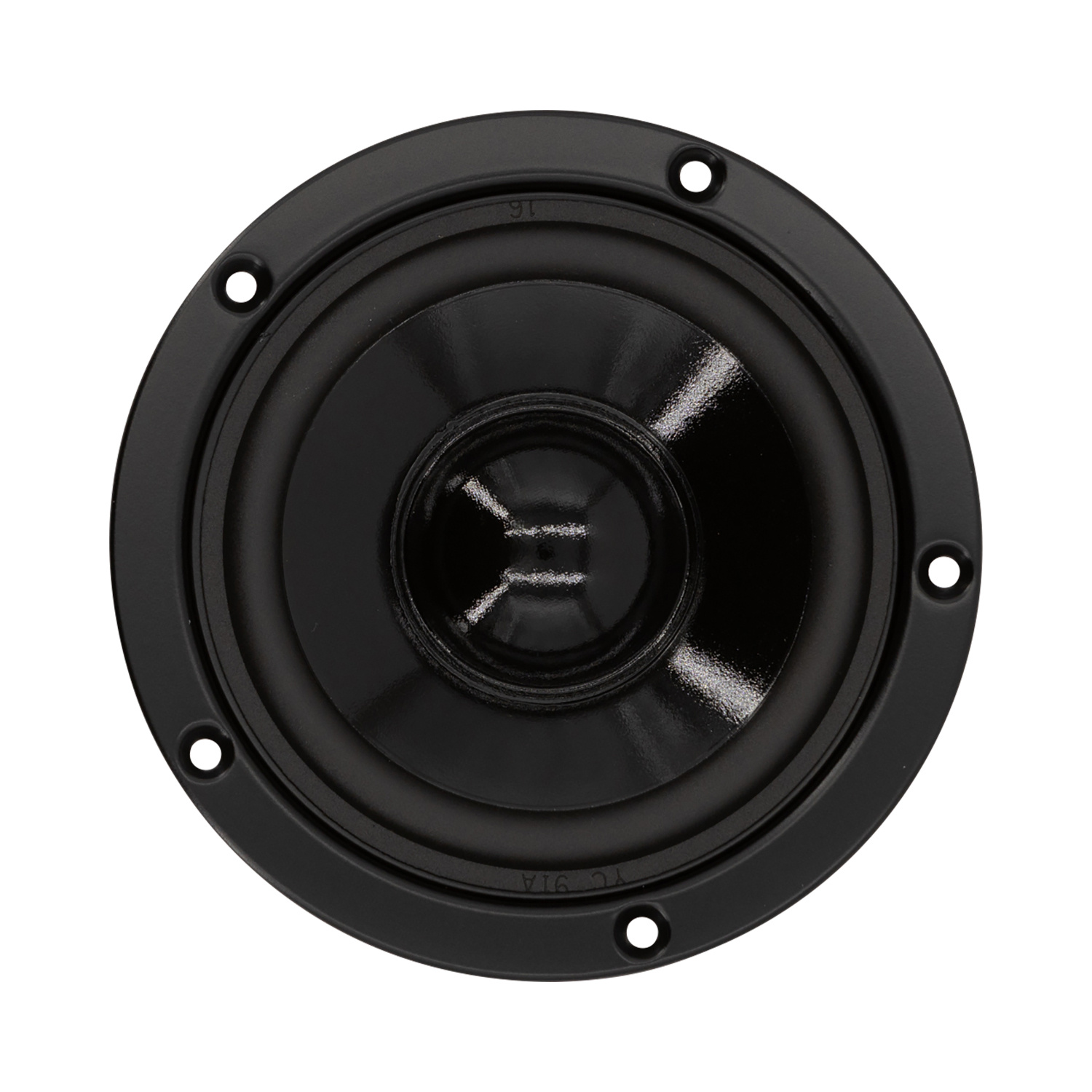

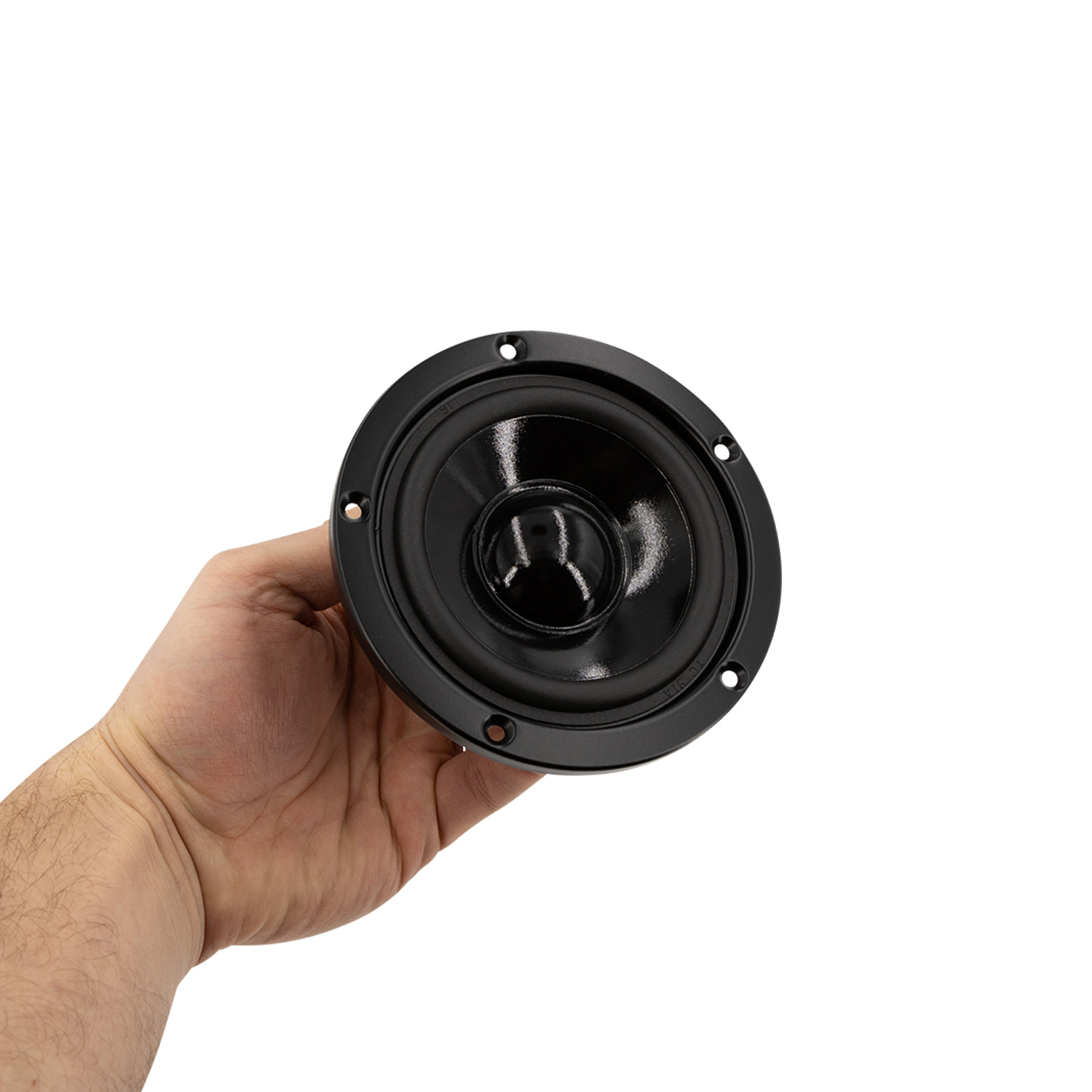

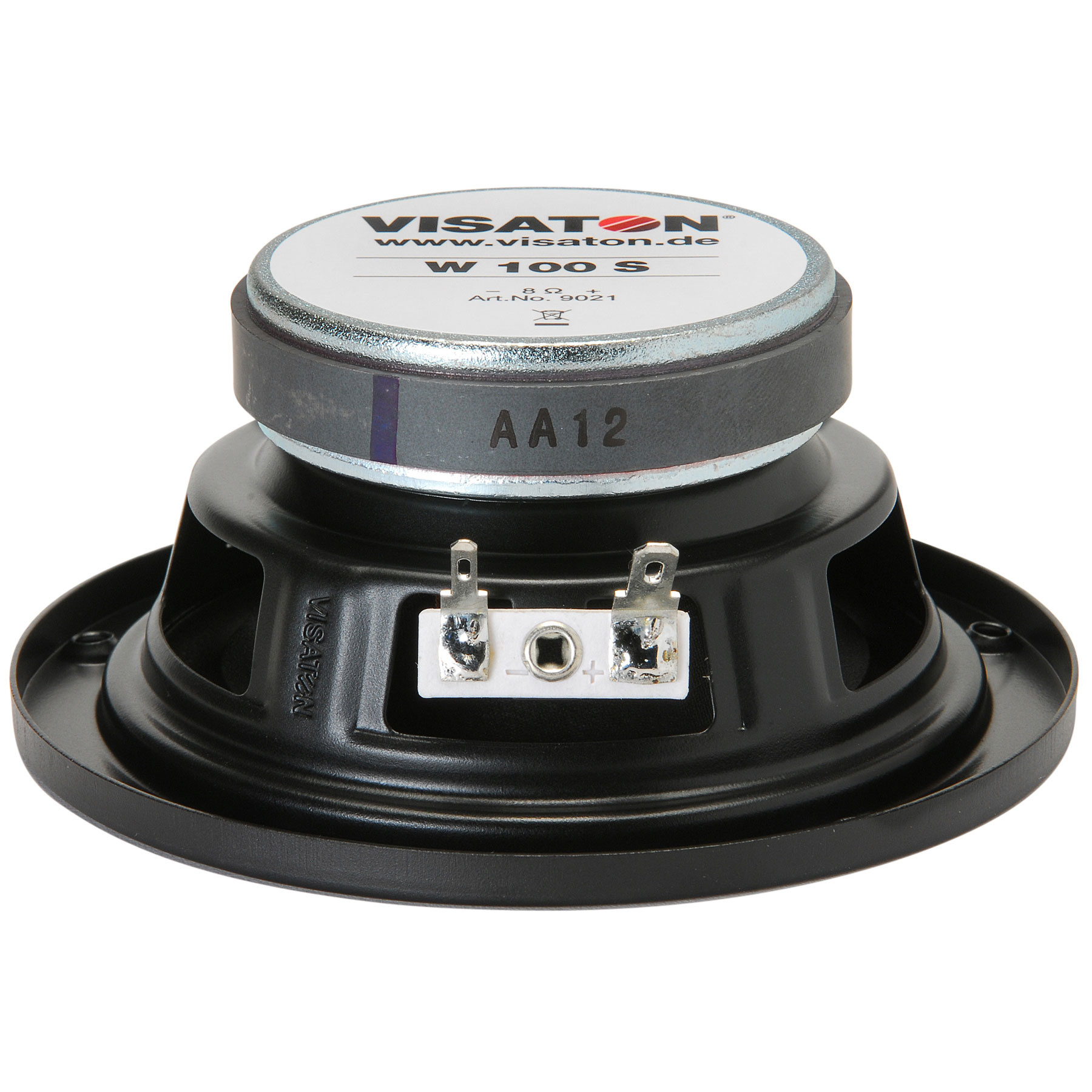

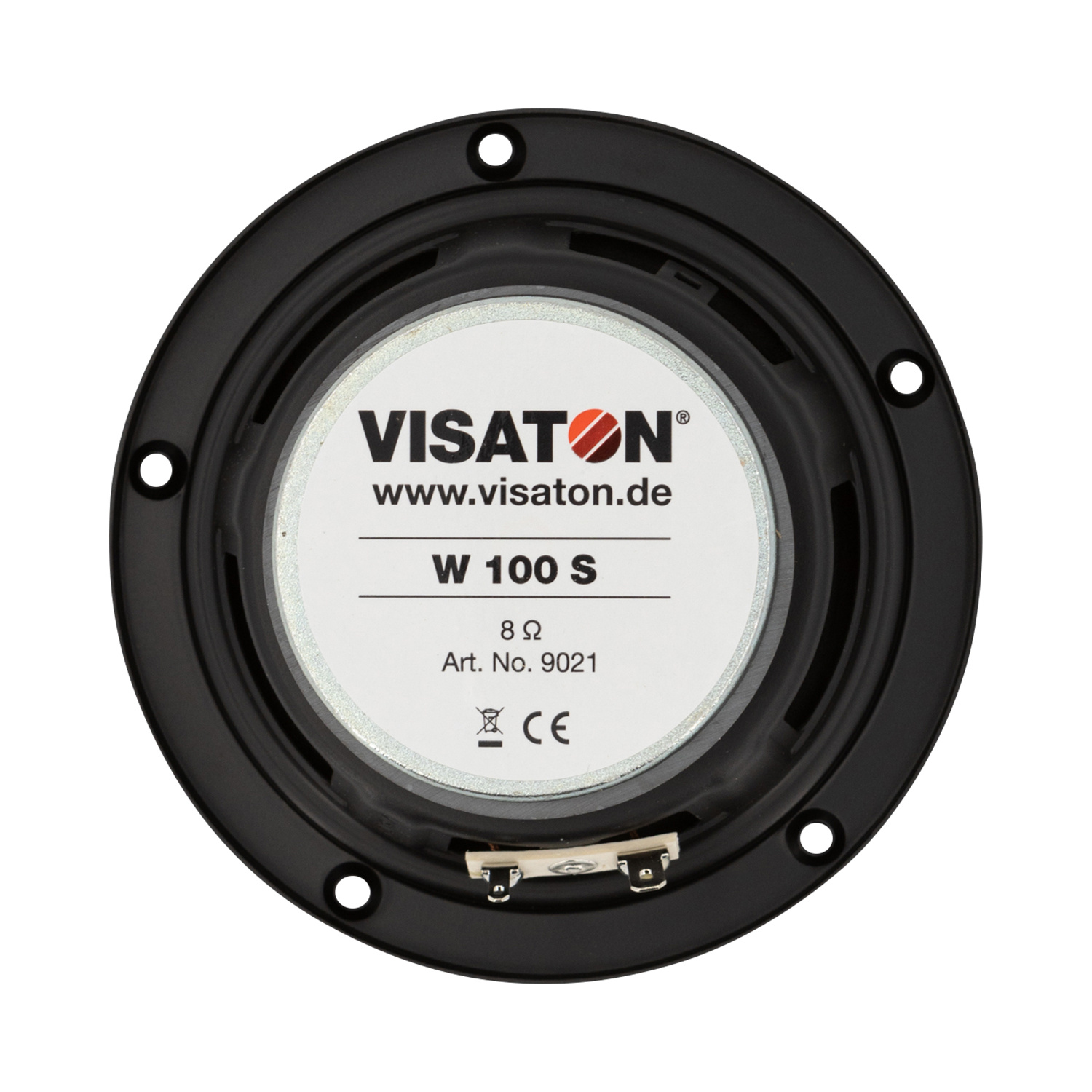

    Visaton W 100 S - 8 4" Woofer 8 Ohm

    € 27,45 4 In stock: delivery time 1-4 business days
    The W 100 S 8-ohm 4" woofer from Visaton with a coated paper cone and durable rubber surround delivers amazing bass and midrange performance not normally found in drivers at its price point.... Show more
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €26,08 per piece
    • Low international shipping rates
    • Same day shipping*
    • Pay with PayPal, Creditcard, and more
    • In-house technical support

    Product description

    The W 100 S 8-ohm 4" woofer from Visaton with a coated paper cone and durable rubber surround delivers amazing bass and midrange performance not normally found in drivers at its price point.



    Highlights

    • Relatively flat frequency response from 100 to 5,000 Hz
    • Able to play below 60 Hz in a proper vented cabinet
    • Great power handling and decent Xmax



    Product details

    Visaton W 100 S 4" woofer 8 Ohm



    Visaton's W 100 S 4" woofer features a coated paper cone and durable rubber surround. A very balanced frequency response allows the W 100 S to be used as a woofer in small two-way speakers or a midbass/midrange in three-way speakers, with a crossover point as high as 5,000 Hz. This allows you to build a surround sound system with large speakers for front and left, while maintaining the same voicing in smaller surround satellite speakers.



    Note: For best bass performance, install the W130S into one of the following cabinets:


    • A 3.96 liters sealed cabinet (F3 is 100 Hz with a Qtc of 0.7).
    • A 5 liters cabinet tuned to 70 Hz with a 31.75 mm diameter port that is 6 cm long.
    • A 10 liters cabinet tuned to 56 Hz with a 31.75 mm diameter port that is 5.8 cm long.

    Specifications

    Article number
    W 100 S - 8
    Woofer Series
    HiFi Series
    Woofer Type
    Bass-mid woofer
    Nominal Diameter
    4"
    Power Handling (RMS)
    30 Watts
    Power Handling (max)
    50 Watts
    Impedance
    8 ohms
    Sensitivity
    86 dB (1 W/1 m)
    Frequency Response
    63 - 15,000 Hz
    Voice Coil Diameter
    20 mm
    DC Resistance (Re)
    6.7 ohms
    Voice Coil Inductance (Le)
    0.5 mH
    Resonant Frequency (Fs)
    63 Hz
    Mechanical Q (Qms)
    2.74
    Electromagnetic Q (Qes)
    0.67
    Total Q (Qts)
    0.54
    Compliance Equivalent Volume (Vas)
    5.38 liters
    Maximum Linear Excursion (Xmax)
    2 mm
    Cone / Diaphragm Material
    Treated Paper
    Surround Material
    Rubber
    Overall Outside Diameter
    122 mm
    Overall Depth
    54 mm
    Baffle Cutout Diameter
    94 mm
    Bolt Circle Diameter
    111 mm
    # Mounting Holes
    5
    Mounting Hole Diameter
    3.7 mm
    Sealed Volume
    4.30 liters
    Sealed F3
    93 Hz
    Vented Volume
    9.91 liters
    Vented F3
    45 Hz
