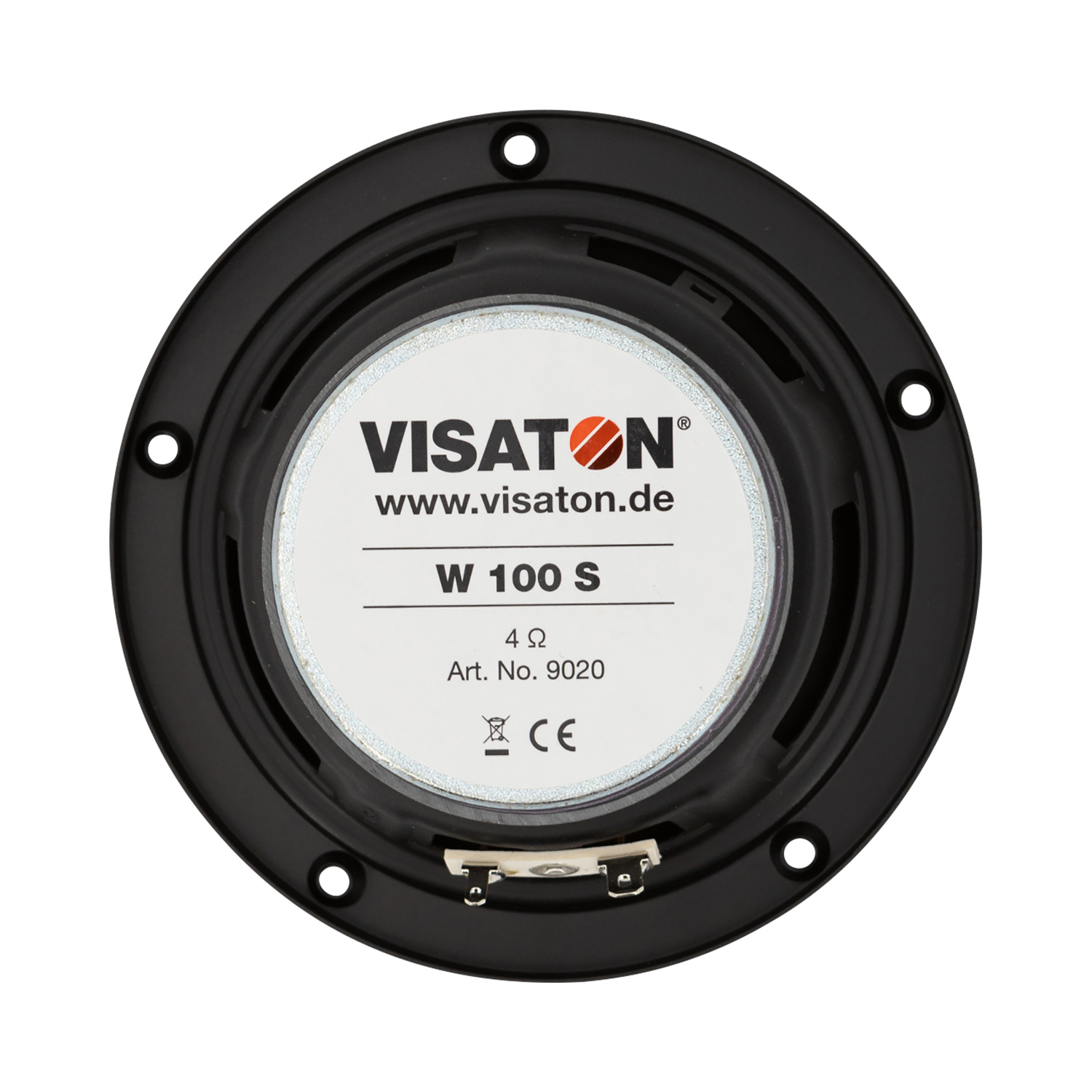

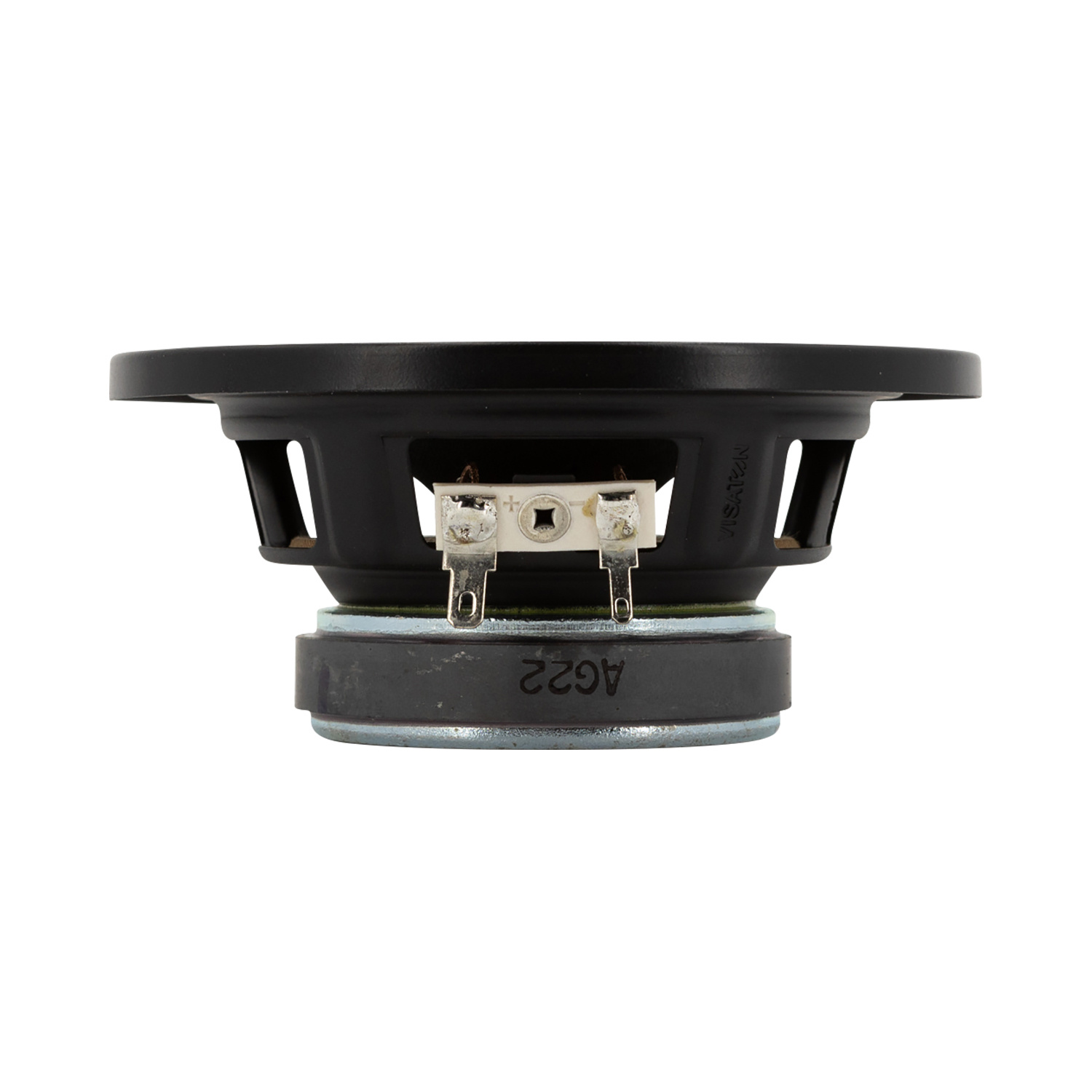

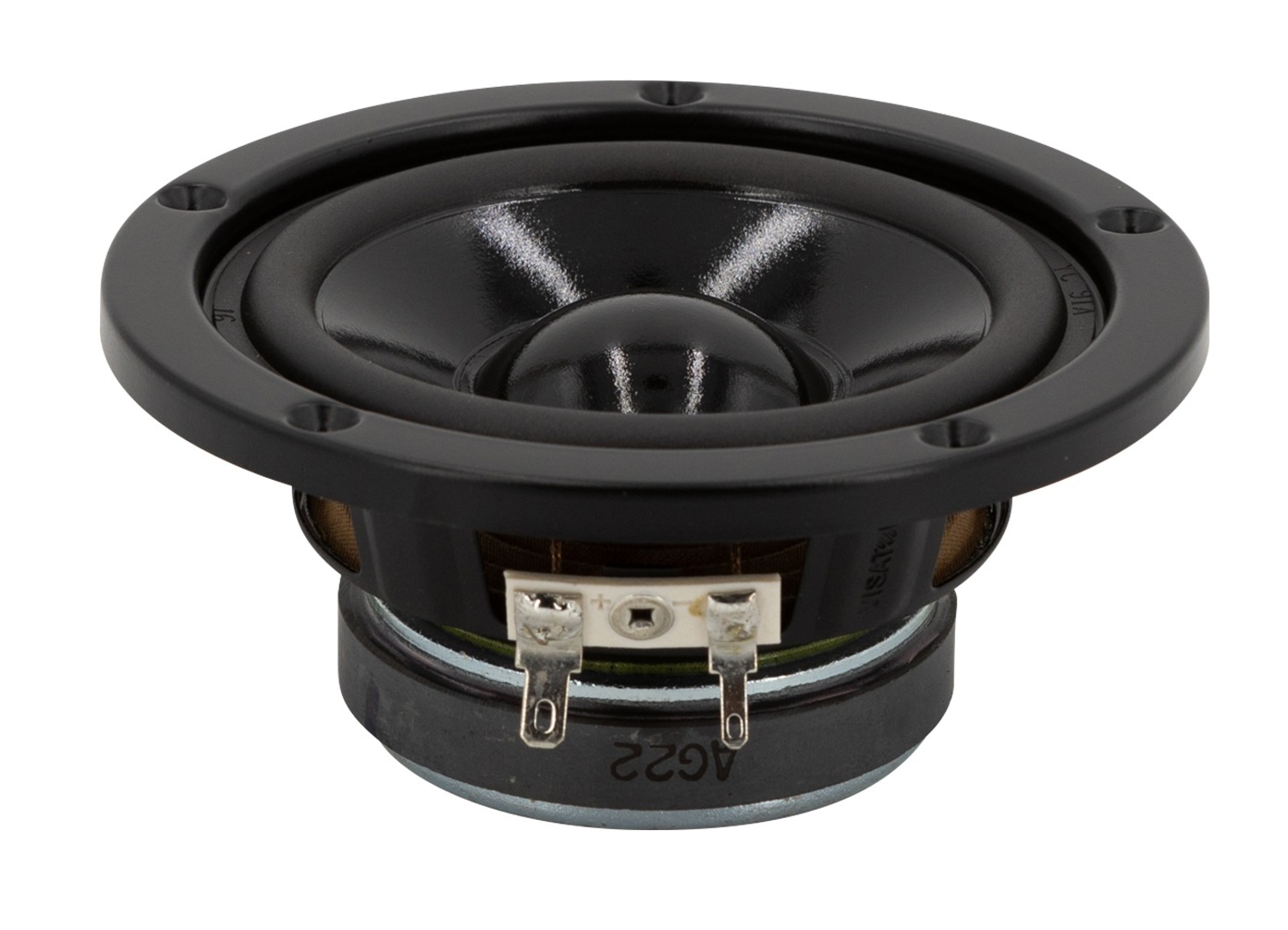

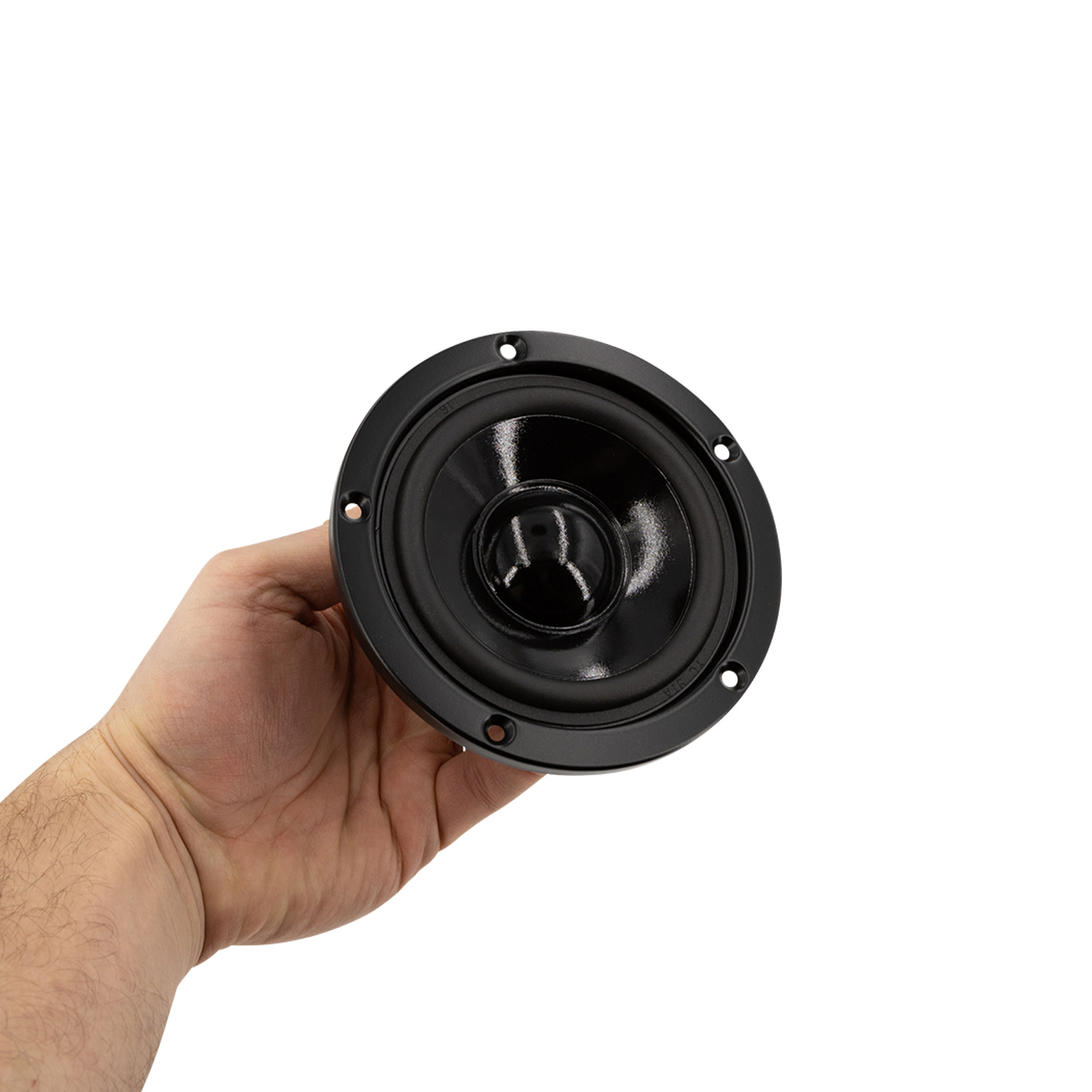

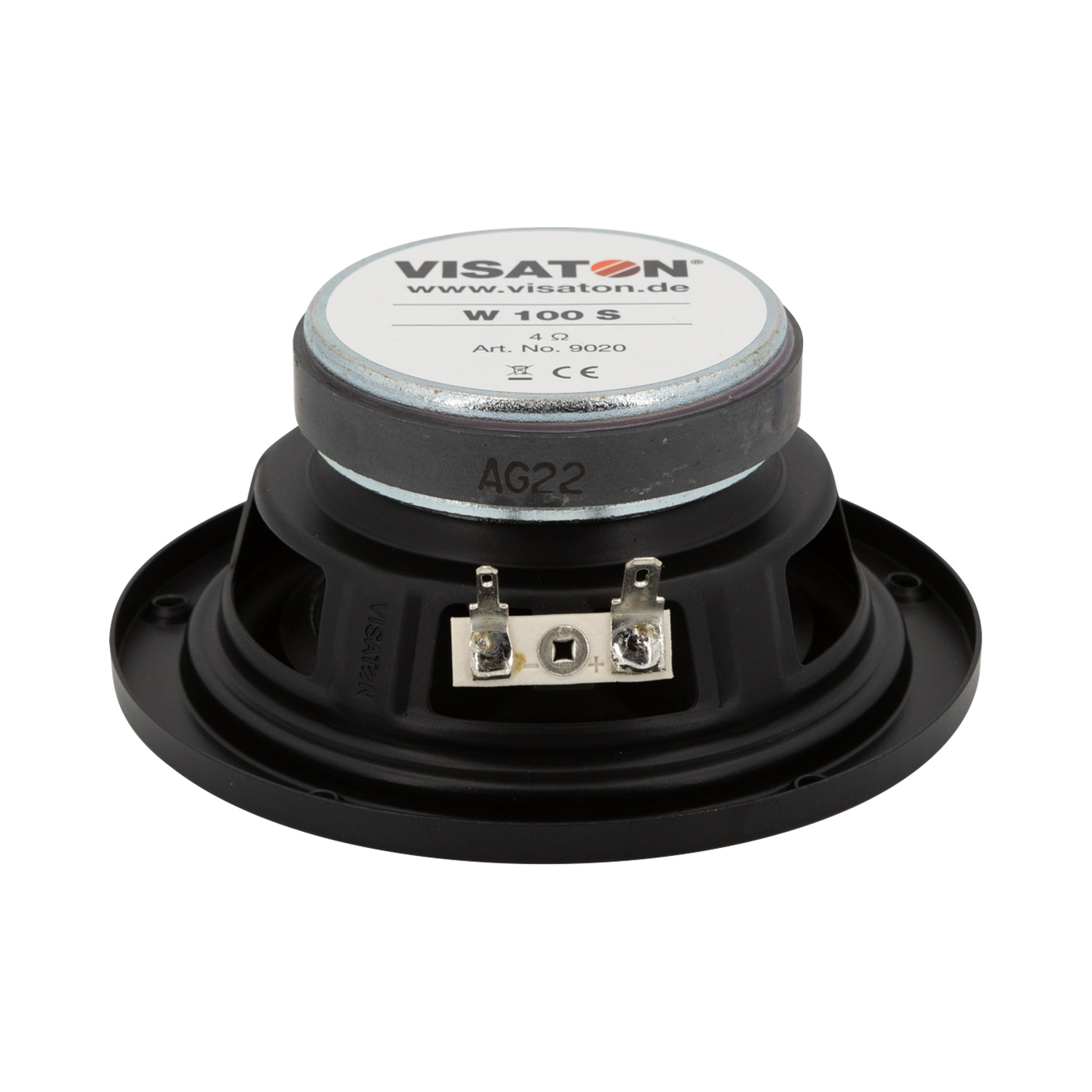

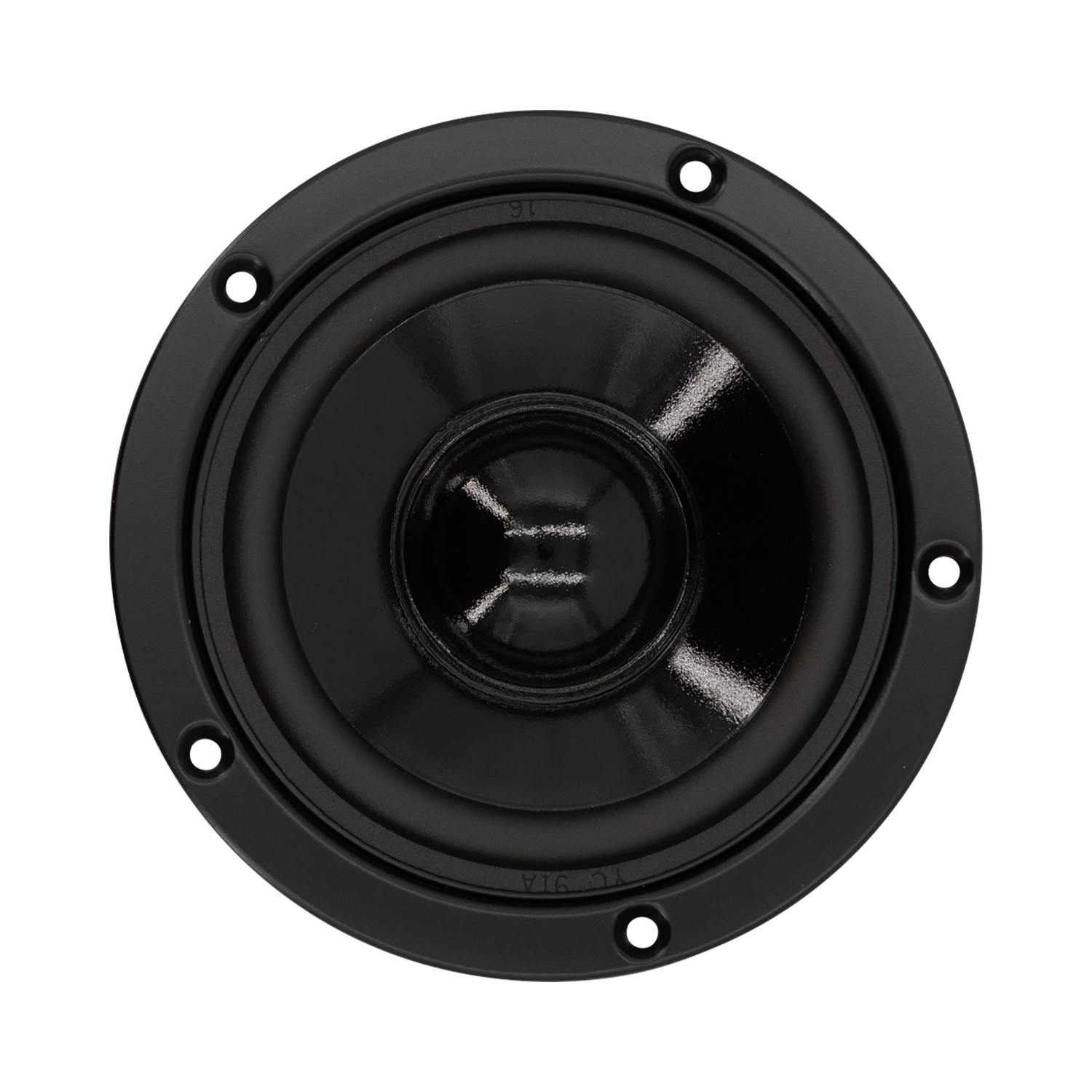

      Visaton W 100 S - 4 4" Woofer 4 Ohm

      € 27,23€ 32,95 3 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €31,30 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The 10 cm (4") woofer with coated paper cone, elastic rubber surround and 20 mm voice-coil from Visaton delivers amazing bass and midrange performance not normally found in drivers at its price point. This 4-ohm version is great for use in series pairs for MTMs and center-channels.



      Highlights

      • Relatively flat frequency response from 100 to 5,000 Hz
      • Able to play below 60 Hz in a proper vented cabinet
      • Great power handling and decent Xmax
      • 4-ohm impedance for series pair use in MTM and center-channel speakers



      Product details

      Visaton W 100 S 4" woofer 4 Ohm



      Visaton's W 100 S 4" woofer features a coated paper cone and durable rubber surround. A very balanced frequency response allows the W 100 S to be used as a woofer in small two-way speakers or a midbass/midrange in three-way speakers, with a crossover point as high as 5,000 Hz. This allows you to build a surround sound system with large speakers for front and left, while maintaining the same voicing in smaller surround satellite speakers. 4-ohm impedance for use in series pairs, which is great for MTM and center-channel speakers.



      Note: For best bass performance, install the W130S into one of the following cabinets:


      • A 3.96 liters sealed cabinet (F3 is 100 Hz with a Qtc of 0.7).
      • A 5 liters cabinet tuned to 70 Hz with a 31.75 mm diameter port that is 6 cm long.
      • A 10 liters cabinet tuned to 56 Hz with a 31.75 mm diameter port that is 5.8 cm long.

      Specifications

      Article number
      W 100 S - 4
      Woofer Series
      HiFi Series
      Woofer Type
      Bass-mid woofer
      Nominal Diameter
      4"
      Power Handling (RMS)
      30 Watts
      Power Handling (max)
      50 Watts
      Impedance (Z)
      4 ohms
      Sensitivity
      86 dB (1 W/1 m)
      Frequency Response
      65 - 15000 Hz
      Voice Coil Diameter
      20 mm
      DC Resistance (Re)
      3.4 ohms
      Voice Coil Inductance (Le)
      0.5 mH
      Resonant Frequency (Fs)
      65 Hz
      Mechanical Q (Qms)
      3.04
      Electromagnetic Q (Qes)
      0.54
      Total Q (Qts)
      0.46
      Diaphragm Mass Inc. Airload (Mms)
      5.3 g
      Surface Area of Cone (Sd)
      53 cm2
      BL Product (BL)
      3.7 Tm
      Compliance Equivalent Volume (Vas)
      4.49 L
      Maximum Linear Excursion (Xmax)
      2 mm
      Cone / Diaphragm Material
      Treated Paper
      Surround Material
      Rubber
      Overall Outside Diameter
      122 mm
      Overall Depth
      54 mm
      Baffle Cutout Diameter
      94 mm
      Bolt Circle Diameter
      111 mm
      # Mounting Holes
      5
      Mounting Hole Diameter
      3.7 mm
      Sealed Volume
      2,27 liters
      Sealed F3
      111 Hz
      Vented Volume
      5,95 liters
      Vented F3
      55 Hz
