Visaton TL 16 H High-End horn driver 8 Ohm

4 reviews

Brand: Visaton

Show all Horn/waveguide tweeter

Compare

Horn | 8 Ω

€ 214,83€ 259,95 2 In stock: delivery time 1-4 business days

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

High-End horn driver for the high-frequency range above 5,000 Hz.

Highlights

Aluminum-titanium alloy diaphragm
Very dynamic pulse response
High sensitivity

Product details

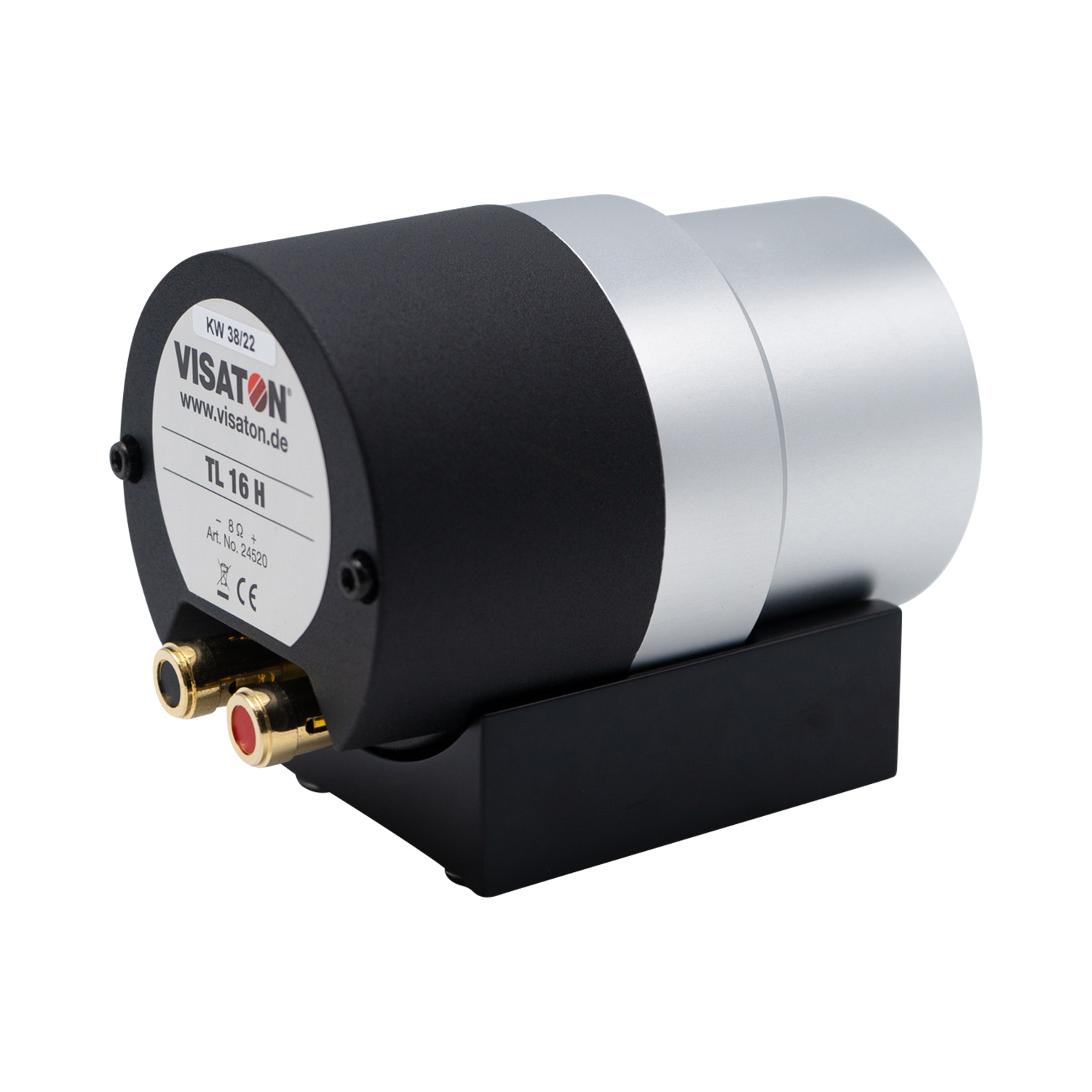

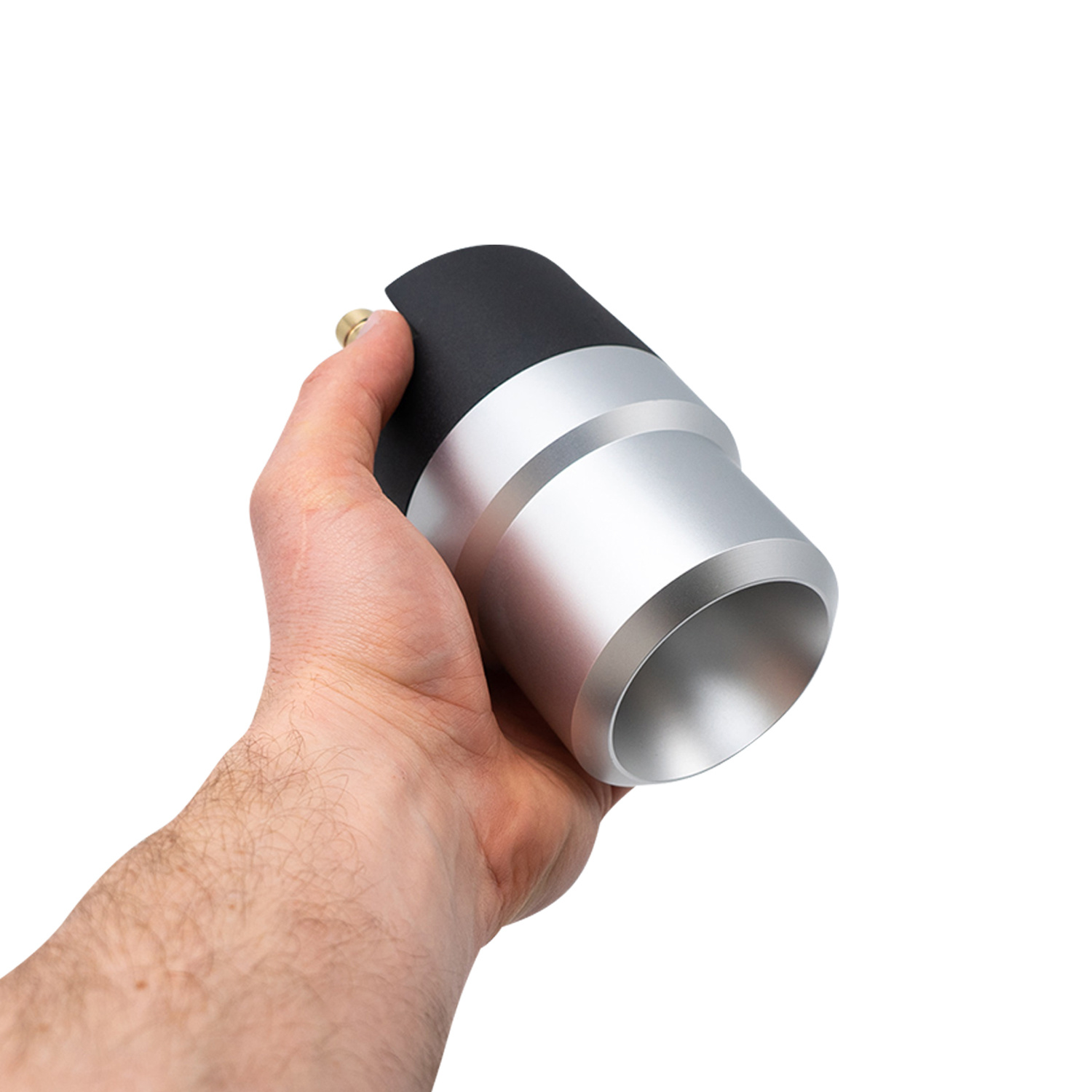

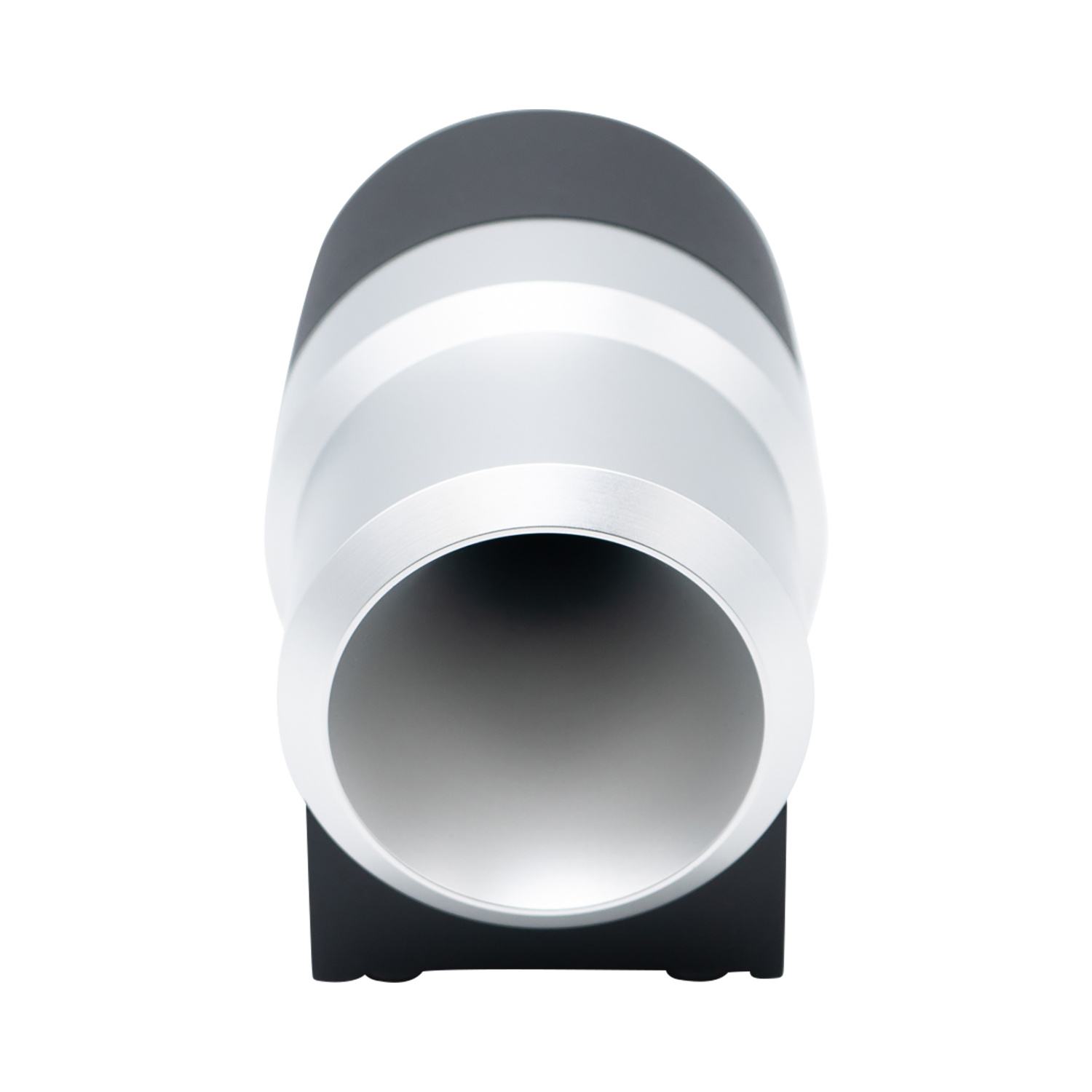

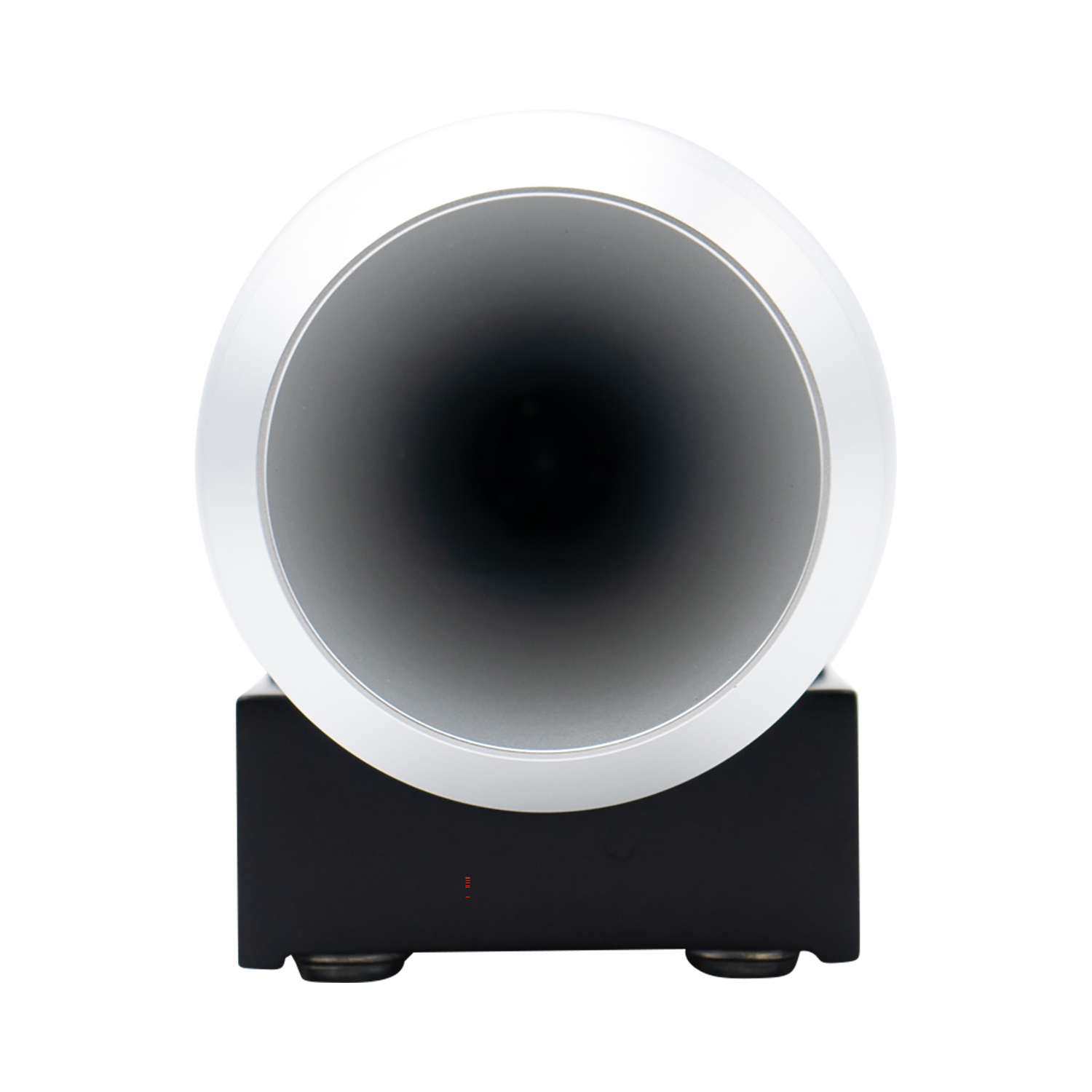

Visaton TL 16 H High-End horn driver

The extremely light aluminum titanium alloy diaphragm shows, apart from a very dynamic pulse response, a very linear frequency response. The powerful strontium-ferrite magnet and the 16 mm voice-coil are a guarantee for highest efficiency.

Specifications

Article number: TL 16 H
Tweeter Type: Horn
Tweeter Series: High-End
Power Handling (RMS): 150 Watts
Power Handling (max): 200 Watts
Impedance (Z): 8 Ω
Sensitivity: 100 dB (1 W/1 m)
Resonant Frequency (Fs): 6,000 Hz
DC Resistance (Re): 6.9 ohms
Voice Coil Inductance (Le): 0.17 mH
Overall Outside Diameter: 84 mm
Depth: 135 mm
Recommended cut frequency: >5,000 Hz

User manual

Reviews

4 reviews

4 from 5Based on 4 reviews

Review this product

5 of 5

These are not intended for "putting vocals through"..Not sure why some people are so clueless!! This is a fantastic high efficiency super tweeter. The 19mm diaphram and solid ali cast horn provide very flat response to 35kHz with a very clean impulse. Response plots show little or no break up in the operational range to well above 20kHz and the cumulative spectral display and burst decay ARTA plots confirm this. Super clean. If I have one criticism, the dispersion is relatively narrow so not for "nearfield" unless you angle them in. Their impedance graph is very flat with only a very small peak at Fs, around 6kHz..so a 4th order LR crossover anywhere between 6k8 and 8kHz would be optimal. If you are using DSP, time alignment will ensure minimum phase and minimal ripple response through the crossover point. I find it hard to believe, except for brand name and folk law that the "other" bullet tweeters, at much higher price points, will perform audibly better. If you believe in science that is..the plots don't lie!!

By David Purton on 8 August 2022

5 of 5

Bought a pair of it. Sounds excellent. Using a selfmade Crossover Linkwitz Riley with 24dB/Octave at 7050 Hz reproduces the highest of the highest frequencies. It´s a high tweeter, not usable for midrange application!! So don´t expect high SPL in the mid range area!! Highly recommended with the correct filter :-)

By VISATON TL16H Fine Art High Tweeter :-) on 23 January 2021
