      Visaton TIW 250 XS 10" High-End Woofer 8 Ohm

      € 227,23€ 274,95 3 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €261,20 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      25 cm (10") High-end woofer with high level accuracy and excellent low-range bass imaging.



      Highlights

      • Rigid Sandwich diaphragm
      • Wide surround
      • Long voice coil



      Product details

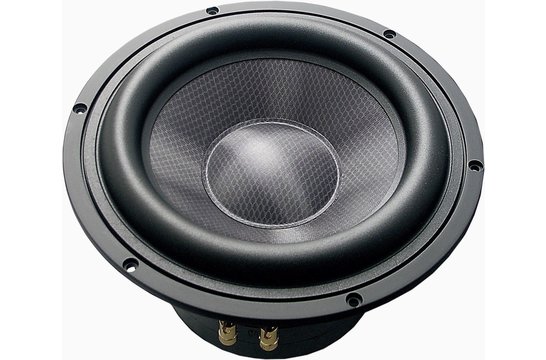

      Visaton TIW 250 XS 10" High-End Woofer



      The extra-wide elastic surround, the long voice coil and particularly large magnet arrangement give this speaker extremely long excursion. Thanks to the multiple venting of the voice coil (pole piece hole, holes in the pole piece plate, cutouts in the aluminum diecast cone to vent the centering unit from behind) losses and flow noise are minimized. The capton voice coil carrier and the long voice coil enable the driver to withstand considerable loads. The diaphragm is a sandwich construction made up of layers of fiberglass and polyester fabric which makes it particularly rigid and low in resonance. These design features result in high level accuracy and excellent low-range bass imaging.

      Specifications

      Article number
      TIW 250 XS
      Woofer Series
      High-End
      Woofer Type
      Midwoofer
      Nominal Diameter
      10"
      Power Handling (RMS)
      200 Watts
      Power Handling (max)
      300 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      89 dB (1 W/1 m)
      Frequency Response
      33 - 3000 Hz
      Voice Coil Diameter
      50 mm
      DC Resistance (Re)
      5.6 ohms
      Voice Coil Inductance (Le)
      1.7 mH
      Resonant Frequency (Fs)
      33 Hz
      Mechanical Q (Qms)
      5.21
      Electromagnetic Q (Qes)
      0.35
      Total Q (Qts)
      0.33
      Diaphragm Mass Inc. Airload (Mms)
      49g
      Surface Area of Cone (Sd)
      314 cm2
      BL Product (BL)
      13 Tm
      Compliance Equivalent Volume (Vas)
      66 liters
      Maximum Linear Excursion (Xmax)
      8.5 mm
      Cone / Diaphragm Material
      Fiberglass Polyester Sandwich
      Voice Coil Former
      Kapton
      Basket / Frame Material
      Cast Aluminum
      Overall Outside Diameter
      276 mm
      Overall Depth
      121.2 mm
      Baffle Cutout Diameter
      235 mm
      Bolt Circle Diameter
      264 mm
      # Mounting Holes
      6

      Show more

      Reviews

      5 from 5Based on 1 reviews
      Review this product
      5 of 5
      Dit is een echte punisher !
      By Wybo on 10 May 2022
