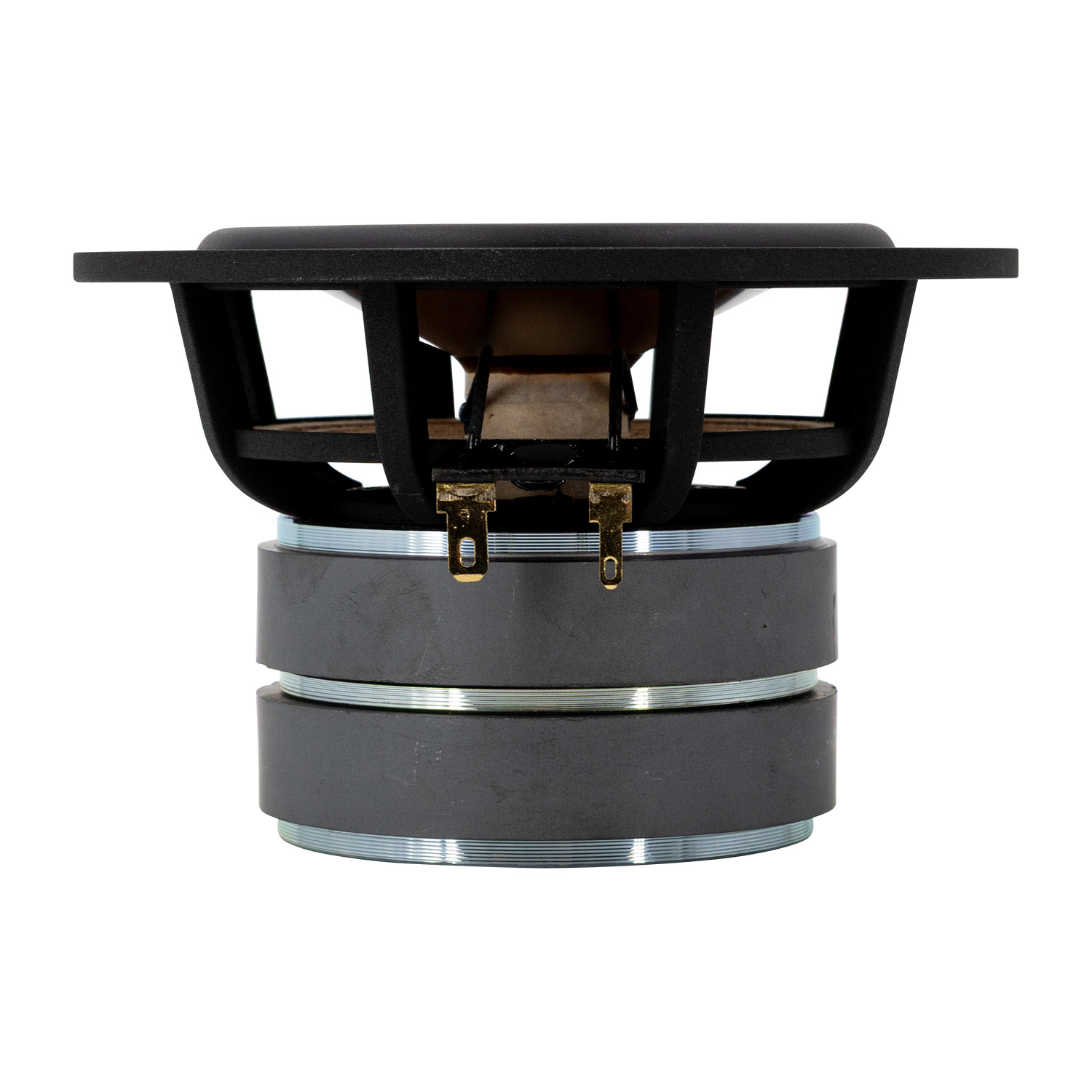

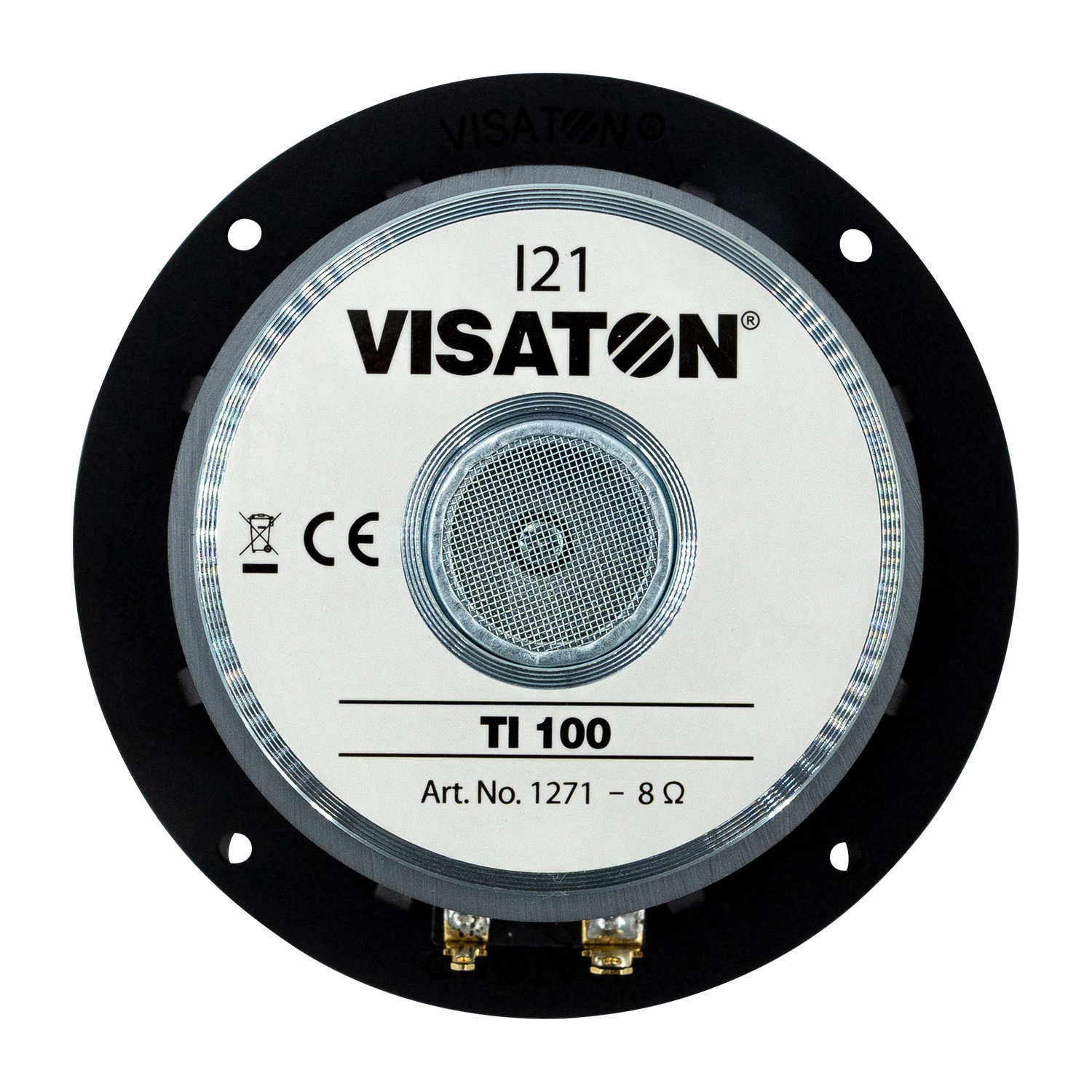

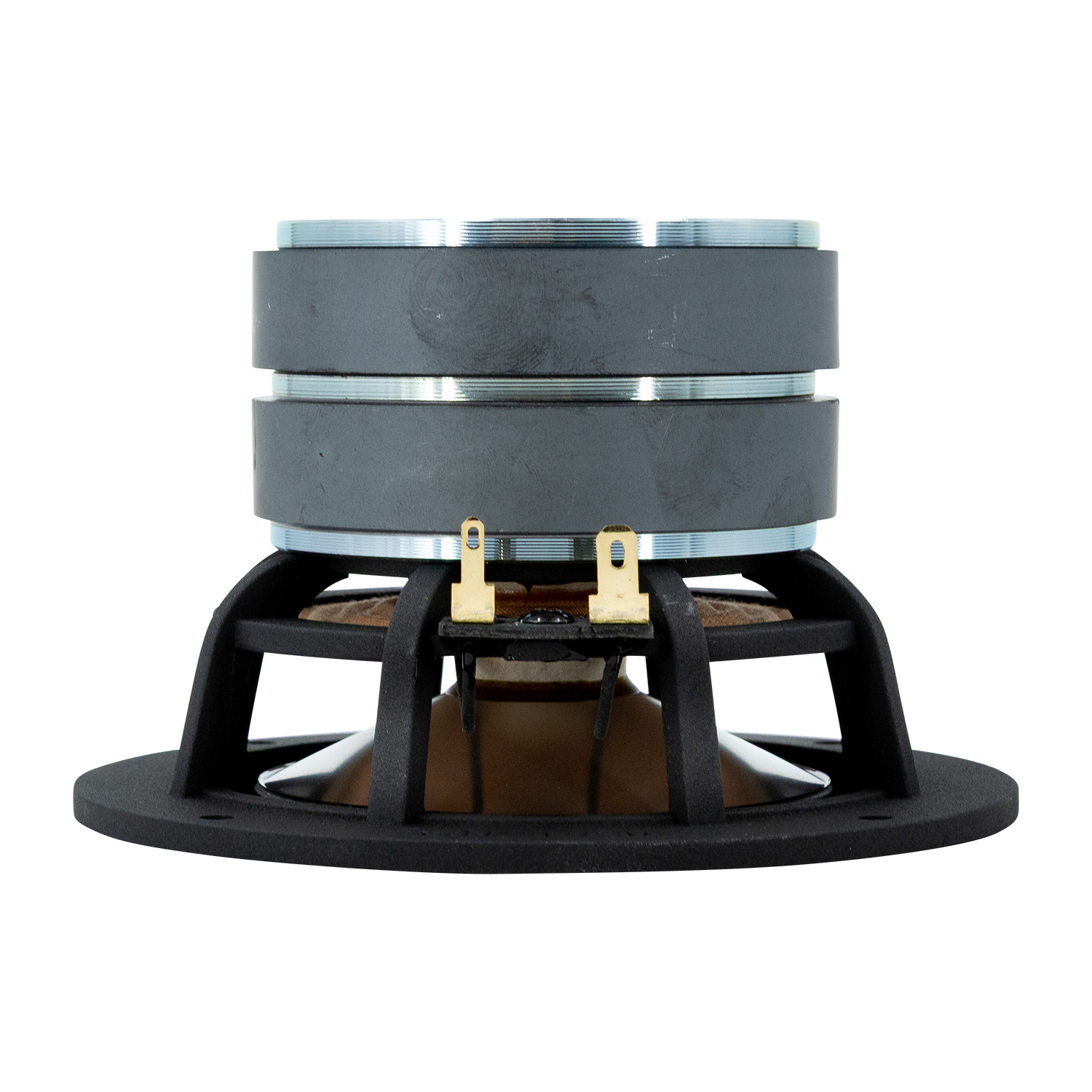

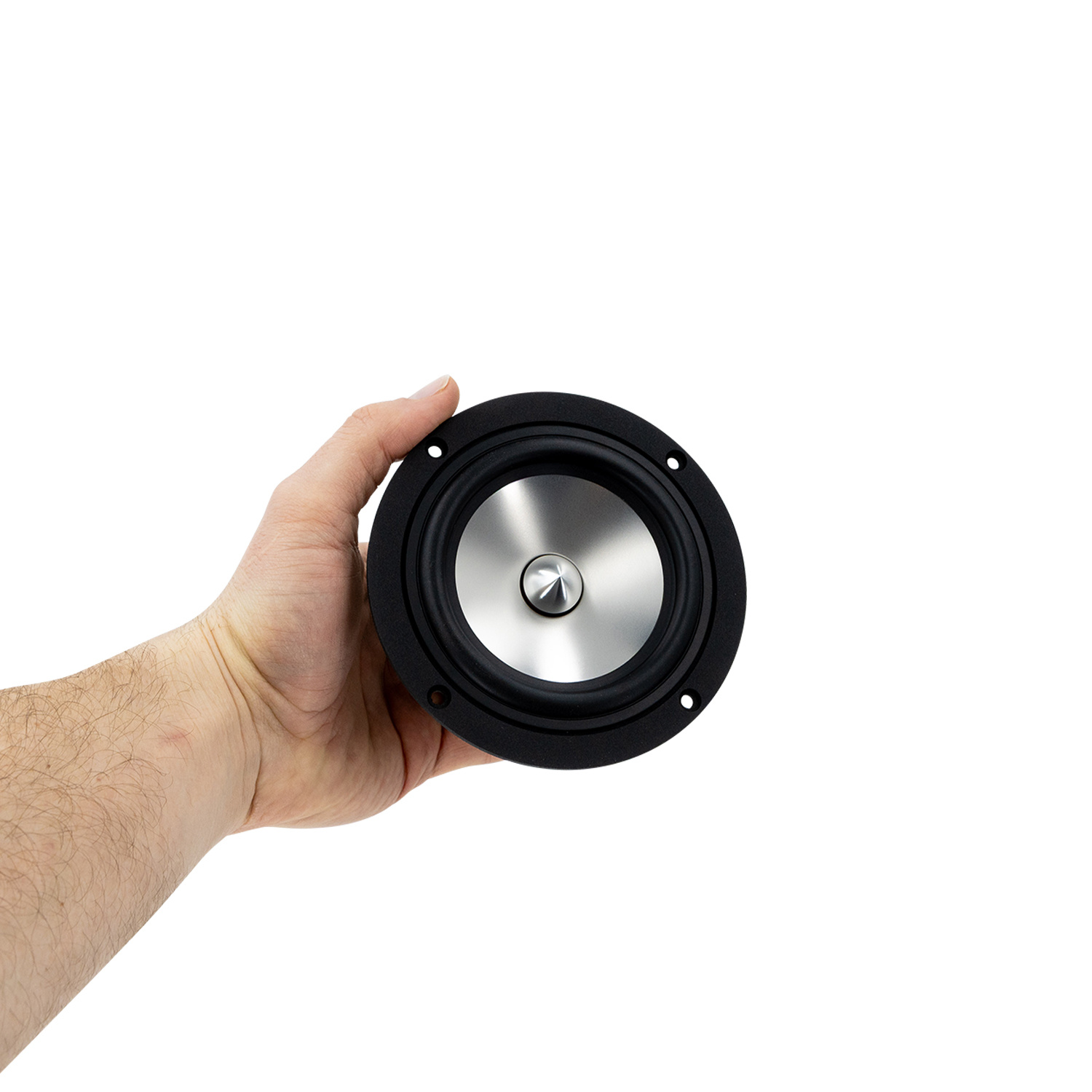

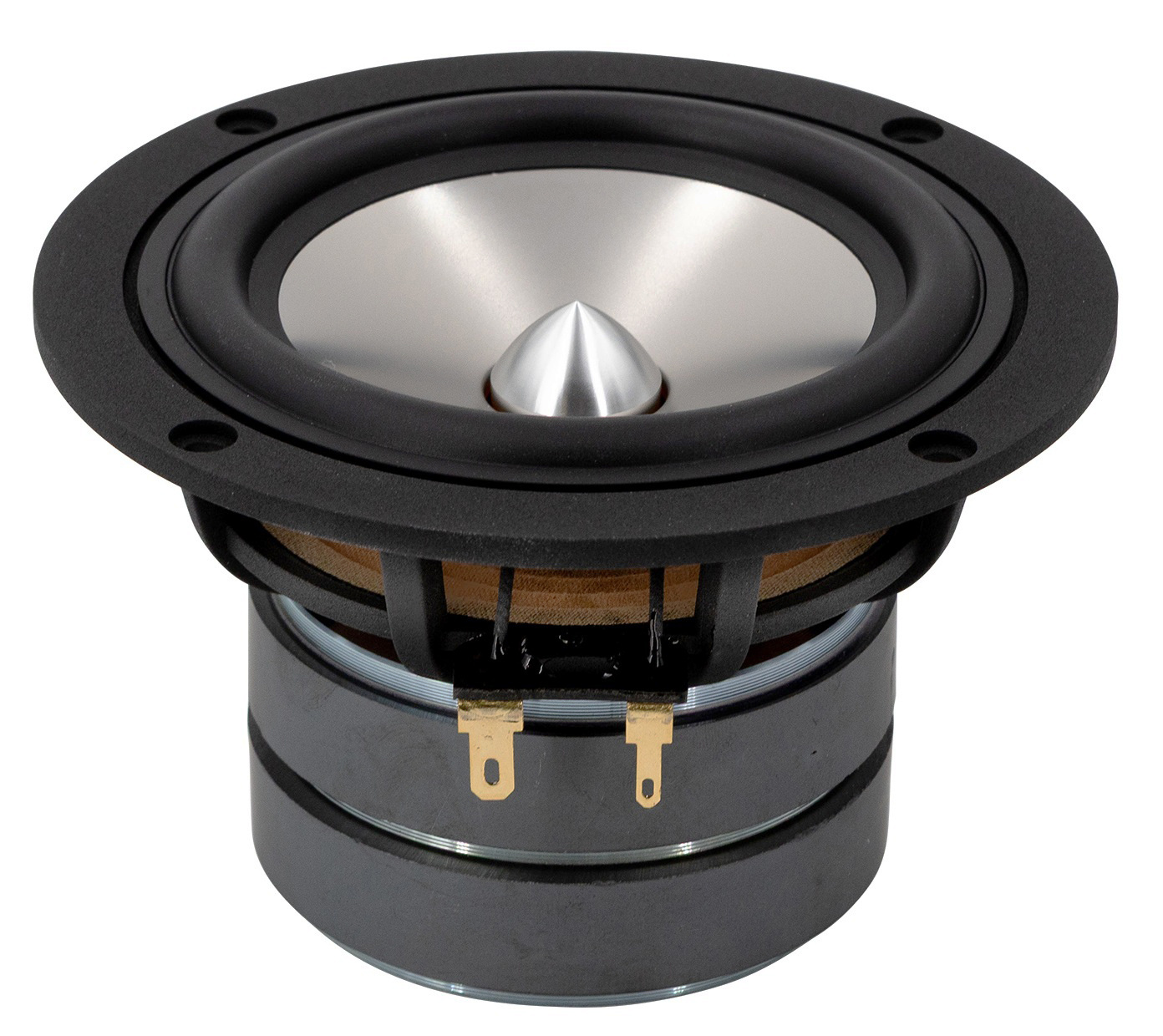

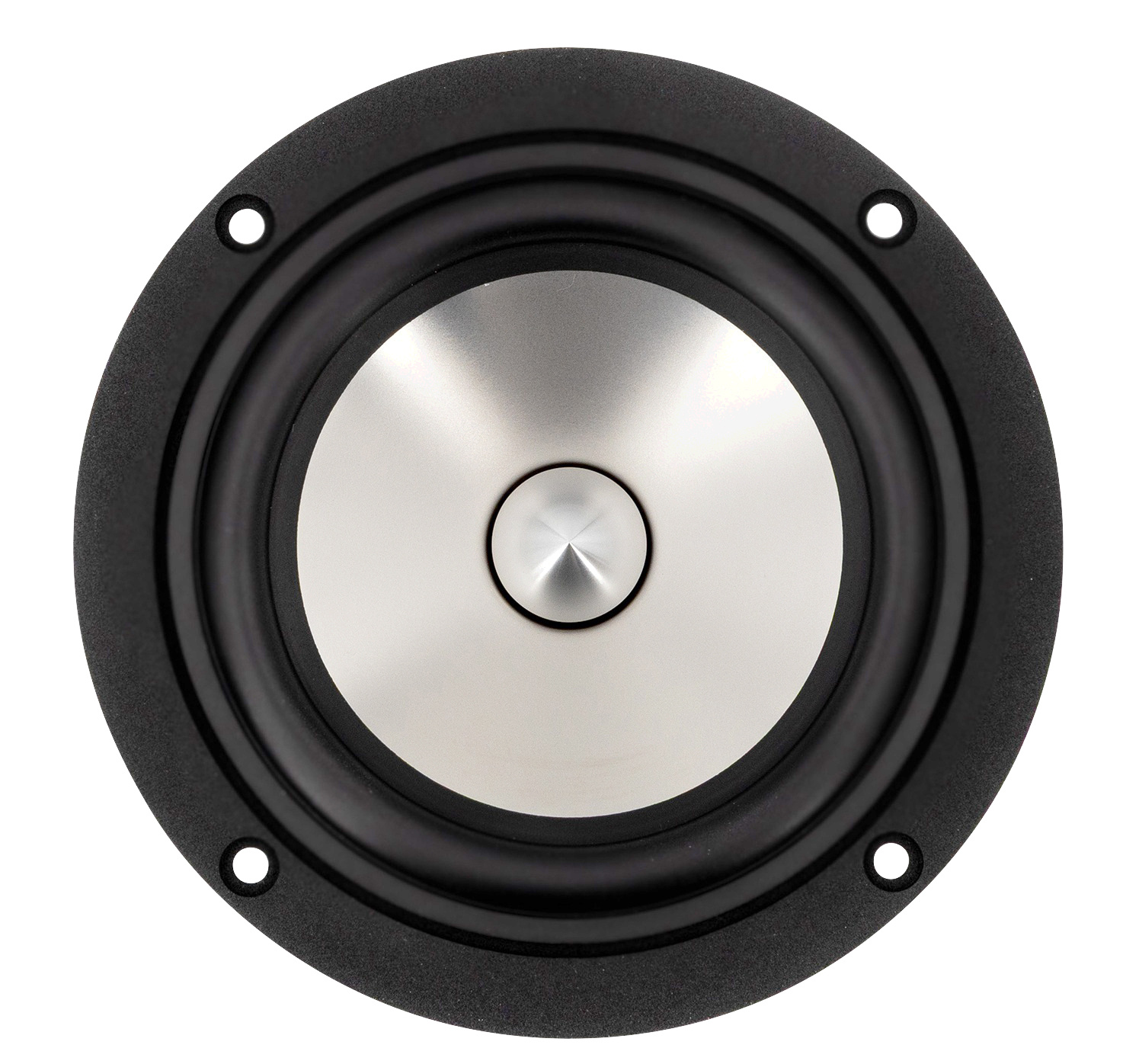

    Visaton TI 100 4" High-End Mid-Range Driver 8 Ohm

    € 149,95 2 In stock: delivery time 1-4 business days
    10 cm (4") High-End mid-range driver featuring a diaphragm cone made of pure titanium.... Show more
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €142,45 per piece
    • Shipping always fully insured and with track & trace
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    10 cm (4") High-End mid-range driver featuring a diaphragm cone made of pure titanium.



    Highlights

    • Pure titanium cone
    • Double magnet motor
    • Rear plate vented voice coil



    Product details

    Visaton TI 100 4" High-End Mid-Range Driver 8 Ohm



    The carefully designed cone combines with the shape and material of the surround and the adhesives to avoid cone resonance. The shape of the basket with its large aperture and rear-ventilated damper coupled with the open voice coil with its phase plug produce the lowest possible mechanical losses and produce a correspondingly high mechanical Q. As a result of the construction using double magnets the TI 100 - 8 Ohm is also magnetically compensated.



    The TI 100 - 8 Ohm is ideal as a mid-bass unit in smaller high end shelf speakers or as a mid-range unit in high-end multi-way Speakers.

    Specifications

    Article number
    TI 100
    Woofer Series
    High-End
    Woofer Type
    Midwoofer
    Nominal Diameter
    4"
    Power Handling (RMS)
    40 Watts
    Power Handling (max)
    60 Watts
    Impedance
    8 ohms
    Sensitivity
    86 dB (1 W/1 m)
    Frequency Response
    62 - 20,000 Hz
    Voice Coil Diameter
    21 mm
    DC Resistance (Re)
    6.4 ohms
    Voice Coil Inductance (Le)
    0.7 mH
    Resonant Frequency (Fs)
    62 Hz
    Mechanical Q (Qms)
    5.95
    Electromagnetic Q (Qes)
    0.44
    Total Q (Qts)
    0.41
    Diaphragm Mass Inc. Airload (Mms)
    4g
    Mechanical Compliance of Suspension (Cms)
    1.37 mm/N
    BL Product (BL)
    4.98 Tm
    Compliance Equivalent Volume (Vas)
    5.68 liters
    Maximum Linear Excursion (Xmax)
    4 mm
    Cone / Diaphragm Material
    Titanium
    Surround Material
    Rubber
    Overall Outside Diameter
    121.5 mm
    Overall Depth
    76 mm
    Baffle Cutout Diameter
    101 mm
    Bolt Circle Diameter
    111 mm
    # Mounting Holes
    4
    Mounting Hole Diameter
    4.2 mm
