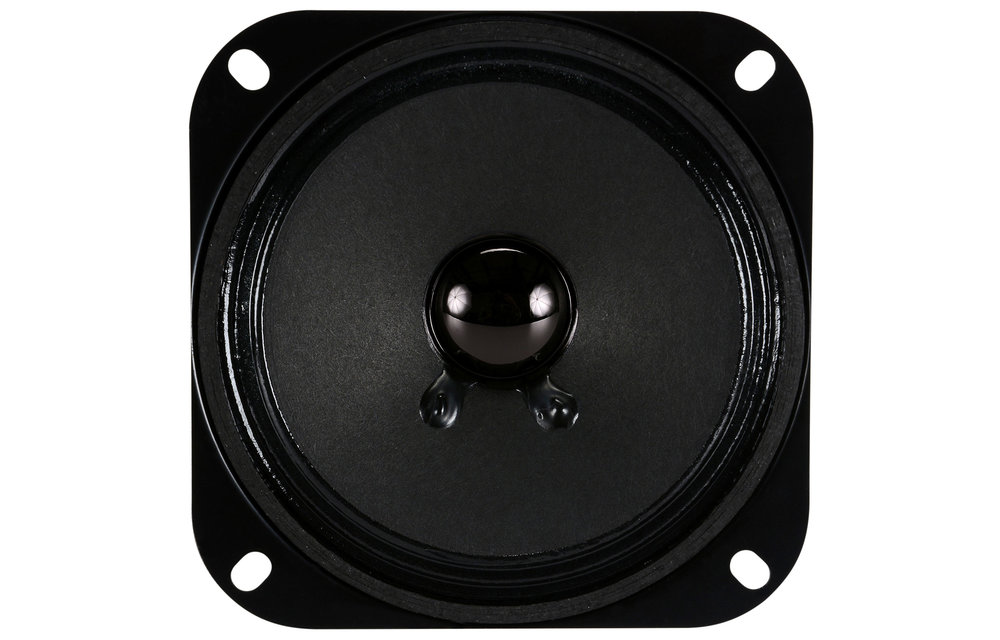

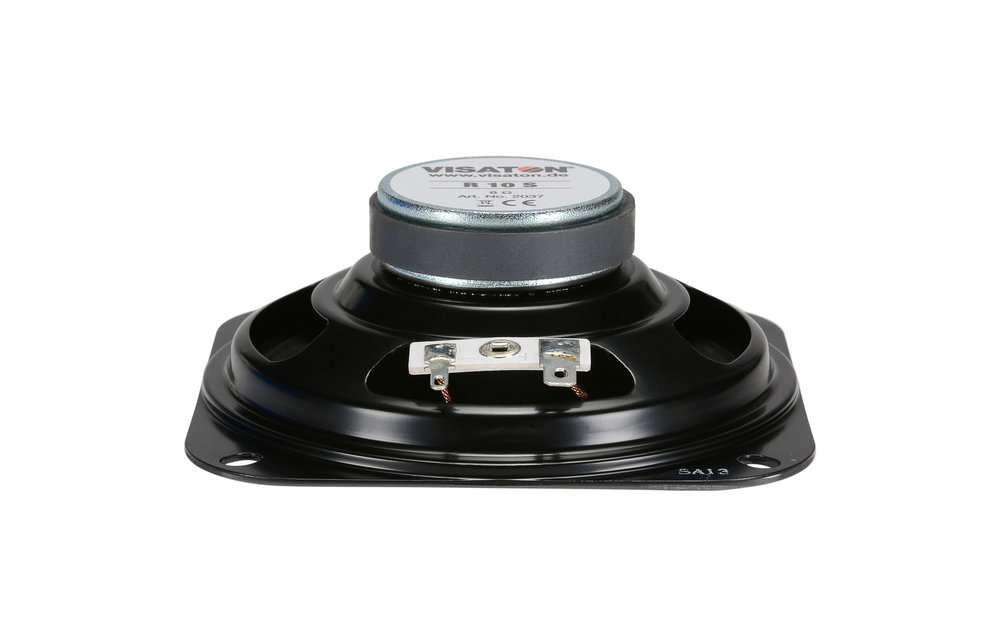

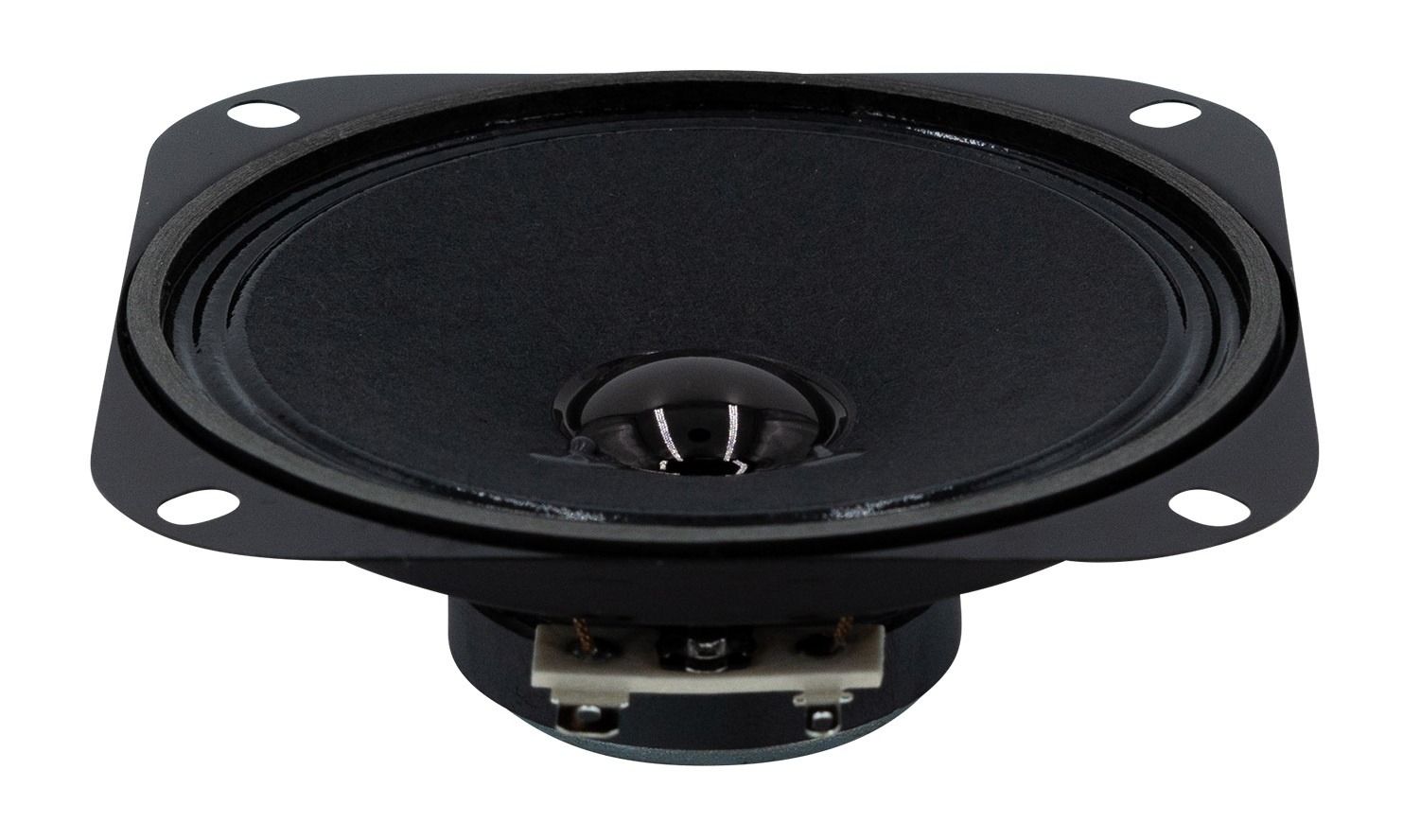

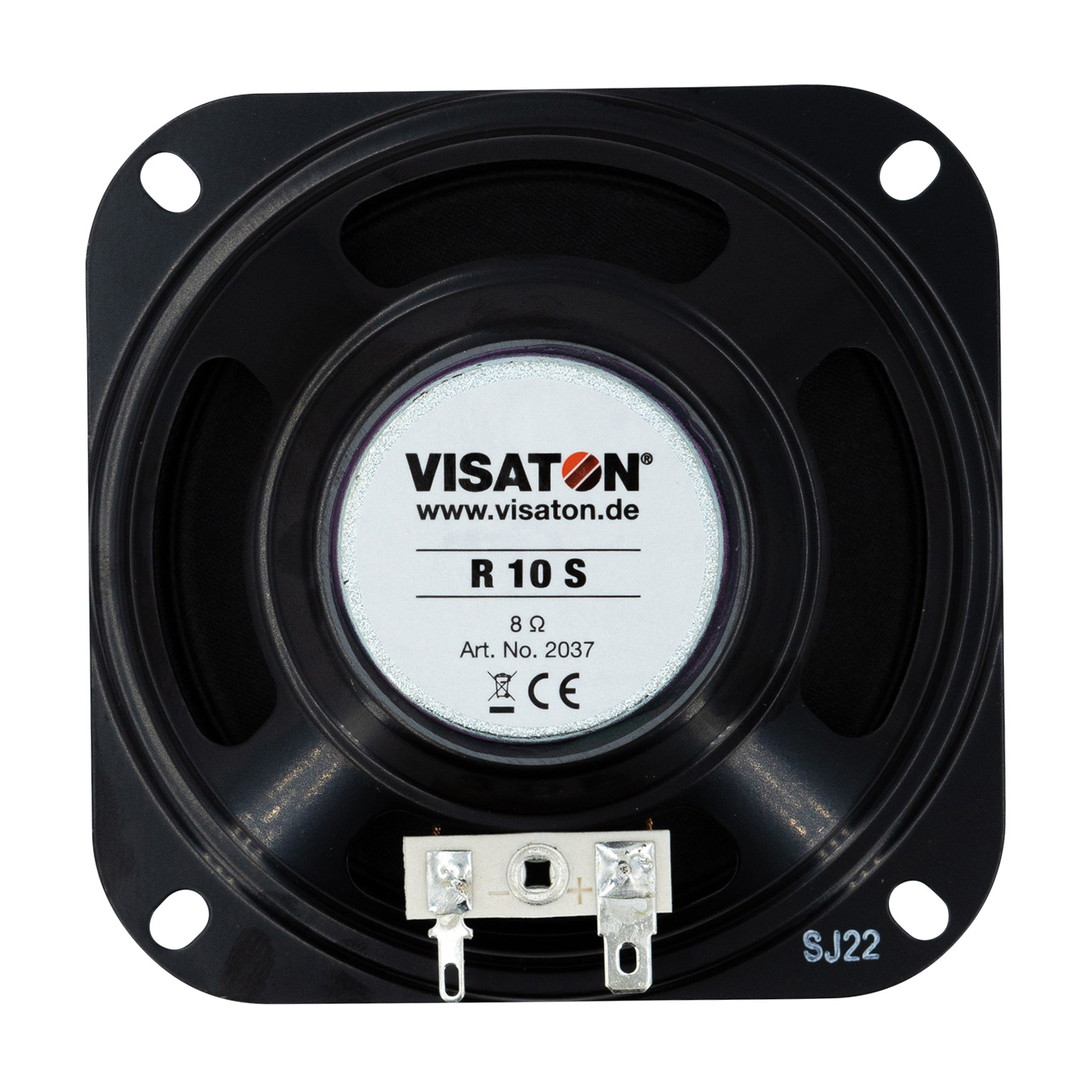

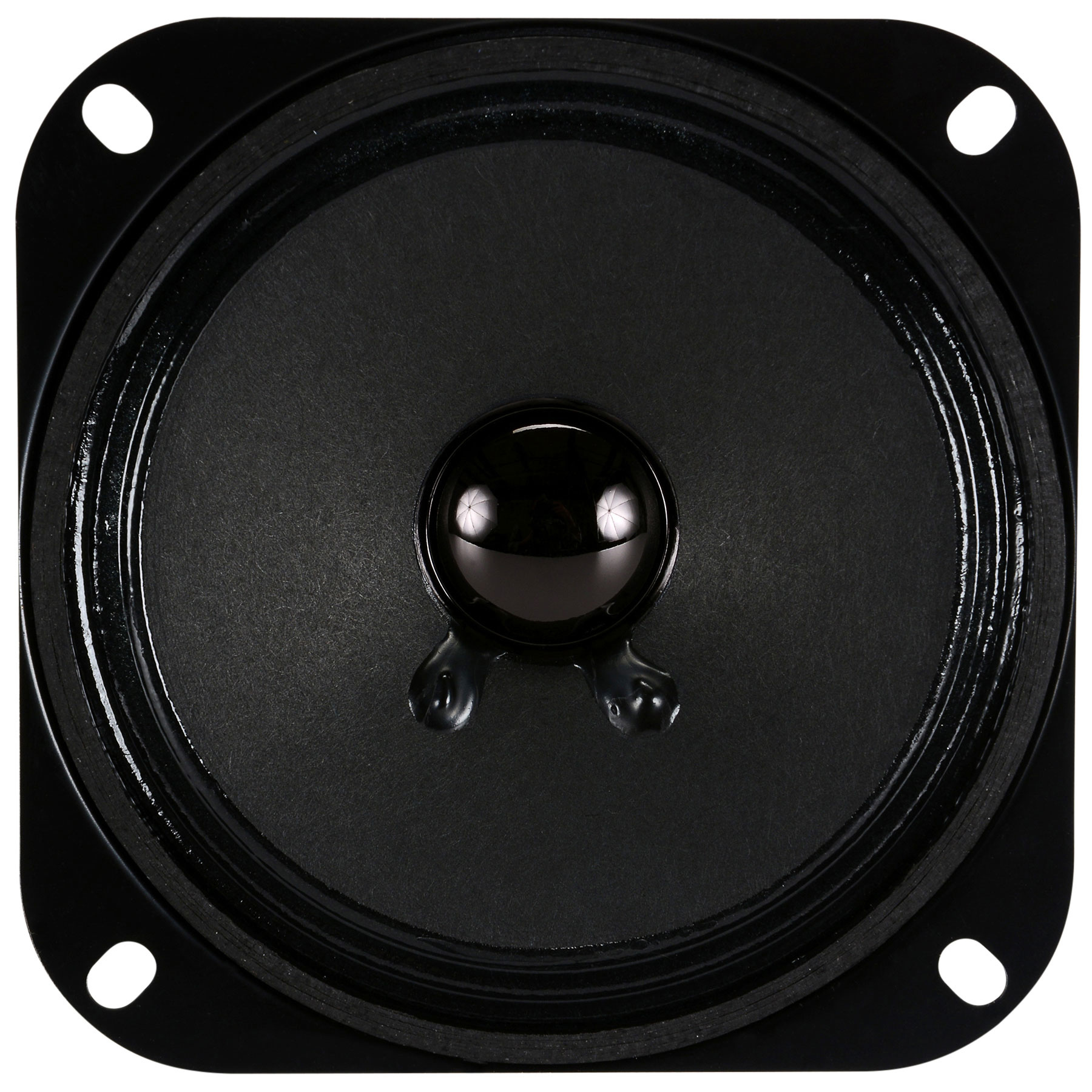

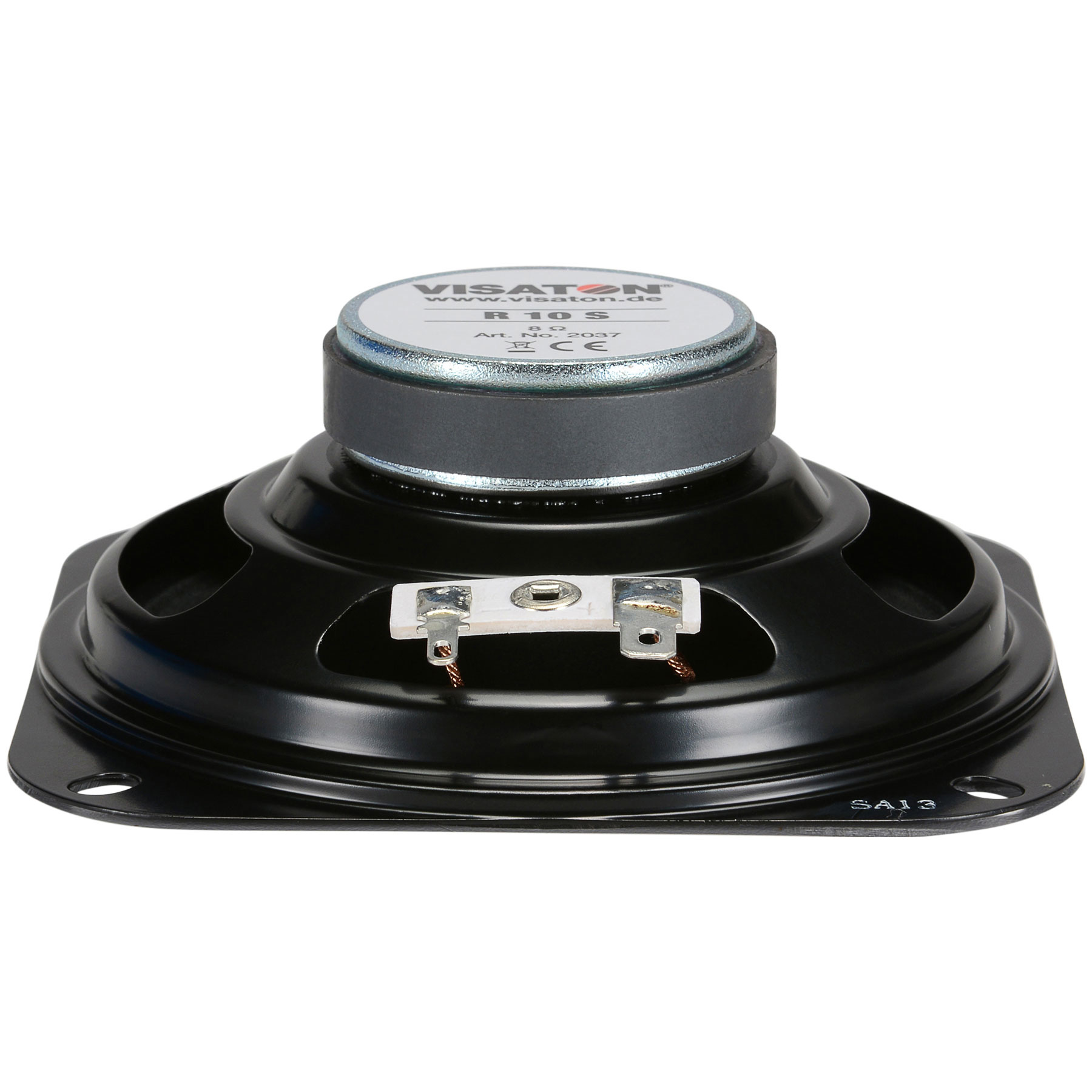

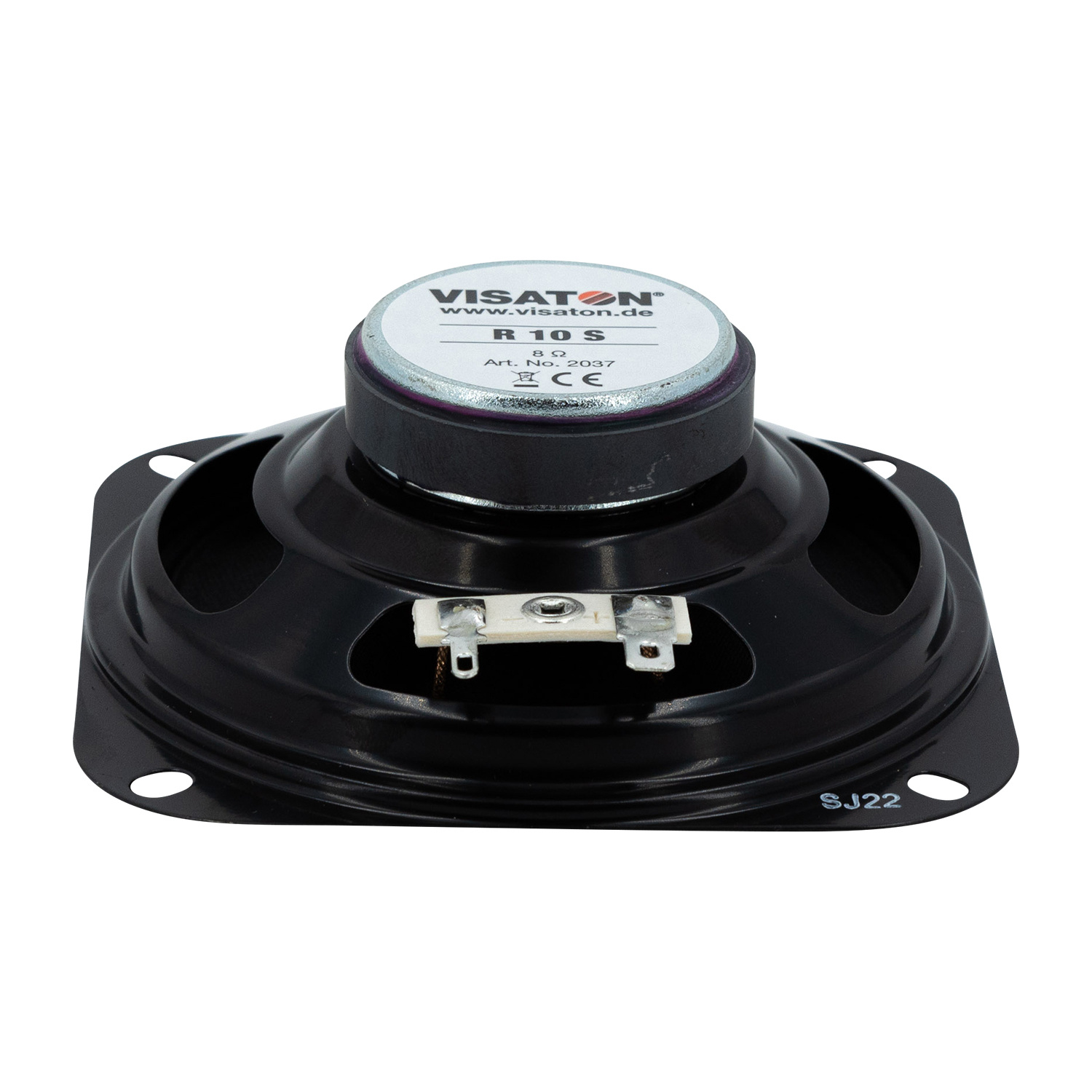

      Visaton R 10 S - 8 4" Full-Range Speaker 8 Ohm

      € 9,05€ 10,95 2 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €10,40 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      10 cm (4") fullrange speaker offers great frequency response and sensitivity in a compact package. Great for point-source applications with a limited amount of mounting depth space.



      Highlights

      • Full-range frequency response from 100 to 13,000 Hz

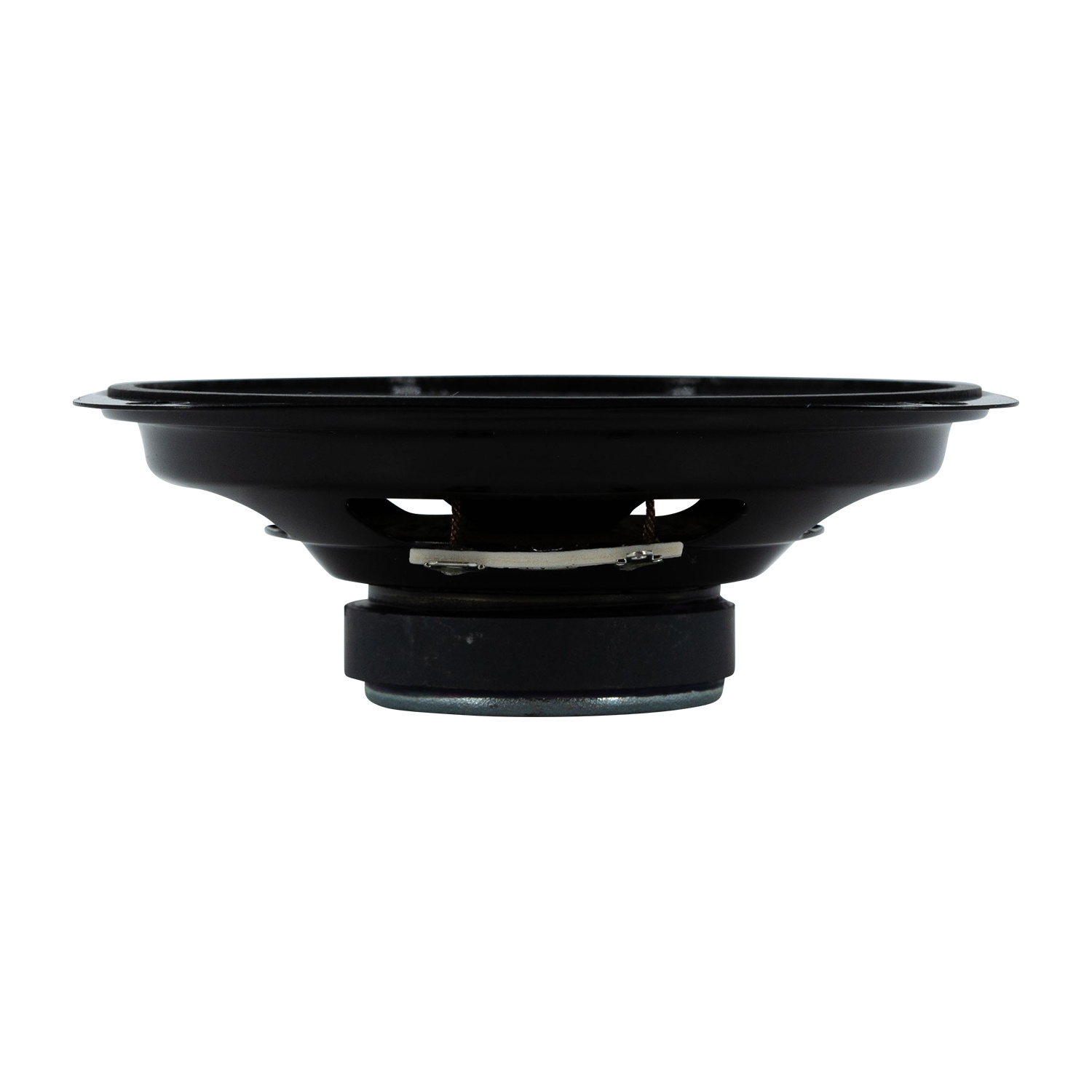

      • Thin mount profile with a mounting depth of 36 millimeters
      • High 90 dB sensitivity



      Product details

      Visaton R 10 S 4" Full-Range Speaker 8 Ohm



      Designed or electronic devices, and to be used in the ceiling structures of rail cars and buses, Visaton's R 10 S full-range speaker has very linear response from 150 to 10,000 Hz. The slim design features a depth of 36 millimeters for shallow mounting. High sensitivity and good power handling combine for more output than many midrange drivers this size, while the paper cone and accordion surround create a more natural, classic sound that is pleasing to most peoples' ears. A square steel mounting plate eliminates the need for a baffle recess, while the mounting slots can accept a wider range of mounting diameters.

      Specifications

      Article number
      R 10 S - 8
      Woofer Series
      R Series
      Woofer Type
      Full-Range
      Nominal Diameter
      8"
      Power Handling (RMS)
      20 Watts
      Power Handling (max)
      30 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      90 dB (1 W/1 m)
      Frequency Response
      100 - 13,000 Hz
      Voice Coil Diameter
      15 mm
      DC Resistance (Re)
      7.2 ohms
      Voice Coil Inductance (Le)
      0.5 mH
      Resonant Frequency (Fs)
      160 Hz
      Mechanical Q (Qms)
      6.27
      Electromagnetic Q (Qes)
      2.92
      Total Q (Qts)
      1.99
      Surface Area of Cone (Sd)
      56 cm2
      BL Product (BL)
      2.0 Tm
      Maximum Linear Excursion (Xmax)
      0.5 mm
      Cone / Diaphragm Material
      Paper
      Surround Material
      Treated Paper
      Basket / Frame Material
      Steel
      Magnet Material
      Ferrite
      Overall Outside Diameter
      94 mm
      Overall Depth
      36 mm
      Baffle Cutout Diameter
      93 mm
      Bolt Circle Diameter
      117 mm
      # Mounting Holes
      4
      Mounting Hole Diameter
      5 mm

      Show more

      Reviews

      5 from 5Based on 2 reviews
      Review this product
      5 of 5
      Koper heeft geen omschrijving achtergelaten.
      By Alexandru D. on 1 June 2020
      5 of 5
      Heel mooi geluid, zeker voor de prijs. Wel heeeel efficiënt.
      By Bran J. on 24 March 2020
