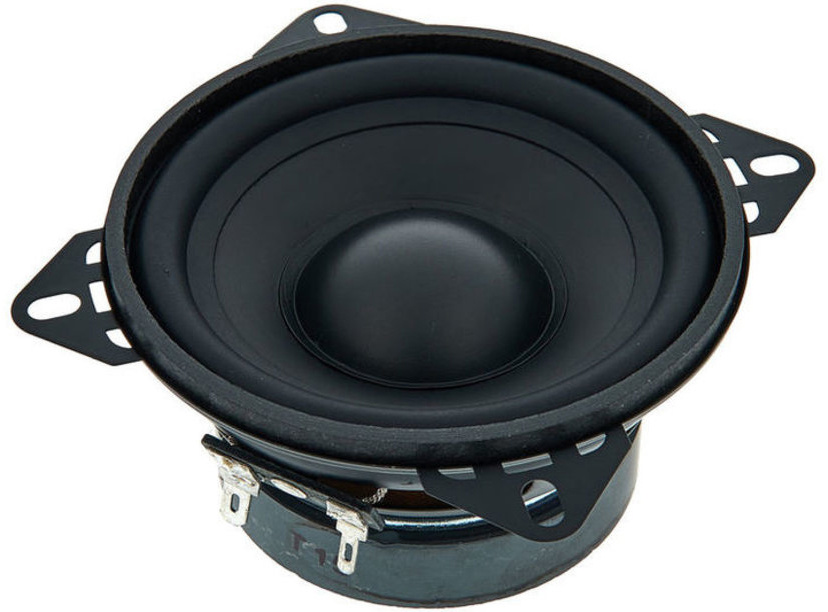

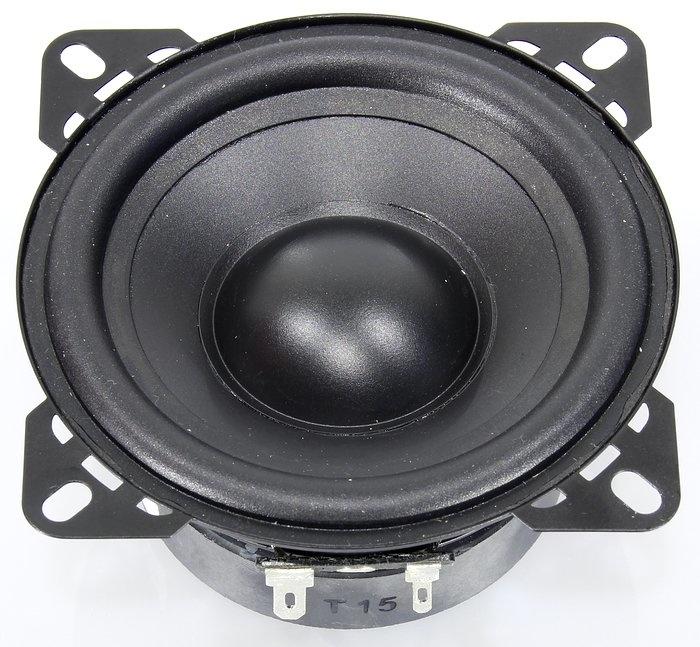

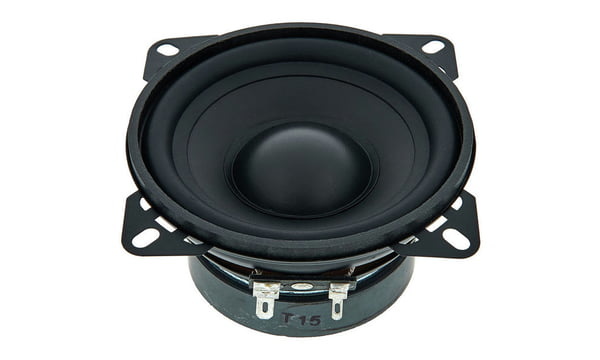

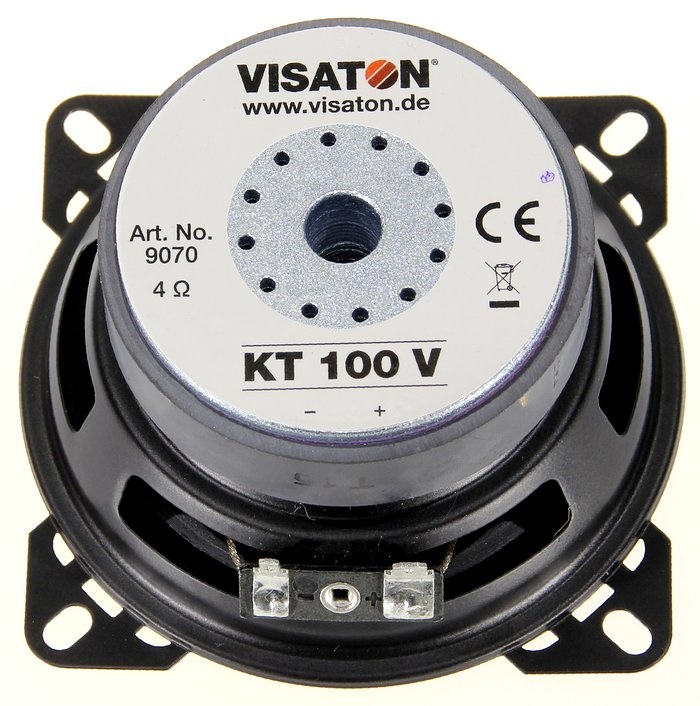

        KT 100 V 4" Woofer 4 Ohm

        KT 100 V 4" Woofer 4 Ohm

        €28,95

        Visaton KT 100 V 4" Woofer 4 Ohm

        3 reviews
        5 from 5
        3 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Visaton
        € 23,93€ 28,95 5 In stock7 expected on 05-04-2024
        • -5% Purchase 4 for only € 27,50 per piece

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        10 cm (4") woofer with low resonant frequency and compact size.



        Highlights

        • Low resonant frequency in compact design
        • Low noise due air gap venting and t-toke
        • Simple basket for various installation possibilities



        Product details

        Visaton KT 100 V 4" Midrange Driver



        Large strokes possible due to elastic rubber surround and deep magnet while noise is minimized through venting of air gap and t-yoke. Simple basket for various installation possibilities.



        Visaton article code: 9070

        Show more

        Specifications

        Article number
        KT 100 V
        Woofer Series
        KT Series
        Woofer Type
        Midwoofer
        Nominal Diameter
        4"
        Power Handling (RMS)
        25 watts
        Power Handling (max)
        40 watts
        Impedance (Z)
        4 ohms
        Sensitivity (SPL at 1m / 2.83V)
        83 dB
        Frequency Response
        32 - 9,500 Hz
        Voice Coil Diameter
        25 mm
        DC Resistance (Re)
        3.7 ohms
        Resonant Frequency (Fs)
        42 Hz
        Mechanical Q (Qms)
        2.94
        Electromagnetic Q (Qes)
        0.69
        Total Q (Qts)
        0.56
        Diaphragm Mass Inc. Airload (Mms)
        7.5g
        Surface Area of Cone (Sd)
        51.4 cm2
        BL Product (BL)
        3.43 Tm
        Compliance Equivalent Volume (Vas)
        7.5 liters
        Maximum Linear Excursion (Xmax)
        2 mm
        Overall Outside Diameter
        99 mm
        Overall Depth
        51.4 mm
        Baffle Cutout Diameter
        92 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        5 mm

        Show more

        5 of 5
        -
        By Valerio on 9 January 2024
        5 of 5
        Sounds good, used it in a portable speaker. Very low basses.
