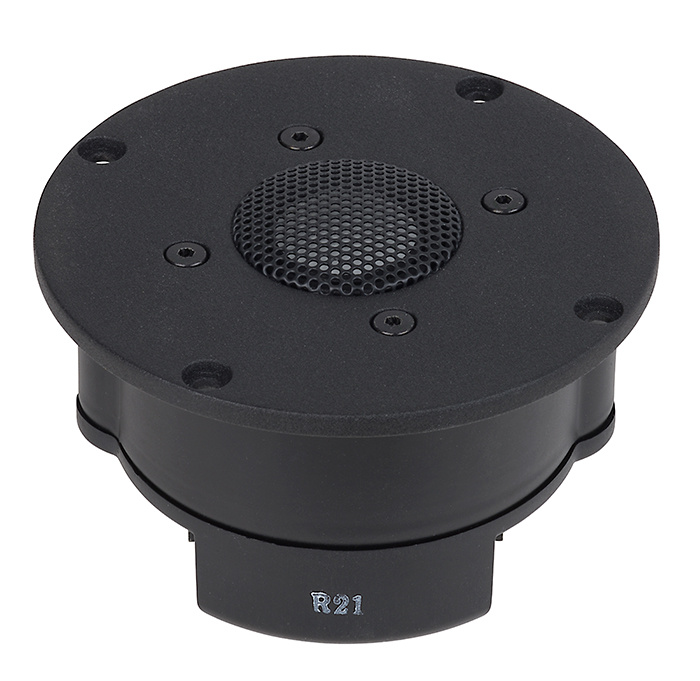

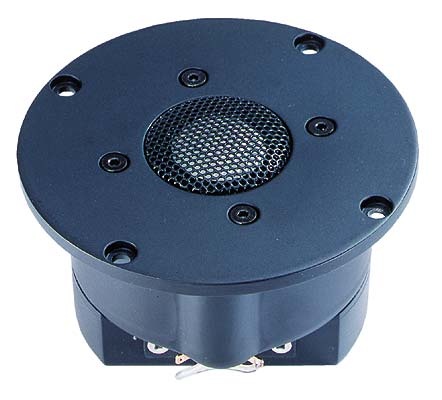

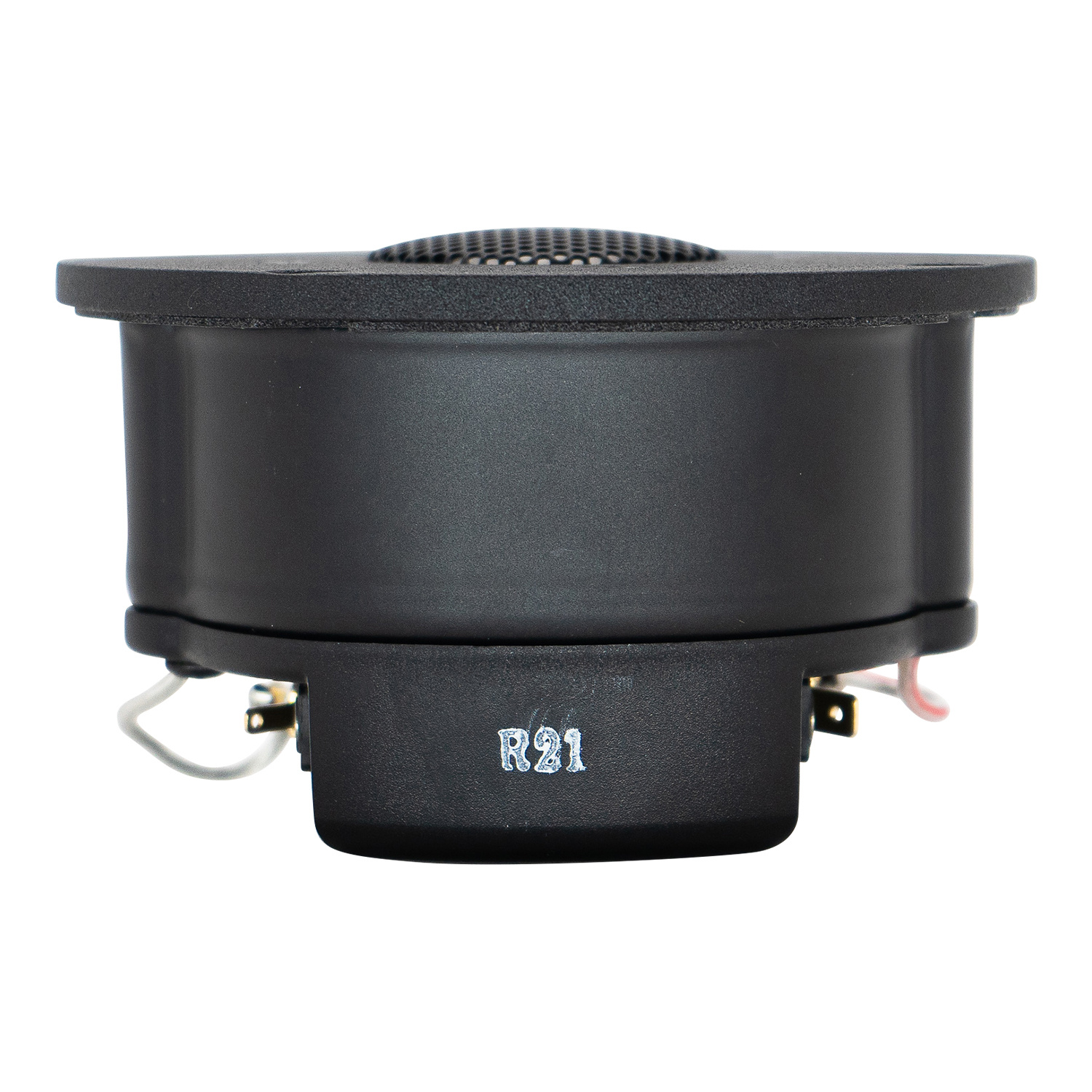

      Visaton KE 25 SC Dome Tweeter

      € 144,59€ 174,95 8 In stock
      • -5% Order 4 for only € 166,20 per piece

      Buy now, pay later

      • 24h express shipping available
      • Ordered now, shipped on Monday
      • In-house techniscal support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      25 mm (1") High-end magnetically shielded tweeter with ceramic diaphragm for crystal clear perfectly reproduced sound without distortion, even at high volume.



      • Ceramic dome
      • Great omnidirectional sound distribution at high frequency’s
      • Linearized impedance due to integrated LRC element


      Product details

      Visaton KE 25 SC 1" High-End Tweeter


      This tweeter has a perforated pole piece coupled with the flow-optimized rounded shape, the damping in the cavity and the ventilated voice coil carrier guarantee a very low resonance frequency. The impedance is linearized by means of an integrated LRC element. This means that the dome can be easily integrated in a network of crossovers. The protective grille is fitted on the inside with an acoustic low-pass filter in the shape of a transparent ring, which does not begin to operate until 25 kHz are achieved, when it damps any material-borne resonance. The grille has the added advantage of improving omnidirectional sound distribution at higher frequencies.

      Show more


      Article number
      KE 25 SC
      Tweeter Type
      Tweeter Series
      Cone / Dome Diameter
      25 mm | 1"
      Power Handling (RMS)
      80 Watts
      Power Handling (max)
      140 Watts
      Impedance (Z)
      8 Ω
      89 dB (1 W/1 m)
      Frequency Response
      800 - 25,000 Hz
      Resonant Frequency (Fs)
      DC Resistance (Re)
      5.9 ohms
      Overall Outside Diameter
      104.5 mm
      Cutout Diameter
      82 mm
      60 mm
      Diaphragm Material
      Recommended cut frequency
      >1,500 Hz

      Show more


      5 from 5Based on 1 reviews
      Review this product
      5 of 5
      Incredible precision, it can take an unexpected amount of power and still sounds softer than any other metal tweeter that we ever try. Flat from 2-22khz with only 4 corrections on PEQ , overall performs better than some units which are 4 times the price!
      By Simon on 26 January 2020
