        Product description Visaton K 28 WP - 8 Micro Speaker

        The Visaton K 28 WP - 8 is a compact micro speaker with a Mylar diaphragm, balanced frequency response and clear voice reproduction for very small electronic devices.



        Highlights of the Visaton K 28 WP - 8

        • 1 W rated power and 2 W maximum power handling
        • 8 ohms nominal impedance
        • 300 to 20000 Hz frequency response
        • 75 dB mean sound pressure level at 1 W/1 m
        • IP65 protection at the front when built into a sealed enclosure
        • Operates in temperatures from -40 to 70 °C



        Product details Visaton K 28 WP - 8

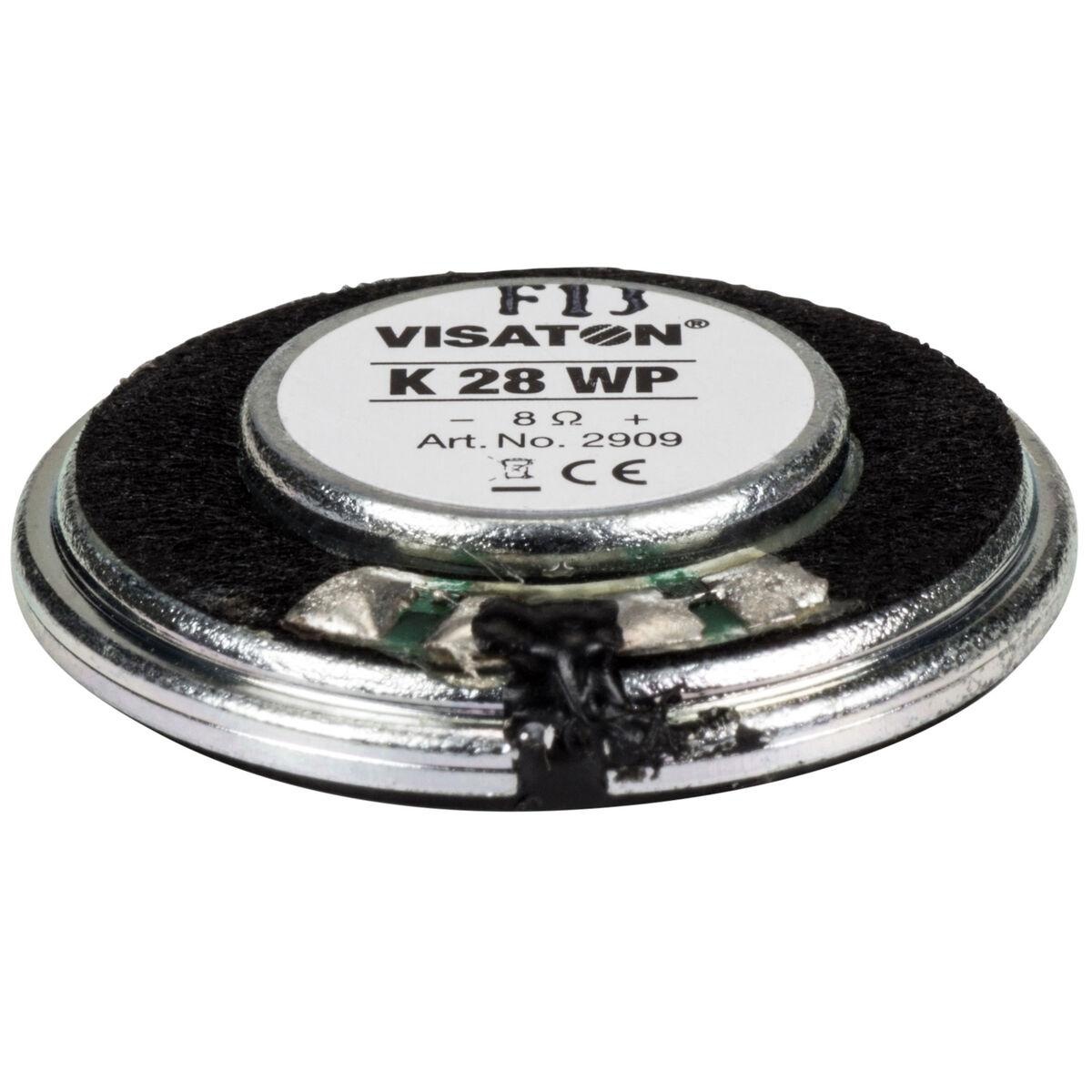

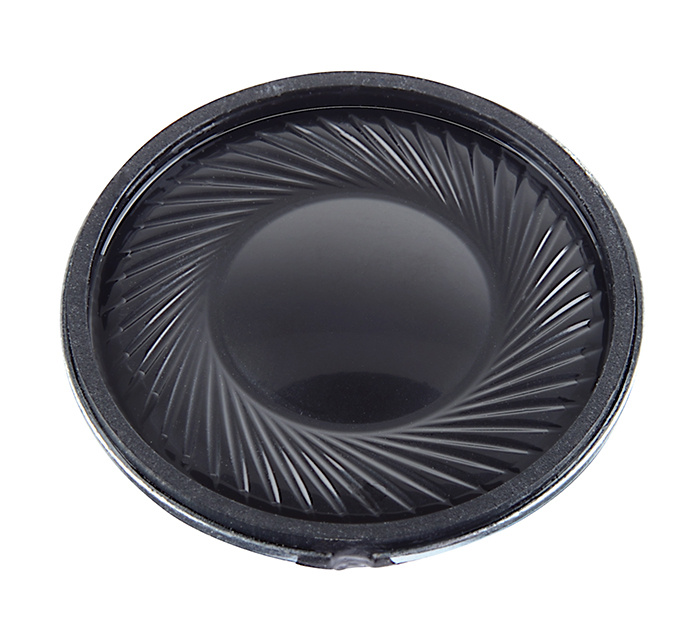

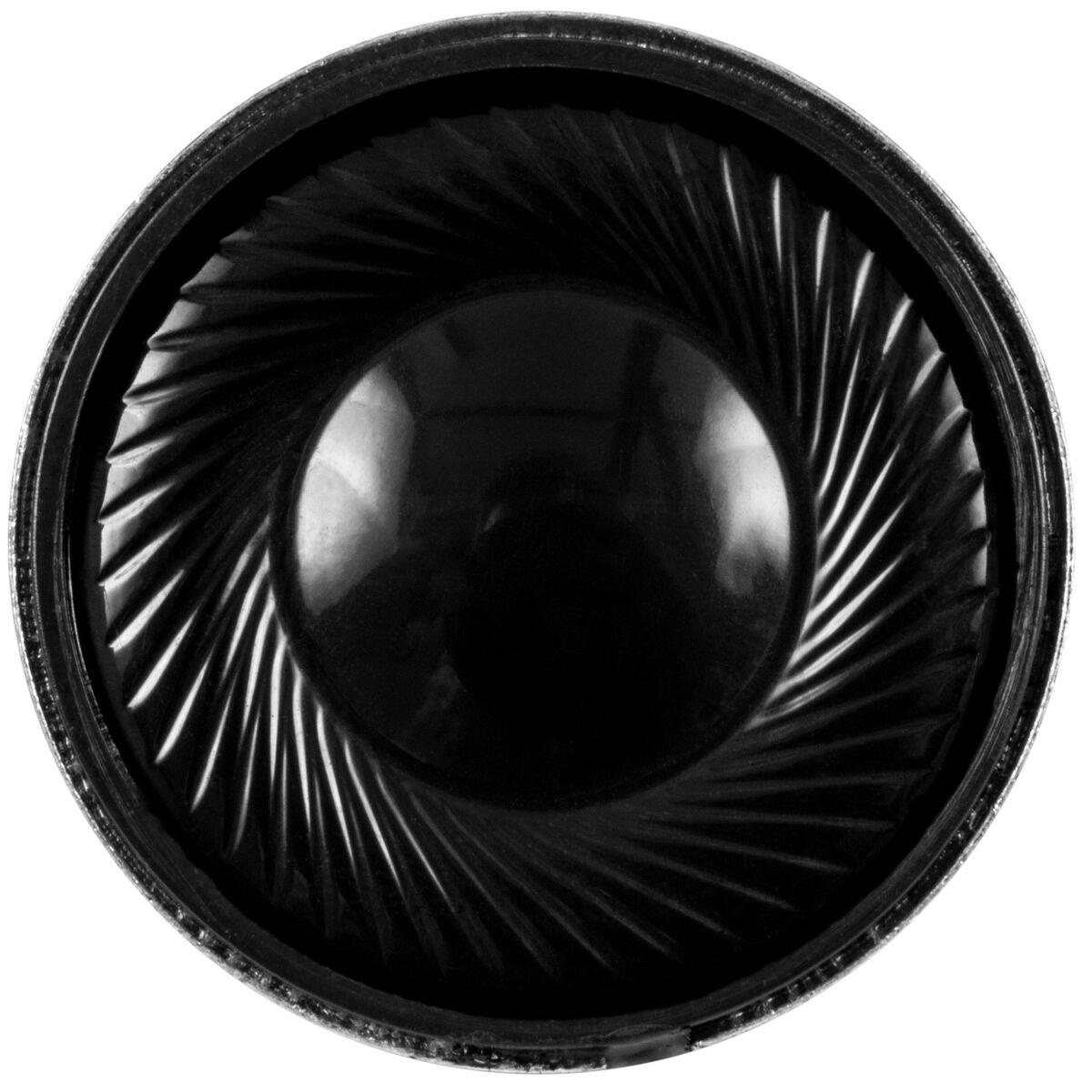

        Visaton K 28 WP - 8 1.0" Micro Speaker 8 Ohm



        The Visaton K 28 WP - 8 is a compact micro speaker designed for applications where installation space is very limited. Its Mylar plastic diaphragm supports balanced reproduction, making it well suited for voice output and monitoring functions in electronic equipment.



        With a frequency response of 300 to 20000 Hz and a mean sound pressure level of 75 dB at 1 W/1 m, this miniature driver delivers clear speech intelligibility in a very small format. As part of compact audio components designs, it is a practical choice for alert tones, monitoring audio and voice reproduction.



        The K 28 WP - 8 uses solder joints for connection and requires a 24 mm cutout for installation. The front side reaches IP65 protection when the speaker is built into a sealed enclosure, with gluing and a front grille used where necessary.



        This driver is suitable for demanding device environments thanks to its -40 to 70 °C temperature range and cold-function performance according to EN 60068-2-1/EN 50155. At only 7 g net weight, it integrates easily into compact speakers or electronic monitoring applications where low mass and small size are important.

        Show more

        Specifications

        Article number
        K 28 WP - 8
        EAN
        4007540029092
        Woofer Type
        Micro speaker
        Nominal Diameter
        1.1"
        Power Handling (RMS)
        1 Watt
        Power Handling (max)
        2 Watts
        Impedance (Z)
        8 Ω / 50 Ω
        Sensitivity (SPL at 1m / 2.83V)
        75 dB
        Frequency Response
        300−20.000 Hz
        Voice Coil Diameter
        13.5 mm
        Resonant Frequency (Fs)
        600 Hz
        Maximum Linear Excursion (Xmax)
        0.5 mm
        Overall Outside Diameter
        28 mm
        Overall Depth
        5.5 mm
        Baffle Cutout Diameter
        24 mm

        Show more
