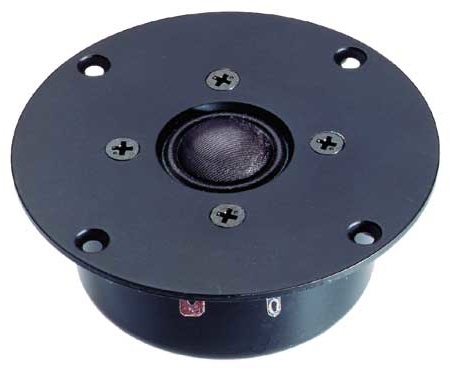

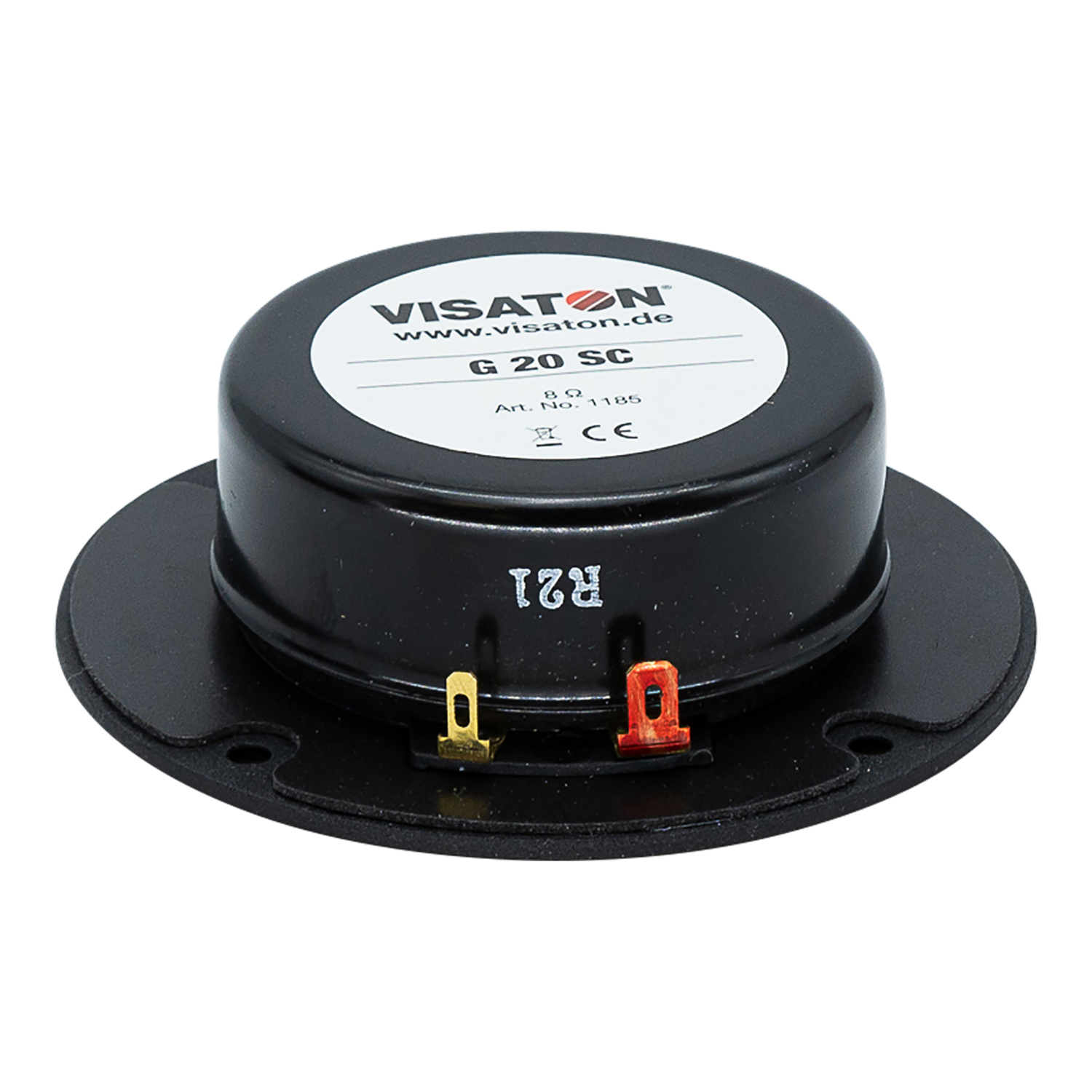

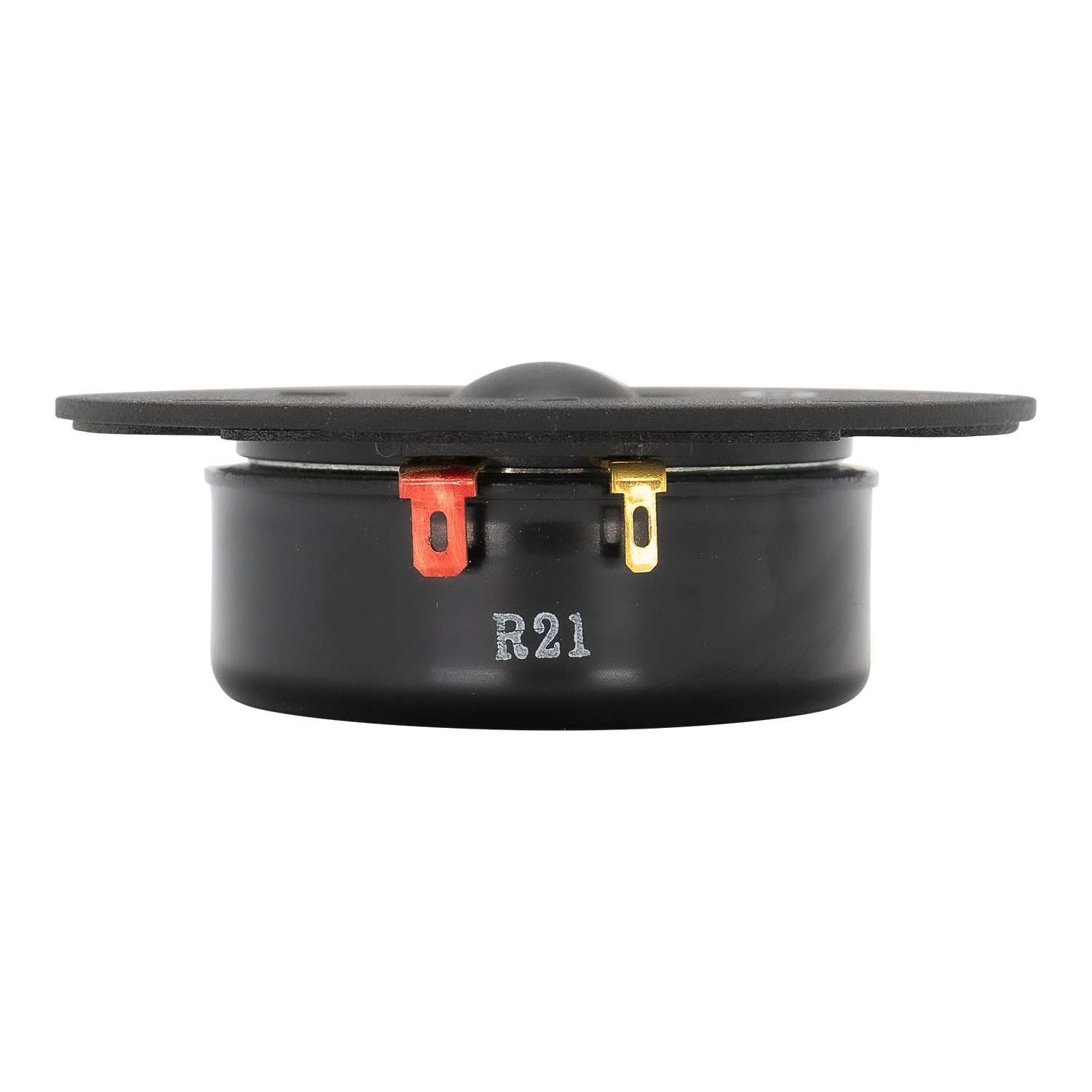

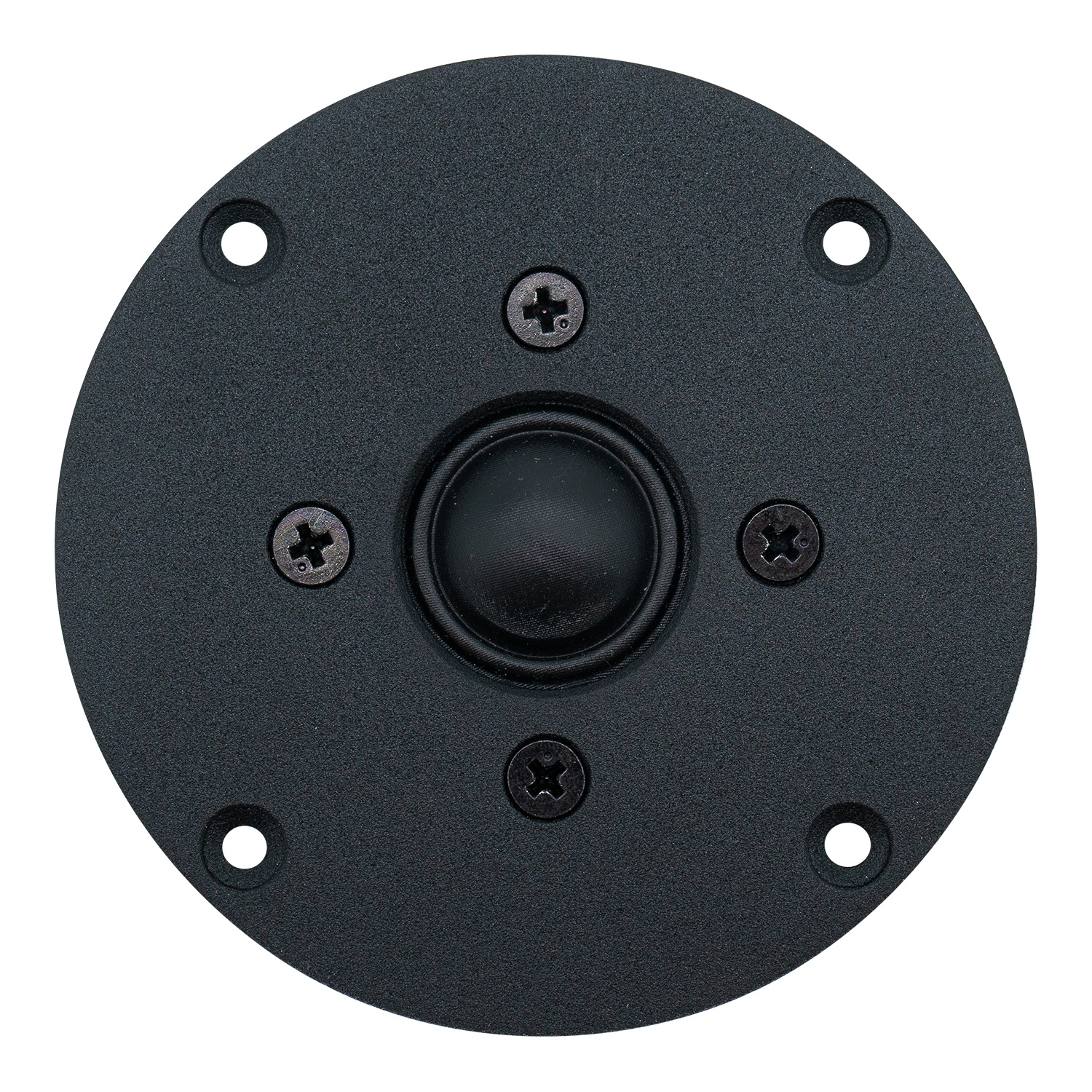

      Visaton G 20 SC 0.8" High-End Textile Tweeter 8 Ohm

      € 46,65€ 56,45 6 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 53,63 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Magnetically shielded 20 mm (0.8") High-end textile dome unit for use at tweeter frequencies of 3,000 Hz and above.



      Highlights

      • Optimised dome shape for balanced frequency response
      • Ferrofluid-cooled 8 ohm voice coil
      • 88 dB sensitivity



      Product details

      Visaton G 20 SC 0.8" High-End Textile Tweeter



      The optimized dome shape and damping felt on the pole piece ensures a very balanced frequency response without resonance and excellent omnidirectional sound distribution. The powerful magnet drive and ferro-fluid cooled voice coil guarantee both high efficiency and excellent power handling capabilities.

      Specifications

      Article number
      G 20 SC
      Tweeter Type
      Dome
      Tweeter Series
      High-End
      Cone / Dome Diameter
      15 mm | 0.6"
      Power Handling (RMS)
      80 Watts
      Power Handling (max)
      140 Watts
      Impedance (Z)
      8 Ω
      Sensitivity
      88 dB (1 W/1 m)
      Frequency Response
      1,200 Hz - 30,000 Hz
      Resonant Frequency (Fs)
      1,890 Hz
      DC Resistance (Re)
      4.8 ohms
      Voice Coil Inductance (Le)
      0.02 mH
      Overall Outside Diameter
      94 mm
      Cutout Diameter
      66 mm
      Depth
      29 mm
      Diaphragm Material
      Fabric
      Recommended cut frequency
      3,000 Hz

      Show more

      Reviews

      5 from 5Based on 3 reviews
      Review this product
      5 of 5
      Ik ben muzikaal niet snel tevreden Dit is prijs kwaliteit het beste wat ik gekocht heb . Zeer mooie en correcte klank zonder enige vervorming of schelheid ,ik had niet anders verwacht van Visaton werk er al +/- 20 jaar mee.Mijn Missions 751 tweeters vervangen met deze (ronde tweeter vroeger rechthoekig van Peerless)Ik heb een nieuw stel speakers nu !!!!!.
      By Eduard Van Wynsberghe on 12 August 2020
      5 of 5
      Very fast delivery! Happy with the service after some buy. Pity you don`t sell Audax...
      By Christian H. on 10 June 2020
      Show more
