        FR 10 HM - 4 Full-range Woofer

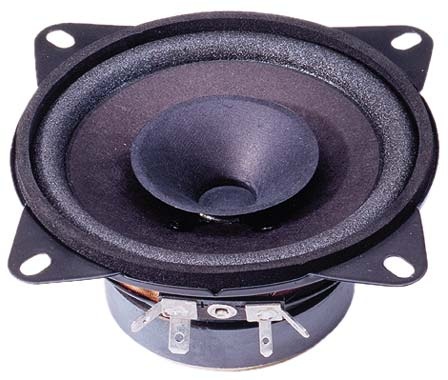

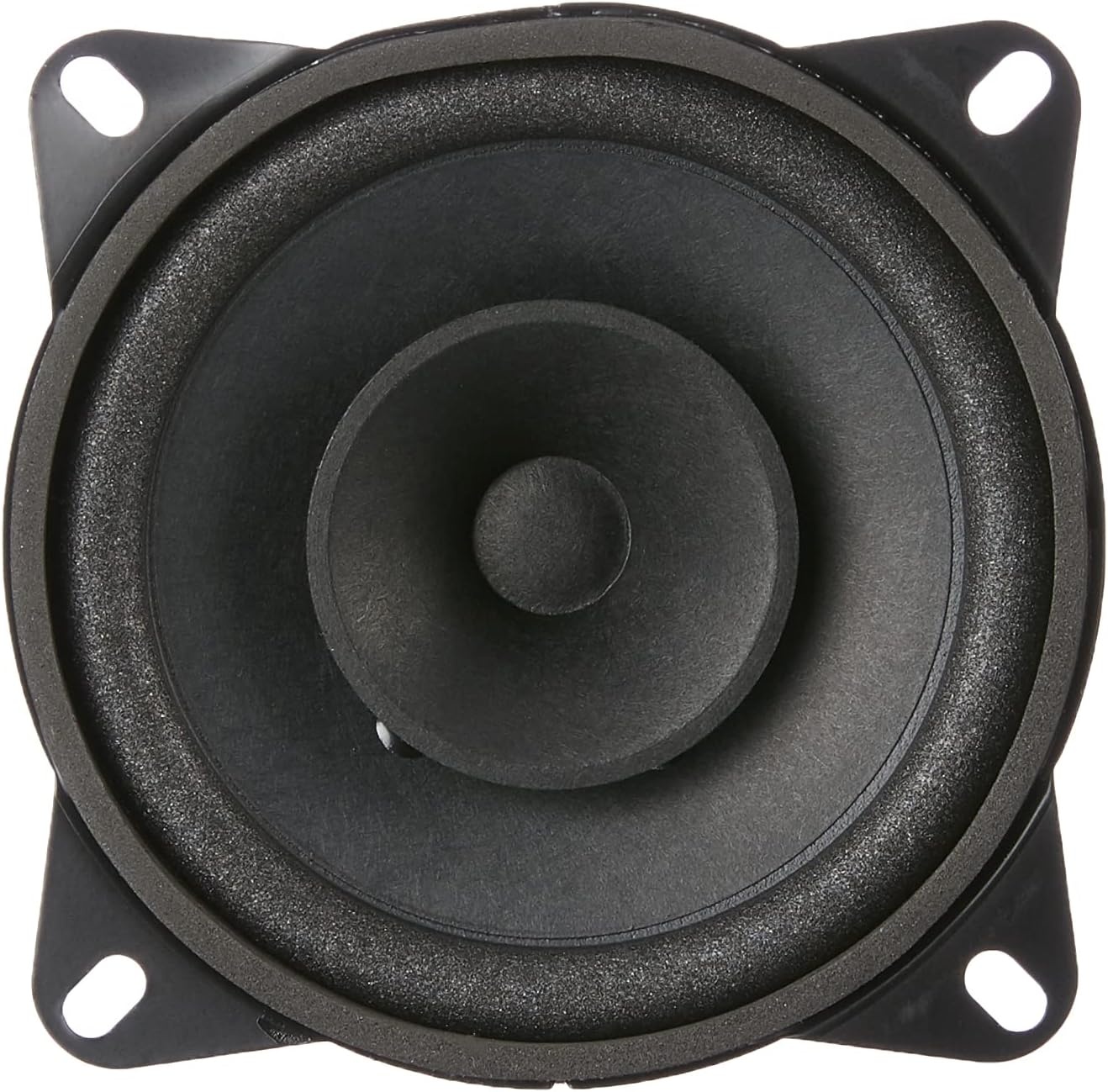

        Visaton FR 10 HM - 4 Full-range Woofer

        €9,95

        10 In stock

        Add to cart

        Visaton FR 10 HM - 4 Full-range Woofer

        1 reviews
        1 from 5
        1 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Visaton
        4" | 4 Ω
        FR 10 HM - 4 Full-range Woofer
        FR 10 HM - 4 Full-range Woofer
        FR 10 HM - 4 Full-range Woofer
        FR 10 HM - 4 Full-range Woofer
        FR 10 HM - 4 Full-range Woofer
        FR 10 HM - 4 Full-range Woofer
        € 8,22€ 9,95 10 In stock
        • -5% Purchase 4 for only € 9,45 per piece
        € 9,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        FR 10 HM - 4 Full-range Woofer
        FR 10 HM - 4 Full-range Woofer
        FR 10 HM - 4 Full-range Woofer
        FR 10 HM - 4 Full-range Woofer
        FR 10 HM - 4 Full-range Woofer
        FR 10 HM - 4 Full-range Woofer

        Product description Visaton FR 10 HM - 4 Full-range Woofer

        The Visaton FR 10 HM - 4 is a compact yet versatile speaker solution. This 4-inch full-range woofer features a tweeter cone, allowing it to reproduce a wide range of frequencies, from deep bass at 20 Hz to crisp highs at 20 kHz. This makes it suitable for various applications, including replacing speakers in cars, building bookshelf speakers, or even incorporating into portable speaker systems.



        Highlights of the Visaton FR 10 HM - 4

        • Moisture-resistant membrane
        • Metal basket



        Product details Visaton FR 10 HM - 4

        Visaton FR 10 HM - 4 Full-range Woofer

        Installation is a breeze thanks to the FR 10 HM - 4's European standard basket, ensuring compatibility with various enclosures. It boasts a power handling capacity of 30 watts continuous, with a peak of 60 watts, and offers a sensitivity of 95 dB, meaning it can deliver ample sound even with lower power input. With an impedance of 4 ohms, it aligns with most amplifier setups.

        Show more

        Specifications

        Article number
        FR 10 HM - 4
        EAN
        4007540048987
        Woofer Type
        Full range speaker
        Nominal Diameter
        4"
        Power Handling (RMS)
        20 Watt
        Power Handling (max)
        30 Watt
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        86 dB
        Frequency Response
        95 - 22.000 Hz
        Voice Coil Diameter
        14 mm
        DC Resistance (Re)
        3.2 Ω
        Voice Coil Inductance (Le)
        0.20 mH
        Resonant Frequency (Fs)
        120 Hz
        Mechanical Q (Qms)
        5.35
        Electromagnetic Q (Qes)
        1.44
        Total Q (Qts)
        1.13
        Diaphragm Mass Inc. Airload (Mms)
        2.7 g
        Mechanical Compliance of Suspension (Cms)
        0.592 mm/N
        Surface Area of Cone (Sd)
        50 cm²
        BL Product (BL)
        2.1 Tm
        Compliance Equivalent Volume (Vas)
        2.1 L
        Maximum Linear Excursion (Xmax)
        2 mm
        Cone / Diaphragm Material
        Paper
        Surround Material
        Treated Paper
        Basket / Frame Material
        Steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        94 mm
        Baffle Cutout Diameter
        93 mm
        Mounting Hole Diameter
        5.0 mm

        Show more

        Reviews

        1 reviews
        Review this product
        1 of 5
        De speaker is veel groter dan aangeeven op de site. Hij is zeker een cm in omvang grotee dan dat de site vermeld. Dus waardeloos voor mij
