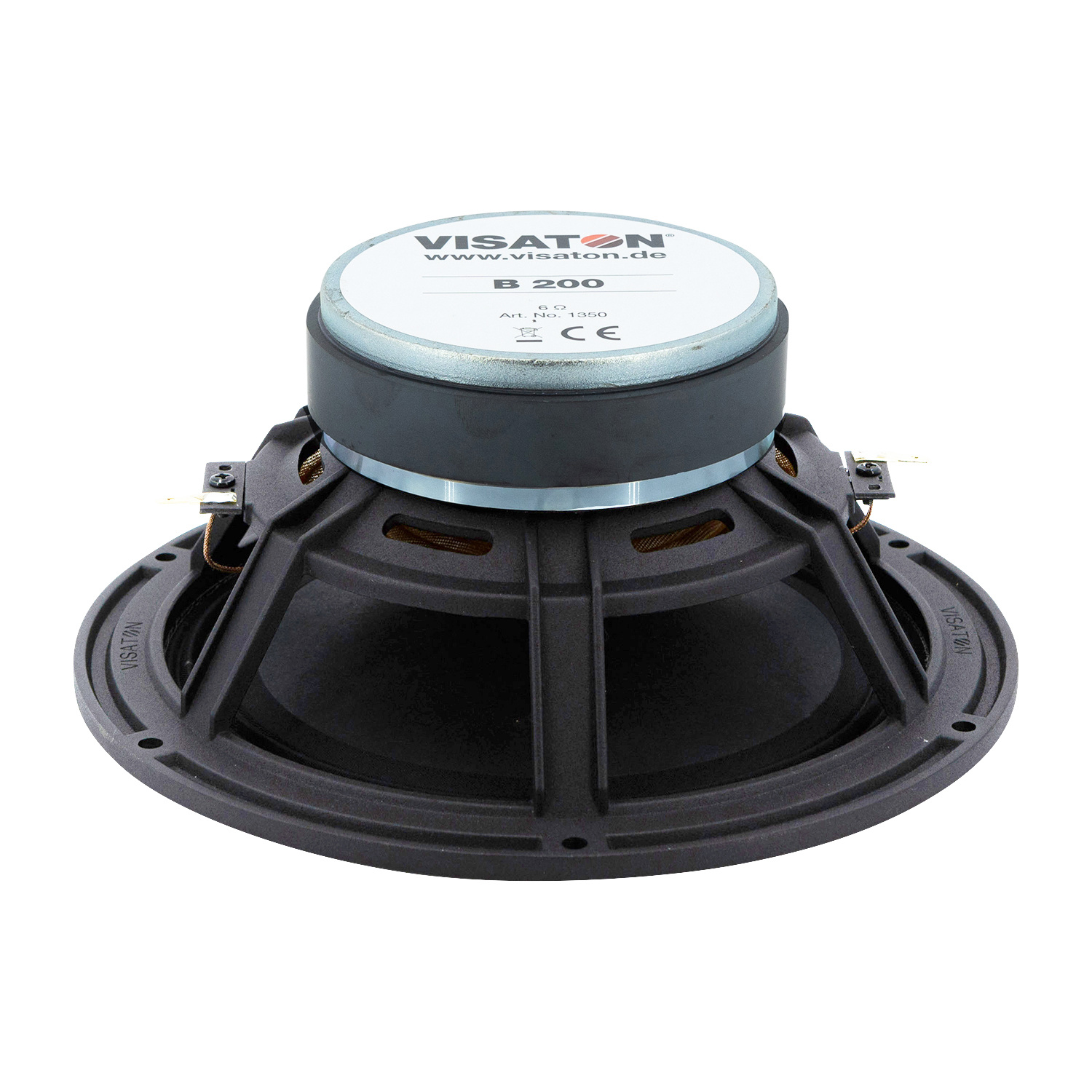

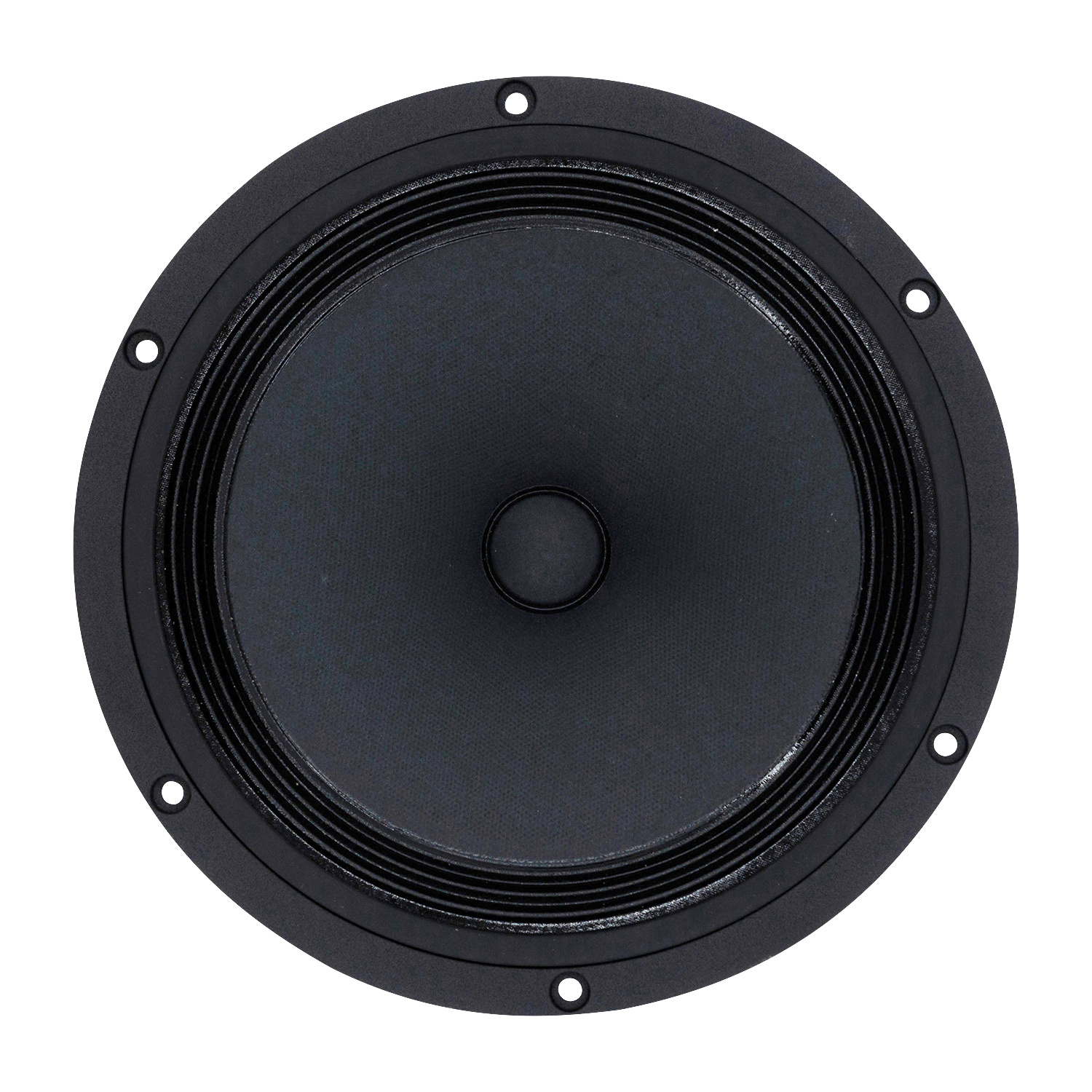

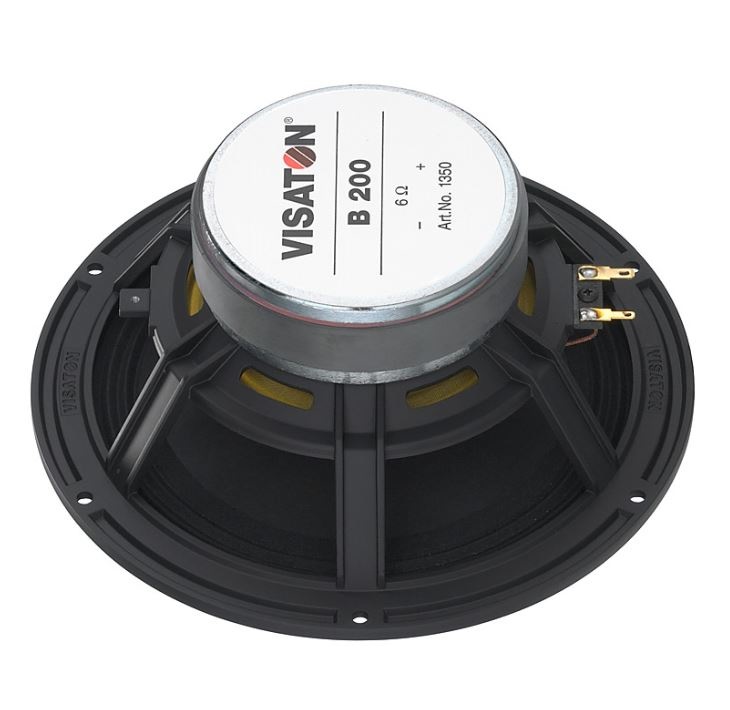

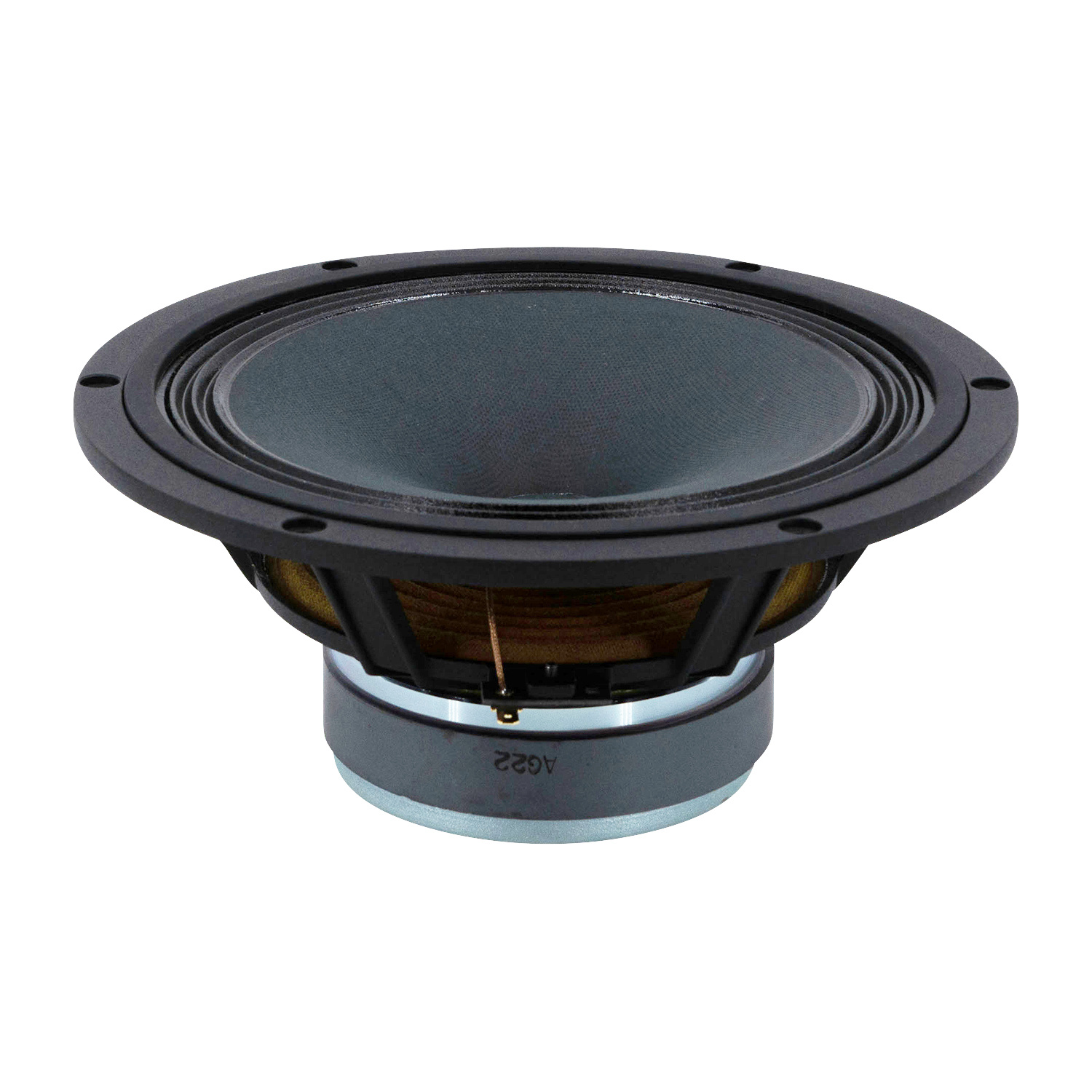

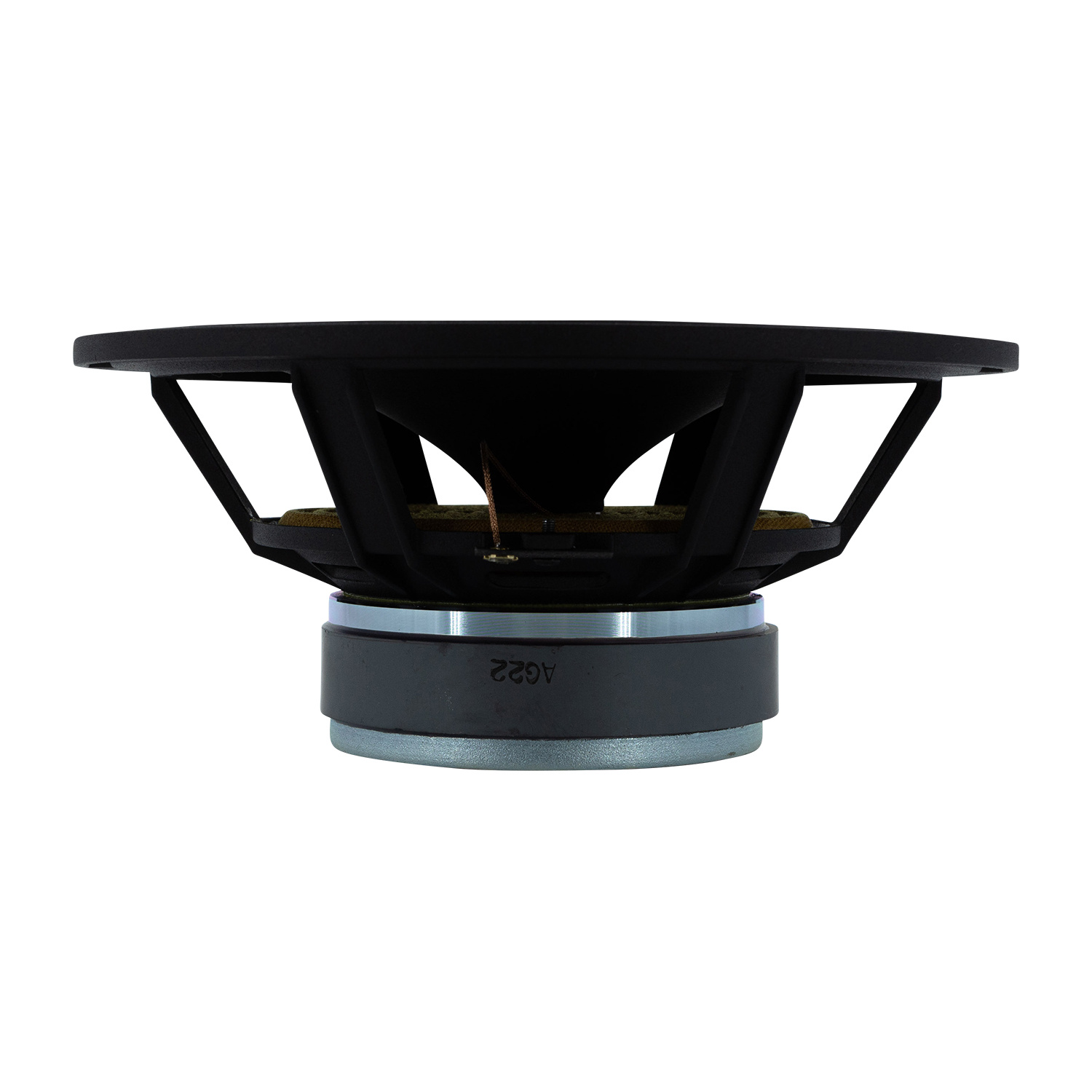

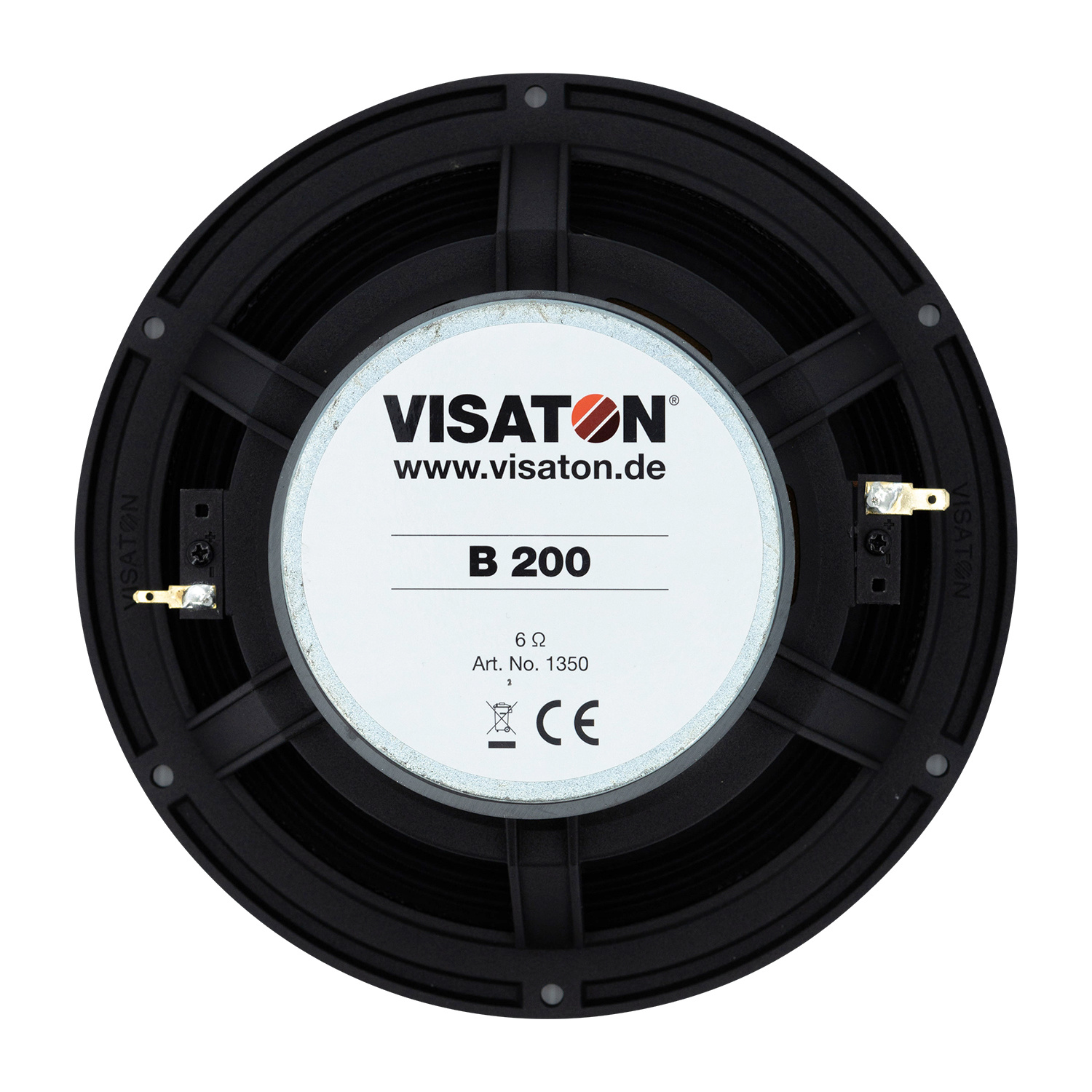

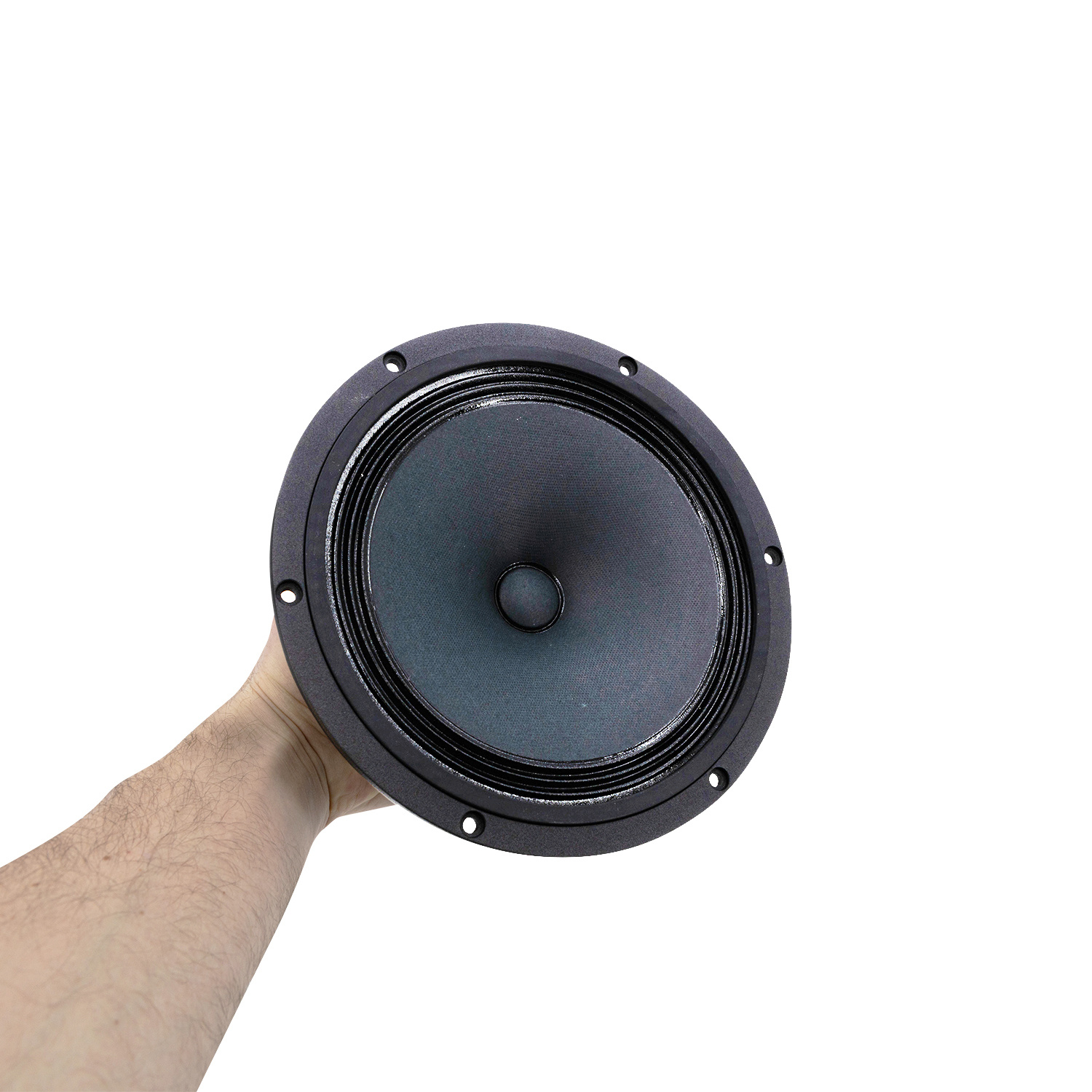

Visaton B 200 8" High-End Full-Range Loudspeaker 6 Ohm

Name: Visaton B 200 8" High-End Full-Range Loudspeaker 6 Ohm
Brand: Visaton
SKU: B 200
Price: 207.95 EUR
Availability: InStock
Rating: 2 (1 reviews)

1 reviews

Brand: Visaton

Show all Full-range woofer

Compare

8" | 6 Ω

B 200 8" High-End Full-Range Loudspeaker 6 Ohm

€ 171,86€ 207,95 2 In stock

24h express shipping available
Ordered now, shipped today
In-house techniscal support
45 days worry-free returns

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

20 cm (8") High-end full-range loudspeaker with lightweight paper cone and fabric surround.

Highlights

High sensitivity
Fabric surround
Die cast aluminum basket

Product details

Visaton B 200 8" High-End Full-Range Loudspeaker 6 Ohm

These high-end speakers stand out because of their high degree of sensitivity and extremely well-balanced frequency response free of noticeable deviations. This is achieved by using a very light-weight paper cone, a fabric surround and an optimized driver equipped with a 25 mm voice coil (aluminum wire) which makes optimum use of the magnetic field in the air gap. The Kapton voice coil carrier is vented. The sturdy aluminum diecast basket is not only optically appealing but, thanks to its rear-venting openings, ensures that physical losses are minimized. Distortion is suppressed to a very low, uniform level.

The B 200 is ideally suited to use in high-quality, powerful single-band speakers, where the cabinet design need not be restricted to classic, fully enclosed or vented cabinets, but more exotic alternatives like horns or open baffles can be used to create amazing results.

Specifications

Article number: B 200
Woofer Series: High-End
Woofer Type: Full-Range
Nominal Diameter: 8"
Power Handling (RMS): 40 Watts
Power Handling (max): 70 Watts
Impedance (Z): 6 ohms
Sensitivity: 96 dB (1 W/1 m)
Frequency Response: 40 - 18,000 Hz
Voice Coil Diameter: 25 mm
DC Resistance (Re): 5 ohms
Voice Coil Inductance (Le): 0.5 mH
Resonant Frequency (Fs): 40 Hz
Mechanical Q (Qms): 8.39
Electromagnetic Q (Qes): 0.83
Total Q (Qts): 0.75
Diaphragm Mass Inc. Airload (Mms): 9.7g
Surface Area of Cone (Sd): 214 cm2
BL Product (BL): 3.9 Tm
Compliance Equivalent Volume (Vas): 102 liters
Maximum Linear Excursion (Xmax): 3.5 mm
Cone / Diaphragm Material: Paper
Surround Material: Cloth
Voice Coil Wire Material: Aluminum
Voice Coil Former: Kapton
Basket / Frame Material: Cast Aluminum
Overall Outside Diameter: 222 mm
Overall Depth: 92 mm
Baffle Cutout Diameter: 190 mm
Bolt Circle Diameter: 210 mm
# Mounting Holes: 6
Mounting Hole Diameter: 5 mm

Reviews

1 reviews

2 from 5Based on 1 reviews

Review this product

2 of 5

I don't see why you should buy this driver for this kind of price. I used it in La Belle and in La Belle CR. While the big ones were great, mostly thank to great tweeter and woofers, the small ones (CR) only have a good tweeter and absolutely no bass.

By Tomas K on 22 March 2020
