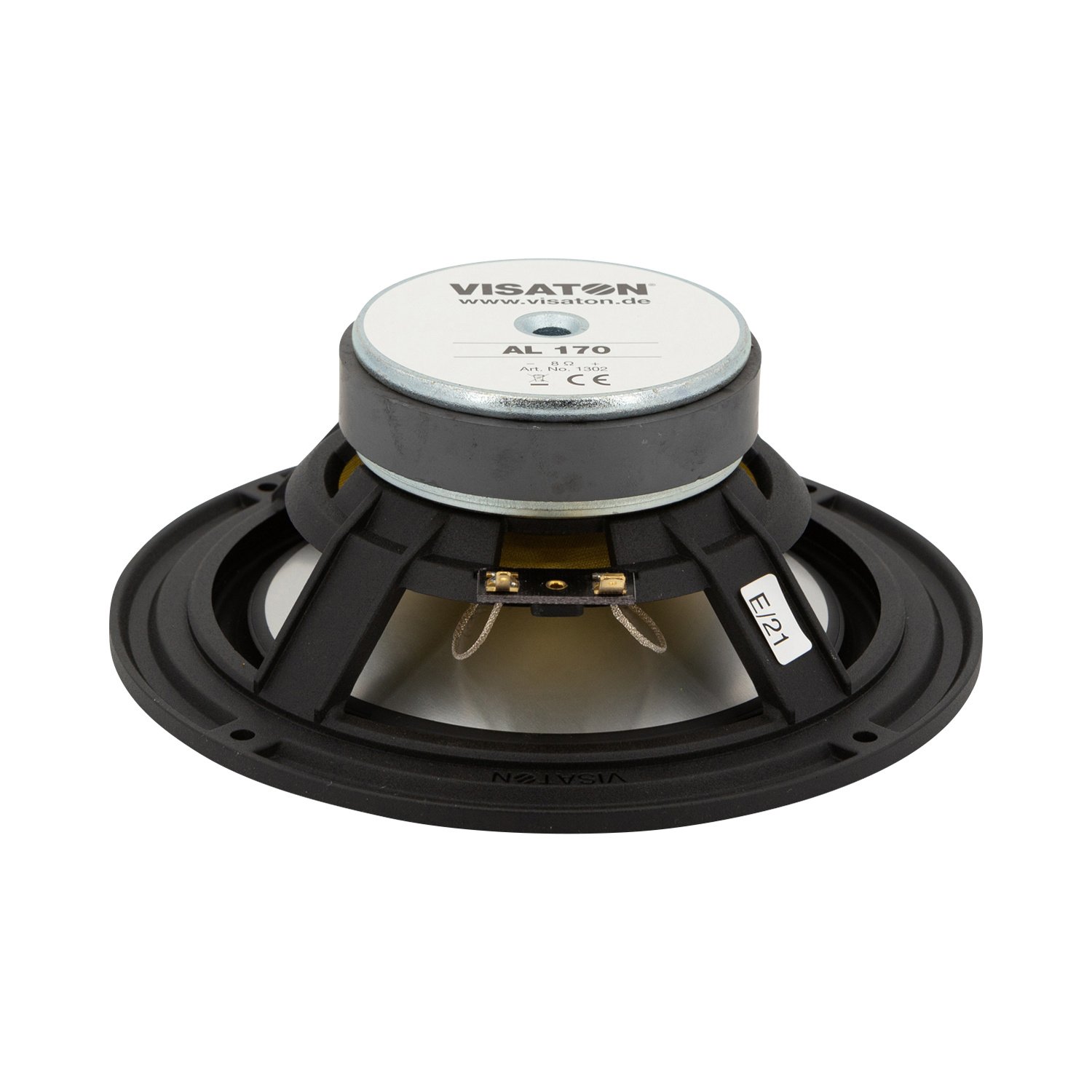

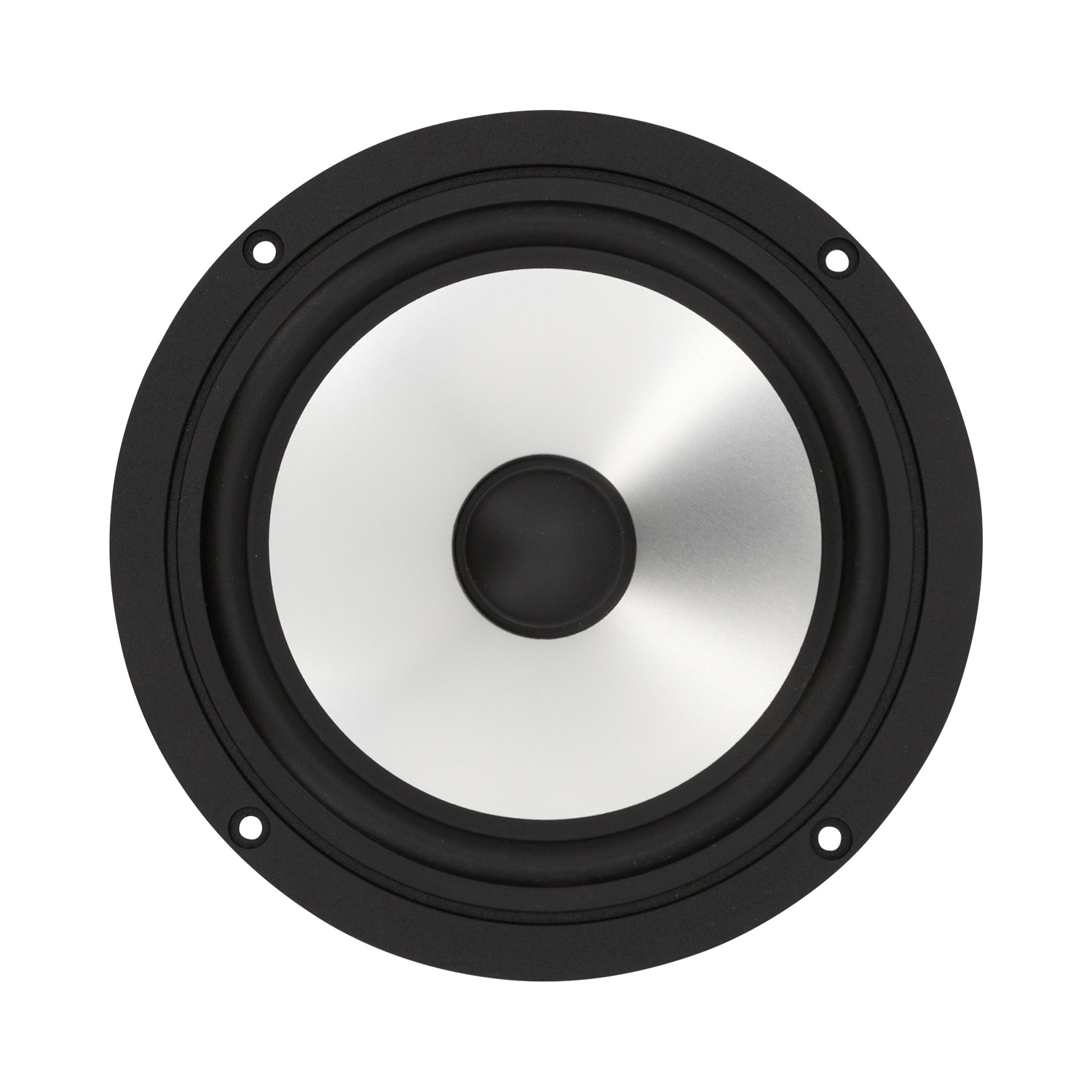

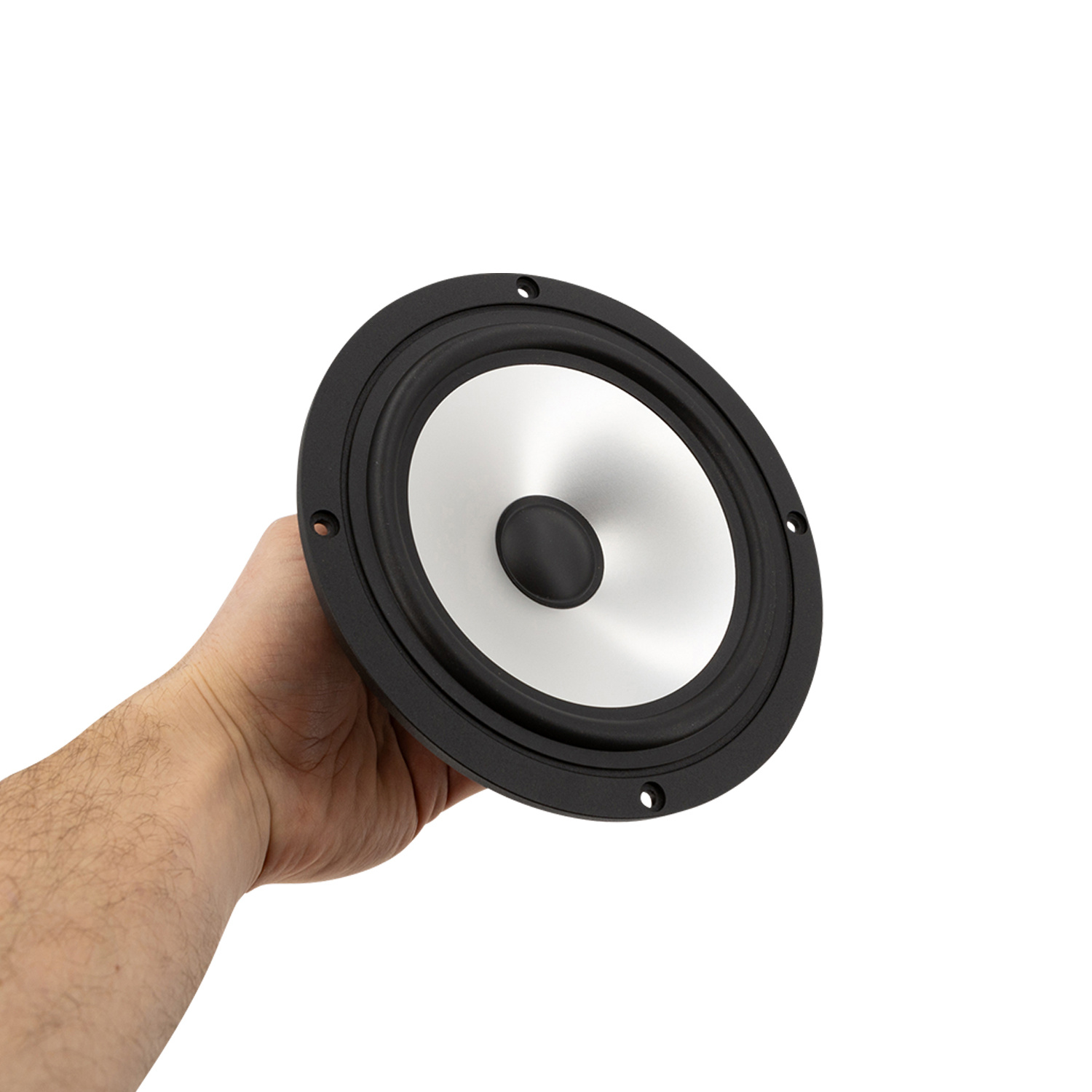

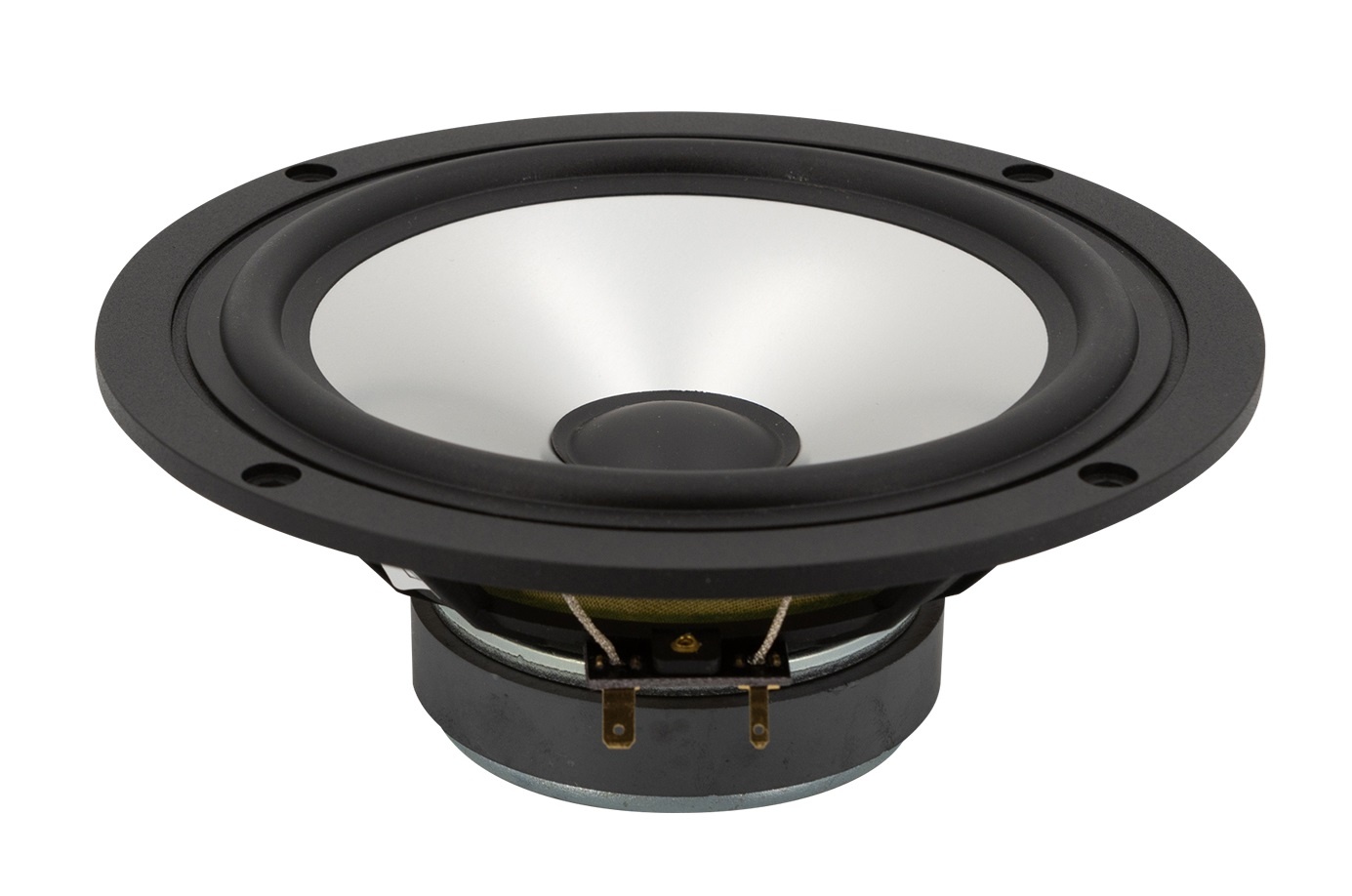

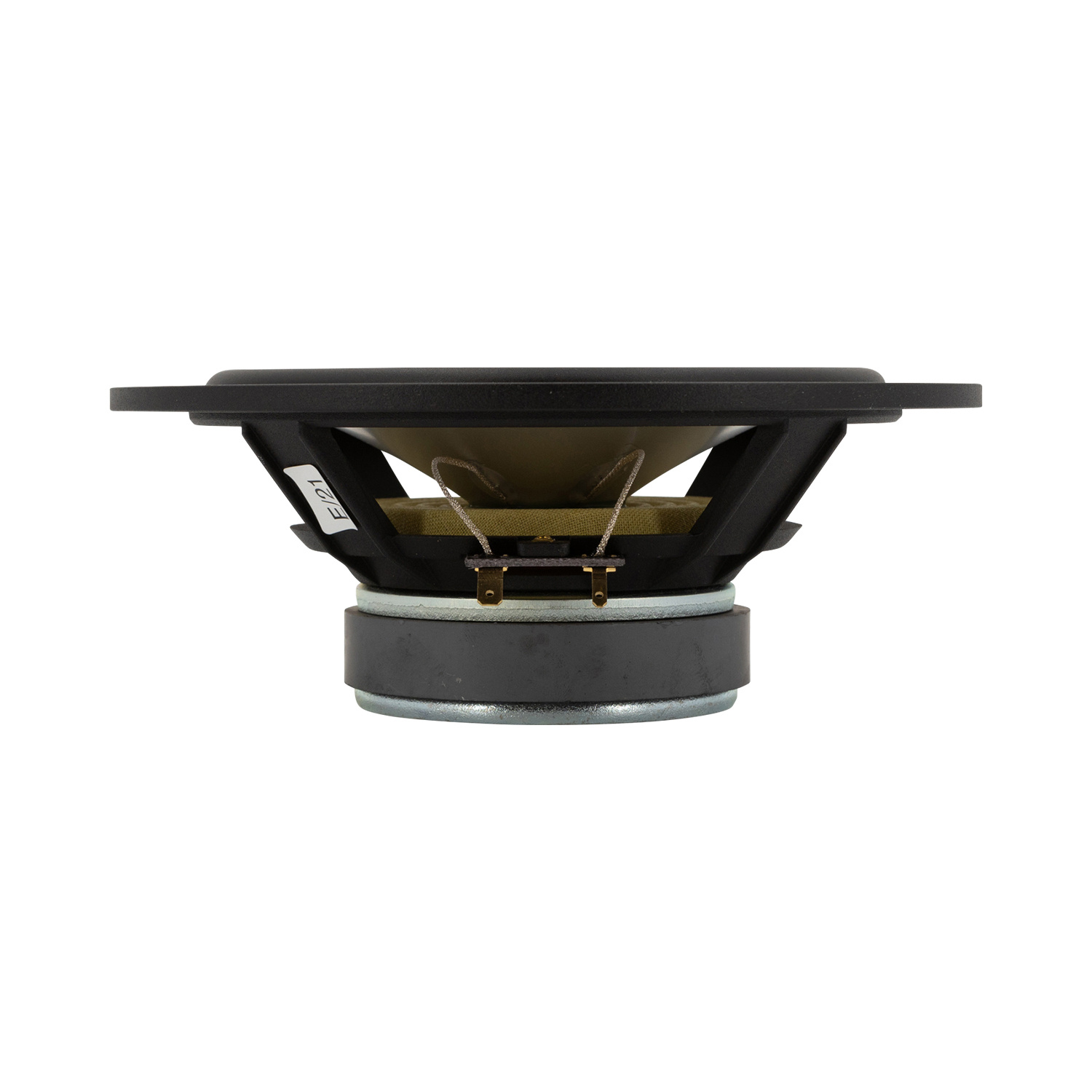

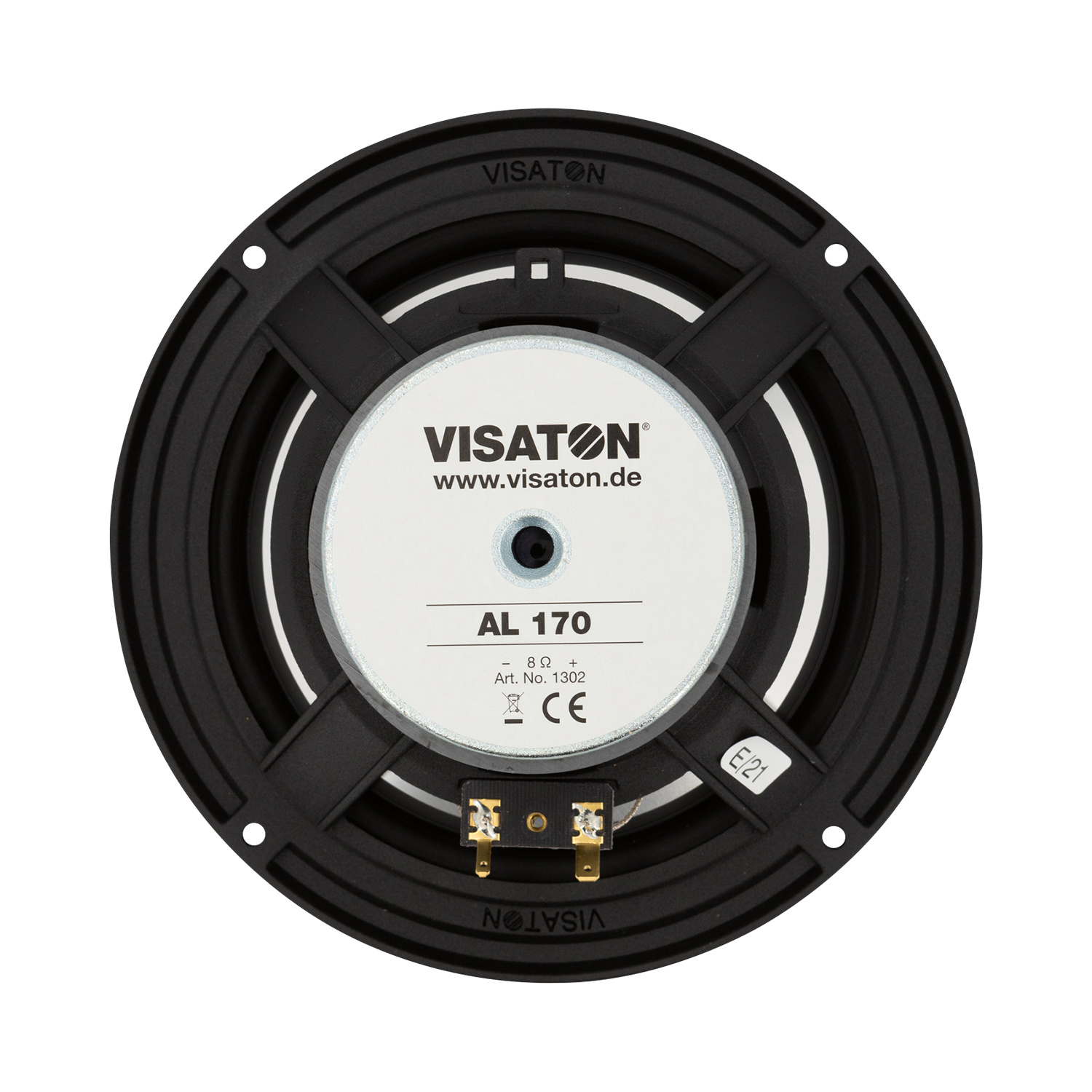

        AL 170 6.5" High-End Woofer 8 Ohm

        AL 170 6.5" High-End Woofer 8 Ohm

        €174,95

        Visaton AL 170 6.5" High-End Woofer 8 Ohm

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Visaton
        € 144,59€ 174,95 4 In stock
        • -5% Purchase 4 for only € 166,20 per piece

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        17 cm (6.5") High-End low midrange driver with stiff, anodized aluminum cone, solid aluminum die-cast basket and elastic rubber surround.



        Highlights

        • Low electrical and mechanical losses
        • Long stroke voice coil
        • Extremely long cone displacement



        Product details

        Visaton AL 170 6,5" High-End Midrange Driver 8 Ohm



        Extremely low electrical and mechanical losses due to vented pole plate, vented damper and capton voice-coil. Extremely long cone displacement due to long stroke voice coil. Suitable as low-midrange driver for 2-, 3- and 4-way high-end applications up to 2500 Hz.



        Visaton article code: 1302

        Show more

        Specifications

        Article number
        AL 170
        Woofer Series
        High-End
        Woofer Type
        Midwoofer
        Nominal Diameter
        6.5"
        Power Handling (RMS)
        70 watts
        Power Handling (max)
        100 watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        88 dB
        Frequency Response
        38 – 10,000 Hz
        Voice Coil Diameter
        25 mm
        DC Resistance (Re)
        5.6 ohms
        Voice Coil Inductance (Le)
        0.9 mH
        Resonant Frequency (Fs)
        38 Hz
        Mechanical Q (Qms)
        3.88
        Electromagnetic Q (Qes)
        0.43
        Total Q (Qts)
        0.39
        Diaphragm Mass Inc. Airload (Mms)
        13g
        Mechanical Compliance of Suspension (Cms)
        13g
        Surface Area of Cone (Sd)
        133 cm2
        BL Product (BL)
        6.9 Tm
        Compliance Equivalent Volume (Vas)
        34 liters
        Maximum Linear Excursion (Xmax)
        11 mm
        Cone / Diaphragm Material
        Aluminum
        Surround Material
        Rubber
        Voice Coil Former
        Kapton
        Basket / Frame Material
        Cast Aluminum
        Overall Outside Diameter
        180 mm
        Overall Depth
        68 mm
        Baffle Cutout Diameter
        150 mm
        Bolt Circle Diameter
        168 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        4.3 mm

        Show more

        5 of 5
        deze speaker in een 32 liter basreflex gaat erg diep maar blijft strak en ongekleurd
        By Rob W. on 23 August 2019
