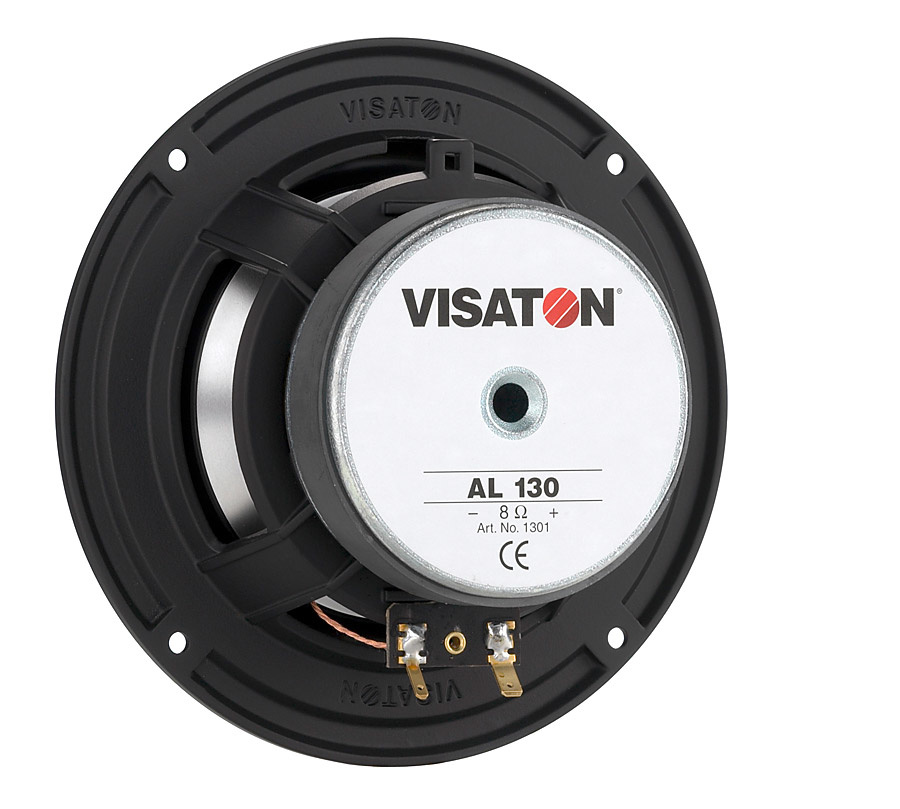

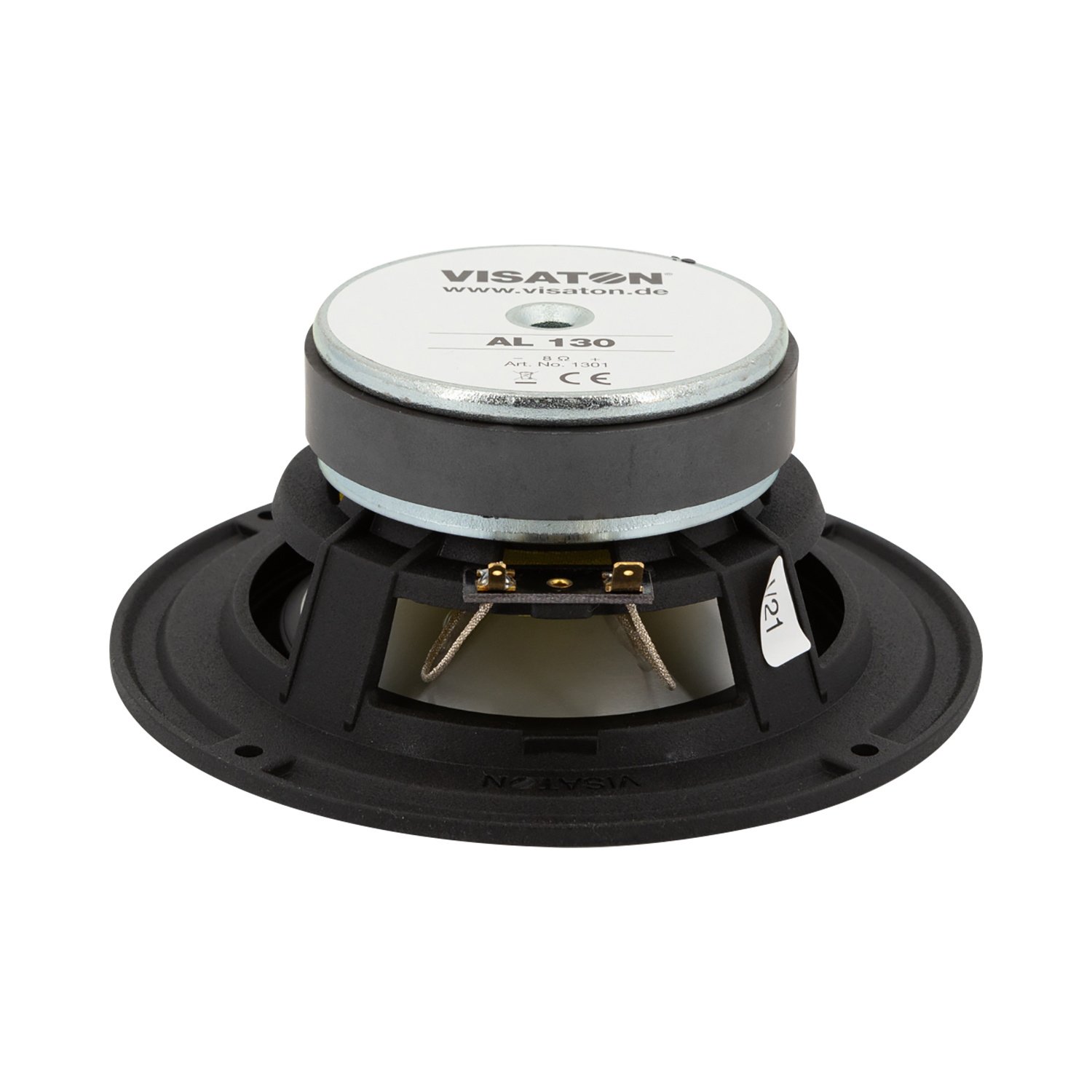

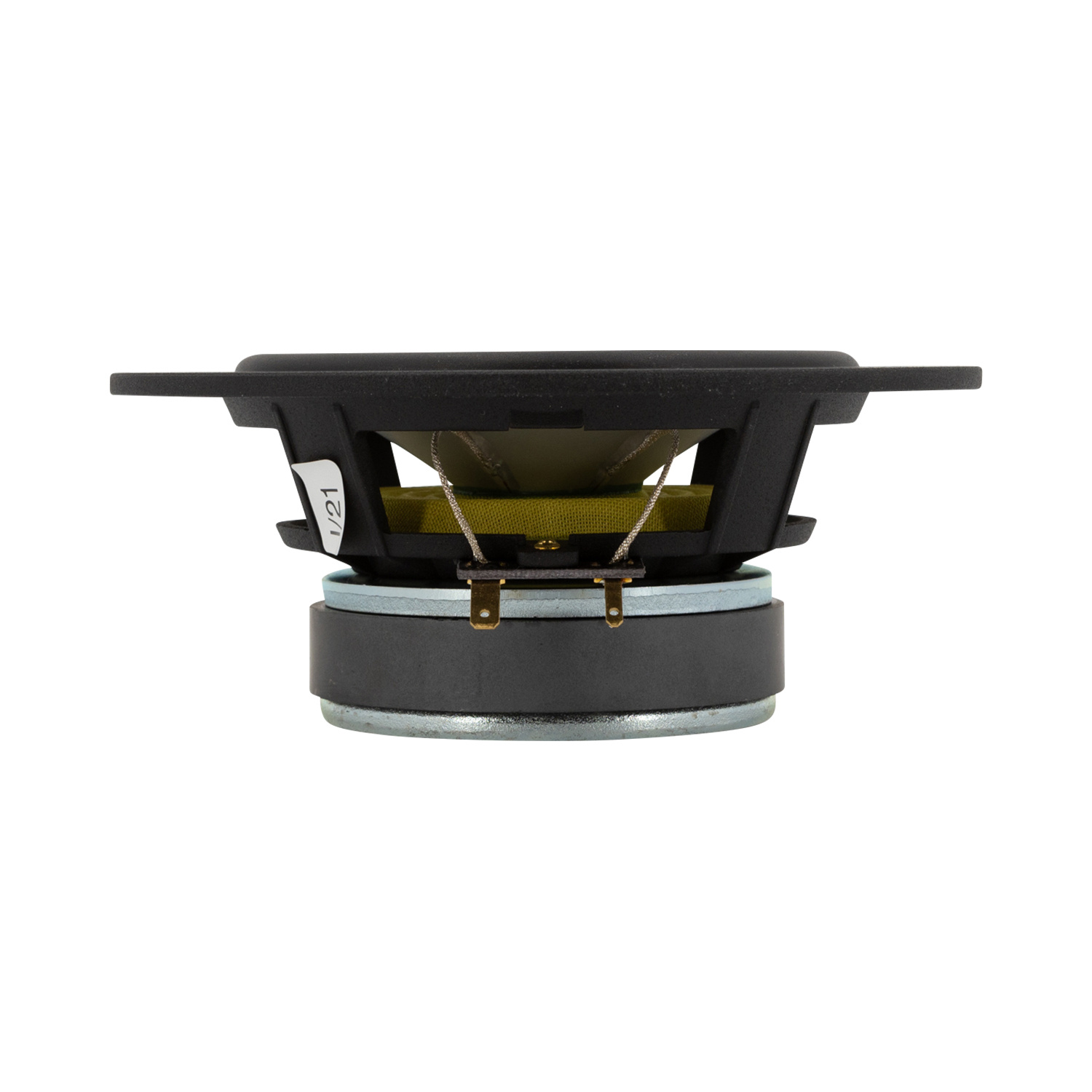

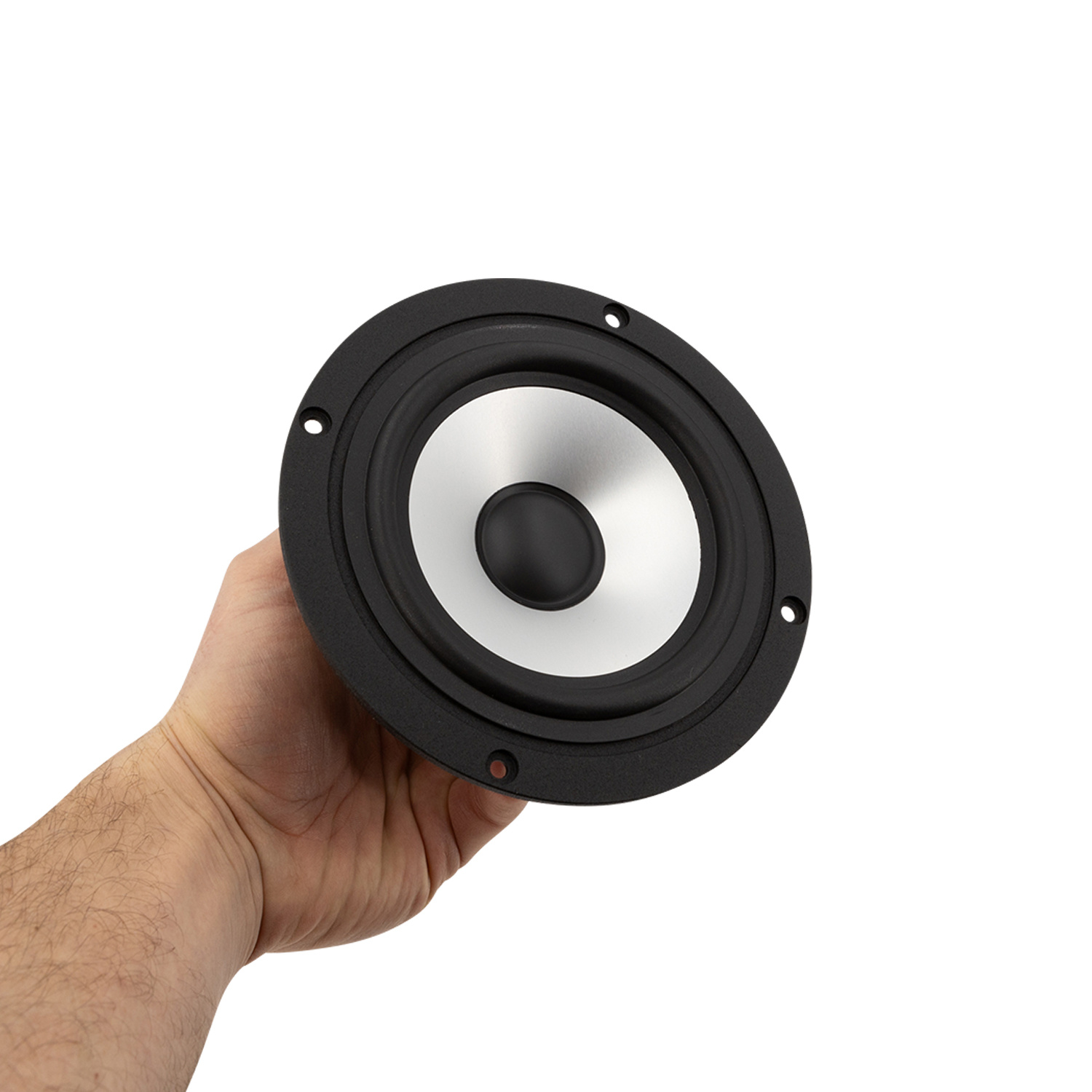

    Visaton AL 130 5" High-End Woofer 8 Ohm

    € 95,-€ 114,95 4 In stock: delivery time 1-4 business days
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €109,20 per piece
    • Shipping always fully insured and with track & trace
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    13 cm (5") High-End low midrange driver with stiff, anodized aluminum cone, solid aluminum die-cast basket and elastic rubber surround.



    Highlights

    • Low electrical and mechanical losses
    • Long stroke voice coil
    • Extremely long cone displacement



    Product details

    Visaton AL 130 5" High-End Midrange Driver 8 Ohm



    Extremely low electrical and mechanical losses due to vented pole plate and vented damper. Capton voice-coil and impedance control ring. Extremely long cone displacement due to long stroke voice coil. Suitable as low-midrange driver for 3-way High-End applications up to 5000 Hz.

    Specifications

    Article number
    AL 130
    Woofer Series
    High-End
    Woofer Type
    Midwoofer
    Nominal Diameter
    5"
    Power Handling (RMS)
    60 watts
    Power Handling (max)
    90 watts
    Impedance (Z)
    8 ohms
    Sensitivity
    87 dB (1 W/1 m)
    Frequency Response
    43 – 8,000 Hz
    Voice Coil Diameter
    25 mm
    DC Resistance (Re)
    5.6 ohms
    Voice Coil Inductance (Le)
    0.9 mH
    Resonant Frequency (Fs)
    43 Hz
    Mechanical Q (Qms)
    4.37
    Electromagnetic Q (Qes)
    0.42
    Total Q (Qts)
    0.38
    Diaphragm Mass Inc. Airload (Mms)
    9g
    Mechanical Compliance of Suspension (Cms)
    79 cm2
    Maximum Linear Excursion (Xmax)
    8.5 mm
    Cone / Diaphragm Material
    Aluminum
    Surround Material
    Rubber
    Voice Coil Former
    Kapton
    Basket / Frame Material
    Cast Aluminum
    Overall Outside Diameter
    153 mm
    Overall Depth
    62.5 mm
    Baffle Cutout Diameter
    115 mm
    Bolt Circle Diameter
    141 mm
    # Mounting Holes
    4
    Mounting Hole Diameter
    4.3 mm

    Reviews

    5 from 5Based on 1 reviews
    Review this product
    5 van 5
    Top class midwoofer in combi with high ks 25 tweater by visaton. Use them in visaton Conga and Bijou
    By JH V. on 16 March 2021
