Hypex UcD180 Stereo Kit amplifier kit

1 reviews

Brand: Hypex

Show all DIY kits

Compare

2 x 180 W

€ 520,62€ 629,95 3 In stock: delivery time 1-4 business days

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Build your own high-performance stereo amplifier based on the UcD180HG HxR modules from Hypex.

Highlights

All-in-on stereo amplifier kit
Easy assembly and no soldering required
Detailed step-by-step instructions
Very low distortion over whole frequency range
Neutral and transparent reproduction
Small form factor

Product details

Hypex UcD180 2x180W Stereo Kit

The UcD technology is a high performance and reliable amplifier technology. The UcD amplifier modules stand out in our amplifier modules category, due to their unique circuit topology. They have a flat frequency response irrespective of load impedance, nearly frequency-independent distortion behavior and very low radiated and conducted EMI.

This kit contains everything you need to build your own UcD stereo amplifier. The main parts for this kit are two UcD180HG HxR amplifier modules, SMPS400A180 power supply and a black anodized aluminum case. The amplifier modules and power supply combination enable high and reliable performance from the UcD technology. The black anodized case provides good heat dissipation, protection and a small form factor.

Along the main parts, this kit includes everything else you need to build a powerful high-quality monoblock amplifier. Assembly only requires proper positioning, bolts to be tightened and connectors to be clicked. Anybody comfortable with a screwdriver can build this amazing stereo amplifier.

What’s In The Box

2x UcD180HG HxR amplifier module

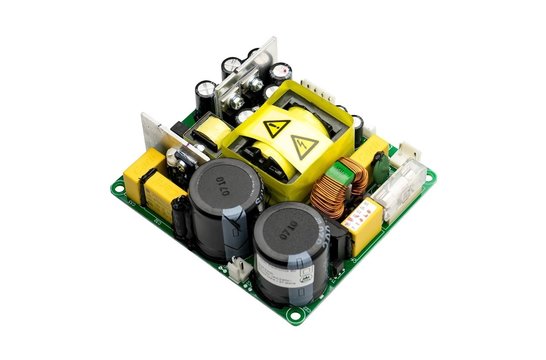

SMPS400A180 switch mode power supply
Aluminum enclosure
All internal cables
All needed mounting materials
2x input XLR connectors
2x binding posts (pair)
On/Off Switch
IEC C14 power connector (including fuse)
IEC C13 power cable

Specifications

Article number: UcD180 stereo kit
Rated power output: 2x 180 watts at 4 ohms
2x 120 watts at 8 ohms
Minimum load: 1 ohm
Efficiency: 92 %
Signal-to-noise ratio (SNR): -
Distortion: 0.1 % THD+N (20-20,000 Hz at 0.5 x rated power output)
Frequency response: 10 - 50,000 Hz
Gain: 26 dB
Input sensitivity: -
Input impedance: 100k ohms
Amplifier Classification: Class D
Circuit Topology: UcD®
Speaker output channels: 2
Input connection type: XLR
Speaker output connection type: Binding posts
DSP function: -
Bluetooth: -
EQ Adjustment: -
Power Requirements: 110 / 230 VAC (jumper selectable)
Power inlet connector: IEC C14
Current limit: 10 A
Under/over voltage protection
Dimensions (L x W x H): 280 x 200 x 78 mm
Mounting hole spacing: -
Mounting hole diameter: -

Assembly instructions

Reviews

1 reviews

5 from 5Based on 1 reviews

Review this product

5 of 5

Excellent, well thought out solderless kit, thought through to the smallest detail. Exceptional build quality, very classy, top performance. I own several power amplifiers from tube to Class A & A/B of germanium, where the UcD 180 has caused only a 1/10 of the cost, but none of the power amplifiers plays, away so controlled, would almost say with power, so clean and stable as the UcD180 on the most diverse speakers (from 83db to 105db) that I have tested. Dreamlike. Even my Rehdeko RK 115 which is not compatible with very many amplifiers is in the combination of Ucd180 & Gustard A18 or Soncoz SGD1 a dream, of course purely subjective everything, simply dreamlike. In the Class D is probably not much room upwards, I can only imagine 2 increases, but that remains to be seen. Welcome to the 21 Jdh. The shipping logistics of Sound Imports is unprecedentedly good, since Mr. J. Bezos should cut a slice. Thanks guys!

By Michael A. on 20 March 2021
