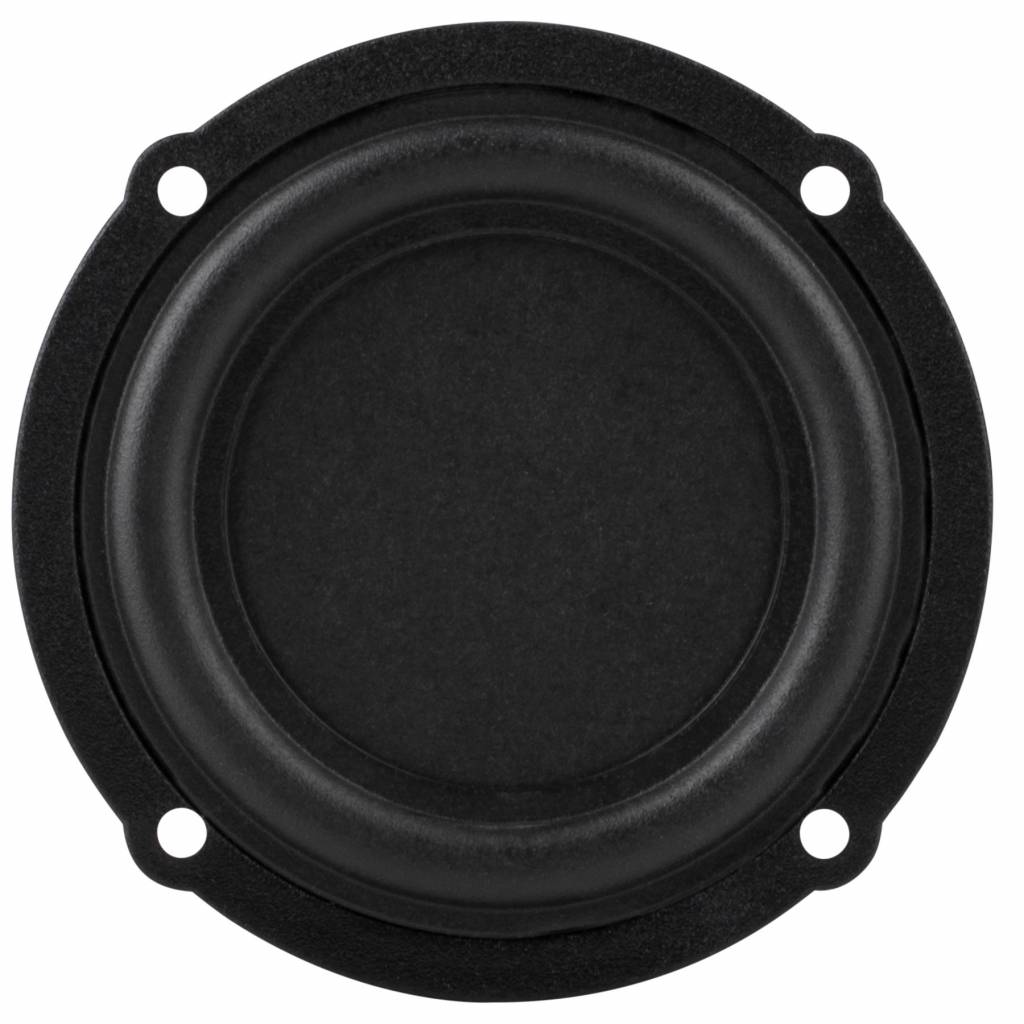

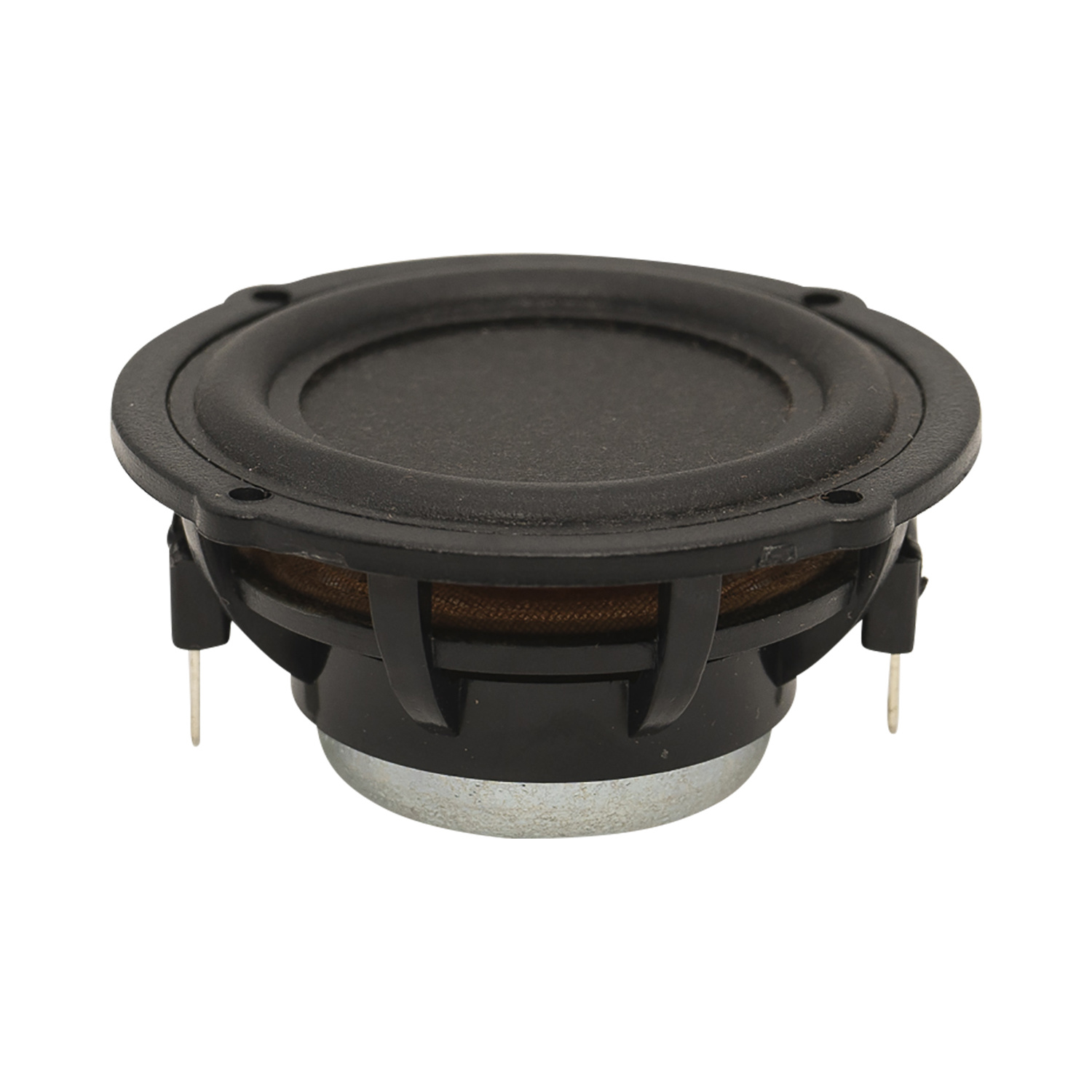

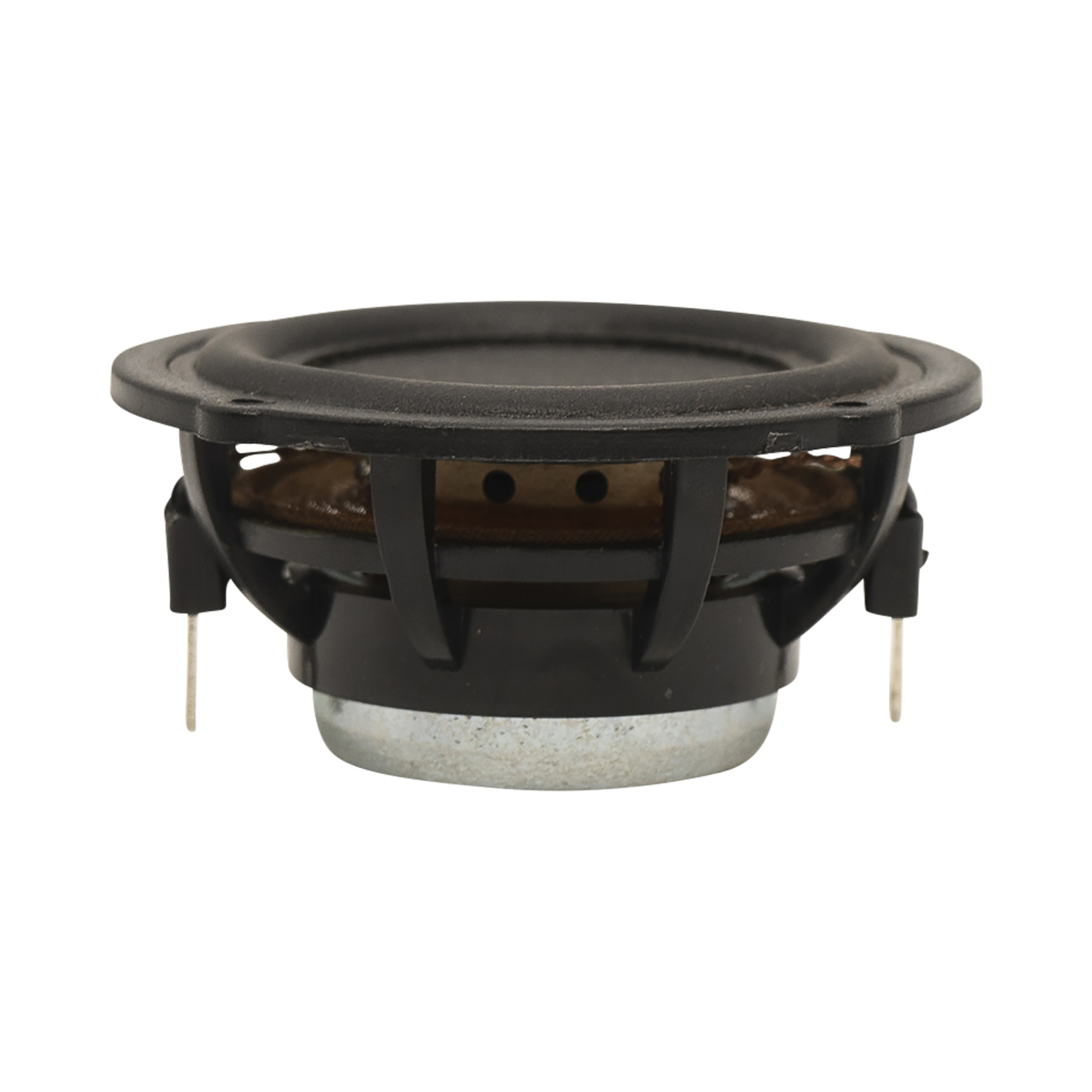

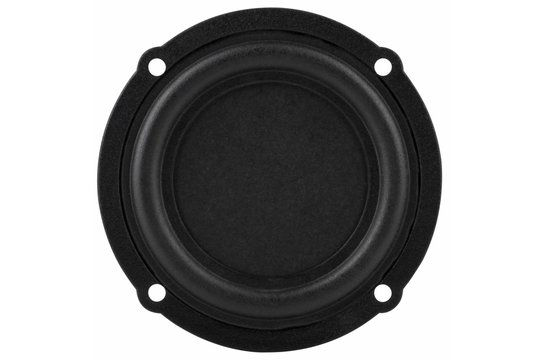

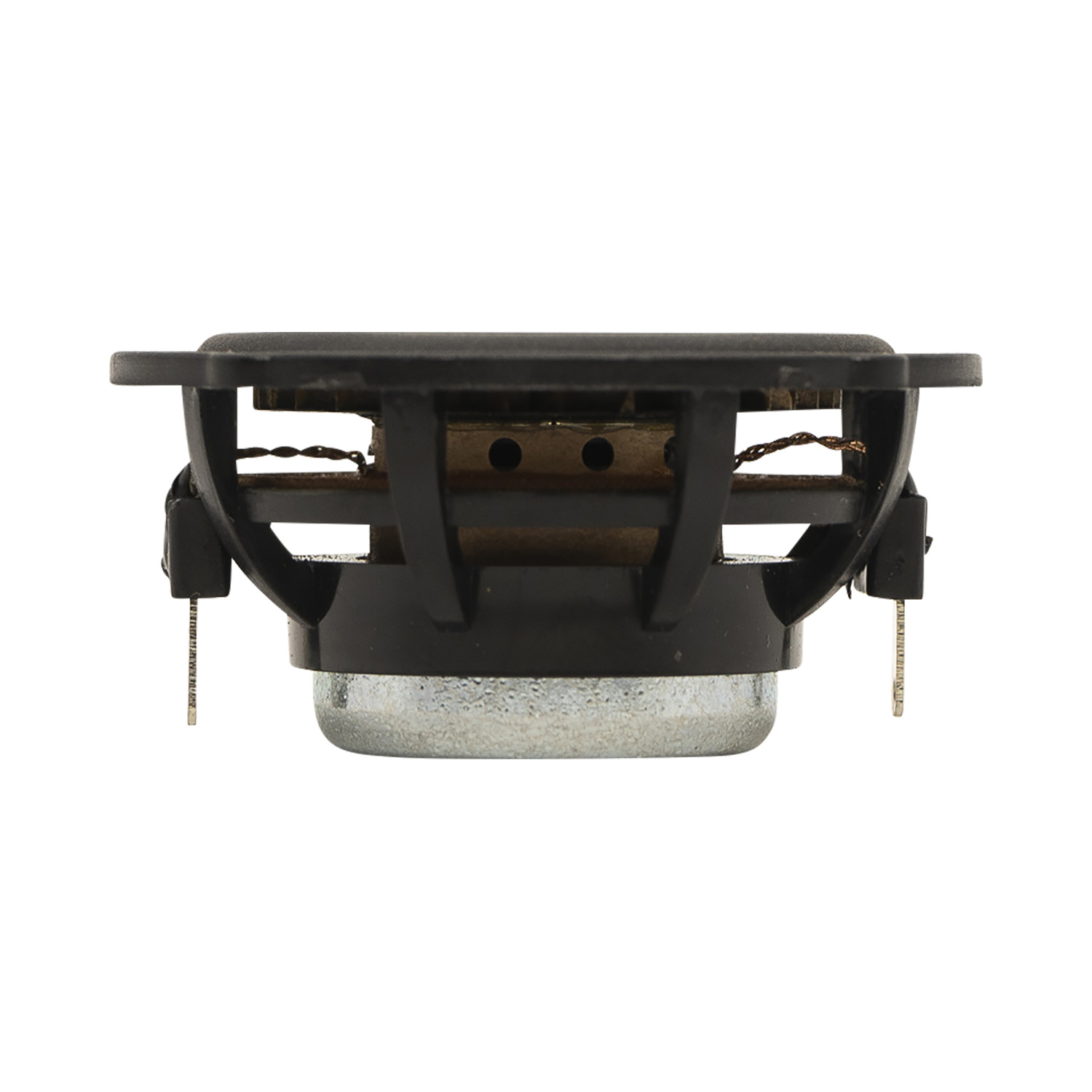

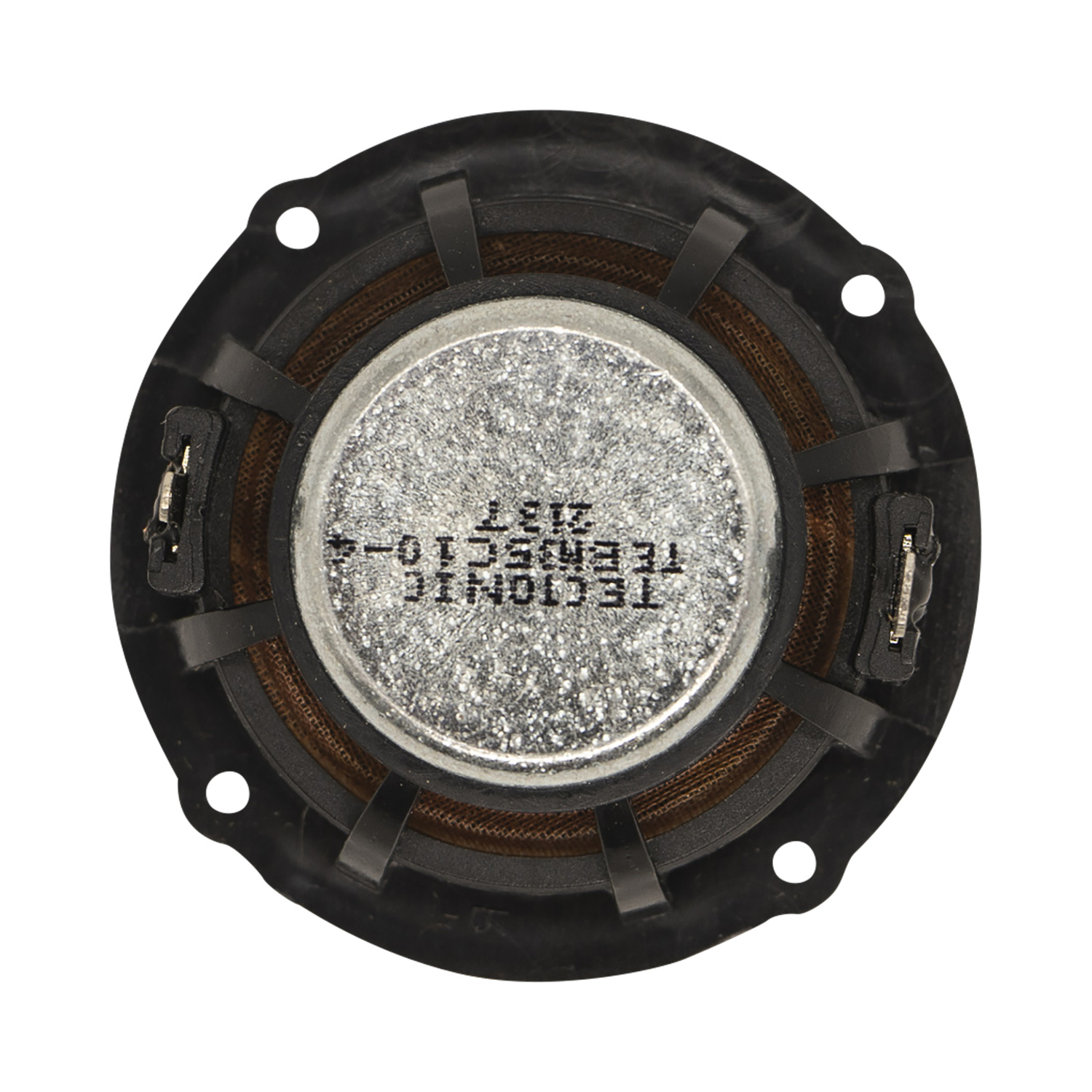

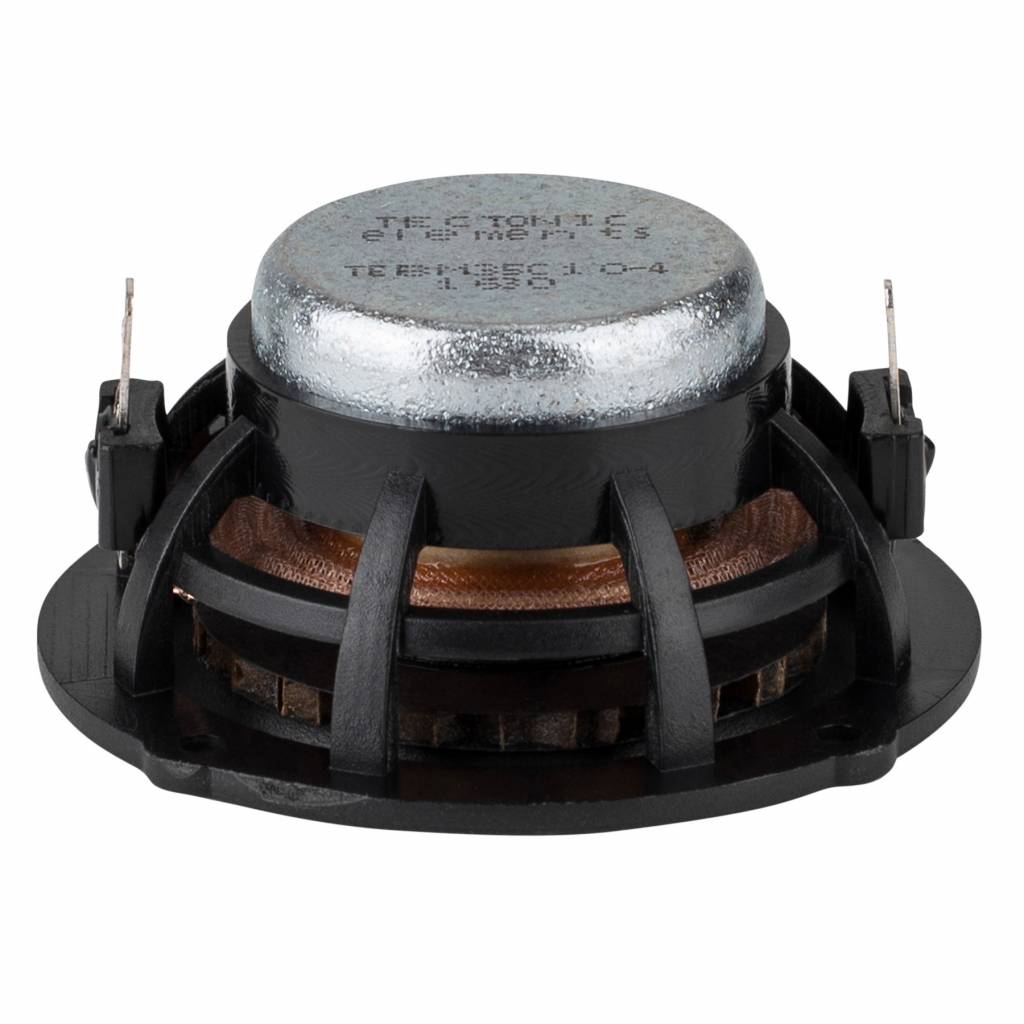

      Tectonic Elements TEBM35C10-4 BMR 2" BMR Full-Range Speaker 4 Ohm

      € 13,18€ 15,95 Out of stock: please contact us for accurate delivery times

      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €15,15 per piece
      • -10% Order 10 for only €14,36 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The TEBM35C10-4 BMR 2" full-range is an audio drive unit with an extended frequency response and extremely wide directivity. It combines the benefits of Tectonic Elements bending-wave technology and pistonic modes of operation.



      Highlights

      • Blends pistonic and resonant mode output for wide frequency response
      • The small form-factor is ideally suited for compact audio enabled products
      • Nearly 180° dispersion all the way up to 20,000 Hz

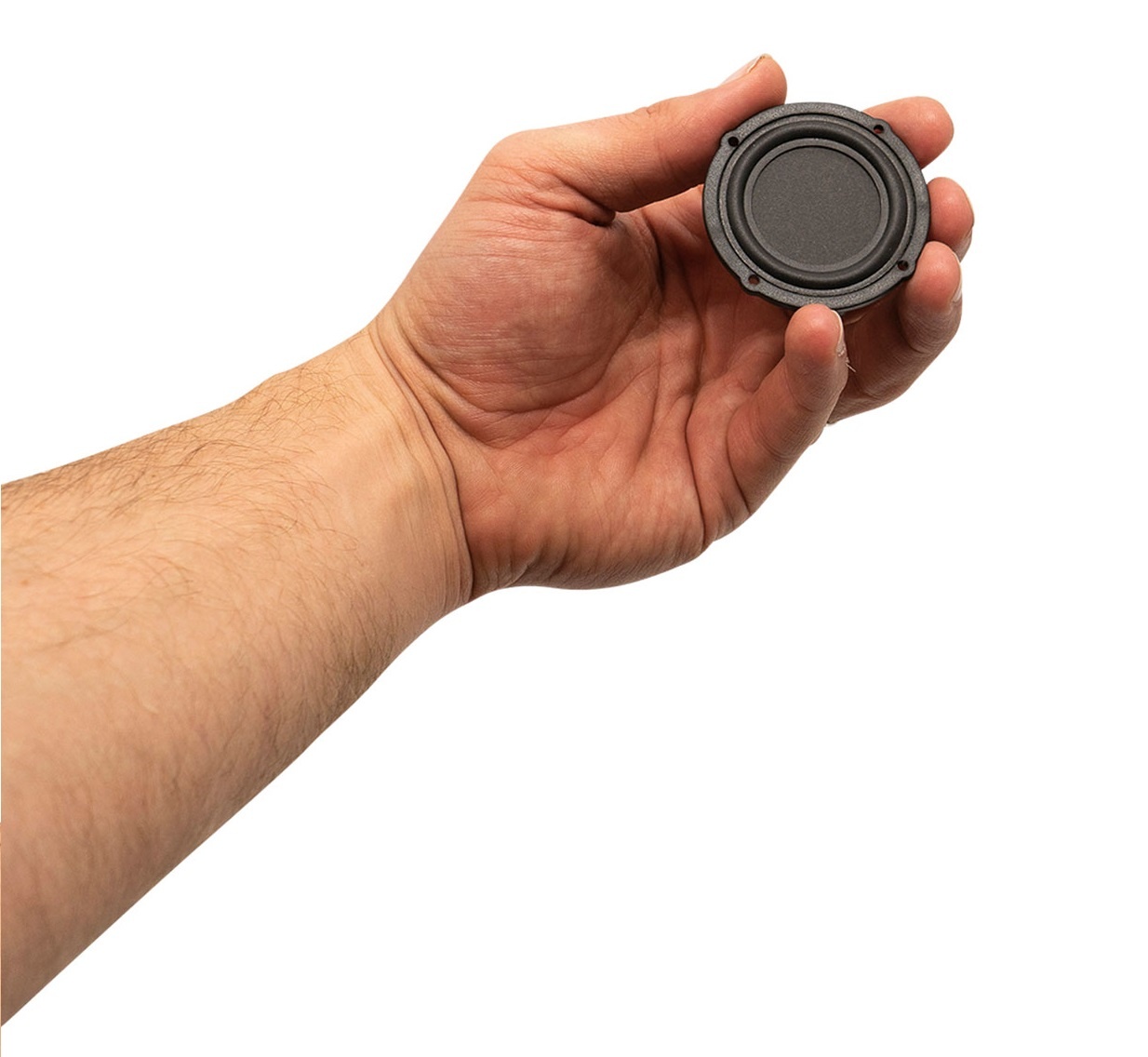

      • Only 2" diameter and 1" deep allows mounting almost anywhere



      Product details

      Tectonic Elements TEBM35C10-4 BMR 2" Full-Range Speaker 4 Ohm



      By combining the benefits of bending-wave technology and pistonic modes of operation, Tectonic Element's TEBM35C10-4 BMR 2" full-range delivers extended frequency response and extremely wide directivity. The small form-factor is ideally suited for compact products that require a full-range drive unit, room filling sound and a high performance acoustic solution. The small size, extended response, and low cost also make the TEBM35C10-4 an excellent choice for use in higher output line array designs. This unique driver can be used for anything from small handheld speakers, toys and displays to larger TV speaker bars, Wi-Fi speaker systems, and even compact sound reinforcement systems.

      Specifications

      Article number
      TEBM35C10-4
      Nominal Diameter
      2"
      Power Handling (RMS)
      10 Watts
      Power Handling (max)
      20 Watts
      Impedance (Z)
      4 ohms
      Sensitivity
      80 dB 1W/1m
      Frequency Response
      100 to 20,000 Hz
      Voice Coil Diameter
      0.80"
      DC Resistance (Re)
      4.2 ohms
      Voice Coil Inductance (Le)
      0.05 mH
      Resonant Frequency (Fs)
      145 Hz
      Mechanical Q (Qms)
      3.84
      Electromagnetic Q (Qes)
      1.06
      Total Q (Qts)
      0.83
      Diaphragm Mass Inc. Airload (Mms)
      1.11g
      Mechanical Compliance of Suspension (Cms)
      1.085 mm/N
      Surface Area of Cone (Sd)
      11.04 cm²
      BL Product (BL)
      2.0 Tm
      Compliance Equivalent Volume (Vas)
      0.0063 ft.³
      Maximum Linear Excursion (Xmax)
      2.5 mm
      Surround Material
      Rubber
      Basket / Frame Material
      Polymer
      Magnet Material
      Neodymium
      Overall Outside Diameter
      2.04"
      Overall Depth
      0.98"
      Baffle Cutout Diameter
      1.69"
      Bolt Circle Diameter
      1.9"
      # Mounting Holes
      4
      Sealed Volume
      0.016 ft.³
      Sealed F3
      154 Hz
      Vented Volume
      0.026 ft.³
      Vented F3
      85 Hz

      Show more

      Reviews

      5 from 5Based on 2 reviews
      Review this product
      5 of 5
      Off-axis response of this driver is absolutely crazy. 0-30° with pretty much no difference, at 60° the frequency drop just about compensated bafflestep on my 6cm wide test enclosures (so at this angle I got a flat-ish frequency response) and at 90° (!) it lost 14dB at 18kHz, compared to on-axis. And it did it in a very controlled way. So 180° radiation claimed by TE is not just some marketing BS, this thing can really do it. It's usable from around 200Hz, so definitely not a standalone fullrange driver, but combined with a woofer, it can do wonders.
      By Tomas on 19 March 2022
      5 of 5
      No description was given
      By marco b. on 14 November 2018
