        TEBM35C02-6B 1-3/4" BMR Full-Range Headphone Driver 6 Ohms

        TEBM35C02-6B 1-3/4" BMR Full-Range Headphone Driver 6 Ohms

        €14,95

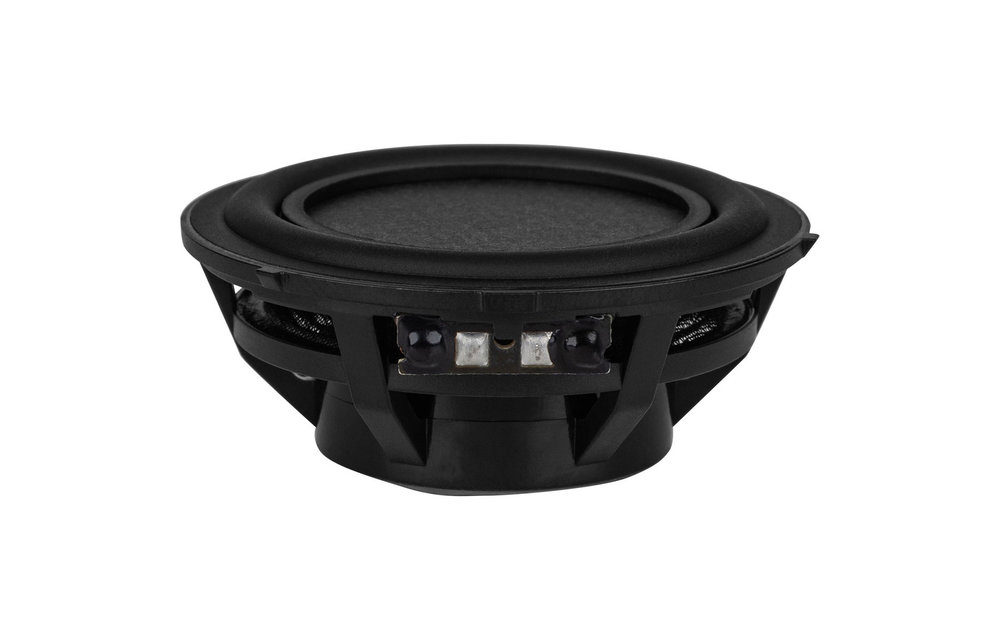

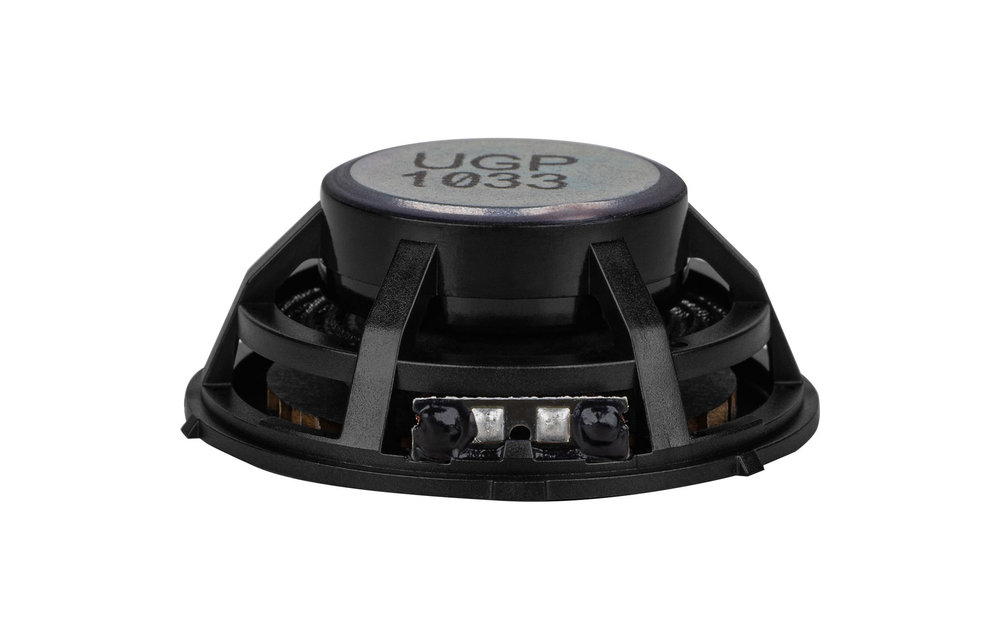

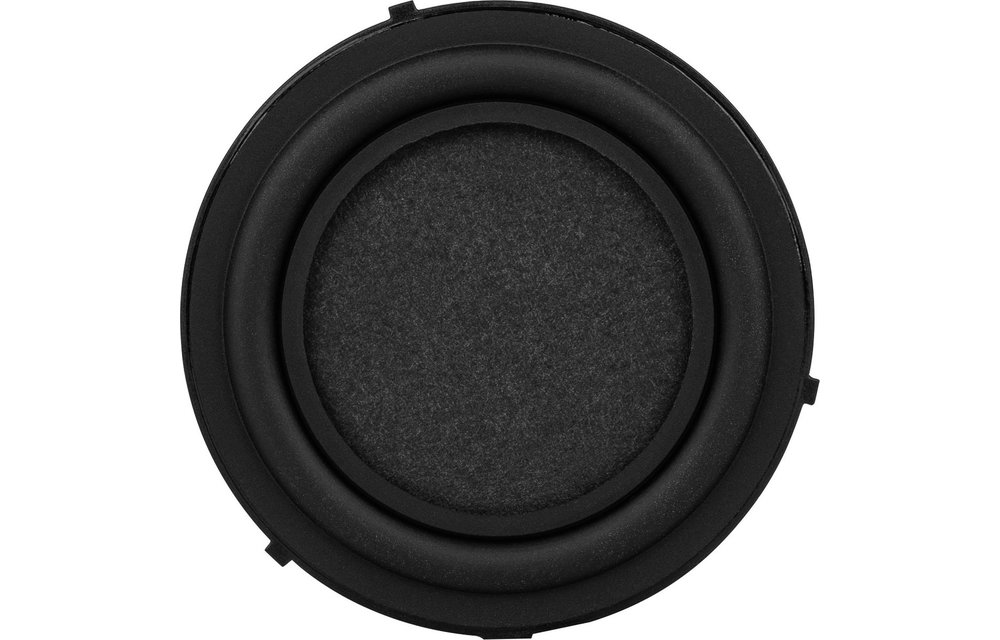

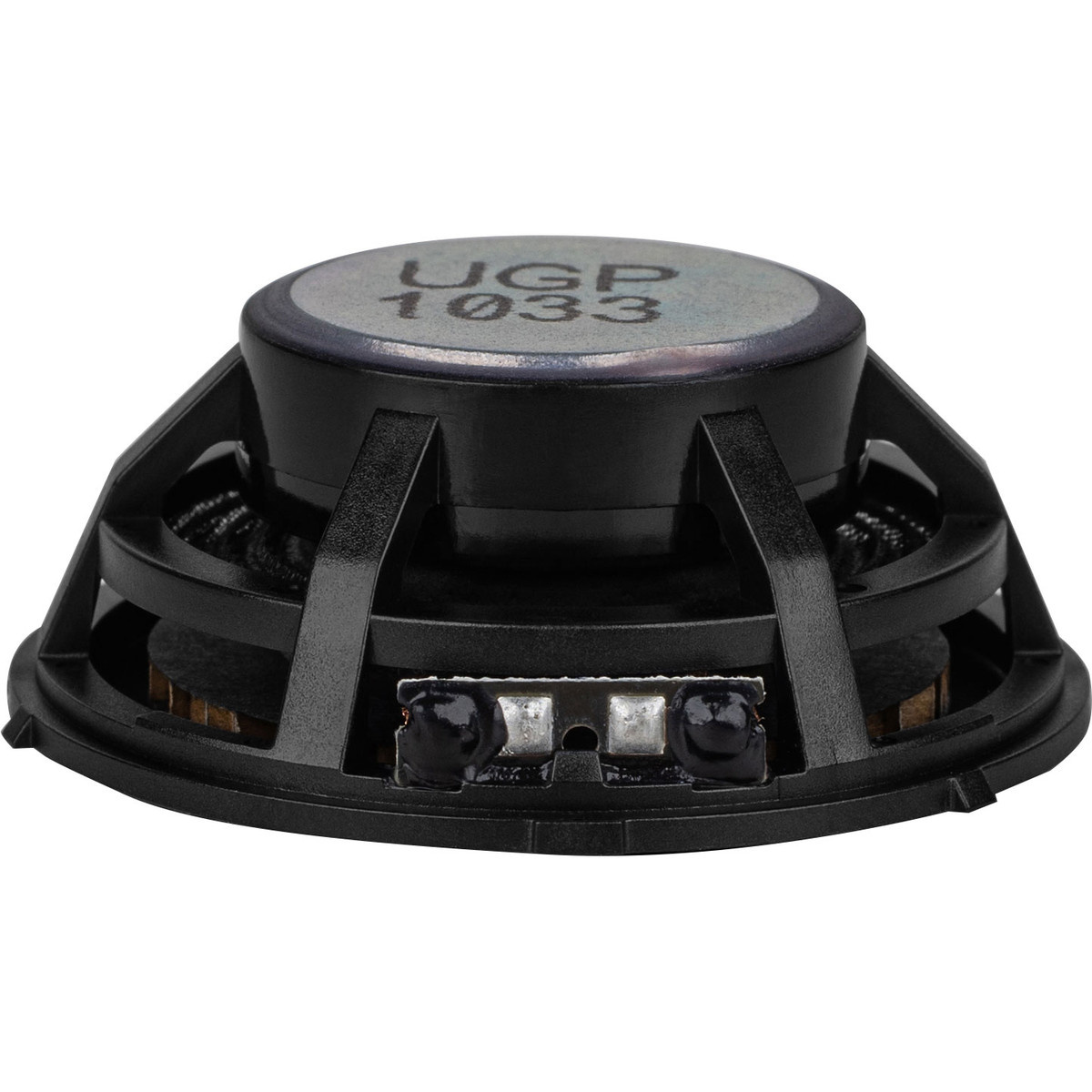

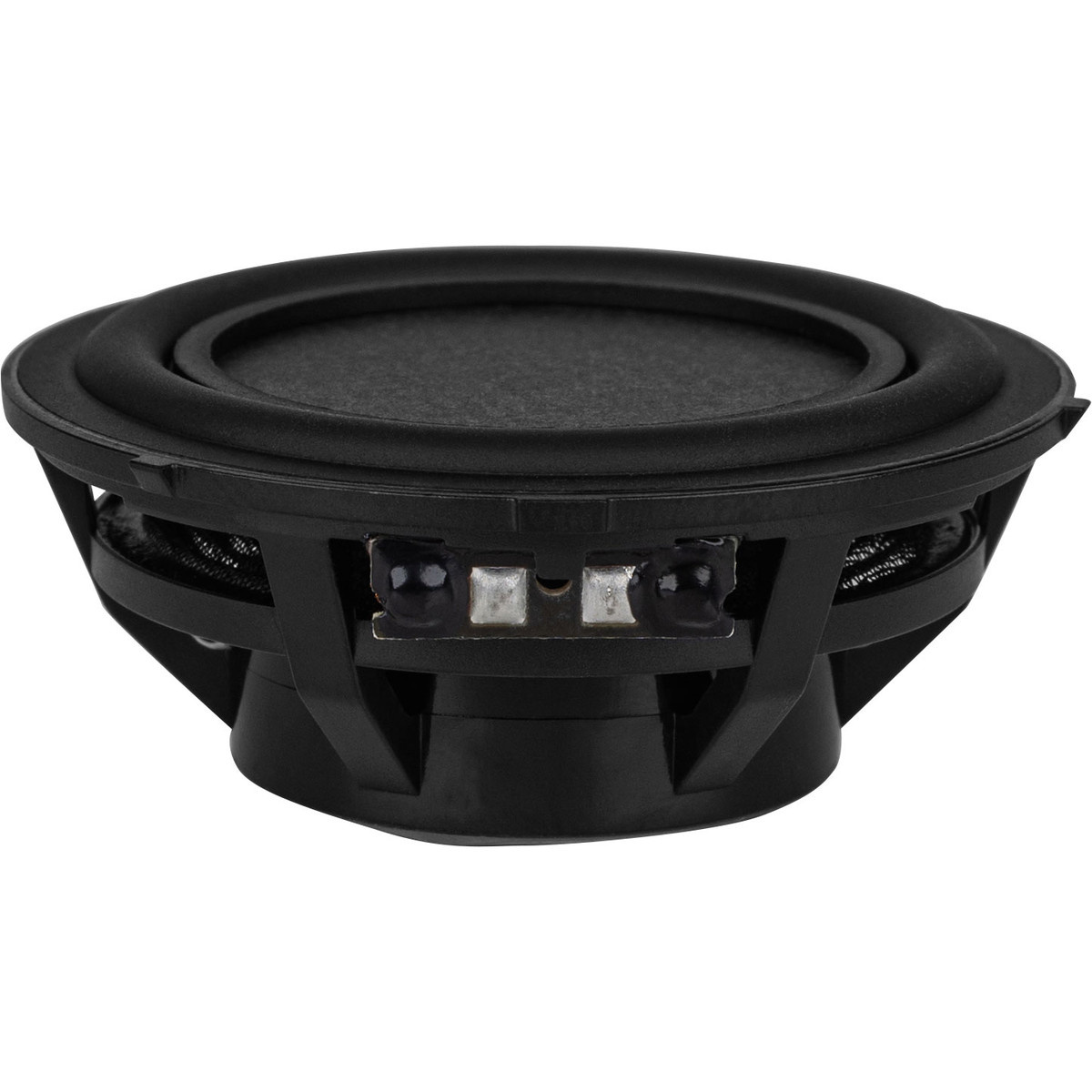

        Tectonic Elements TEBM35C02-6B 1-3/4" BMR Full-Range Headphone Driver 6 Ohms

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 12,36€ 14,95 4 In stock
        • -10% Purchase 4 for only € 13,46 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Tectonic's TEBM35C02-6/B 1-3/4" full-range BMR driver is an audio drive unit with an extended frequency response and extremely wide dispersion. It combines the benefits of Tectonic bending-wave technology and pistonic modes of operation for remarkably wide bandwidth with unmatched off-axis response.



        Highlights

        • Ideal for use in off ear headphones for use in VR, gaming headsets, and helmets
        • Balanced Mode Radiation delivers unmatched off axis dispersion
        • Extended high frequency response to 35,000 Hz
        • High excursion allows excellent low frequency capability in near field applications
        • Shallow mounting depth for installation into almost any location



        Product Details

        Tectonic Elements TEBM35C02-6B 1-3/4" BMR Full-Range Headphone Driver 6 Ohms



        The compact TEBM35C02-6/B 1-3/4" full-range BMR driver from Tectonic is perfect for nearfield applications that require flat and extended response with extremely wide dispersion capability. Its unique capabilities make this driver perfect for open air headphones when physical contact with the ear must be avoided, such as VR systems, gaming headsets, call center headphones, helmets, and hardhats. The combination of pistonic and bending wave operation gives the TEBM35C02-6/B low distortion, extended bandwidth, and incredibly wide dispersion. In addition, this driver is also a great choice for use in extremely compact systems like computer speakers and ultra-compact portable Bluetooth systems.

        Show more

        Specifications

        Article number
        TEBM35C02-6B
        Woofer Series
        BMR
        Woofer Type
        Full-Range Headphone Driver
        Nominal Diameter
        1"
        Power Handling (RMS)
        2 Watts
        Power Handling (max)
        4 Watts
        Impedance (Z)
        Sensitivity (SPL at 1m / 2.83V)
        78.4 dB
        Frequency Response
        100 to 35,000Hz
        Voice Coil Diameter
        0.8"
        DC Resistance (Re)
        5.6Ω
        Voice Coil Inductance (Le)
        0.09mH
        Resonant Frequency (Fs)
        156 Hz
        Mechanical Q (Qms)
        4.37
        Electromagnetic Q (Qes)
        1.19
        Total Q (Qts)
        0.93
        Diaphragm Mass Inc. Airload (Mms)
        1.24g
        Mechanical Compliance of Suspension (Cms)
        0.839mm/N
        Surface Area of Cone (Sd)
        11.04cm²
        BL Product (BL)
        2.39T·m
        Compliance Equivalent Volume (Vas)
        0.0057ft³
        Maximum Linear Excursion (Xmax)
        2.5 mm
        Cone / Diaphragm Material
        Paper
        Surround Material
        Rubber
        Basket / Frame Material
        Polymer
        Magnet Material
        Neodymium
        Overall Outside Diameter
        1.92"
        Overall Depth
        0.799"
        Baffle Cutout Diameter
        1.86"
        # Mounting Holes
        4
        Sealed Volume
        0.017ft³
        Sealed F3
        147Hz
        Vented Volume
        0.03ft³
        Vented F3
        89Hz

        Show more

        5 of 5

        Exquisite sound and just very good all around, perfect for VR! Well done Tectonic!

        By NamBo on 3 March 2022
