      Sure Electronics 3S 18650 Lithium Battery Charger and Balance Protection Board - BCPB2

      € 11,53€ 13,95 3 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €13,25 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Charging Voltage from DC5V-24V
      • Full Protection Circuit
      • Charge and Discharge at the Same Time
      • LED Indicators for Battery Level
      • Solar Charging Supported
      • Two Output Ports
      • Battery Voltage Balancing



      Product details

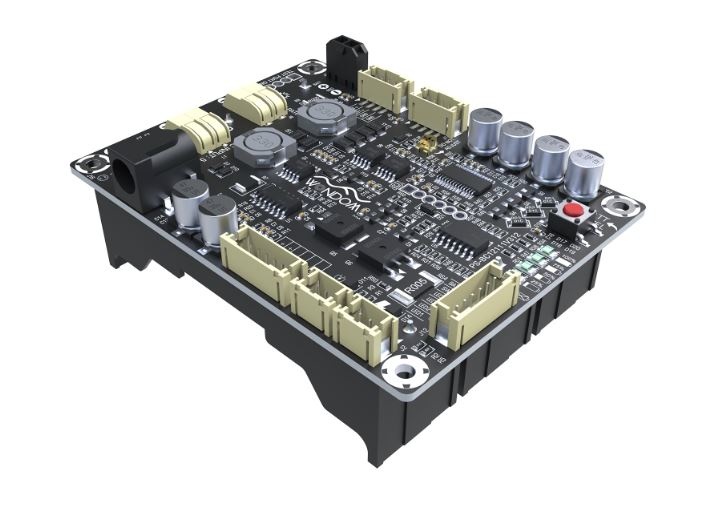

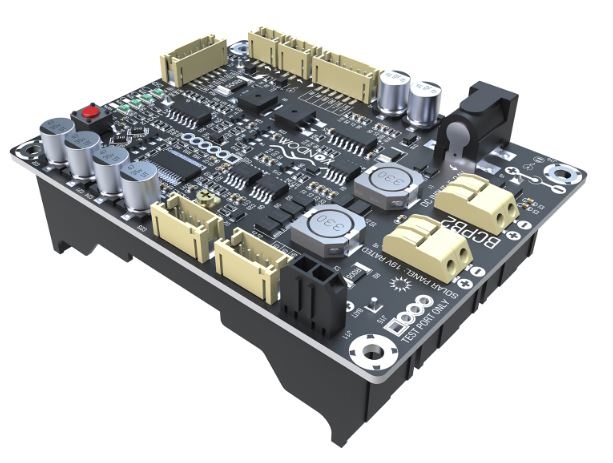

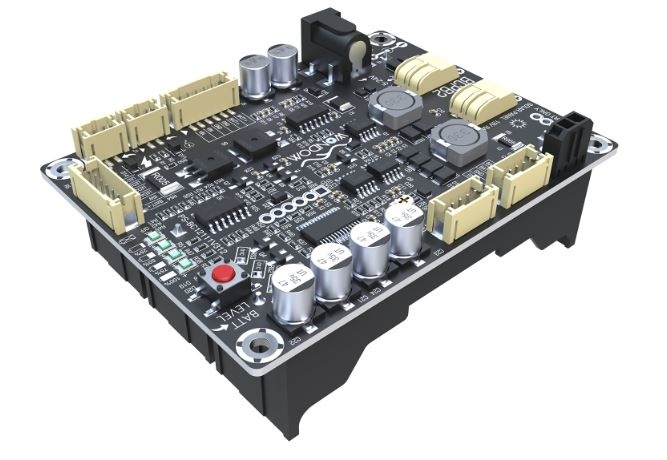

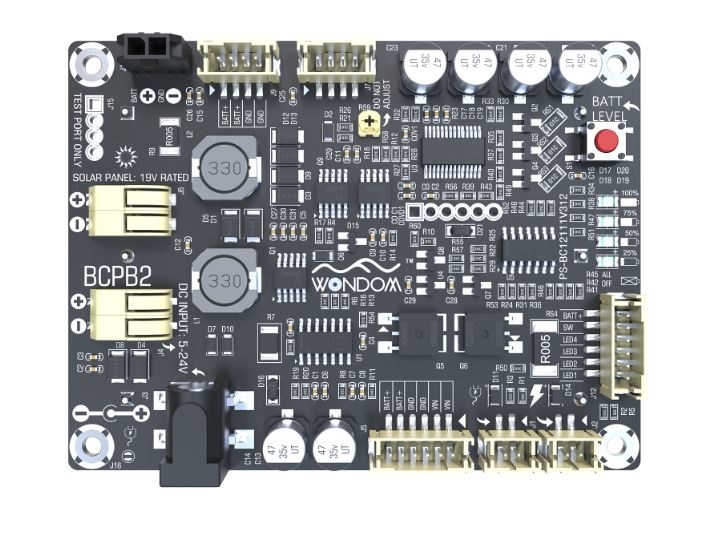

      Sure Electronics PS-BC12111 | 3S 18650 Lithium Battery Charger and Balance Protection Board - BCPB2



      BCPB2 is a highly reliable Lithium-Ion Battery Charging, Protection, and Balancing Board that operates with wide input range, 5-24V. This board is able to charge the batteries from input voltages above, below, or equal to the output voltages. It is designed for 3 in series 18650 Lithium-Ion Battery which provides approximately 30-40Wh energy. The MPPT charging integrated feature supports a 15-24V power supply. BCPB2 is complemented with a visualized display of battery level indicators. To ensure the reliability of this board, it is equipped with full protection circuit; overcurrent, over-temperature, short circuit, and over/under voltage protection. The battery balancing IC allows constant battery voltage between 3 in series 18650 Lithium-Ion cells. It is designed for industrial application with verified MTBF for low-temperature increment under rigorous design.

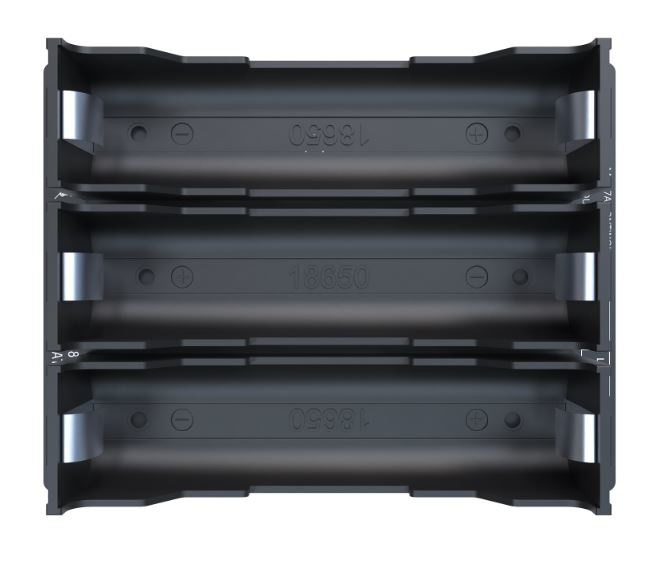

      The battery charger and balance protection board is designed for 3 pcs 18650 Lithium batteries in series, which aren’t included in the package. You need to prepare the Lithium-ion batteries with 3.6V typical working voltage and 4.2V overcharge protection voltage. Besides, any other batteries especially LiFePO4 battery are prohibited.



      Product specifications:

      Charging Voltage from 15V-24V

      Solar Charging Supported

      Three Ports for Discharging

      Battery Status Indicators

      Charging Indicator

      High-accuracy voltage detection for each cell

      Weight: 124g/0.27lbs (±10%)

      Size: 3.60 x 2.70 x 1.19 inches





      Note:

      1. We do not provide technical support for any behavior of connecting the battery charger and balance protection board with power supply out of the recommended range. Warranty will be lost due to this.
      2. Please check the battery polarity before installation.

      Specifications

      Article number
      PS-BC12111

      Show more

      Reviews

      5 from 5Based on 2 reviews
      Review this product
      4 of 5
      Werkt prima. Maar de Maximum Power Point Tracking staat niet optimaal ingesteld voor de zonnecellen die wij gebruiken. De documentatie is te summier. We weten dus niet hoe we de MPPT kunnen bijregelen.
      By Jan t. on 17 March 2020
      5 of 5
      Great way to power diy mobile devices!
      By Florian H. on 8 November 2019
