        AA-SP15116 SUFR7010 2.75" Full-range Woofer

        AA-SP15116 SUFR7010 2.75" Full-range Woofer

        €6,45

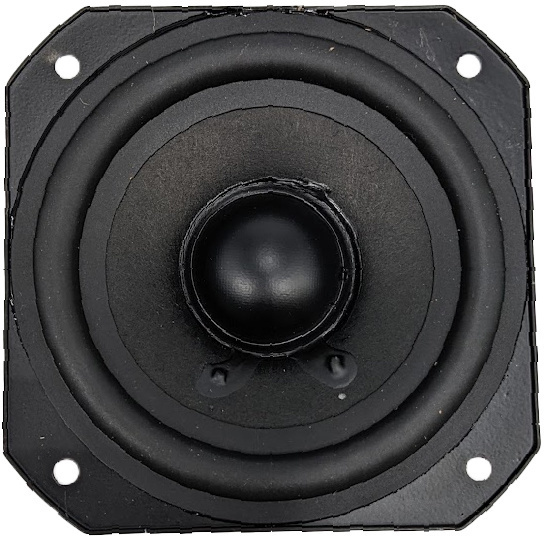

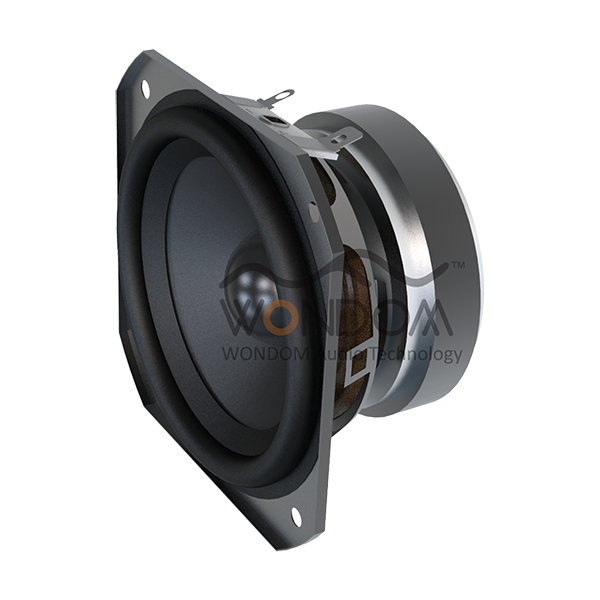

        Sure Electronics AA-SP15116 SUFR7010 2.75" Full-range Woofer

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 5,33€ 6,45 10+ In stock
        • -5% Purchase 4 for only € 6,13 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Highlights

        • Paper cone equipped with special-designed large roll rubber surround for a dynamic linear response to high excursion input signals.
        • High sensitivity at voice range and low cost.
        • Four mounting holes on the front frame for easy installation.
        • Venting under the spider to aid the cooling of the motor



        Product Details

        Sure Electronics AA-SP15116 SUFR7010 2.75" Full-range Woofer




        The SUFR7010 2.75 inch, 10-Watt, 4-Ohm is a ferrite powered full range speaker specially designed for wide DIY applications. Its small size, high build quality and easy installation make it suitable for home audio DIY. SUFR7010 features paper cone equipped with specially designed large roll rubber surround to produce a dynamic linear response towards high excursion input signals. It also features four mounting holes on the front frame, which makes it simple to install into any cabinet. Sure Electronics designed this speaker to have venting under the spider to give enhanced cooling of voice coil and to produce high sensitivity at voice range. they provide a free cabinet design for this speaker which are available to download from our website.

        Show more

        Specifications

        Article number
        AA-SP15116
        Woofer Type
        Full-range Woofer
        Nominal Diameter
        2.75"
        Power Handling (RMS)
        10 W
        Power Handling (max)
        15 W
        Sensitivity (SPL at 1m / 2.83V)
        79 dB
        Voice Coil Diameter
        20.4mm
        DC Resistance (Re)
        3.72Ω
        Voice Coil Inductance (Le)
        0.18mH at 1kHz
        Resonant Frequency (Fs)
        100 Hz
        Mechanical Q (Qms)
        2.52
        Electromagnetic Q (Qes)
        0.97
        Total Q (Qts)
        0.70
        Diaphragm Mass Inc. Airload (Mms)
        2.62g
        Mechanical Compliance of Suspension (Cms)
        82.52mcm/N
        Surface Area of Cone (Sd)
        32.67cm²
        BL Product (BL)
        2.58Tm
        Compliance Equivalent Volume (Vas)
        1.25L
        Maximum Linear Excursion (Xmax)
        0.5 mm
        Driver's Mechanical Losses (Rms)
        0.65kg/s

        Show more
