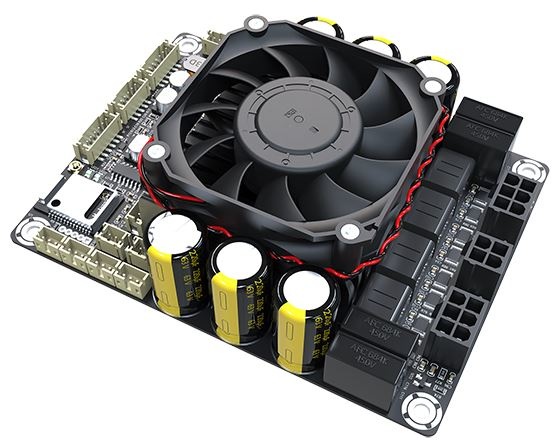

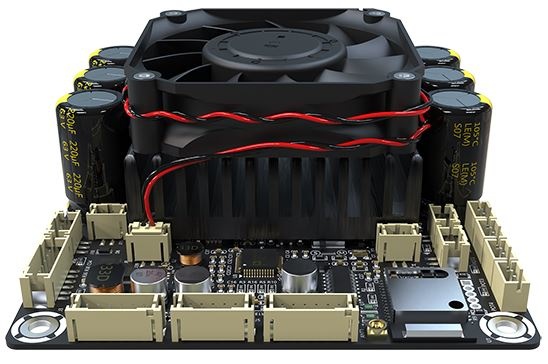

        AA-JA33286 - JAB5 4x100 W Class D  Amplifier Module

        AA-JA33286 - JAB5 4x100 W Class D Amplifier Module

        €83,95

        Sure Electronics AA-JA33286 - JAB5 4x100 W Class D Amplifier Module

        4 reviews
        5 from 5
        4 reviews
        5 stars
        75%
        4 stars
        25%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 69,38€ 83,95 10+ In stock
        • -5% Purchase 4 for only € 79,75 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

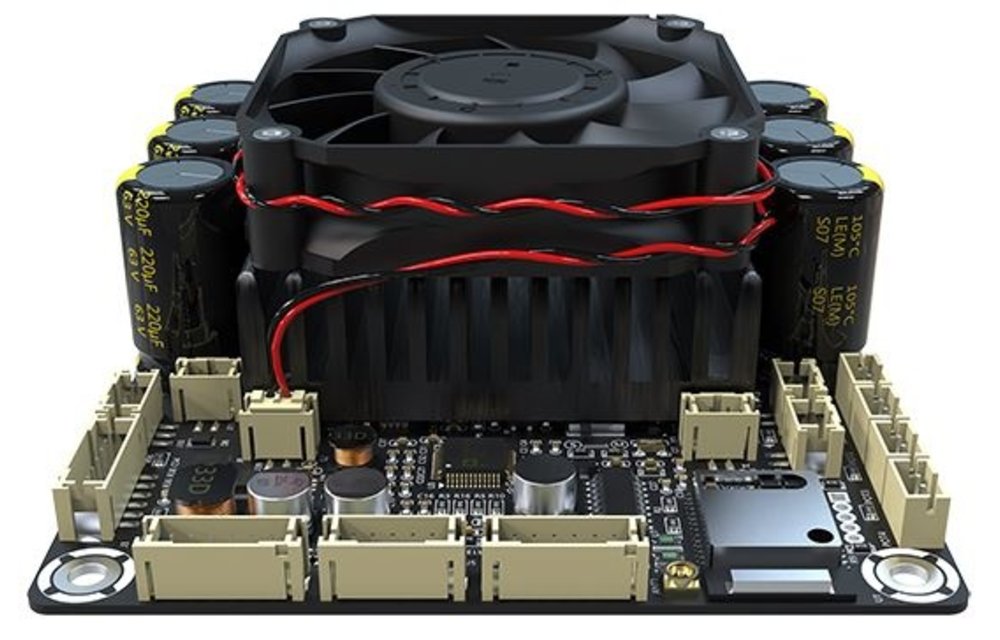

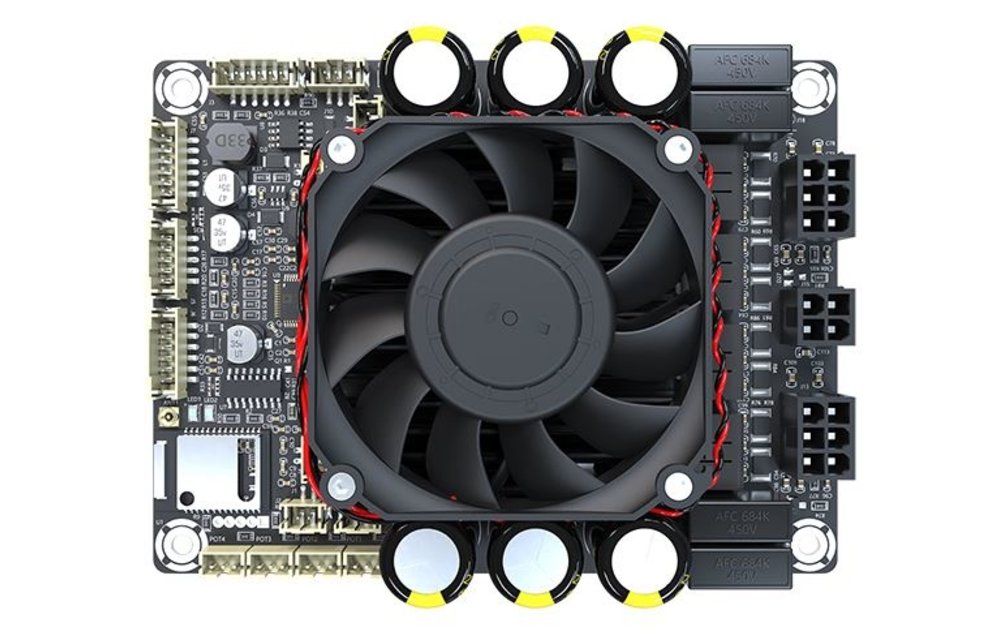

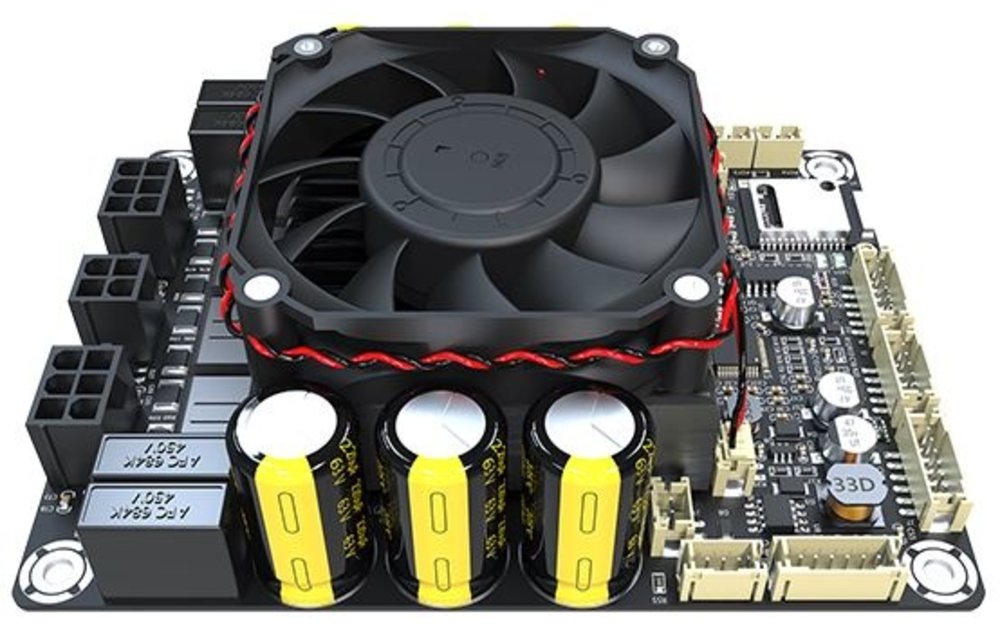

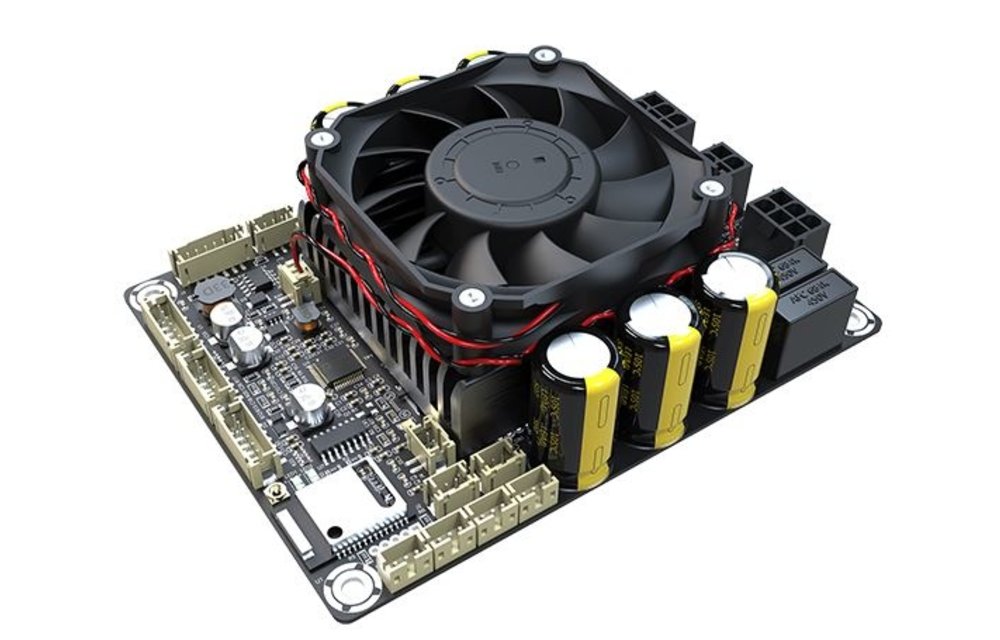

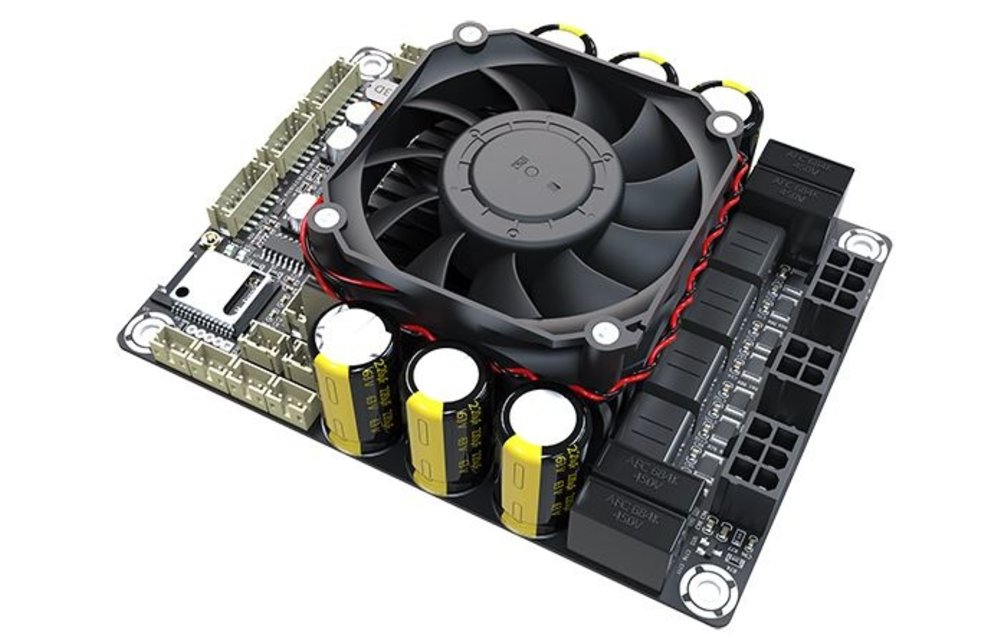

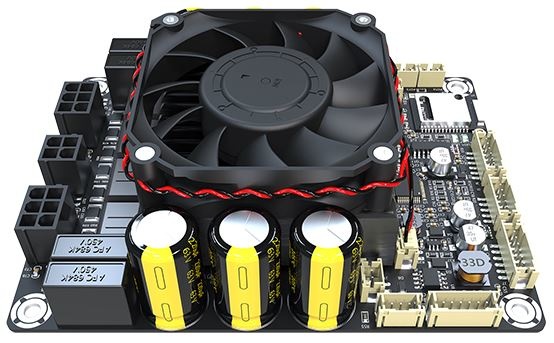

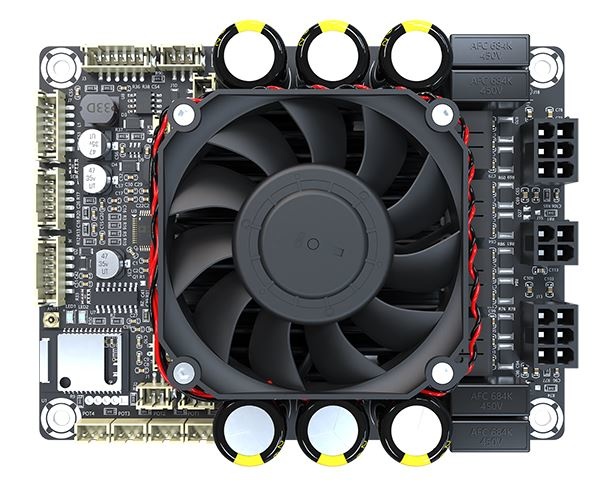

        JAB5 is a 4CH audio amplifier board integrated with Bluetooth 5.0 (supporting aptX HD) and ADAU1701 DSP, offering a real all-in-one audio solution for customers.



        Highlights

        • 20.3cm x 9.14cm PCB Size
        • DSP & Bluetooth 5.0 Integrated
        • Power Management Circuit
        • Signal Level Sensor System
        • I2S Input & Line Input Supported
        • I2S Output Supported
        • Supporting 4.0 / 2.1 / 2.0 Mode
        • Supporting cascading with another JAB5 for 8 x 100W
        • Bluetooth Pairing Cancellation
        • Four External Potentiometers Control
        • Bluetooth LED Indicator
        • Signal Detection LED Indicator
        • Supporting ICP5 for Programming and APP / PC UI Control



        Product Details

        AA-JA33286 ADAU1701 DSP Bluetooth 5.0 JAB5 4x100 W Class D  Amplifier Module

        JAB5 delivers 100W output power per channel into a 6Ohm load. Besides Bluetooth input, JAB5 supports line input and I2S input. Thanks to the equipped ADAU1701 DSP, JAB5 supports programming with SigmaStudio, APP control and PC UI control after connection with WONDOM ICP5 or higher version(s), through which, you can adjust volume, gain, frequency and EQ setting to customize your own audio. In addition to 4.0 mode (4 x 100W), JAB5 supports configuration as 2.1 mode (2 x 100W + 1 x 200W), 2.0 / 0.2 mode (2 x 200W), applicable for various audio projects. Furthermore, JAB5 can cascade with another JAB5 to build audio 8.0 or other systems. Wireless audio input, integrated ADAU1701 DSP, multiple output modes and high quality audio performance make JAB5 perfectly suitable for Bluetooth speakers, home audio, garden audio, digital crossover and DIY audio applications. A DC10V-39V power supply is required.



        Integrated with Bluetooth 5.0 module

        JAB5 employs Bluetooth 5.0 module for audio input, which supports various audio formats as aptX, aptX HD, aptX LL, SBC & AAC and high receive sensitivity with RF power up to 9dBm and -90dBm. There is a built-in antenna equipped on this board. So you can directly pair JAB5 with the device to play music. An external antenna port is also provided on the board to ensure the stable connection and high audio performance in such applications that JAB5 is installed into a speaker or a cabinet.



        Integrated with ADAU1701 DSP, Supporting Programming with SigmaStudio, APP and PC UI control

        JAB5 is also integrated with high performance ADAU1701 DSP chip for audio signal processing. Four ports for external potentiometers are mounted on JAB5. You can use the external potentiometers to control the gain and frequency even if JAB5 is installed in a speaker. Please refer to the datasheet or connection guide for the detailed functions of potentiometers. After connection with WONDOM ICP5 or higher versions, you can write a program with SigmaStudio, or get real-time remote control of your audio systems via APP or PC UI, through which, you can adjust gain, volume, high/low-pass filter, EQ and other parameters. ICP5 is under test now and will be released in the near future.



        Supporting Line Input & I2S Input

        In addition to Bluetooth input, JAB5 supports 3.5mm line input and I2S input. Signals from the three input methods will be mixed before being transmitted to the amplification circuit. You can get the 3.5mm AUX-IN cable and the PH-6Pos cable in the Functional cables kit (AA-JA11117).



        Supporting configuration as 4.0 / 2.1 / 2.0 / 0.2 Output Mode

        JAB5 is an audio amplifier board featuring multiple output configurations. Each two channels can be configured as one channel with double power. Therefore, it can be used as 4.0 mode (4 x 100W), 2.1 mode (2 x 100W + 1 x 200W) and 2.0 / 0.2 mode (2 x 200W), suitable for diverse audio systems. In order to provide customers with easy operation, Sure Electronics employs automatic cables insertion identification, based on which, the switching among the output modes is so convenient that you just need to plug in the cables as required. The functions of the four external potentiometers would change accordingly. Please note, if you want to use JAB5 as 0.2 mode, frequency adjustment in the PC UI is essential besides hardware settings. 0.2 mode is not supported when using hardware control (Potentiometers).



        Cascading with Another JAB5 to Build Audio 8.0 or other systems

        Besides speaker output, JAB5 supports I2S signal output, which can be transmitted into another I2S amplifier board. You can cascade one JAB5 with another JAB5 to build an 8 x 100W system or other audio systems you want through the I2S input and output port. There is a switch on the board for setting the JAB5 as master mode or slave mode in above condition. Fully considering the easy control and audio performance of the built audio system, Sure Electronics prepares a synchronization port on JAB5 to ensure the control logic of the two boards are consistent. As for the details, please refer to the datasheet.



        Signal Level Sensor System

        JAB5 employs signal level sensor system for lower power consumption and longer playback time. It will continuously monitor the input signal and there is a preset signal voltage threshold. When there is no signal (voltage is lower than the threshold) detected for 5min, the amplifier module will enter into standby mode automatically, in which condition, it will consume lower power. When there is signal detected, it will run immediately without any miss of the audio.



        Easy for Integration

        Bluetooth pairing cancellation function is integrated on JAB5. You can disconnect with Bluetooth by one simple press, without worry about which Bluetooth is paired. Standby function is also available on JAB5. Ports for External LED indicators are offered to show the status of Bluetooth and signal, so you can have an overview of the running condition of JAB5.



        Optional Accessories

        We provide optional accessories for customers’ simple operation. Functional cables kit (AA-JA11117) offers all the cables you need for better use of JAB5. As for the detailed information, please refer to AA-JA11117.




        Package Includes:

        1 x AA-JA33286 1 x Power Cable 2 x Speaker Cables



        Check out the following documents for further information:

        JAB5 Connection Guide

        How to Achieve I2S input & output with WONDOM JAB3

        Various Applications and Required Documentations

        How to Program JAB3 with WONDOM ICP

        Installation Guide for JAB3 & JAB2

        JAB Series Audio Amplifier Board with ADAU1701DSP

        Show more

        Specifications

        Article number
        AA-JA33286
        Rated power output
        100 Watts @36V, 1kHz
        Minimum load
        6 ohms
        Efficiency
        89.5 %
        Signal-to-noise ratio (SNR)
        97 dB (2x50W @ 6 Ohm, THD+N = 1%, 26 dB)
        Distortion
        0.04 % (5W @6 Ohm, 1kHz, 26dB), 0.07 % (%W @ 6 Ohm, 1 kHz, 26dB)
        Frequency response
        20 - 20,000 Hz
        Gain
        -60-6.5 dB (@6 Ohm, 1kHz)
        Circuit Topology
        TDA749x
        Speaker output channels
        4
        Input connection type
        3.5mm line input, I2S input
        DSP function
        Power Requirements
        10V-39V
        Dimensions (L x W x H)
        121.92mm x 91.44mm

        Show more

        5 of 5
