        AA-JA32472 2 x 30 Watt Class D Audio Amplifier Board

        AA-JA32472 2 x 30 Watt Class D Audio Amplifier Board

        €44,95

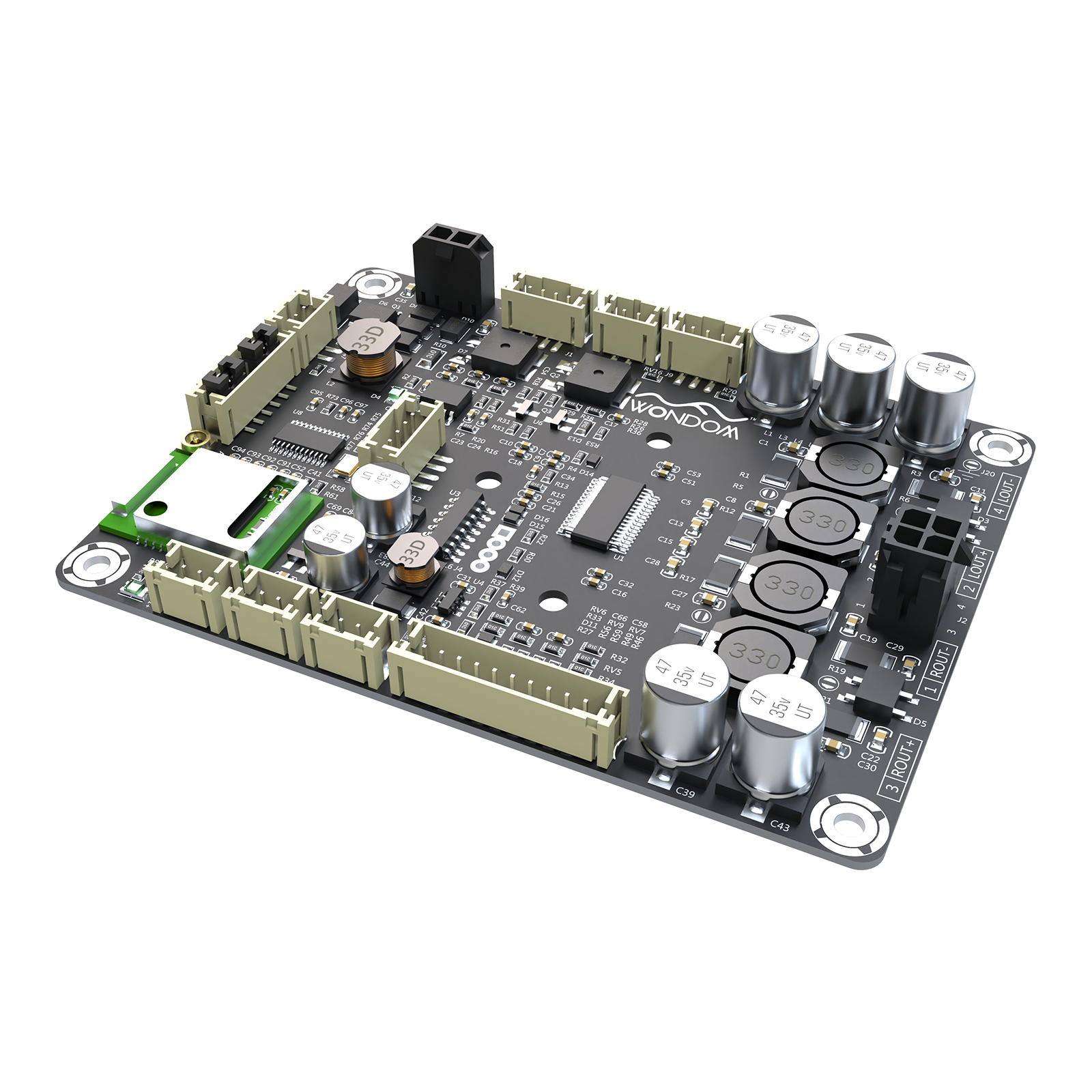

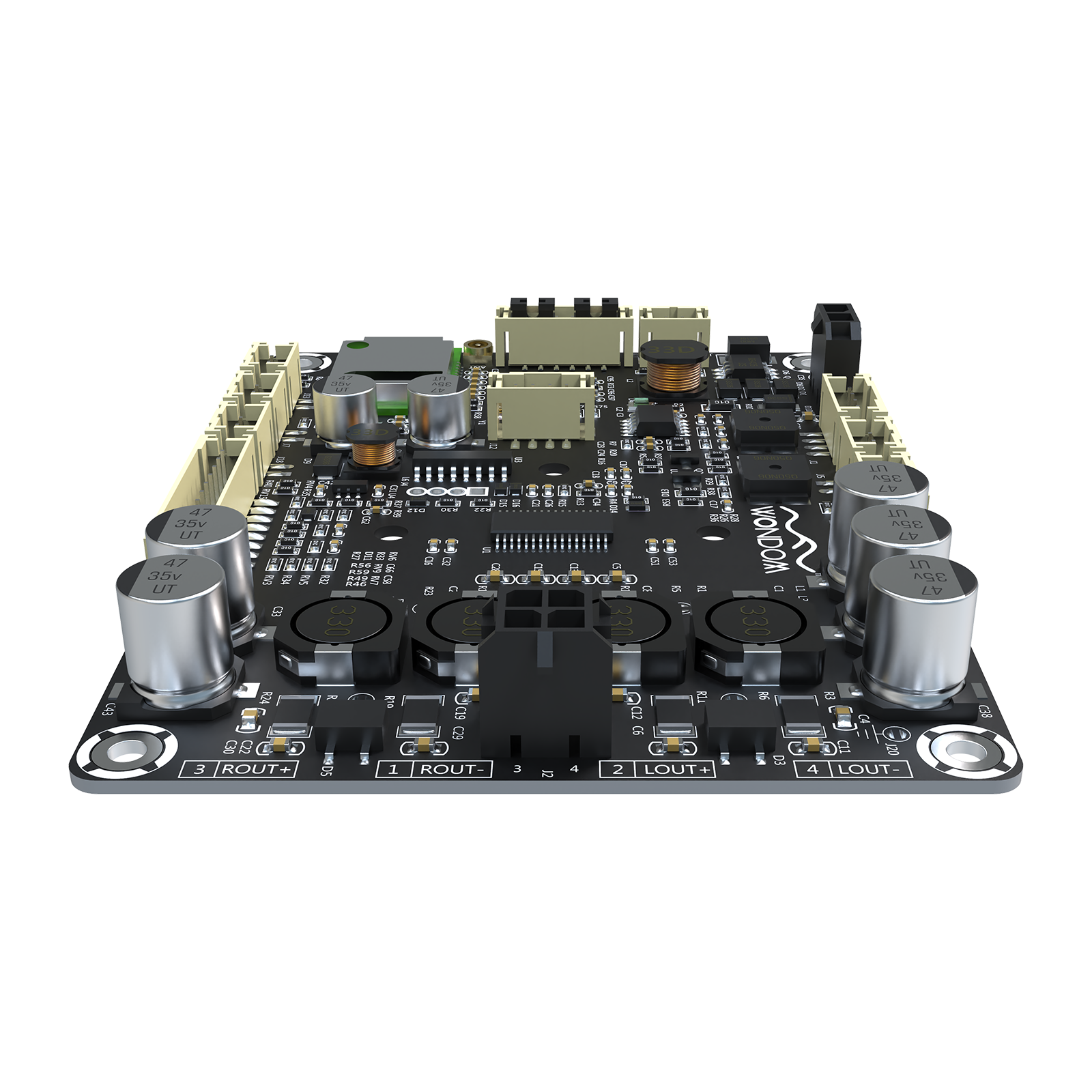

        Sure Electronics AA-JA32472 2 x 30 Watt Class D Audio Amplifier Board

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 37,15€ 44,95 10+ In stock
        • -5% Purchase 4 for only € 42,70 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        The Sure Electronics AA-JA32472 2 x 30 Watt 8 Ohm Class D Audio Amplifier Board BT 5.0 APT-X - JAB2-30 is an amplifier board easily built in to any project, speaker build or other DIY project in need of a small amplifier board with enough power to drive stereo speakers.



        Highlights

        • Bluetooth V5.0 apt-X HD
        • LED Status Indicators
        • Integrated with DSP
        • Bluetooth Pairing Cancellation
        • 15.2cm x 6.86cm PCB Size
        • High Receive Sensitivity with RF power up to 9dBm and -90dBm



        Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.



        High Quality Audio Performance

        The Sure Electronics AA-JA32472 2 x 30 Watt 8 Ohm Class D Audio Amplifier Board BT 5.0 APT-X - JAB2-30 delivers high quality sound without drawing a lot power. This is due to the highly efficient Texas Instruments TPA3118 Class-D amplifier chip. The TI TPA3118 operates at 90% efficiency, thus eliminating the need for a heat sink and reducing its overall size. Its high efficiency becomes a major advantage when powering from batteries as it prolongs the playtime of a single charge. Its ultra-low distortion and pop-free performance make this hi-fi amplifier board an integral asset in any quality audio build.



        Extremely low standby power

        The Sure Electronics JAB2-30 will remain powered up to 7 days in standby mode even while Bluetooth is enabled. This standby time is approximately 4x longer than the competition due to the use of a high efficiency DC/DC converter which minimizes power consumption thanks to the employment of a micro controller as the PMU (Power Management Unit).



        Integrated Bluetooth

        The Sure Electronics JAB2-30 Amplifier Board offers a built-in Bluetooth 5.0 module with aptX which offers both high quality sound and low power consumption. It enables easy pairing with any mobile device or tablet for convenient access to audio. It is also CE and FCC ready for certification purposes.



        Multiple Power Paths

        The Sure Electronics JAB2-30 features numerous power options for creative, wireless sound projects. This flexibility eliminates limitations often caused by most other amp boards. Therefore, your design can be cord restricted or truly portable.



        Applications

          width=



        Package includes

        • 1 x Sure Electronics JAB2-30 2 x 30 Watt Class D Audio Amplifier Board BT 5.0 APT-X
        • 1 x power cable
        • 1 x 4-conductor speaker cable

        Show more

        Specifications

        Article number
        AA-JA32472
        Rated power output
        2 x 30 watts at 8 ohms
        Minimum load
        4 ohms
        Efficiency
        90 %
        Signal-to-noise ratio (SNR)
        89.3 dB
        Distortion
        0.07 % THD at 1 kHz, 8 ohms, 10 watts
        Frequency response
        22 - 22,000 Hz
        Gain
        26 dB
        Input sensitivity
        -
        Input impedance
        -
        Amplifier Classification
        Class D
        Circuit Topology
        Texas Instruments TPA3118 based
        Speaker output channels
        2
        Input connection type

        4 pin PCB connector
        Bluetooth

        Speaker output connection type
        4 pin PCB connector
        DSP function
        -
        Bluetooth
        version 4.0
        EQ Adjustment
        -
        Power Requirements
        12 - 24 VDC
        Power inlet connector
        2 pin PCB connector
        Current limit
        -
        Under/over voltage protection
        -
        Dimensions (L x W x H)
        91 x 69 x 23 mm
        Mounting hole spacing
        84 x 61 mm
        Mounting hole diameter
        3.5 mm

        Show more
