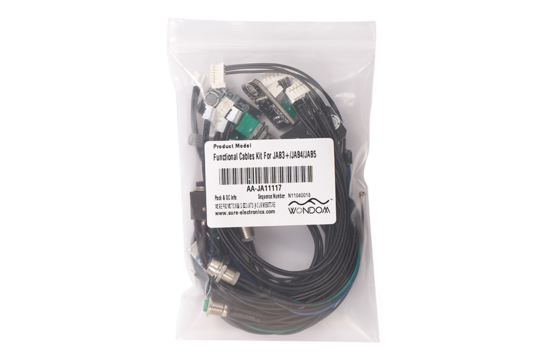

Sure Electronics AA-JA11117 - Functional cables kit for jab3+ / jab4 / jab5
To help customers with convenient operation and easy integration, Sure Electronics has released a Functional cables kit, which is for matched use with JAB3+, JAB4, and JAB5. It contains all the cables (13pcs) you will need to give full play to their functions. Please note that there may be few extra cables in this kit when used with specific amplifier boards since this is a general cables kit. You can see the detailed information in the description. Please do not place an order if you mind.

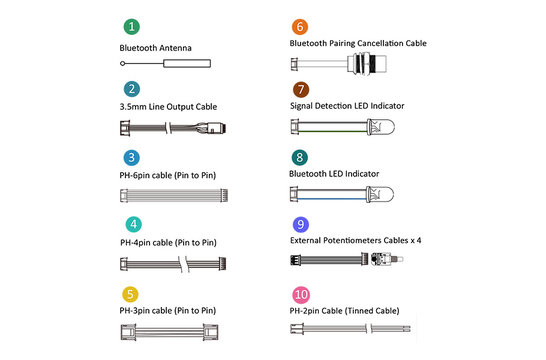

- 1pc Bluetooth antenna: An external Bluetooth antenna is provided to ensure stable connection and audio transmission for such applications where the amplifier boards needs to be installed in a cabinet or a speaker.
- 1pc 3.5mm line input cable
- 3.5mm line input cable along with the terminal interface is offered for customers who want analog input as well.
- 1pc PH-6pin cable (Pin-to-pin): This PH-6pin cable is used for signal transmission with other audio amplifiers through the PH-6pos-2mm interfaces on the boards.
- 1pc PH-4pin cable (Pin-to-pin): This PH-4pin cable is used for battery power.
- 1pc PH-3pin cable (Pin-to-pin): This PH-4pin cable is used for control synchronization to keep the control logic of two cascading boards is consistent, so that the built audio systems can provide high-performance audio.
- 1pc Bluetooth pairing cancellation cable: This cable is used to cancel Bluetooth pairing. You just need to short press the button to cancel the pairing.
- 1pc Signal detection LED indicator: For amplifier boards that employ a signal level sensor system, a signal detection LED indicator is essential to show what is going on with the system. When there is a signal detected, the indicator will be ON; when there is no signal detected, the indicator will be OFF.
- 1pc Bluetooth LED indicator: Bluetooth LED indicator is provided to indicate Bluetooth status. When Bluetooth is paired, the indicator will be ON; when Bluetooth is not connected, the indicator will BLINK.
- 4pcs External potentiometer cables: 4pcs cables along with four potentiometers are included in the cables kit. After connection with the potentiometers, you can adjust the gain and frequency of the audio systems.
- 1pc PH-2pin cable (Tinned cable): This PH-2pin cable has a PH-2pin interface at one end and tinned cables at the other. It is for standby control of the audio amplifier. The short circuit it to enter into standby mode.
