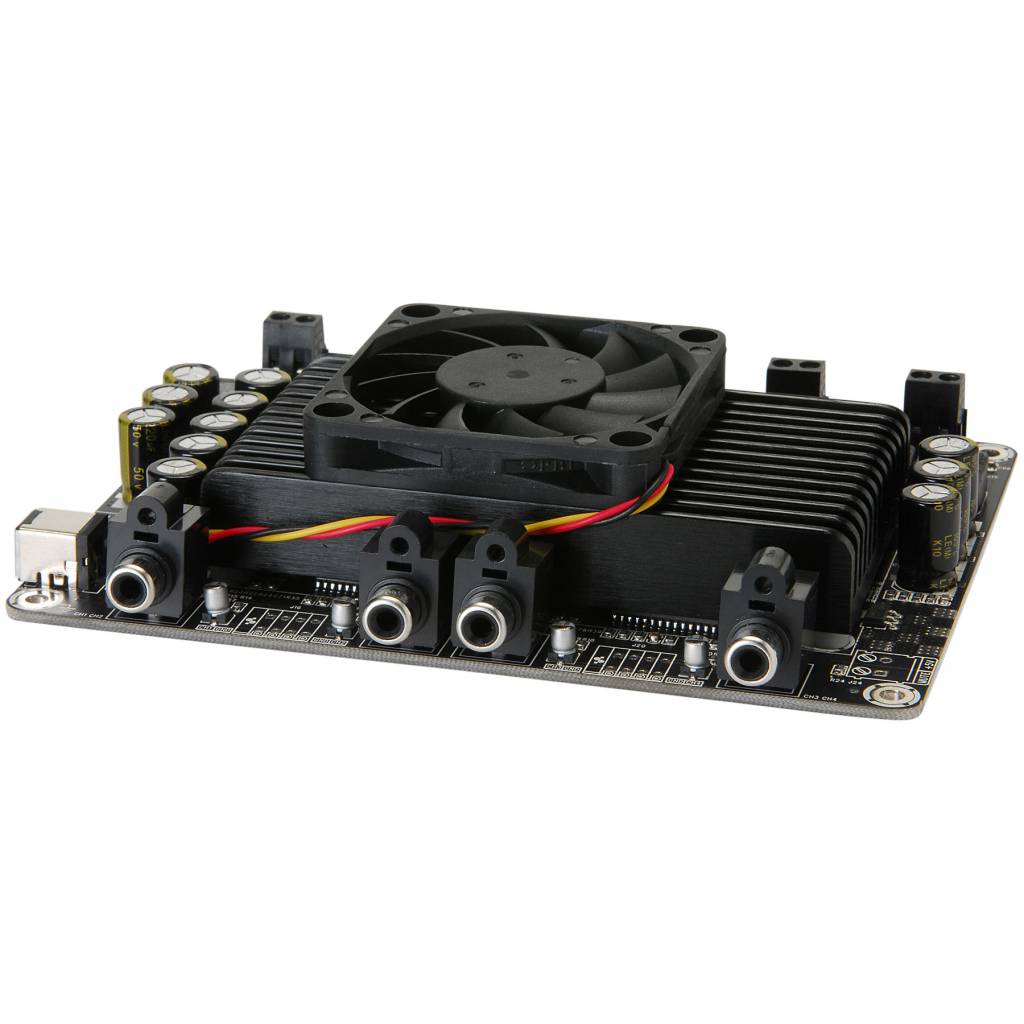

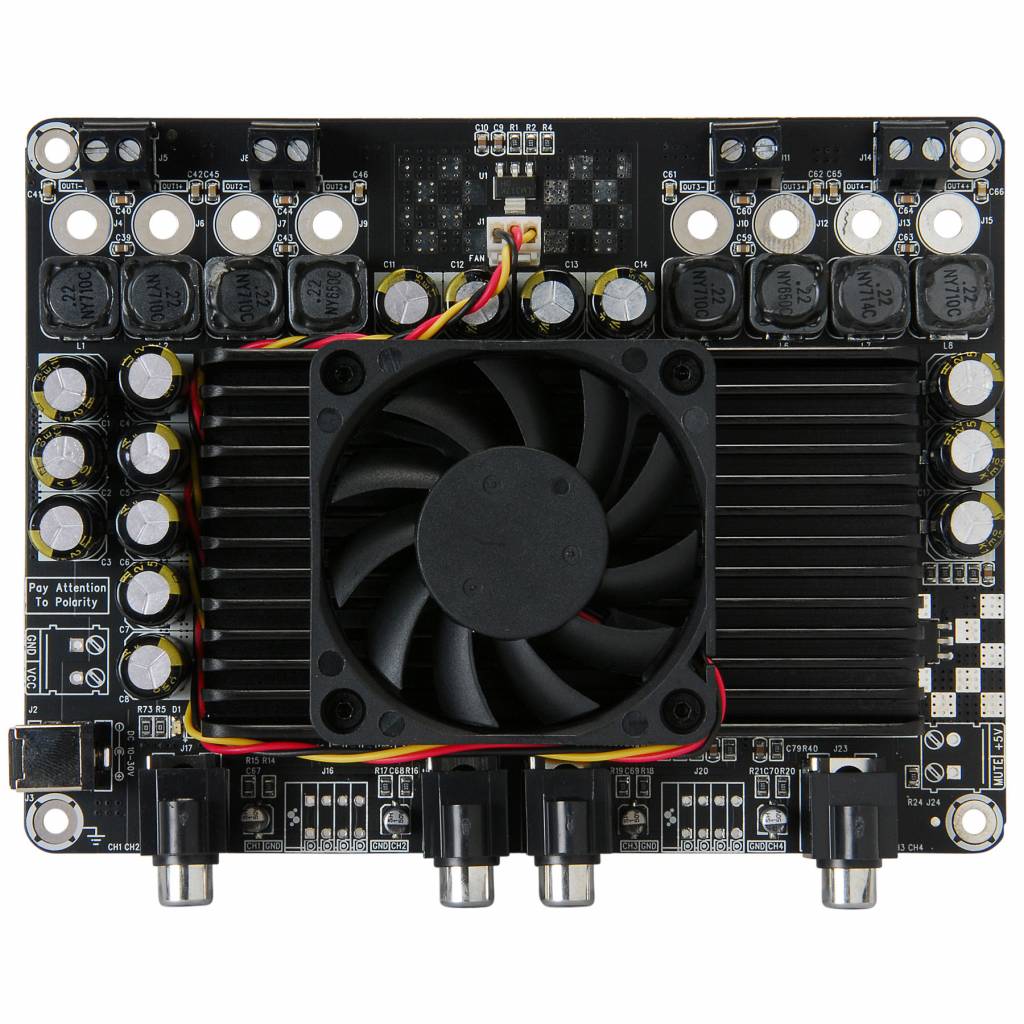

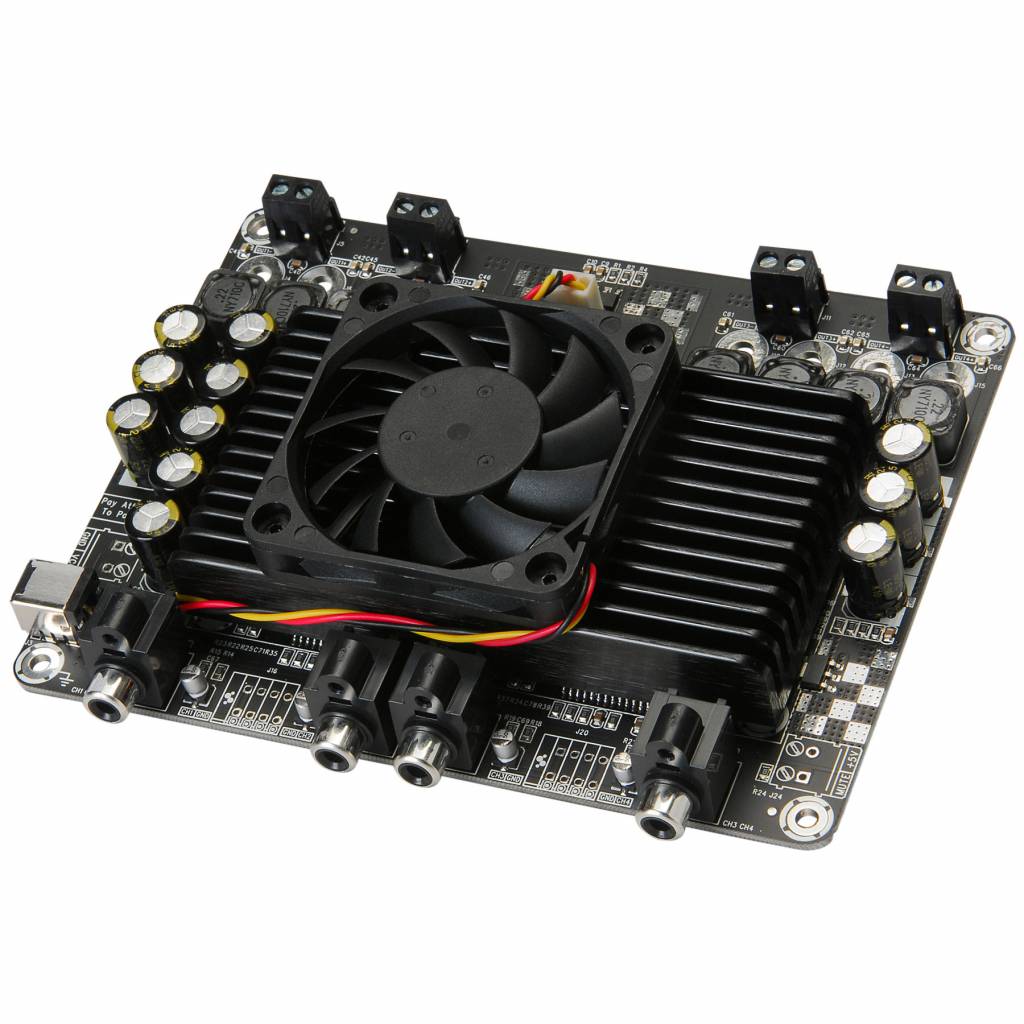

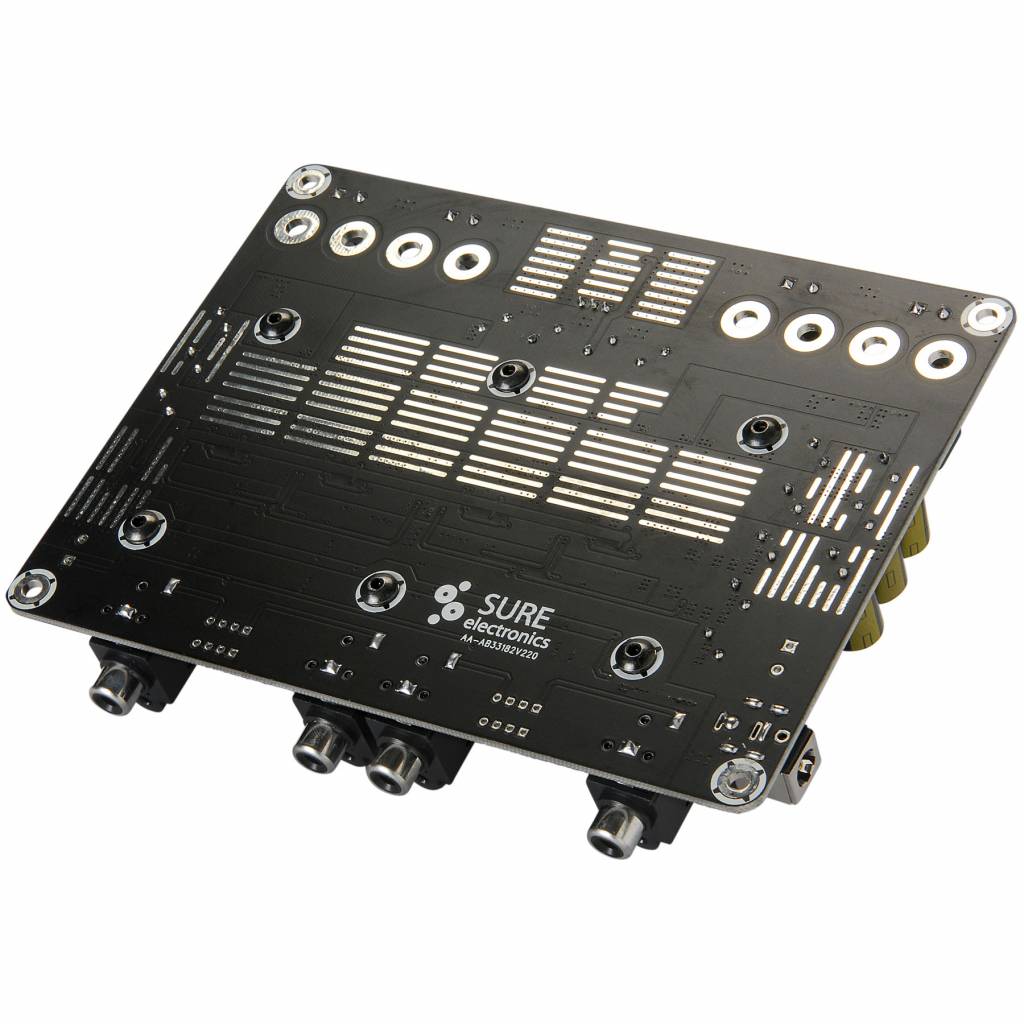

      Sure Electronics AA-AB33182 4x100W at 4 Ohm Class D Audio Amplifier Board STA508 (TK2050)

      € 54,92€ 66,45 10+ In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 63,13 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      This Class-D audio amplifier board simplifies the creation of exceptional sounding custom multi-channel systems. It has perfect class-T architecture and is integrated with a high performance STA508 chip supporting dual channel audio amplification.



      Highlights

      • Audiophile quality sound using class-T architecture
      • Four channels -- each up to 100W
      • Pre-assembled, pre-tested
      • Ample heat sink with cooling fan
      • Up to 90% efficiency



      Product details

      Sure Electronics AA-AB33182 4x100W at 4 Ohm Class D Audio Amplifier Board STA508 (TK2050)

      Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.



      This class-D board uses class-T architecture, with integrated STA508 chip supporting dual channel audio amplification, to create exceptional sounding custom multi-channel systems. Compatible with power supplies ranging from 10V to 30V DC, it can be used in many audio applications. The amplifier has four channels with the same power of up to 100 watts each, resulting in outstanding sound quality and versatility. You can employ any number of channels you like, and leave the others unused.



      This amplifier is exceptionally well designed, with a lot of power reserve, high fidelity, low distortion, good S/N ratio, high sensitivity, and full protection with heatsink and fan. These ideal characteristics make this amplifier a candidate to become the basic building block of your future high fidelity system, or it can become the element that will upgrade an existing system.

      Specifications

      Article number
      AA-AB33182
      Rated power output
      4 x 100 watts at 4 ohms
      Minimum load
      4 ohms
      Efficiency
      92 %
      Signal-to-noise ratio (SNR)
      90 dB
      Distortion

      0.03 % THD at 1 kHz, 4 ohms, 1 watt
      0.09 % THD at 1 kHz, 4 ohms, 10 watts

      Frequency response
      20 - 20,000 Hz
      Gain
      32 dB
      Input sensitivity
      520 mV
      Input impedance
      10k ohms
      Amplifier Classification
      Class D
      Circuit Topology
      STMicroelectronics STA508
      Speaker output channels
      4
      Input connection type

      RCA
      PCB solder connection

      Speaker output connection type

      Screw terminals
      PCB solder connection

      DSP function
      -
      Bluetooth
      -
      EQ Adjustment
      -
      Power Requirements
      15 - 27 VDC
      Power inlet connector

      DC jack (5.5/2.5 mm)
      screw terminals

      Current limit
      16.1 A
      Under/over voltage protection
      -
      Dimensions (L x W x H)
      152.4 x 114.3 x 33 mm
      Mounting hole spacing
      -
      Mounting hole diameter
      3.8 mm

      Show more

      Reviews

      5 from 5Based on 5 reviews
      Review this product
      4 of 5

      Een heel mooi versterker ontwerp.

      By Teus Verhey on 14 February 2022
      5 of 5
      Sauber verarbeitet, macht optisch einen sehr ordentlichen Eindruck, einzig das Lüfterkabel sitzt etwas stramm. Der Klang ist prima, das Teil hat auch ordentlich Dampf, nachgemessen habe ich aber nicht. Alles in allem bin ich sehr zufrieden.
      By Arne S. on 20 January 2021
