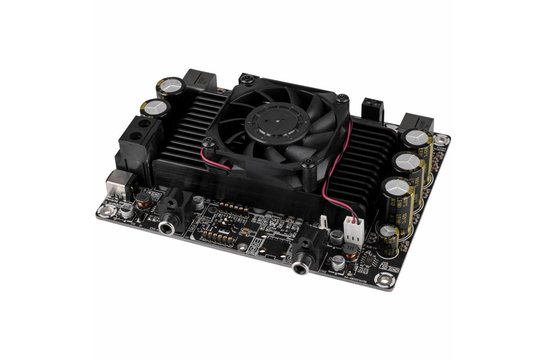

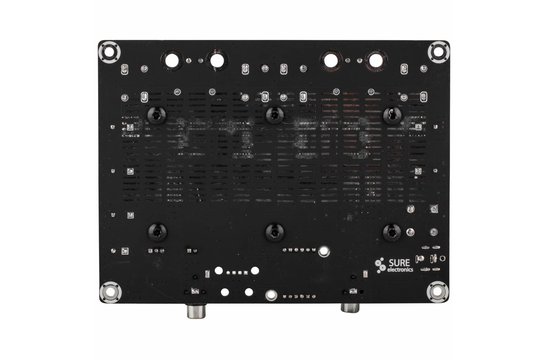

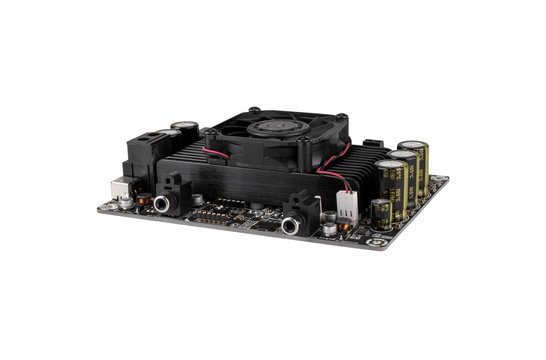

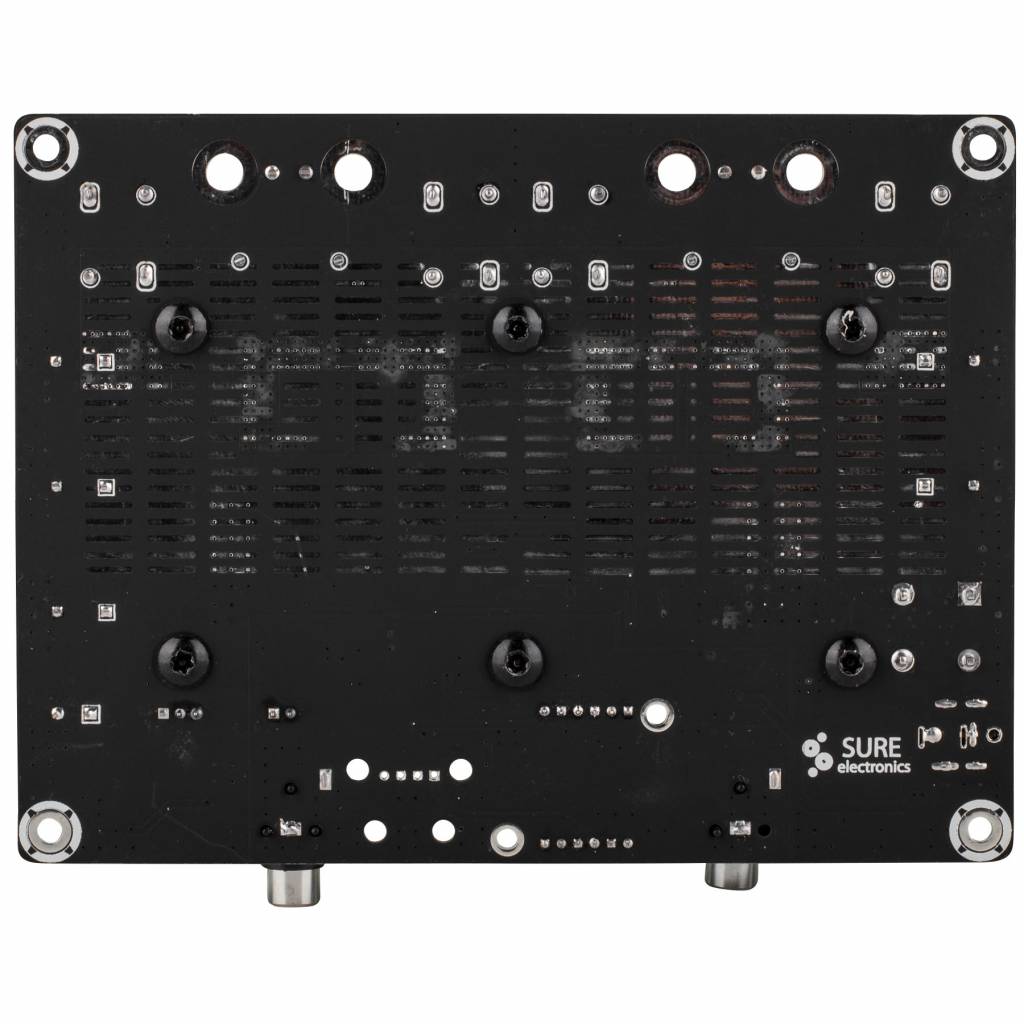

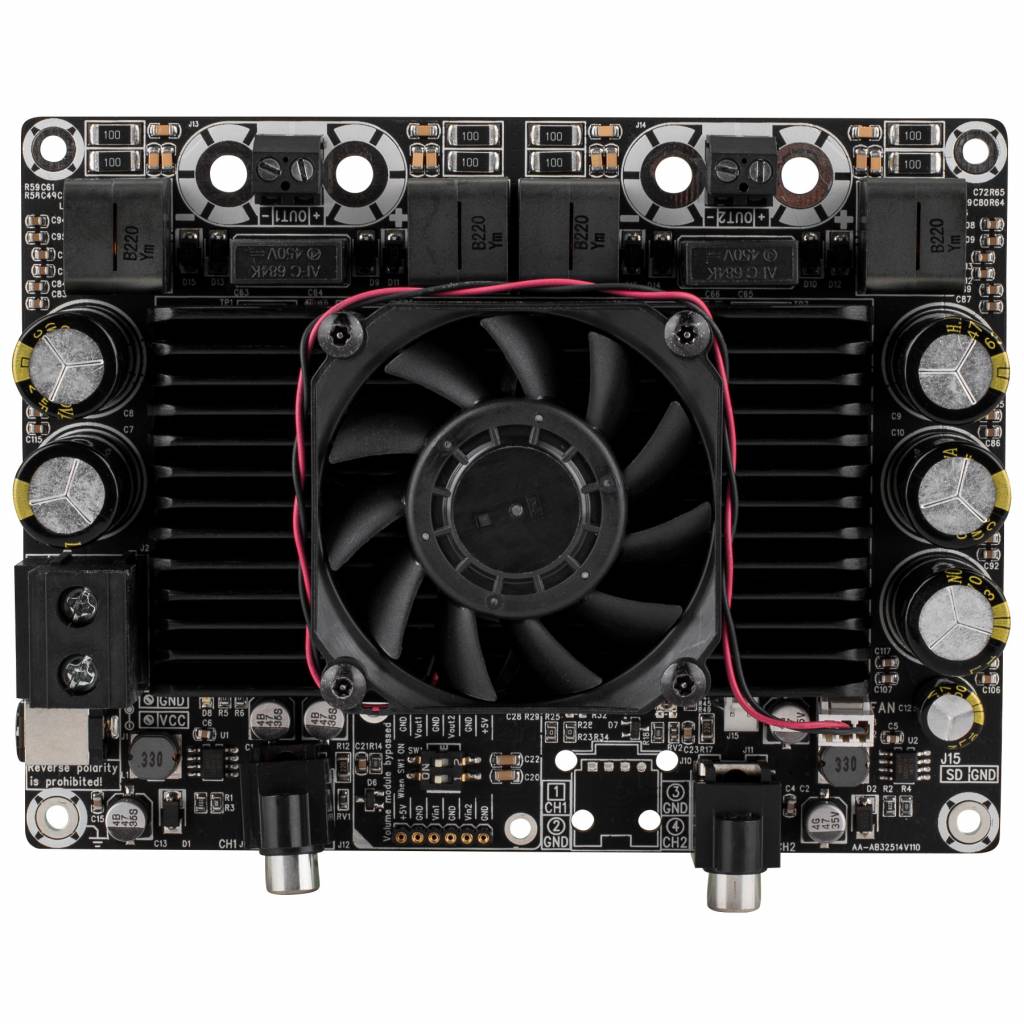

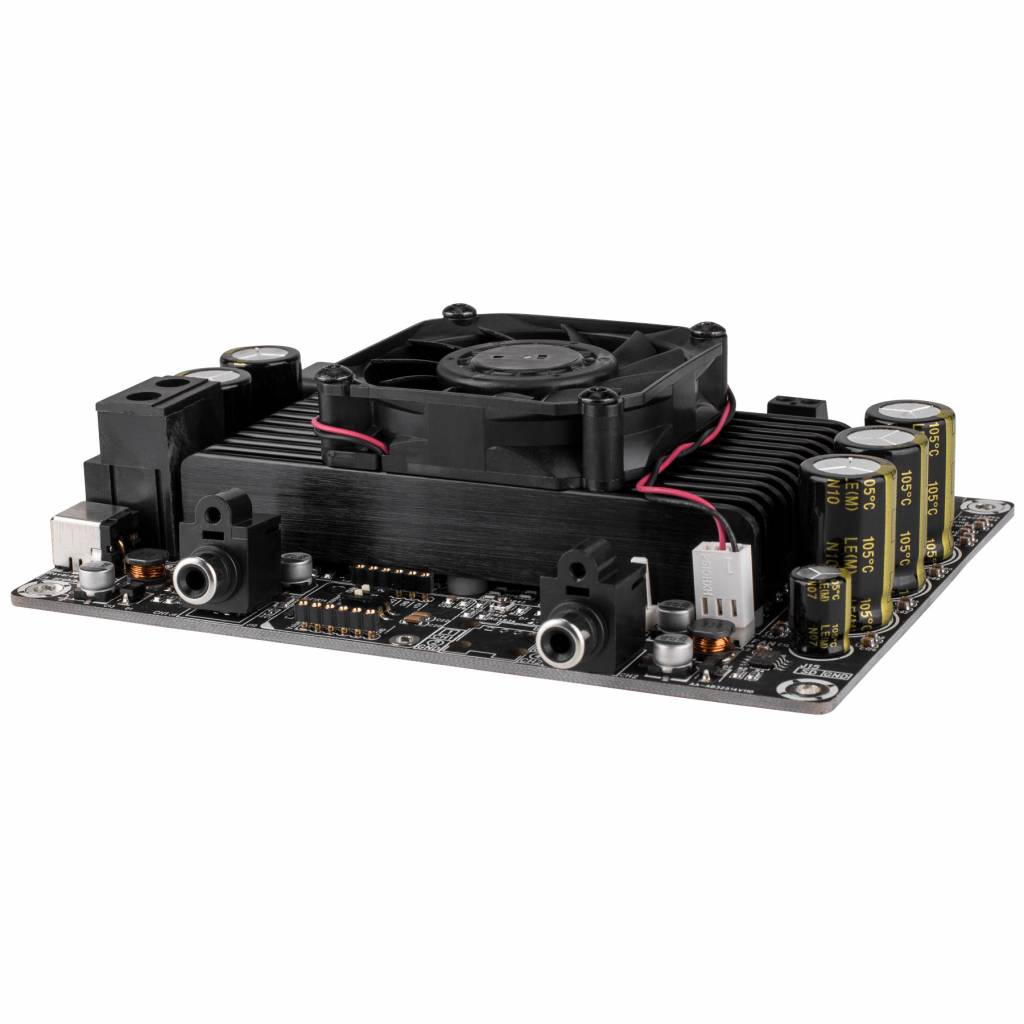

Sure Electronics AA-AB32514 2x500W Class D Audio Amplifier Board - T-Amp

Name: Sure Electronics AA-AB32514 2x500W Class D Audio Amplifier Board - T-Amp
Brand: Sure Electronics
SKU: AA-AB32514
Price: 124.95 EUR
Availability: InStock
Rating: 4 (1 reviews)

1 reviews

Brand: Sure Electronics

Show all Amplifier modules

Compare

2 x 500 W

€ 103,26€ 124,95 3 In stock

24h express shipping available
Same day shipping
In-house technical support
45-day cooling-off period to return

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Design your own powered subwoofer, powered speaker or audio amplifier with Sure's 2 x 500 watt stereo amp board. It's ready to handle mid power demanding audio projects.

Highlights

Temperature controlled cooling fan
Over-engineered protection circuits
Versatile 3-ohm stability
Perfect size for use as a subwoofer amplifier for home or vehicle
Up to 1,000 watts max power
Requires 24 to 50 VDC power supply

Product details

Sure Electronics AA-AB32514 2x500W Class D Audio Amplifier Board - T-Amp

This mid power stereo amplifier board means serious business! This audio amplifier board cranks out 1,000 watts of power using Sure Electronics T-AMP technology, featuring low distortion and low noise level. For do-it-yourselfers, looking for an audio amp for your home or vehicle.

Temperature controlled cooling fan, as well as protection circuits to protect against over/under voltage, over current, short circuit, and over temperature conditions are built-in for years of enjoyment. This amp board has three fixed gain settings or you can use Sure's plug in volume control option. A 24 to 50 VDC power supply is required.

Note: The minimum recommended wire gauge to be used for power is 16 AWG.

Connections:

Typical Performance Graphs:

Frequency response:

Noise Floor:

THD+N VS Frequency:

Thermal Image:

All parameters were tested with Rohde & Schwarz UPV audio analyzer and AP AUX0025 filter with AES17 filter enabled.

Specifications

Article number: AA-AB32514
Rated power output: 2 x 500 watt at 3 ohms
Minimum load: 3 ohms
Efficiency: 91 - 96 %
Signal-to-noise ratio (SNR): 95 dB
Distortion: 0.01 % THD at 3 ohms, 1 watt, 1 kHz
0.019 % THD at 3 ohms, 10 watts, 1 kHz
Frequency response: 20 - 20,000 Hz
Gain: 30.5 dB
Input sensitivity: 1.76 V
Input impedance: 10k ohms
Amplifier Classification: Class D
Circuit Topology: Sure Electronics T-AMP
Speaker output channels: 2
Input connection type: RCA
Speaker output connection type: Screw terminals
PCB solder connection
DSP function: -
Bluetooth: -
EQ Adjustment: -
Power Requirements: 24 - 50 VDC
Power inlet connector: Screw terminals
DC jack 2.5 x 5.5 mm
Current limit: 21.5 A
Under/over voltage protection
Dimensions (L x W x H): 152.4 x 114.3 x 38.86 mm
Mounting hole spacing: -
Mounting hole diameter: 3.56 mm
