        AA-AB32472 2x30W 8 Ohm Class D Audio Amplifier Board - TPA3118

        Sure Electronics AA-AB32472 2x30W 8 Ohm Class D Audio Amplifier Board - TPA3118

        €29,95

        6 In stock

        Sure Electronics AA-AB32472 2x30W 8 Ohm Class D Audio Amplifier Board - TPA3118

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 24,75€ 29,95 6 In stock
        • -5% Purchase 4 for only € 28,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Pros and cons

        According to our specialists
        • Excellent heat dissipation
        • Reverse Polarity Protection
        • Power Indicator
        • Power supply not included

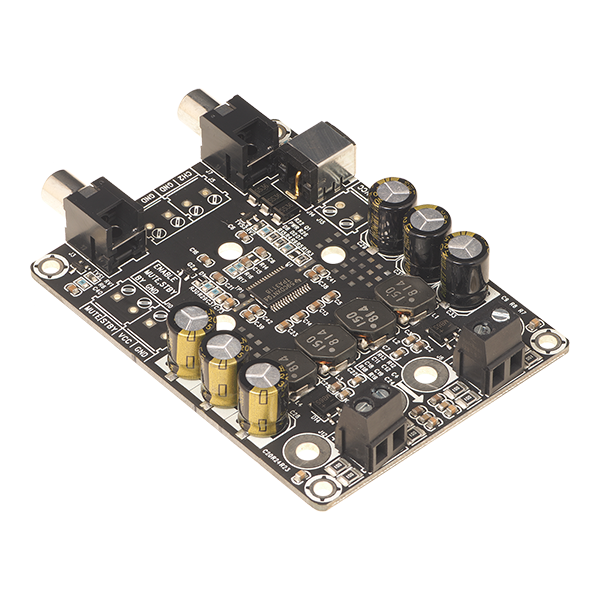

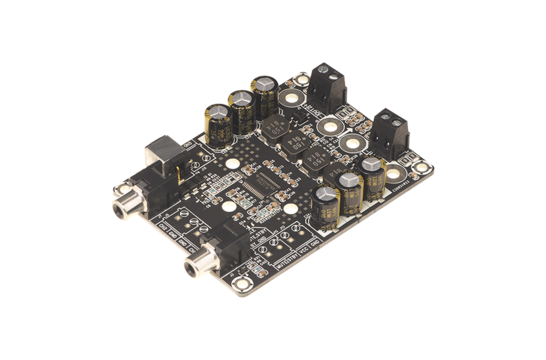

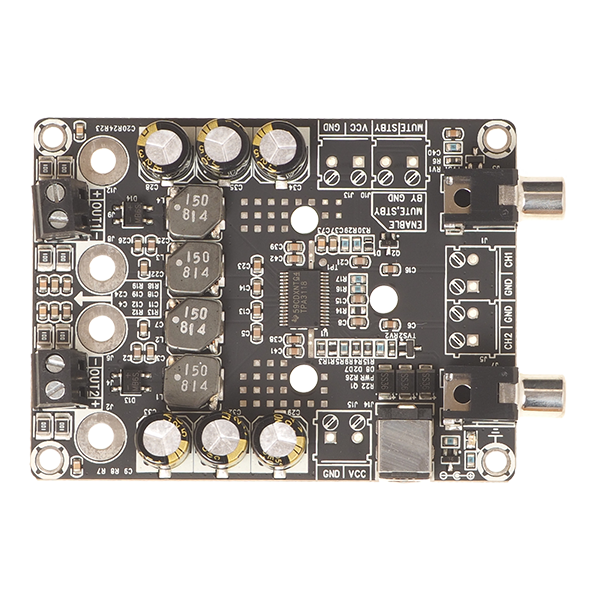

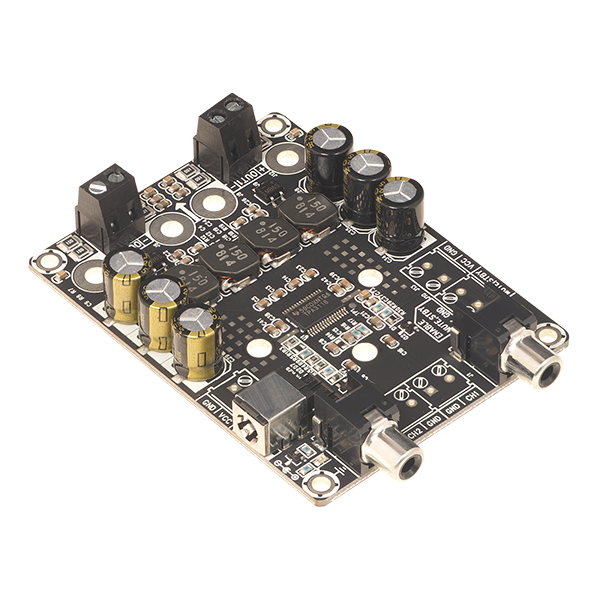

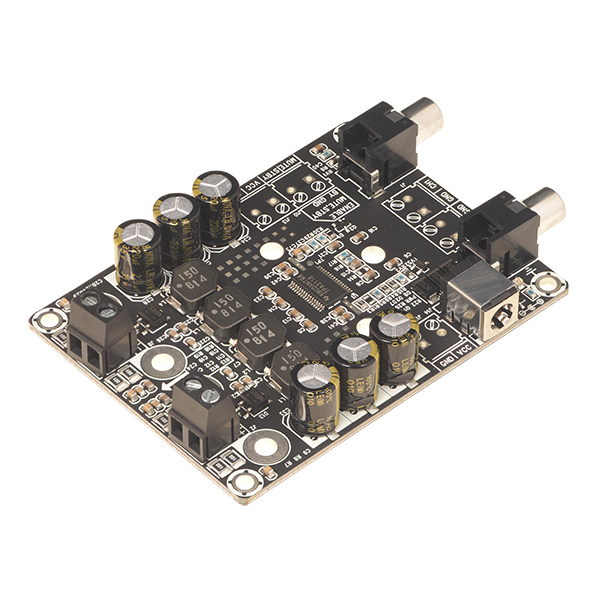

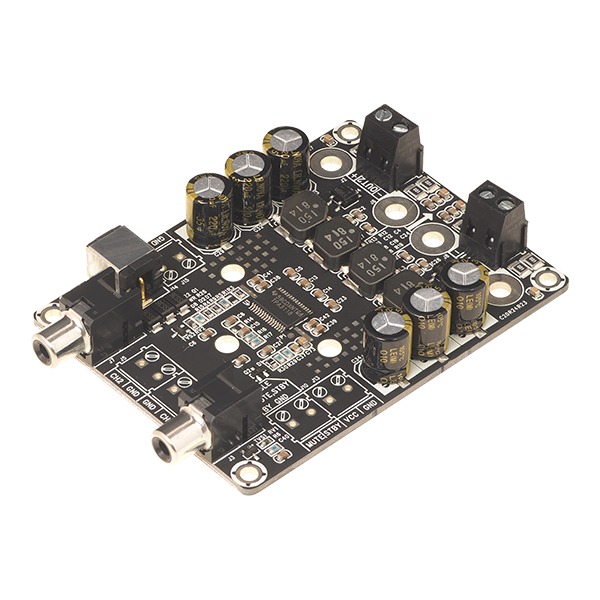

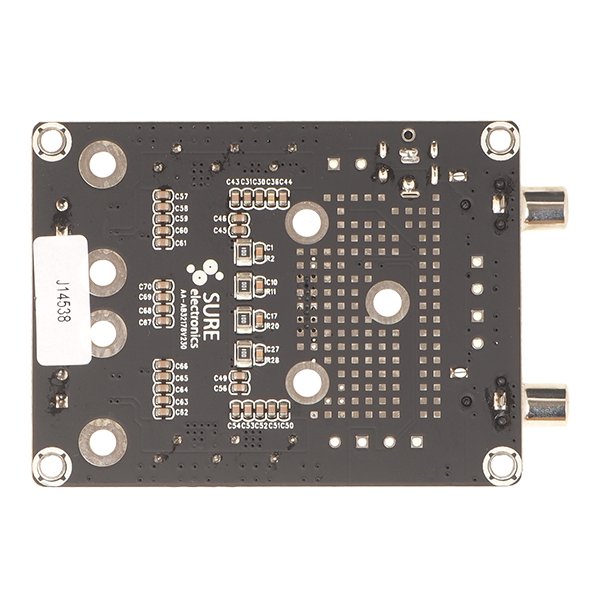

        Product description Sure Electronics AA-AB32472 Amplifier Board

        This stereo mid-power audio amplifier board is capable of delivering 30W output power per channel into an 8Ohm load based on Class D topology and TI' TPA3118 Amplifier IC, featuring high efficiency up to 92.6% and high sound quality with low distortion and low noise level. Compact size, easy installation and mid power output makes this audio amplifier board suitable for home audio, DIY audio, desktop amplifier, toy audio and demanding industrial applications. A DC10 – 26V power supply is required.



        Highlights

        • Easy installation
        • Compact size
        • Full protection circuit
        • Class D



        Product details

        Sure Electronics AA-AB32472 Amplifier Board


        High Quality Audio Performance. By means of dedicated PCB layout design and engineers’ attentive debugging, this mid-power audio amplifier board features such high audio performance that you can get pure enjoy of the music, whose SNR reaches up to 100dB and THD+N performs well as 0.0516% @ 8Ohm, 1W, 1kHz. The output noise level is only 84.8µV.


        High Reliability and Long Service Time. The module dissipates only 0.72W with no signal when in ON mode (around 0.07W when in stand-by mode). Excellent heat dissipation eliminates the requirement of an extra heatsink and increases its reliability. Mute and Standby functions are offered with this amplifier module for easy control. Full protection circuit, like over temperature protection, overcurrent protection and reverse polarity protection, is equipped on this board for high reliability and long service time.


        Easy for Installation. Four screw holes provided make this amplifier board easy for installation and quick for integration in any cabinet. All the necessary terminals for power supply, audio input and audio output are pre-mounted on the board. Therefore, you only need to plug in the cables and enjoy music without any need of soldering. If you want all the terminals to be mounted for your applications, please contact us. MOQ would be required. Power indicator is provided on board for customers to have an overview of the power condition of the amplifier board.


        Package Includes
        1pc AA-AB32472

        Show more

        Specifications

        Article number
        AA-AB32472
        EAN
        0843577100373
        Rated power output
        30W @ 8Ohm
        Signal-to-noise ratio (SNR)
        23W @8Ω THD+N 1%
        Input sensitivity
        @8Ω, 30W, 1KHz
        Power Requirements
        10V-26V
        Dimensions (L x W x H)
        91.4 4mm x 68.58 mm

        Show more
