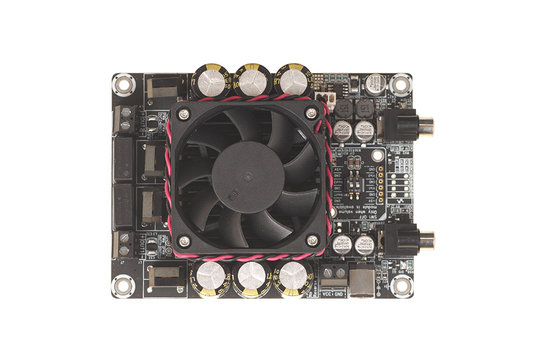

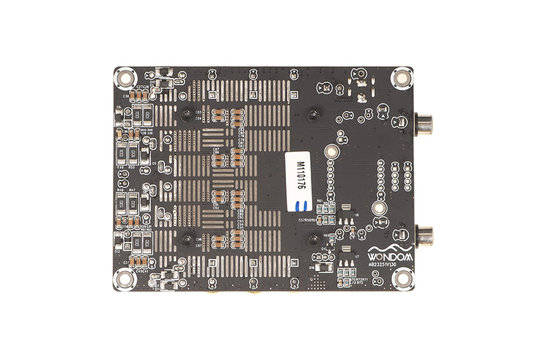

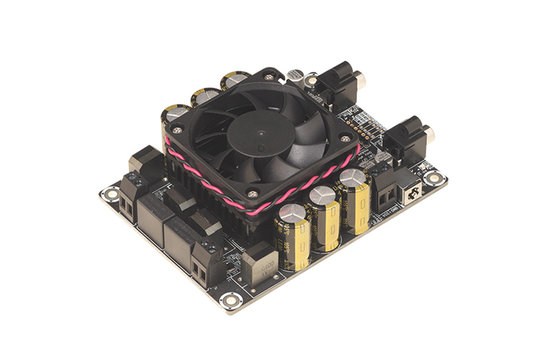

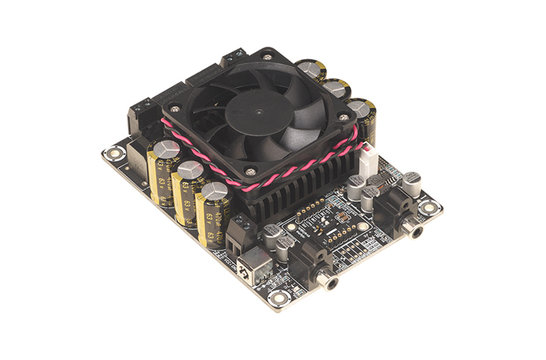

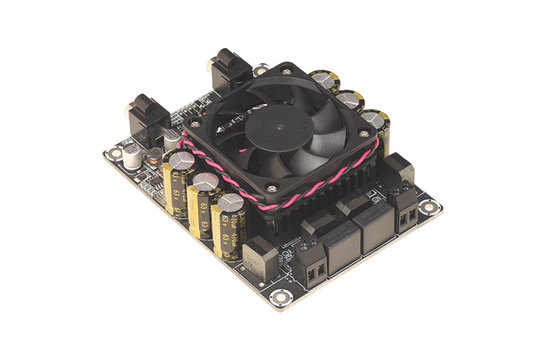

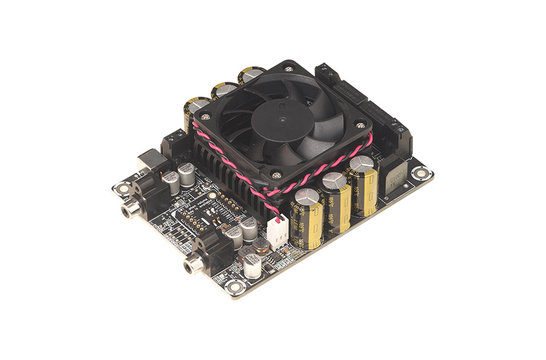

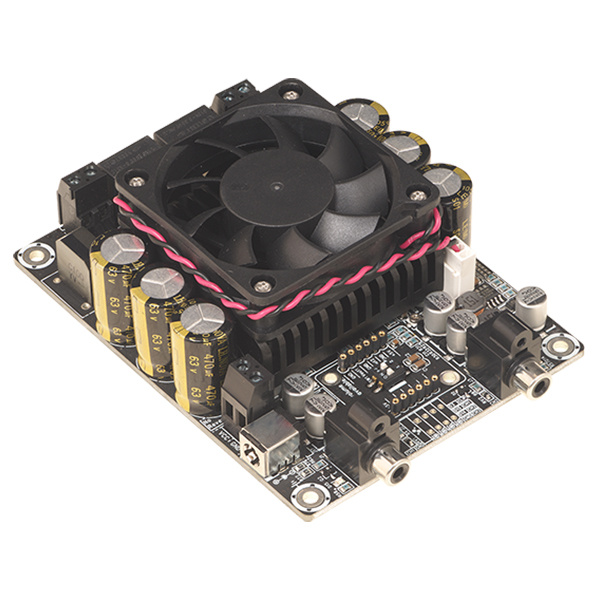

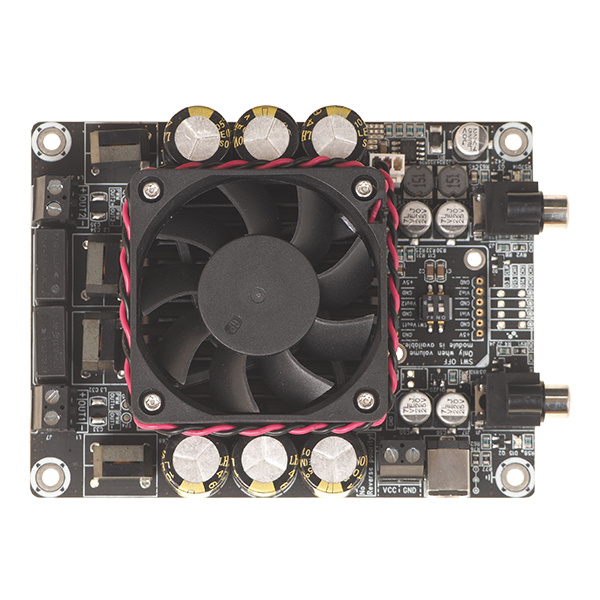

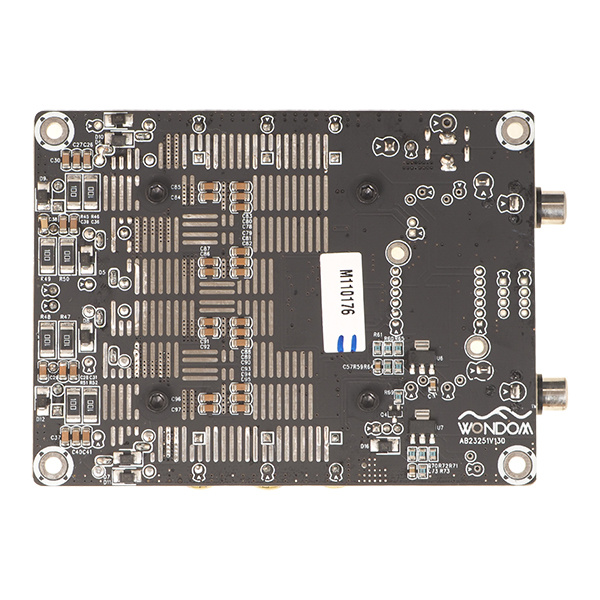

        Sure Electronics AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp

        2 reviews
        Brand: Sure Electronics
        Show all Amplifier modules
        2 x 200 W
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        € 47,48€ 57,45 Out of stock
        • -5% Order 4 for only € 54,58 per piece
        +-
        Add to cart

        Buy now, pay later

        • 24h express shipping available
        • Ordered now, shipped today
        • In-house technical support
        • 45 days worry-free returns
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp
        AA-AB32281 - 2x200W Class D Audio Amplifier Board - T-Amp

        Product description

        Design your own powered subwoofer, powered speaker, or audio amplifier with Sure's 2 x 200-watt stereo amp board. It's small in size, but ready to handle mid-power demanding audio projects.



        Highlights

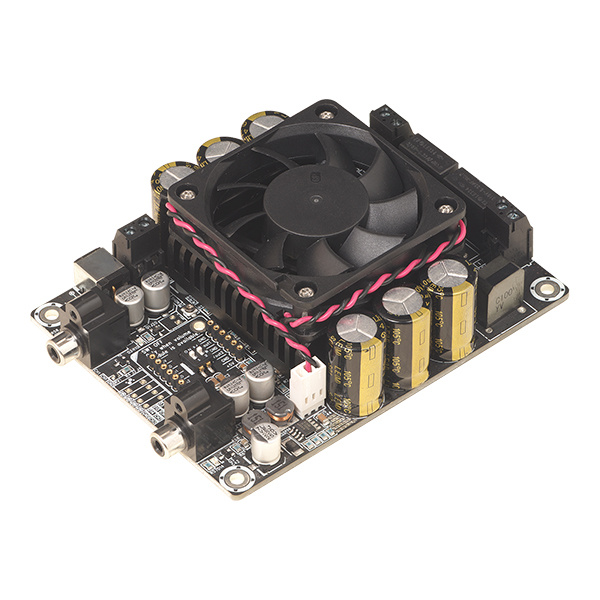

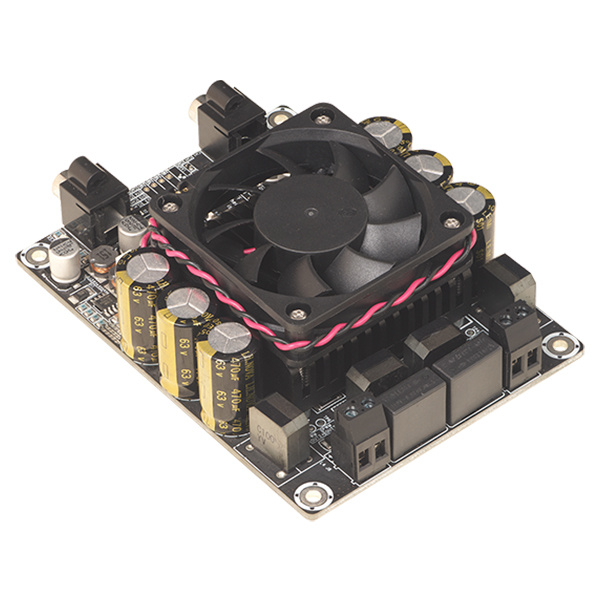

        • Temperature controlled cooling fan
        • Over-engineered protection circuits
        • Versatile 3-ohm stability
        • Perfect size for use as a subwoofer amplifier for home or vehicle
        • Up to 400 watts max power
        • Requires 15 to 36 VDC power supply



        Product details

        Sure Electronics WONDOM AA-AB32281 - 2 x200W Class D Audio Amplifier Board - T-Amp



        This mid power stereo amplifier board means serious business! This audio amplifier board cranks out 400 watts of power using Sure Electronics T-AMP technology, featuring low distortion and low noise level. For do-it-yourselfers, looking for an audio amp for your home or vehicle.



        Temperature controlled cooling fan, as well as protection circuits to protect against over/under voltage, over current, short circuit, and over temperature conditions are built-in for years of enjoyment. This amp board has three fixed gain settings or you can use Sure's plug in volume control option. A 15 to 36 VDC power supply is required.



        Note: The minimum recommended wire gauge to be used for power is 16 AWG.

        Show more

        Specifications

        Article number
        AA-AB32281
        Rated power output
        2 x 200 Watt @ 3 Ohm
        Minimum load
        3 Ohm
        Efficiency
        91%
        Signal-to-noise ratio (SNR)
        94 dB
        Distortion
        0.004% @3Ohm, 1W, 1Khz
        Frequency response
        20-20.000 Hz
        Gain
        26 dB
        Input sensitivity
        740 mV
        Input impedance
        33K ohm
        Amplifier Classification
        Class D
        Circuit Topology
        T-AMP
        Speaker output channels
        2

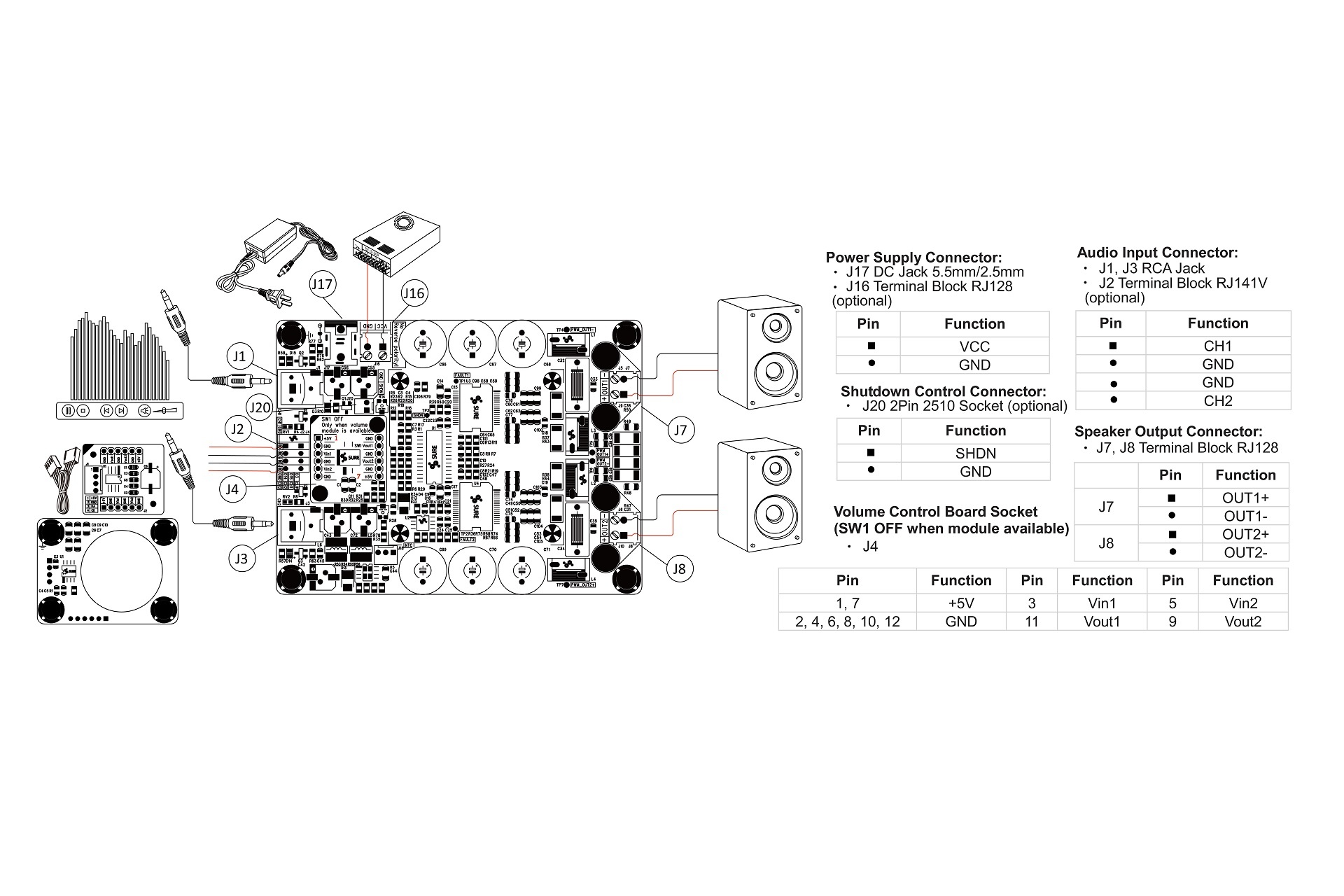

        Input connection type
        Terminal block/RCA
        Speaker output connection type
        Terminal block
        DSP function
        No
        Bluetooth
        No
        Power Requirements
        15-36 VDC
        Power inlet connector
        Jack
        Current limit
        12.6 A
        Dimensions (L x W x H)
        L 91,44 X W 68,85 mm

        Show more

        Reviews

        2 reviews
        5 from 5Based on 2 reviews
        Review this product
        5 of 5
        Geweldige versterker. Transparant, volwassen geluid. Geeft geen krimp als ie "op zijn donder" krijgt. En het belangrijkste: Ik gebruik hem als versterker in een zelfbouw Pa systeempje met subje met 2 Dayton Audio's Pa165 en 2 satalietjes met heerlijke Dayton PA130's en planar mini-6 coaxiale constructie. Tijdens optreden sta ik midden in mijn eigen stemgeluid. Heerlijk helder. En het belangrijkste...door allerlei veiligheidsvoorzieningen super betrouwbaar. Ik drijf hem aan met 20 v. accu van mijn boormachine net als mijn kleine yamaha mixer. En..past allemaal in de krat achterop mijn scootertje. Een aanrader!
        By Hans van Mastrigt on 3 December 2022
        5 of 5
        I think, if you take a amplifier from Sure Electronics, then you choose right, because these are the best diy amplifier boards what you can easily buy.
        By Levente Vas on 16 November 2021
