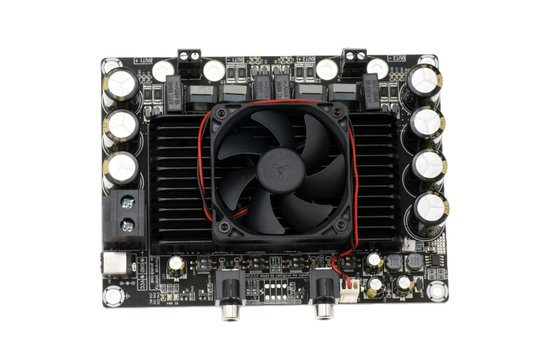

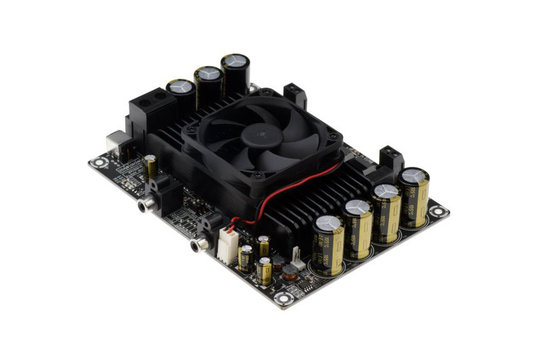

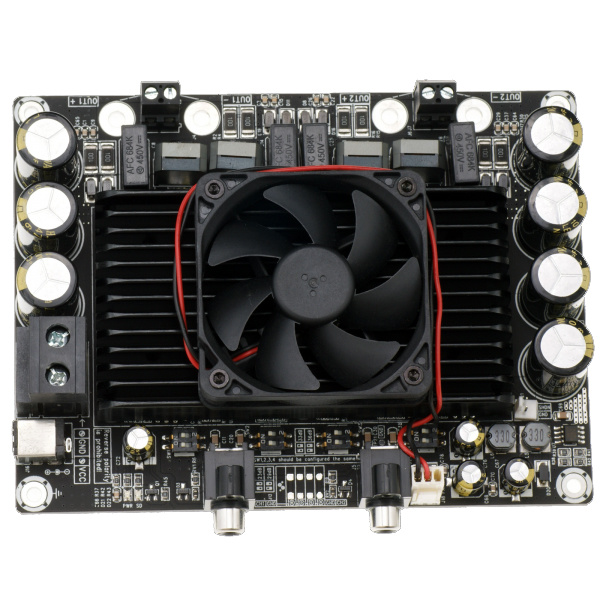

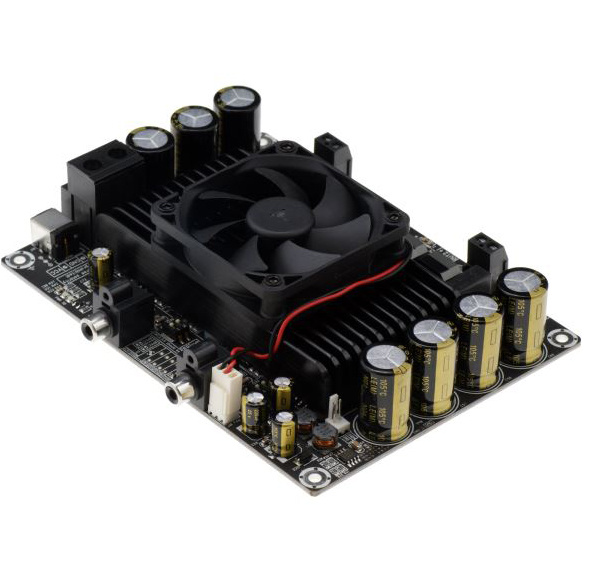

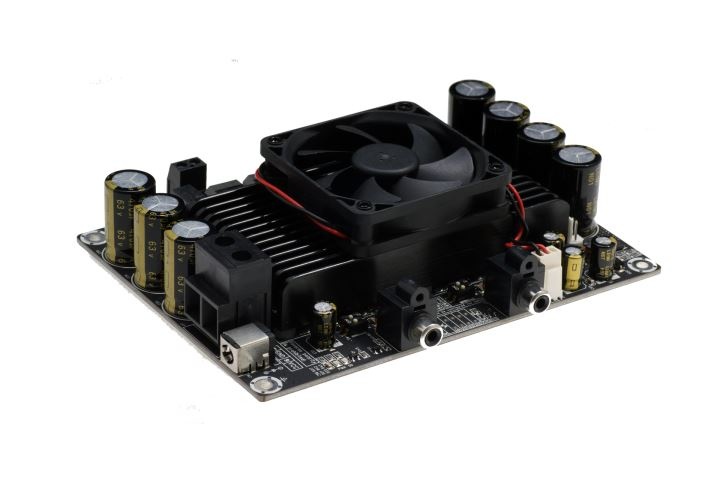

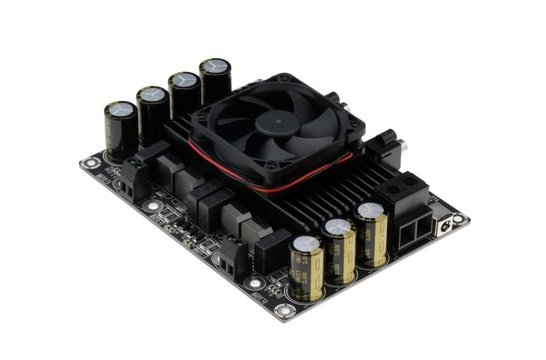

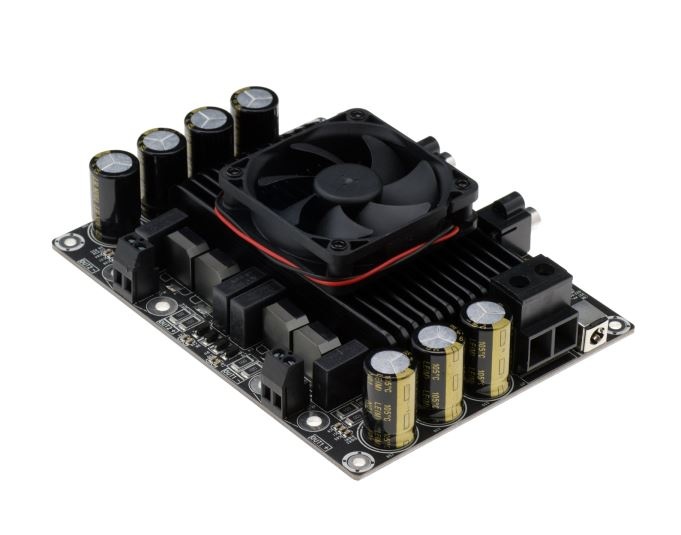

      Sure Electronics AA-AB32221 2x150W TAS5613 Class-D Amplifier Board

      € 43,35€ 52,45 6 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €49,83 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      This 2 x 150W Class-D audio amplifier board integrates TI’s high performance TAS5613 supporting stereo channel audio amplification.



      Highlights

      • Perfect for use as a subwoofer amplifier for home or vehicle
      • Up to 2 x 150W of Class-D clean power
      • Over-engineered protection circuits
      • Requires 18 to 38 VDC power supply
      • Temperature controlled cooling fan
      • Gain adjustable



      Product details

      Sure Electronics AA-AB32221 2x150W TAS5613 Class D Audio Amplifier Board



      This 2 x 150W Class-D audio amplifier board integrates TI’s high performance TAS5613 supporting stereo channel audio amplification. For do-it-yourselfers, looking for a background music system amp for your home or vehicle. Temperature controlled cooling fan, as well as protection circuits to protect against over/under voltage, over current, short circuit, and over temperature conditions are built-in for years of enjoyment. Requires a DC power supply ranging from 18 to 38V.

      Specifications

      Article number
      AA-AB32221
      Rated power output
      2 x 150 watt at 4 ohms
      Minimum load
      4 ohms
      Efficiency
      >91 %
      Signal-to-noise ratio (SNR)
      94 dB
      Distortion
      -
      Frequency response
      20 - 22,000 Hz
      Gain
      20, 26.8, 30.1 or 32.5 dB
      Input sensitivity
      2.4 V
      Input impedance
      10k ohms
      Amplifier Classification
      Class D
      Circuit Topology
      Texas Instruments TAS5613
      Speaker output channels
      2
      Input connection type

      Screw terminals
      PCB solder connectors

      Speaker output connection type

      Screw terminals
      PCB solder connectors

      DSP function
      -
      Bluetooth
      -
      EQ Adjustment
      -
      Power Requirements
      18 - 38 VDC
      Power inlet connector

      Screw terminals
      DC jack

      Current limit
      9 A
      Under/over voltage protection
      Dimensions (L x W x H)
      152 x 114 x 39 mm
      Mounting hole spacing
      -
      Mounting hole diameter
      -
