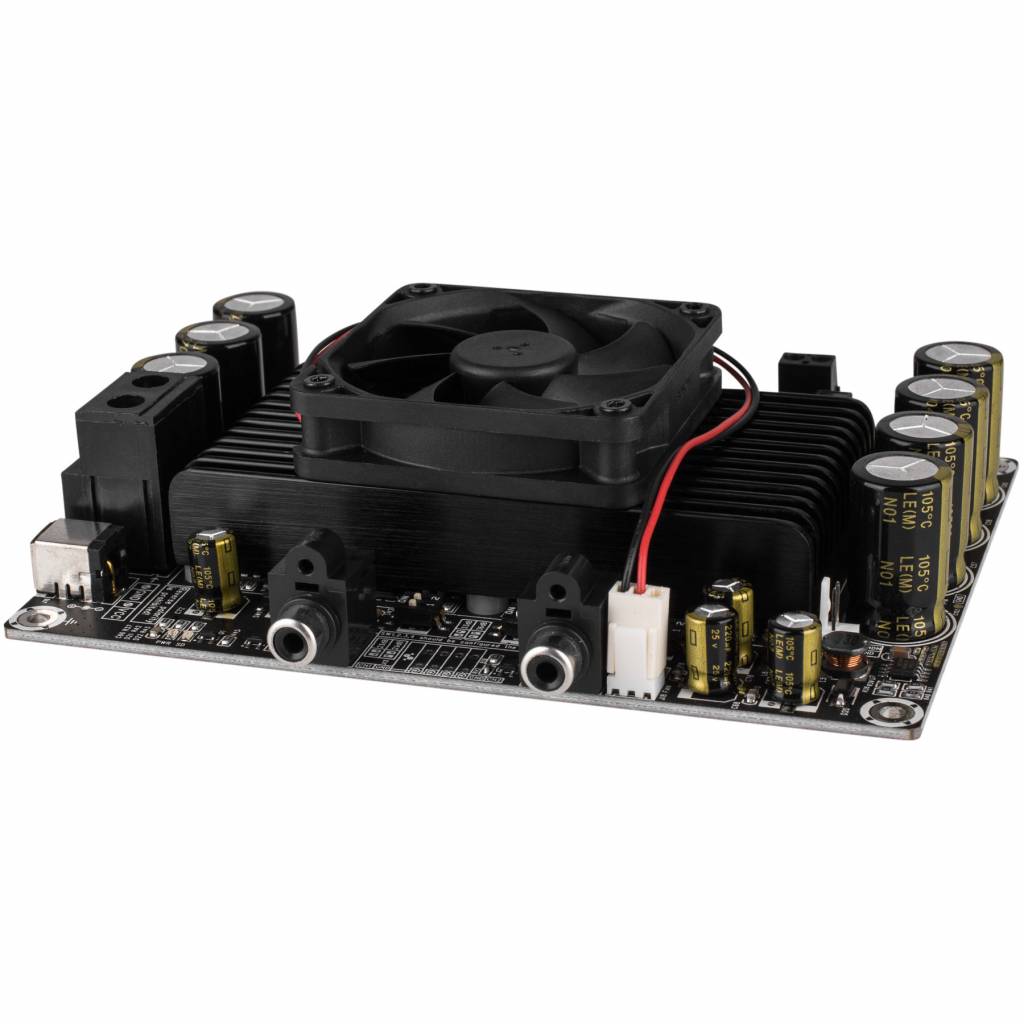

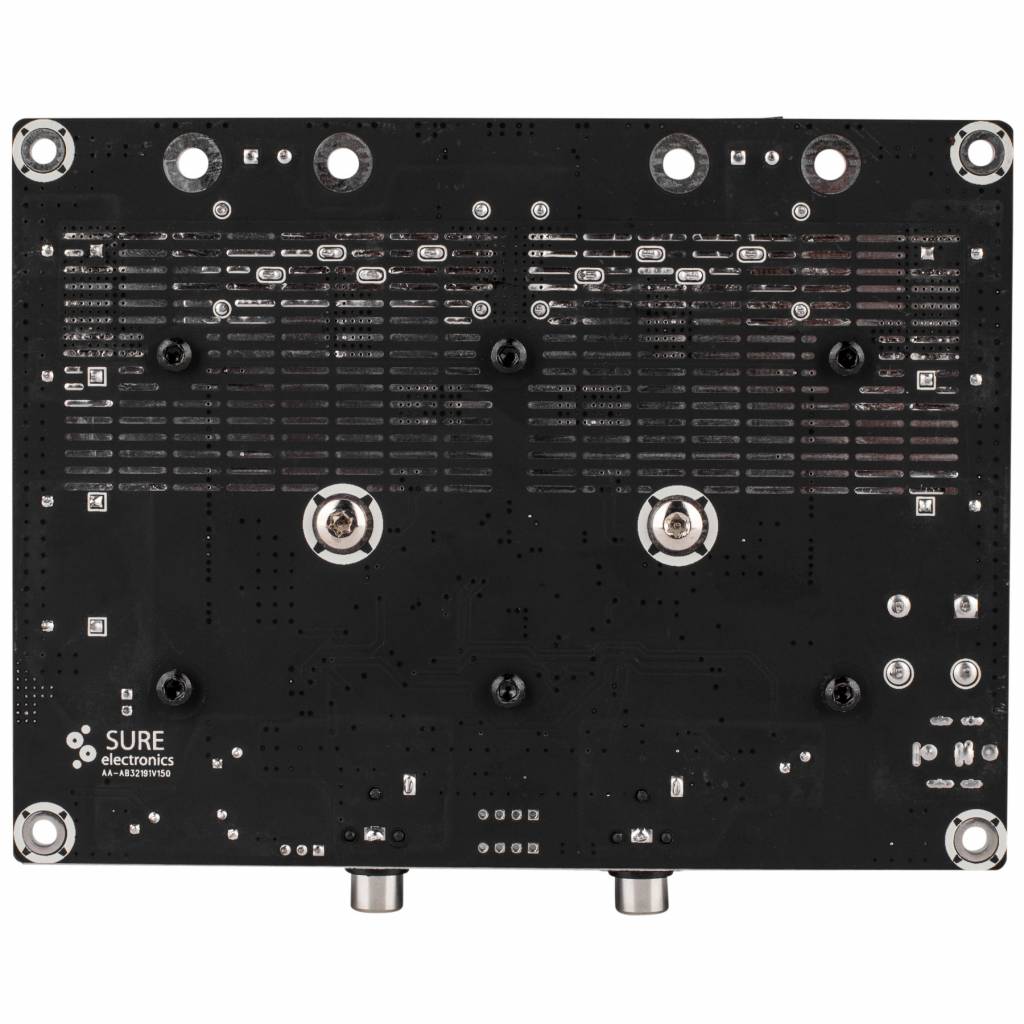

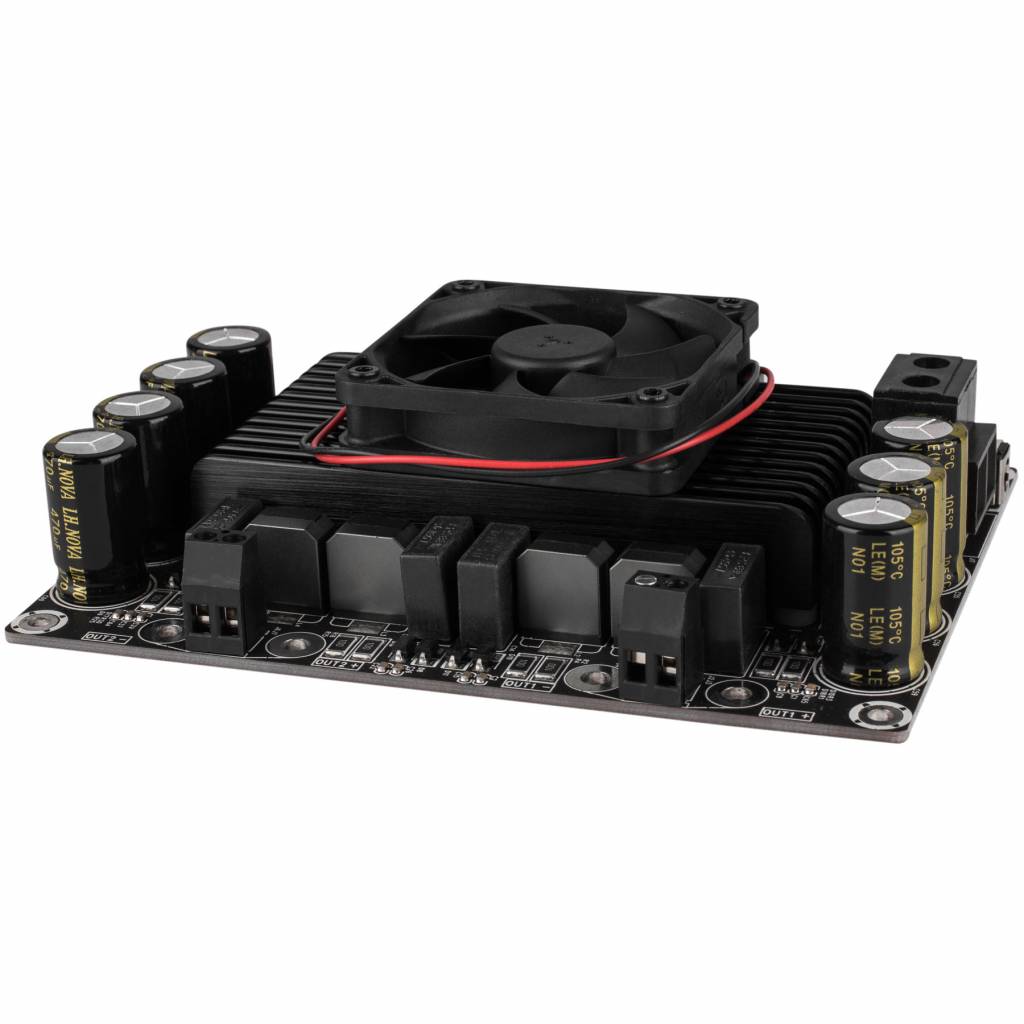

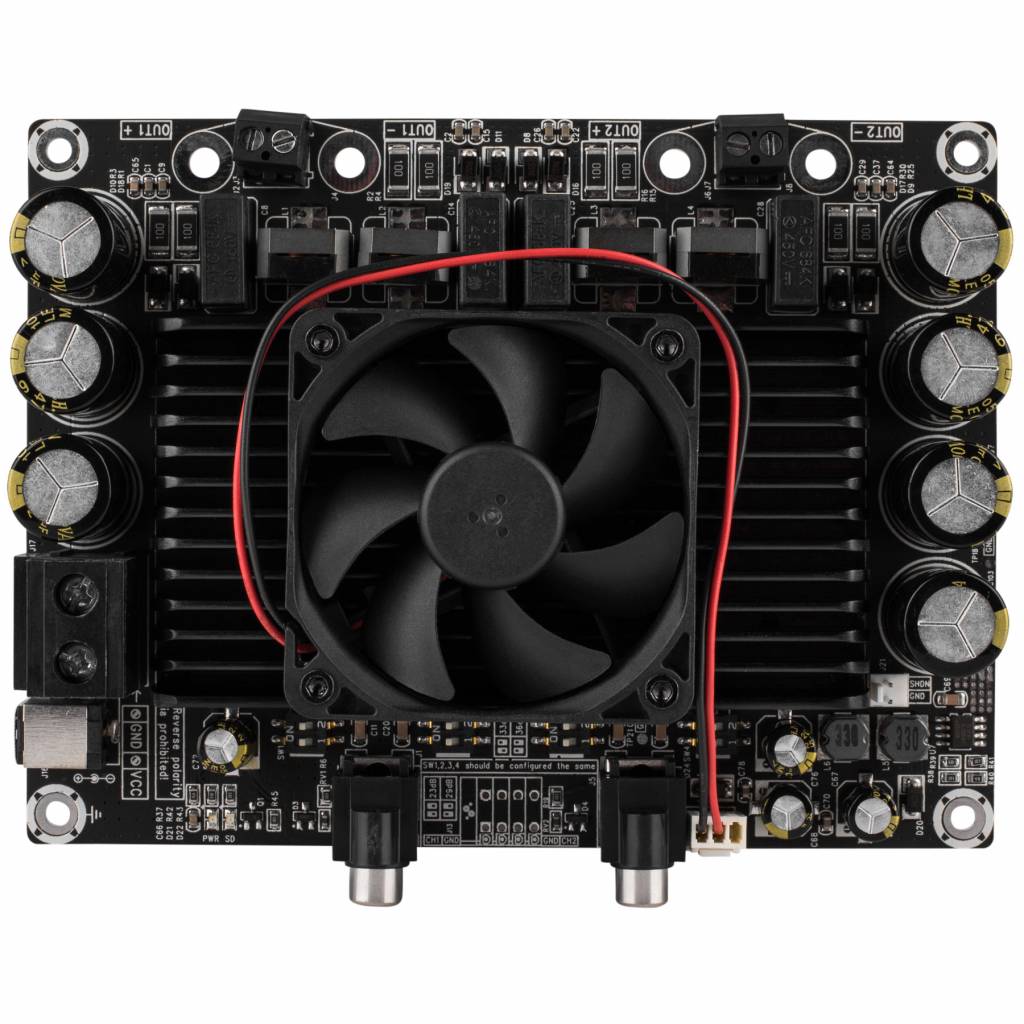

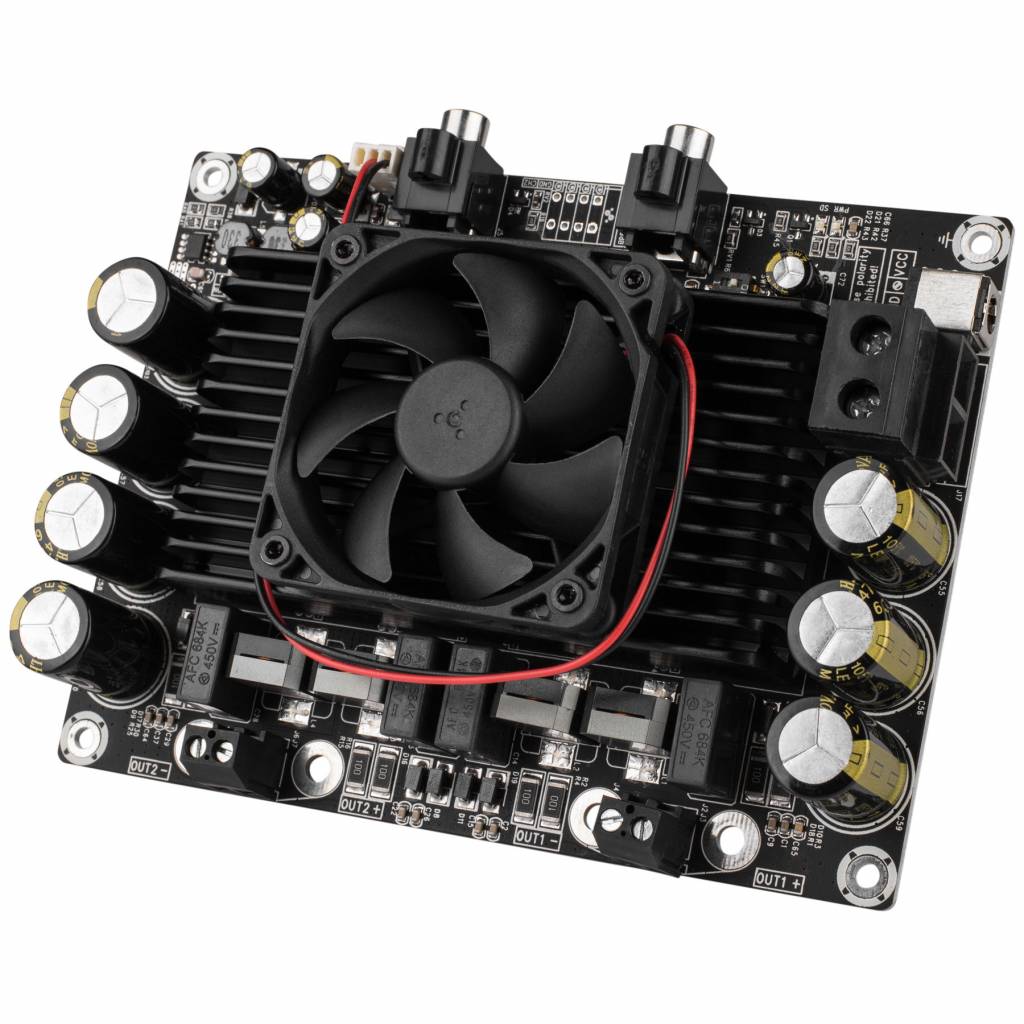

        AA-AB32191 2x300W TAS5630 Class-D Amplifier Board

        AA-AB32191 2x300W TAS5630 Class-D Amplifier Board

        €79,95

        Sure Electronics AA-AB32191 2x300W TAS5630 Class-D Amplifier Board

        2 reviews
        3 from 5
        2 reviews
        5 stars
        50%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 66,07€ 79,95 4 In stock
        • -5% Purchase 4 for only € 75,95 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        At 6 watts per dollar, this stereo Class-D amplifier board is a tremendous value pumping out up to 300W per channel. Perfect for use with subwoofers or as a high-end, two-channel critical listening amplifier. 25 to 50 VDC power supply required.



        Highlights

        • 2 x 300W of Class-D power
        • Great for use as a subwoofer amp and with tactile transducers
        • Over-engineered protection circuits
        • Robust heatsink with two-stage fan
        • Requires 25 to 50 VDC power supply



        Product details

        Sure Electronics AA-AB32191 2x300W TAS5630 Class-D Amplifier Board

        Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.



        Just one look at the power input terminals and you will know that this amplifier board means business! A Class-D Texas Instruments TAS5630 with PurePath™ HD enabled integrated feedback is used to deliver 300W to two channels, effortlessly and efficiently. This amplifier board works amazingly well with both low sensitivity speakers and subwoofers.



        A robust heatsink, two-stage cooling fan, as well as protection circuits to protect against over/under voltage, over current, short circuit, and over temperature conditions are built-in for years of enjoyment. Four fixed gain settings allow you to match the amplifier to your source, and use your source as the volume control. A 25 to 50 VDC power supply is required (sold separately).



        Note: The minimum recommended wire gauge to be used for power is 16 AWG.



        Features:
        • Class-D Texas Instruments TAS5630 with PurePath™ HD enabled integrated feedback
        • Robust heatsink with two-stage cooling fan
        • Pre-drilled mounting holes
        • Over/under voltage, over current, short circuit, and over temperature protection circuits
        • Click and pop noise reduction
        • Phoenix-type speaker terminals
        • Two line-level RCA inputs
        • Large screw-down power input terminals



        Connections:

          width=





        Typical Performance Graphs:

        Frequency response:

         width=



        Noise Floor:

         width=



        THD+N VS Frequency:

         width=



        Thermal Image:

         width=

        Show more

        Specifications

        Article number
        AA-AB32191
        Rated power output
        2 x 300 watts at 4 ohms
        Minimum load
        3.5 ohms
        Efficiency
        86- 91 %
        Signal-to-noise ratio (SNR)
        99 dB
        Distortion

        0.017 % THD at 4 ohms, 1 watts, 1 kHz
        0.03 % THD at 4 ohms, 10 watts, 1 kHz

        Frequency response
        20 - 20,000 Hz
        Gain
        24, 30, 34 or 36 dB
        Input sensitivity
        1.05 V
        Input impedance
        13k ohms
        Amplifier Classification
        Class D
        Circuit Topology
        Texas Instruments TAS5630B
        Speaker output channels
        2
        Input connection type
        RCA
        Speaker output connection type
        Screw terminals
        DSP function
        -
        Bluetooth
        -
        EQ Adjustment
        -
        Power Requirements
        25 - 50 VDC
        Power inlet connector
        Screw terminals
        Current limit
        13.9 A
        Under/over voltage protection
        Dimensions (L x W x H)
        152.4 x 114.3 x 30.48 mm
        Mounting hole spacing
        -
        Mounting hole diameter
        0.14 mm

        Show more

        5 of 5
        -
        By Peter on 13 March 2024
        1 of 5
        De versterker module is technisch goed doordacht. De opgegeven afmetingen zijn onjuist! De hoogte van de module is niet 30,48 mm zoals in de beschrijving vermeld. De totale hoogte is ruim 10 mm meer, waardoor de module niet te plaatsen is in een 19 inch 1HE kast. (Er is tussen de ventilator en bovenzijde kast geen enkele ruimte over). Ventilatiesleuven aanbrengen boven de ventilator heeft geen nut, de ventilator raakt bovenzijde kast. Daarom is ...
