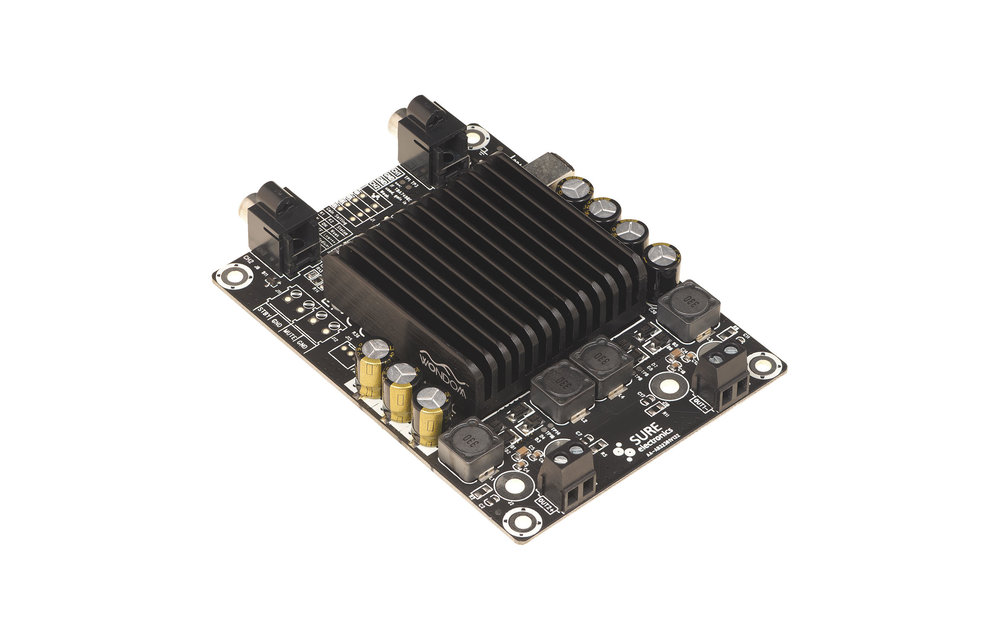

      Sure Electronics AA-AB32165 2x25W 6 Ohm TDA7492 Class-D Audio Amplifier Board

      € 24,75€ 29,95 9 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €28,45 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Choose this 2 x 25 watt amplifier board to power your next speaker project. A Texas Instrument's Class D TDA7492 amplifier chip is employed to produce high fidelity sound efficiently.



      Highlights

      • Pre-assembled, pre-tested
      • Superb sound quality
      • Perfect Class D architecture
      • Two channels—each up to 25W
      • Up to 90% efficiency
      • Does not require a heat sink for most applications
      • Line level analog audio input



      Product details

      Sure Electronics AA-AB32165 2x25W 6 Ohm TDA7492 Class-D Audio Amplifier Board

      Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.



      This Class D dual channel amplifier board employs a Tripath-style Texas Instruments TDA7492 chip. Each channel is rated at 25W, delivered with state-of-the-art sound quality. The TDA7492's efficiency eliminates the need for an external heat sink when playing music under average listening conditions. Integration of high-quality capacitors ensures hi-fi amplification output. Requires a DC power supply ranging from 14 to 19 VDC (available separately) and can be used to drive any 4 ohm or 8 ohm passive speakers. Gain control is accomplished by setting two DIP switches, and there are four gain modes available: 24.6 to 26.6 dB, 30.6 to 32.6 dB, 34.1 to 36.1 dB, and 36.6 to 38.6 dB.

      Specifications

      Article number
      AA-AB32165
      Rated power output

      2 x 20 watts at 8 ohms
      2 x 25 watts at 6 ohms

      Minimum load
      4 ohms
      Efficiency
      87 - 93 %
      Signal-to-noise ratio (SNR)
      91 dB
      Distortion
      0.05 % THD at 1 kHz, 6 ohms, 1 watt
      Frequency response
      20 - 20,000 Hz
      Gain

      20.6 - 22.6 dB
      26.6 - 28.6 dB
      30.1 - 32.1 dB
      32.6 - 34.6 dB

      Input sensitivity

      1.5 V at 22 dB
      0.7 V at 28 dB
      0.5 V at 31 dB
      0.4 V at 34 dB

      Input impedance
      60k ohms
      Amplifier Classification
      Class D
      Circuit Topology
      STMicroelectronics TDA7492
      Speaker output channels
      2
      Input connection type

      RCA
      PCB solder connection

      Speaker output connection type

      Screw terminal
      PCB solder connection

      DSP function
      -
      Bluetooth
      -
      EQ Adjustment
      -
      Power Requirements
      14 - 19 VDC
      Power inlet connector

      Screw terminal
      PCB solder connection

      Current limit
      3.5 A
      Under/over voltage protection
      -
      Dimensions (L x W x H)
      122 x 91 x 24 mm
      Mounting hole spacing
      112 x 81 mm
      Mounting hole diameter
      3.8 mm

      Show more

      Reviews

      5 from 5Based on 3 reviews
      Review this product
      5 of 5
      This a robust and good performing amp. Sound Imports had the best price! Also I’m based in the UK the items arrived quickly.
      By David G. on 9 February 2021
      5 of 5
      Nice amp and compact. No overheating. No terminal for the power cable, only using the dc connector. So the image is not correct. I had to get a dc plug, to be able to use the amp.
      By Rikard E. on 2 May 2020
