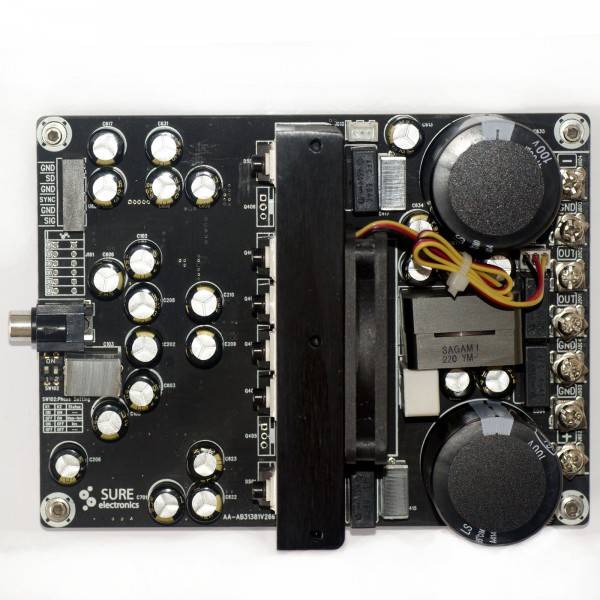

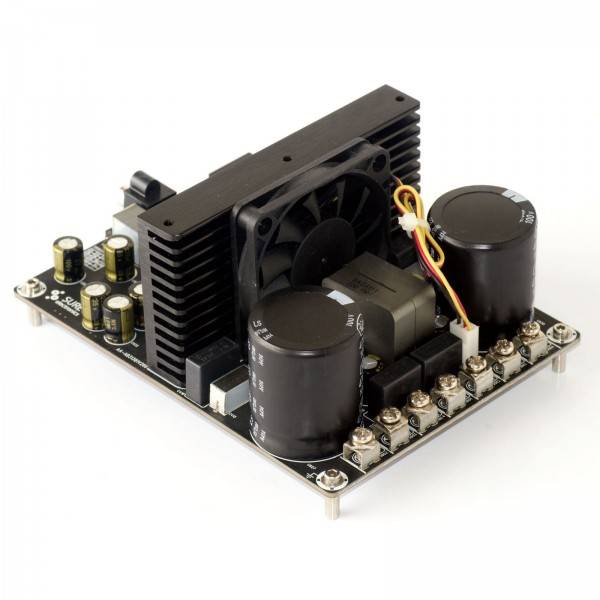

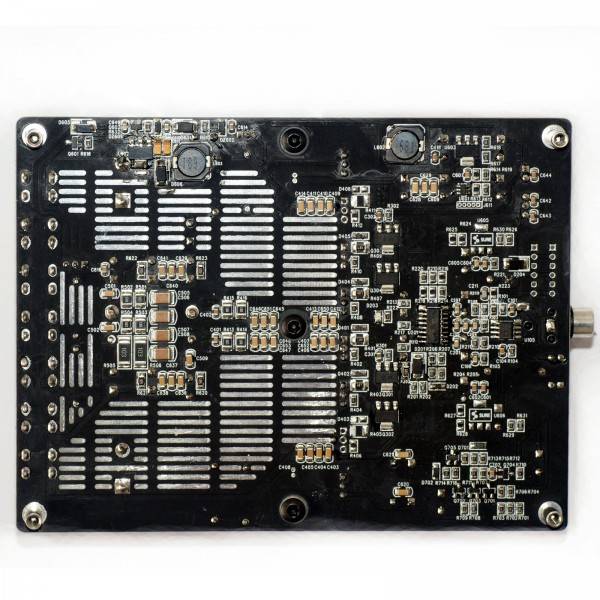

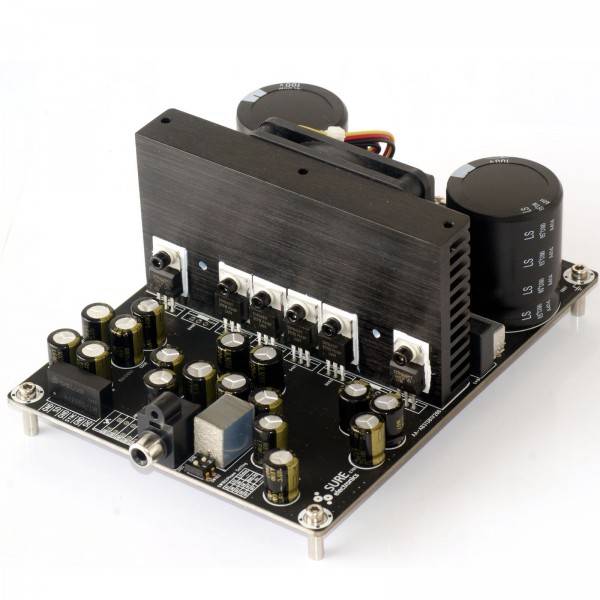

      Sure Electronics AA-AB31411 1x1500W 2 Ohm IRS2092 Class D Audio Amplifier Board

      € 156,16€ 188,95 3 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 179,50 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      1,500 watts of clean monoblock power are available with this amplifier board. It integrates high performance IRS2092 and IR MOSFET IRFB4227 supporting single channel audio amplification.



      Highlights

      • Self-oscillating half-bridge topology with optional clock synchronization
      • Capable of 1500W RMS output @ 2 Ohm continuously
      • Requires 55 to 75 VDC power supply



      Product details

      Sure Electronics AA-AB31411 1x1500W Class D Audio Amplifier Board – IRS2092



      Two 55 to 75 VDC high-voltage power supplies are required for operation; each power supply dedicates its full output potential to a single rail for maximum output. This results in increased high-fidelity output, high dynamic range, low distortion, and a wide 20 to 22,000 Hz frequency response.



      This amplifier board also includes a myriad of protection features: over current, over/under voltage, DC output, and temperature protection circuits are built-in. It can be bridged with another amplifier board for higher output, around 3000W RMS @ 4 Ohm, without external circuitry. Suitable for high-end / high power sound systems like disco, active speakers, large subwoofers for PA (Professional Audio), high power studio monitors and high power hi-end hi-fi systems.



      Connection:



      Typical Performance Graphs:

      Frequency response:



      Noise Floor:



      THD+N VS Frequency:



      Thermal Image:



      All parameters were tested with Rohde & Schwarz UPV audio analyzer and AP AUX0025 filter with AES17 filter enabled.

      Specifications

      Article number
      AA-AB31411
      Rated power output
      1 x 1500 watts at 2 ohms
      Minimum load
      1 ohms
      Efficiency
      95 %
      Signal-to-noise ratio (SNR)
      98 dB
      Distortion

      0.016 % THD at 2 ohms, 1 watts, 1 kHz
      0.033 % THD at 2 ohms, 10 watts, 1 kHz

      Frequency response
      20 - 20,000 Hz
      Gain
      31 dB
      Input sensitivity
      1.88 V
      Input impedance
      3.3k ohms
      Amplifier Classification
      Class D
      Circuit Topology
      Infineon Technologies IRS2092
      Speaker output channels
      1
      Input connection type
      RCA
      Speaker output connection type
      Screw terminals
      DSP function
      -
      Bluetooth
      -
      EQ Adjustment
      -
      Power Requirements
      2 x 55 - 75 VDC
      Power inlet connector
      Screw terminals
      Current limit
      21.9 A
      Under/over voltage protection
      Dimensions (L x W x H)
      -
      Mounting hole spacing
      -
      Mounting hole diameter
      -
