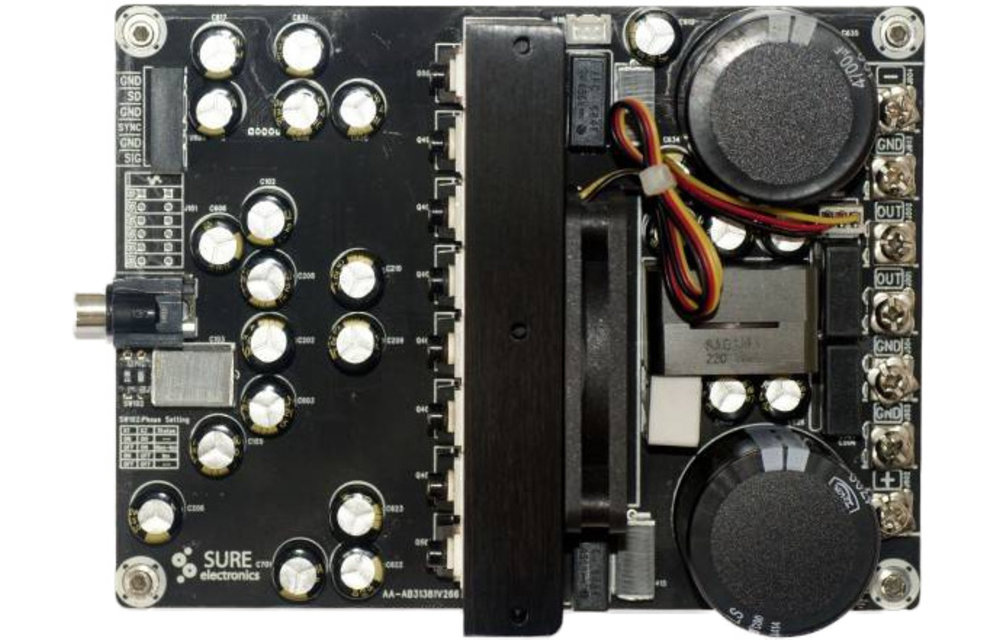

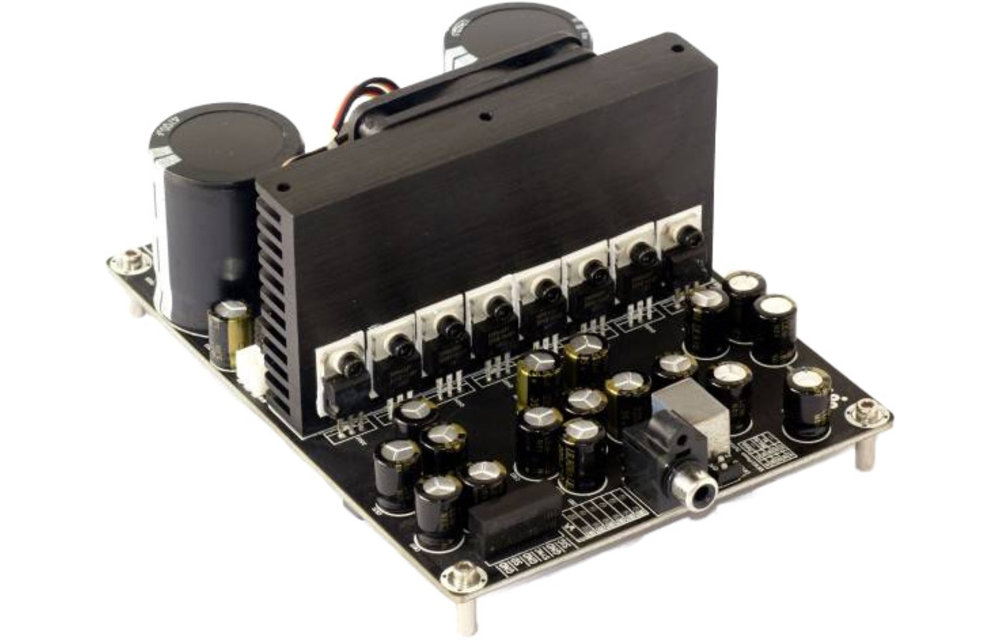

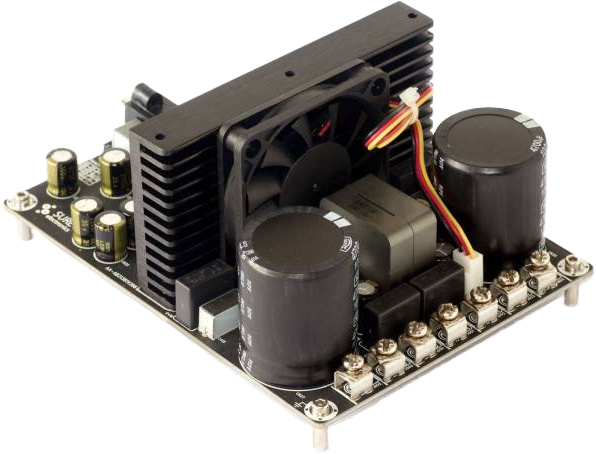

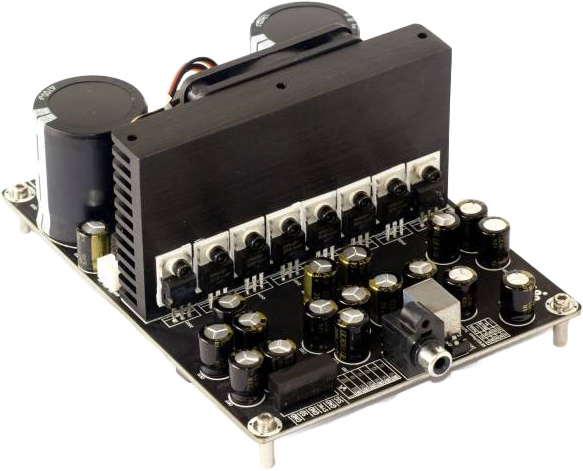

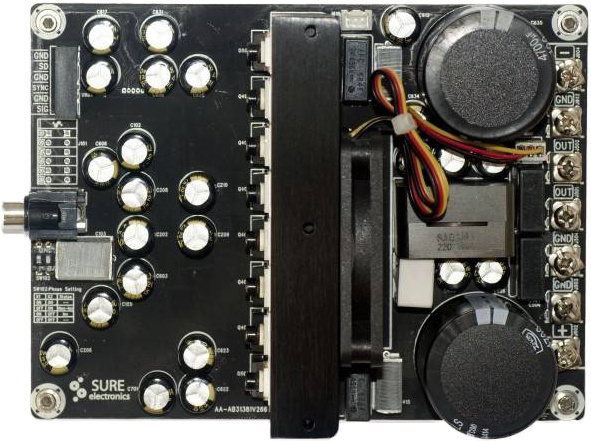

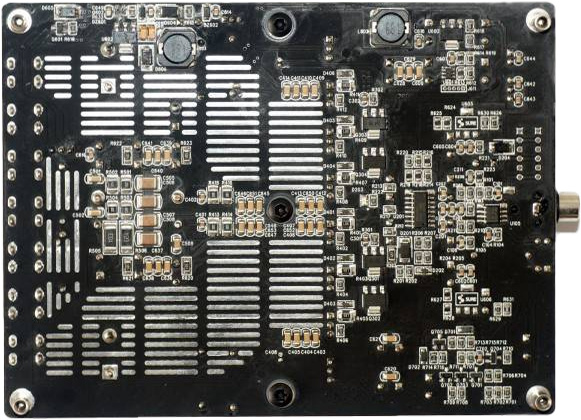

Sure Electronics AA-AB31381 1x2000W 2 Ohm IRS2092 Class D Audio Amplifier

Name: Sure Electronics AA-AB31381 1x2000W 2 Ohm IRS2092 Class D Audio Amplifier
Brand: Sure Electronics
SKU: AA-AB31381
Price: 209.95 EUR
Availability: InStock

0 reviews

Brand: Sure Electronics

Show all Amplifier modules

Compare

1 x 2000 W

€ 173,51€ 209,95 2 In stock

24h express shipping available
Ordered now, shipped on Monday
In-house techniscal support
45 days worry-free returns

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

2,000 watts of clean monoblock power are available with this amplifier board. It integrates high performance IRS2092 and 200V Single N-Channel HEXFET Power MOSFET IRFB4227 supporting single channel audio amplification by using one channel half bridge topology.

Highlights

Self-oscillating half-bridge topology with optional clock synchronization
Capable of 2000W RMS output @ 2 Ohm continuously
Requires 55 to 85 VDC power supply

Product details

Sure Electronics AA-AB31381 1x2000W Class D Audio Amplifier Board – IRS2092

2,000 watts of clean monoblock power are available with this amplifier board. It integrates high performance IRS2092 and 200V Single N-Channel HEXFET Power MOSFET IRFB4227 supporting single channel audio amplification by using one channel half bridge topology.

Two 55 to 85 VDC high-voltage power supplies are required for operation; each power supply dedicates its full output potential to a single rail for maximum output. This results in increased high-fidelity output, high dynamic range, low distortion, and a wide 20 to 22,000 Hz frequency response.

Connection:

Typical Performance Graphs:

Frequency response:

Noise Floor:

THD+N VS Frequency:

Thermal Image:

All parameters were tested with Rohde & Schwarz UPV audio analyzer and AP AUX0025 filter with AES17 filter enabled.

Specifications

Article number: AA-AB31381
Rated power output: 1 x 2000 watts at 2 ohms
Minimum load: 1 ohms
Efficiency: 95 %
Signal-to-noise ratio (SNR): 99 dB
Distortion: 0.011 % at 2 ohms, 1 watts, 1 kHz
0.023 % at 2 ohms, 10 watts, 1 kHz
Frequency response: 20 - 20,000 Hz
Gain: 31 dB
Input sensitivity: 2.1 V
Input impedance: 3.3k ohms
Amplifier Classification: Class D
Circuit Topology: Infineon Technologies IRS2092
Speaker output channels: 1
Input connection type: RCA
Speaker output connection type: Screw terminals
DSP function: -
Bluetooth: -
EQ Adjustment: -
Power Requirements: 2 x 55 - 85 VDC
Power inlet connector: Screw terminals
Current limit: 25.1 A
Under/over voltage protection
Dimensions (L x W x H): 152.40 x 114.3 x 63.5 mm
Mounting hole spacing: -
Mounting hole diameter: 3.60 mm
