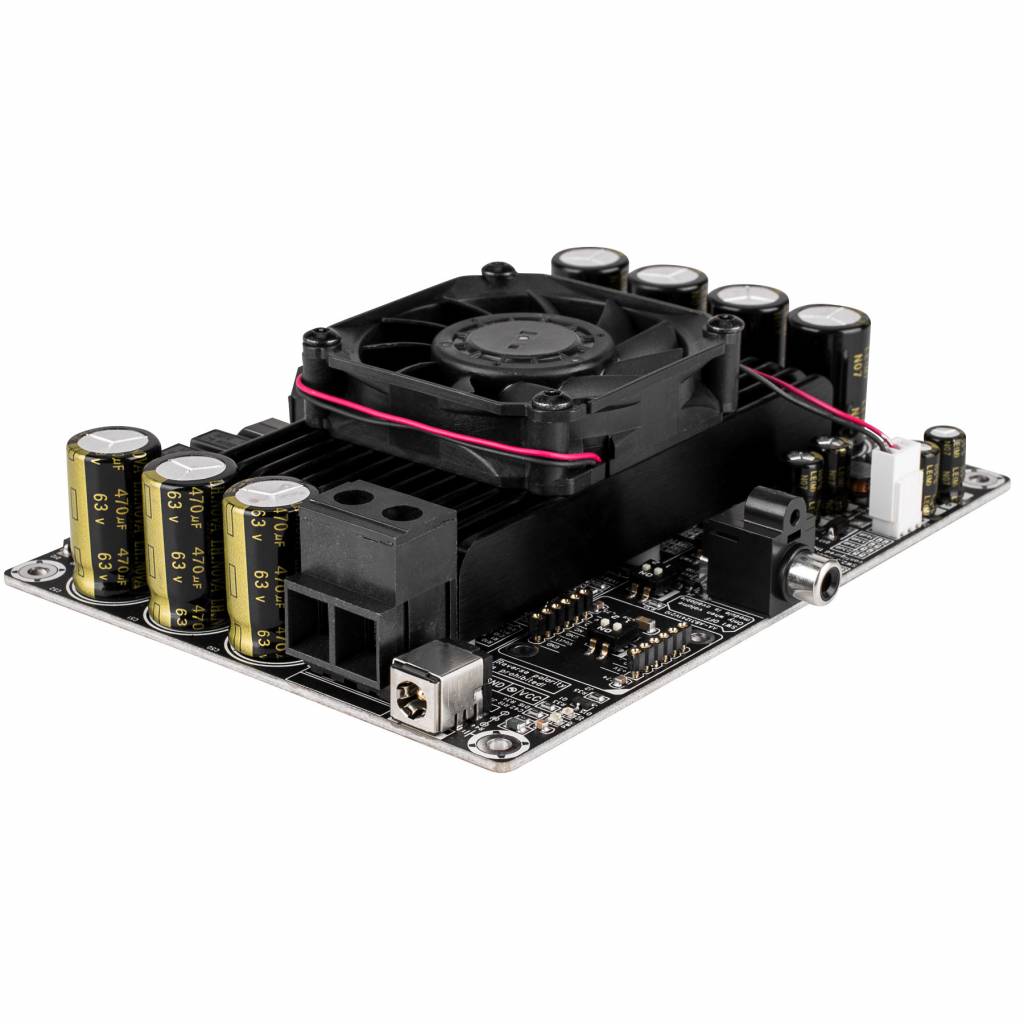

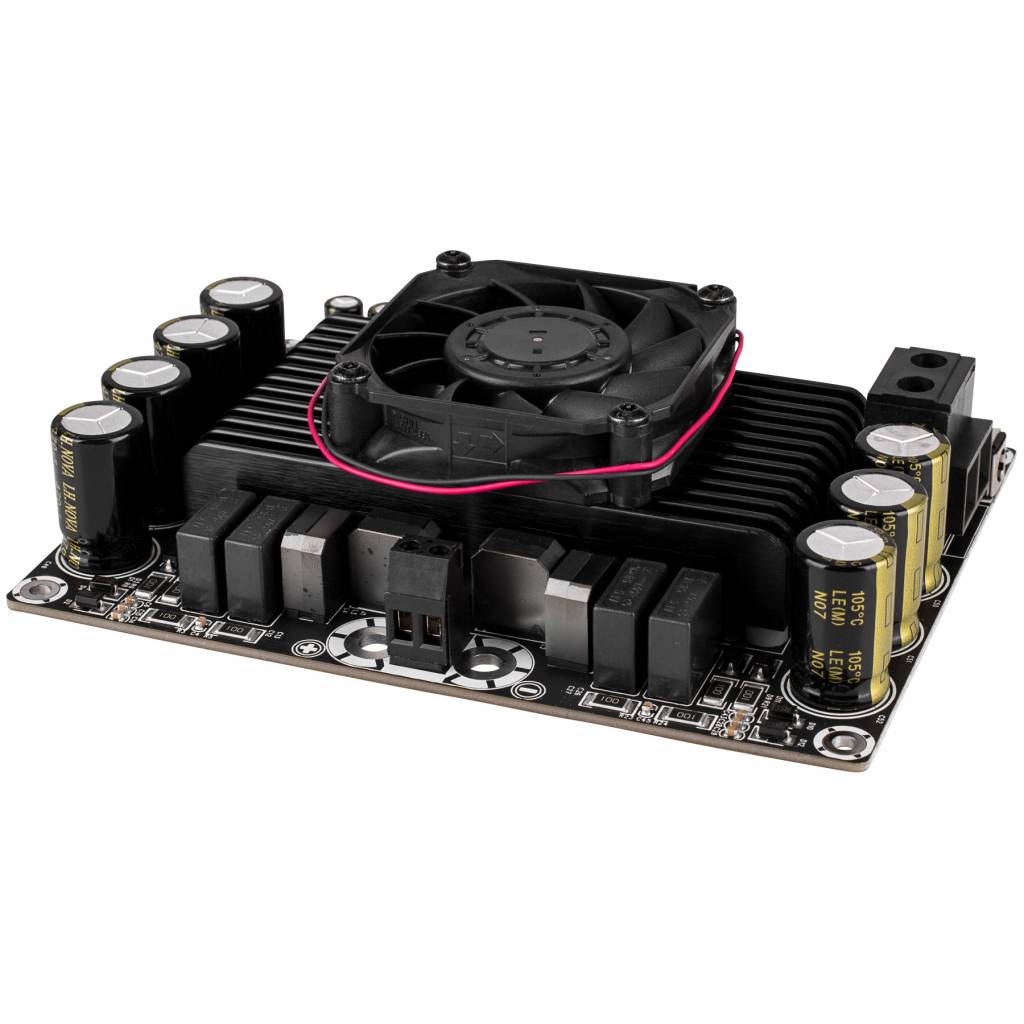

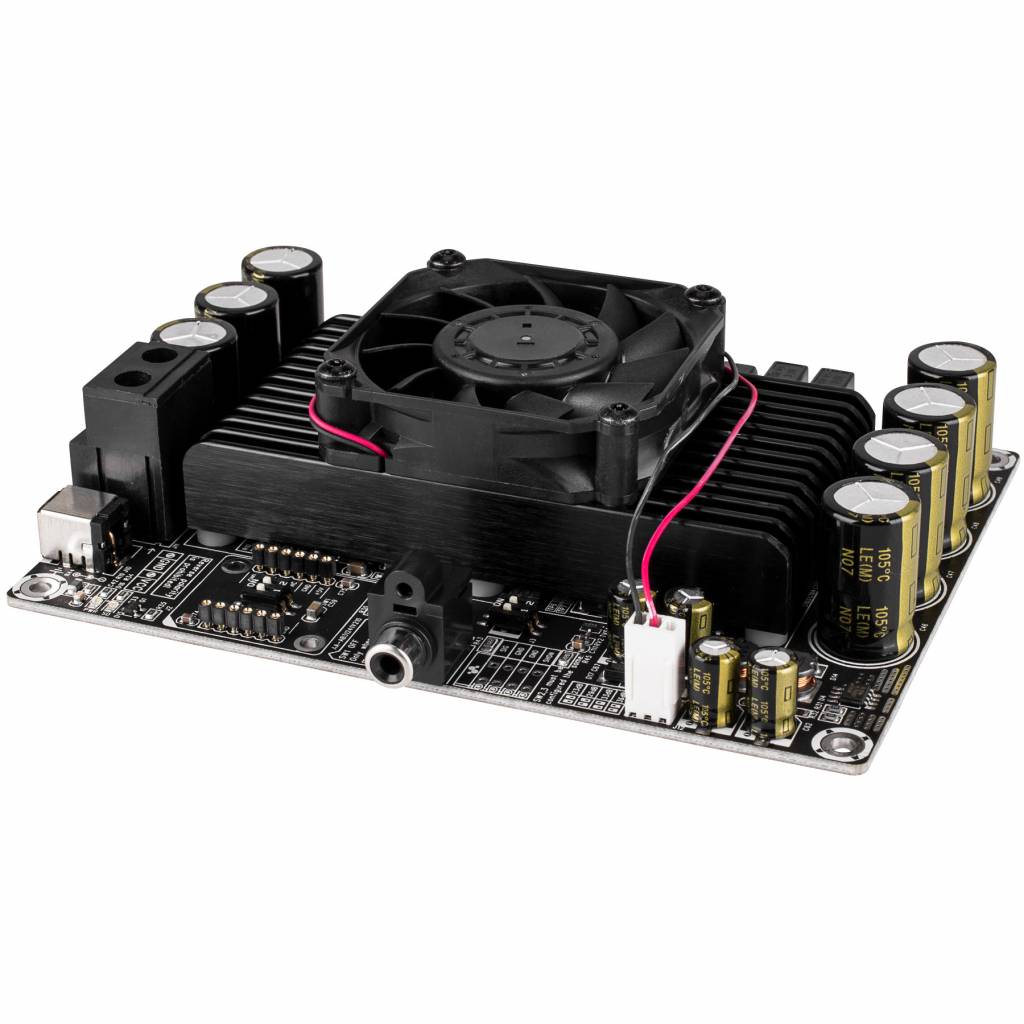

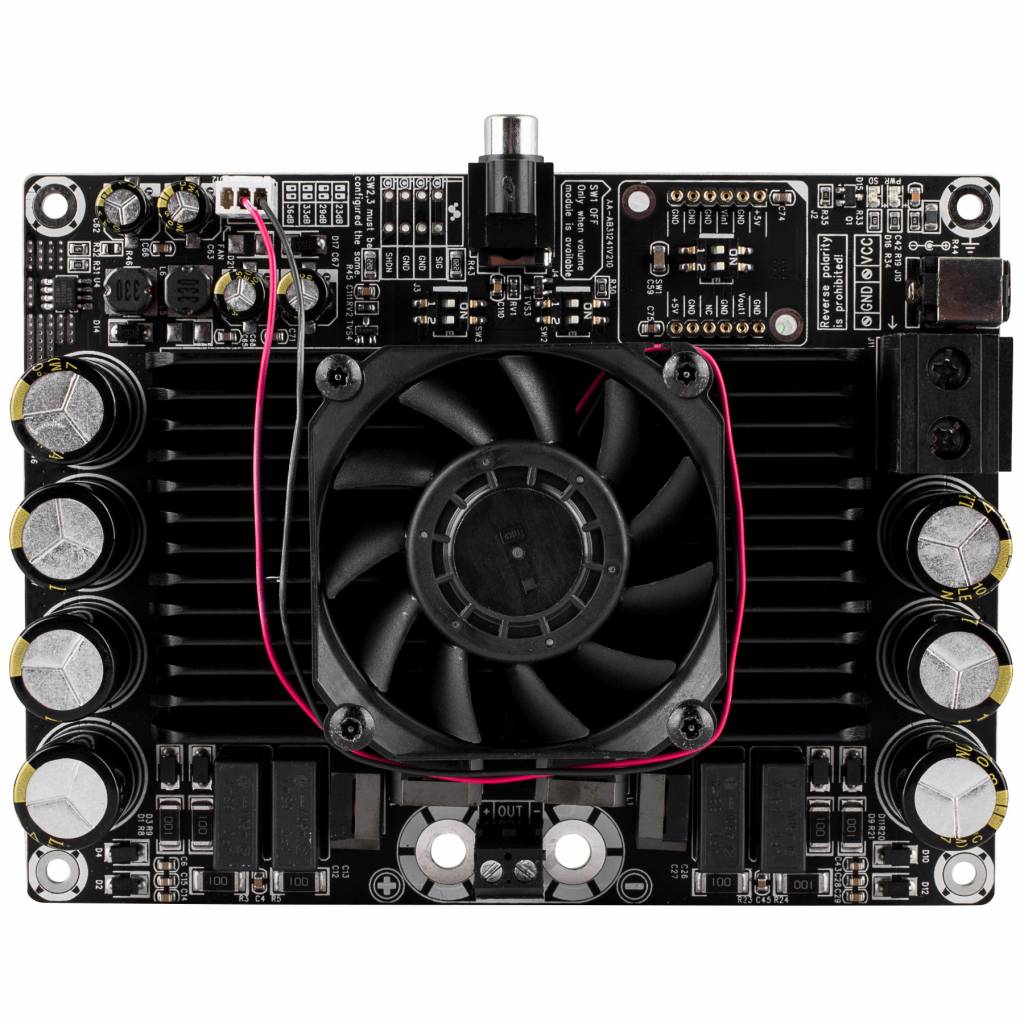

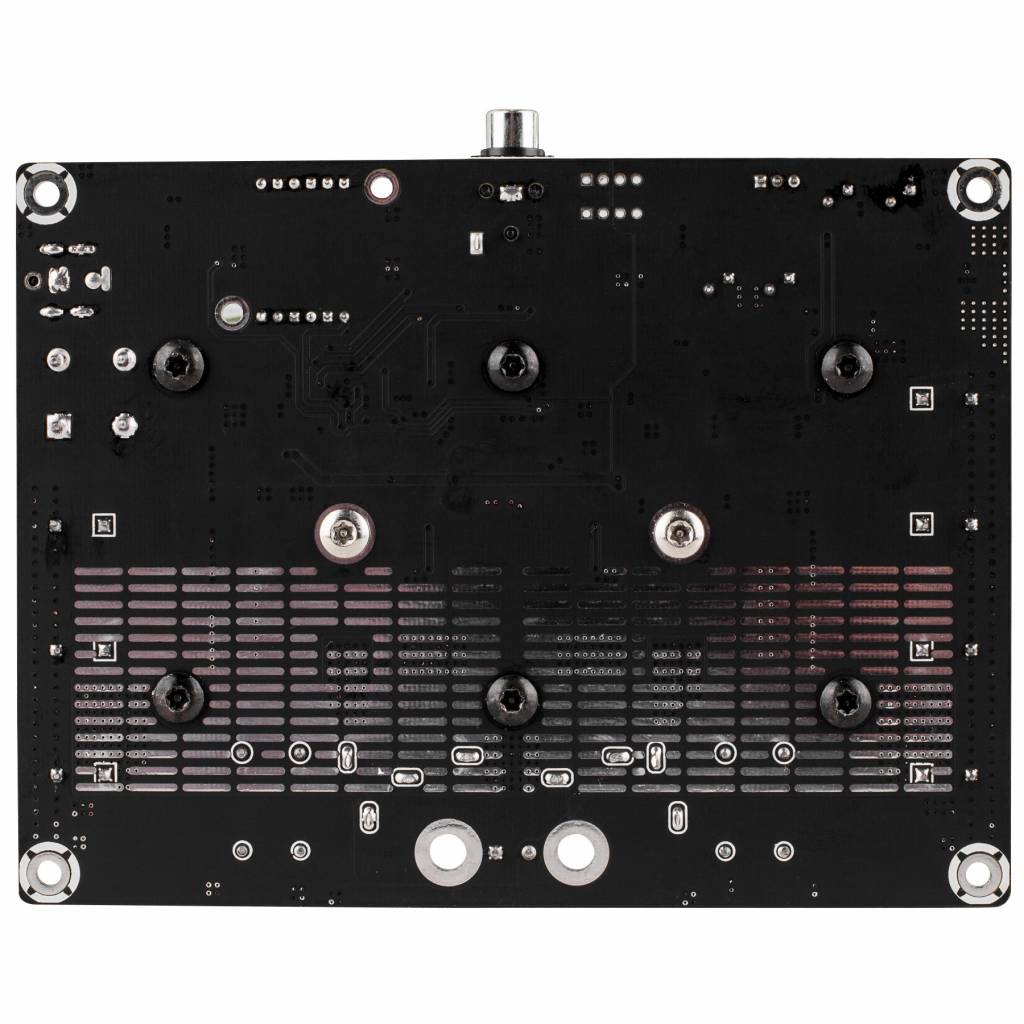

        AA-AB31241 1x600W TAS5630 Class-D Amplifier Board

        AA-AB31241 1x600W TAS5630 Class-D Amplifier Board

        €79,95

        Sure Electronics AA-AB31241 1x600W TAS5630 Class-D Amplifier Board

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 66,07€ 79,95 10+ In stock
        • -5% Purchase 4 for only € 75,95 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Amplifiers this powerful used to take up as much room and generate as much heat as a space heater! Up to 600W of pure Class-D power is on tap and ready for you to use this amplifier board with the meanest subwoofer you can find.



        Highlights

        • Perfect for use as a subwoofer amplifier
        • Up to 600W of Class-D power
        • 1.5-ohm stable
        • Over-engineered protection circuits
        • Requires 25 to 52 VDC power supply



        Product details

        Sure Electronics AA-AB31241 1x600W TAS5630 Class-D Amplifier Board

        Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.



        This mono-block amplifier board means serious business! A Class-D Texas Instruments TAS5630 with PurePath™ HD enabled integrated feedback develops up to 600W into a single channel with complete control and accuracy. For do-it-yourselfers looking for a subwoofer amplifier—look no further!



        A robust heatsink, two-stage cooling fan, as well as protection circuits to protect against over/under voltage, over current, short circuit, and over temperature conditions are built-in for years of enjoyment. Four fixed gain settings allow you to match the amplifier to your source, and use your source as the volume control. A 25 to 52 VDC power supply is required.



        Note: The minimum recommended wire gauge to be used for power is 16 AWG.



        Features:
        • Class-D Texas Instruments TAS5630 with PurePath™ HD enabled integrated feedback
        • Robust heatsink with two-stage cooling fan
        • Pre-drilled mounting holes
        • Over/under voltage, over current, short circuit, and over temperature protection circuits
        • Click and pop noise reduction
        • Phoenix-type speaker terminals
        • One line-level RCA inputs
        • Large screw-down power input terminals



        Connection:

         width=



        Typical Performance Graphs:

        Frequency response:

         width=



        Noise Floor:

         width=

         THD+N VS Frequency:

          width=



        Thermal Image:

         width=

        All parameters were tested with Rohde & Schwarz UPV audio analyzer and AP AUX0025 filter with AES17 filter enabled.

        Show more

        Specifications

        Article number
        AA-AB31241
        Rated power output
        1 x 600 watts at 2 ohms
        Minimum load
        1.5 ohms
        Efficiency
        90 - 95 %
        Signal-to-noise ratio (SNR)
        94 dB
        Distortion

        0.056 % THD at 2 ohms, 10 watts, 1 kHz
        0.103 % THD at 2 ohms, 50 watts, 1 kHz

        Frequency response
        20 - 20,000 Hz
        Gain
        23, 29, 33, 35 dB
        Input sensitivity

        3.5 V at 23 dB
        1.7 V at 29 dB
        1.1 V at 33 dB
        0.9 V at 35 dB

        Input impedance
        13 - 16.7k ohms
        Amplifier Classification
        Class D
        Circuit Topology
        Texas Instruments TAS5630 (PBTL Architecture)
        Speaker output channels
        1
        Input connection type
        RCA
        Speaker output connection type
        Screw terminals
        DSP function
        -
        Bluetooth
        -
        EQ Adjustment
        -
        Power Requirements
        25 - 52 VDC
        Power inlet connector
        Screw terminals
        Current limit
        13.5 A
        Under/over voltage protection
        Dimensions (L x W x H)
        152.4 x 114.3 x 38.86 mm
        Mounting hole spacing
        -
        Mounting hole diameter
        3.60 mm

        Show more

        5 of 5
        This is a good amplifier for this price, but i think the ventilator of the amplifier is too loud.
        By Levente V. on 24 March 2020
        5 of 5
        Great. I have not tested to see how much of the 600 watts I am using but I am heavily eq'ing the low end with an Antimode :). The fan came on so it must be getting above 40 celcius. I have low bass extention in a 1.9 ft³ sealed box. My driver is Dayton Audio 12" reference HF 4. Sound imports pointed me in the right direction with this amp. Thank You!
        By Chris J. on 15 May 2019
