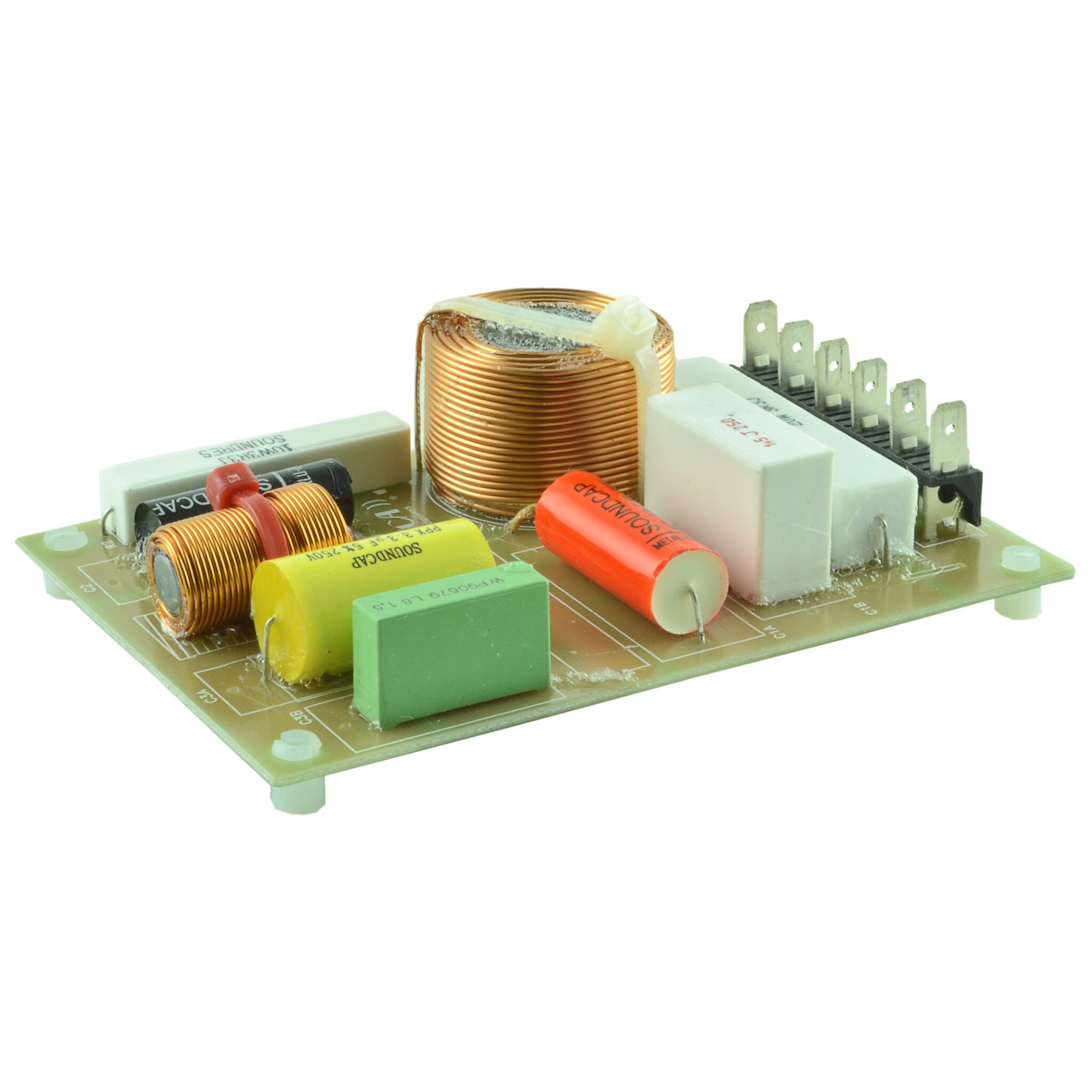

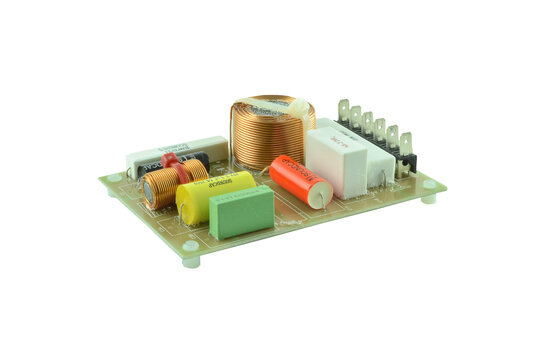

The SICA ZC04102 2-Way crossover is a dedicated passive crossover designed specifically for the 6.5 C 1.5 CP coaxial speaker, offering high-quality frequency separation and optimized sound performance. With its robust construction and precision filtering at 2.5 kHz, this assembled crossover ensures that both woofer and tweeter drivers receive the ideal signal, resulting in a balanced and clear audio output for a variety of speakers and home audio projects.

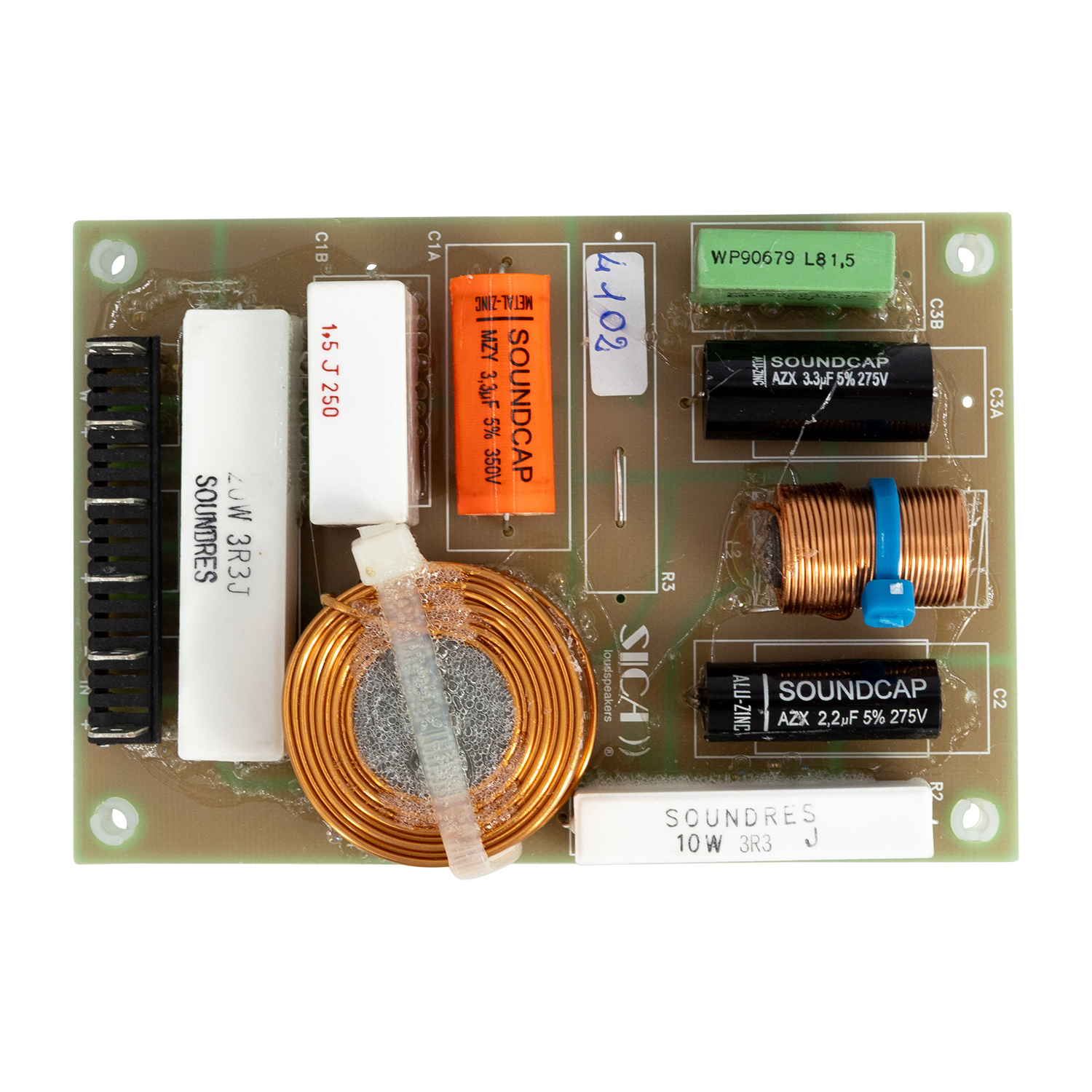

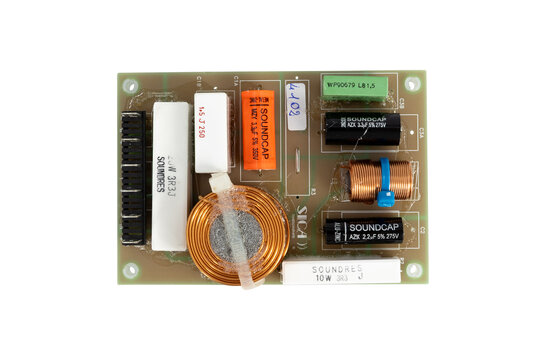

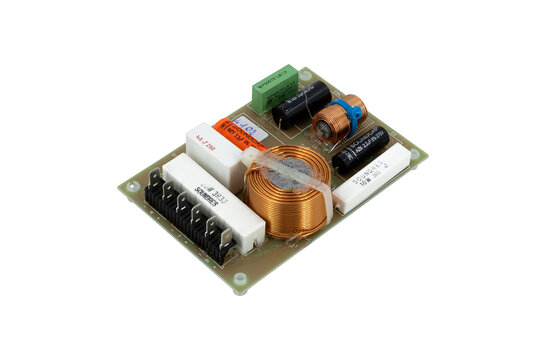

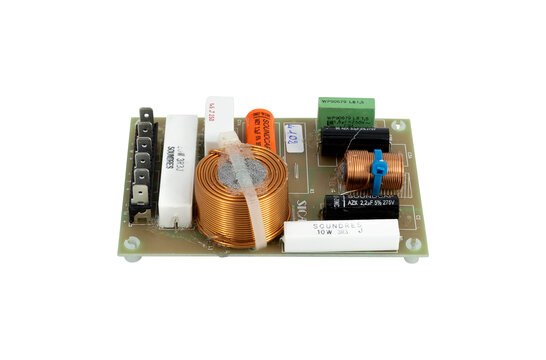

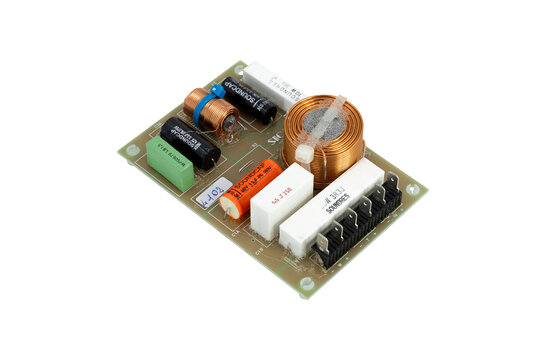

SICA ZC04102 2-Way crossover circuit

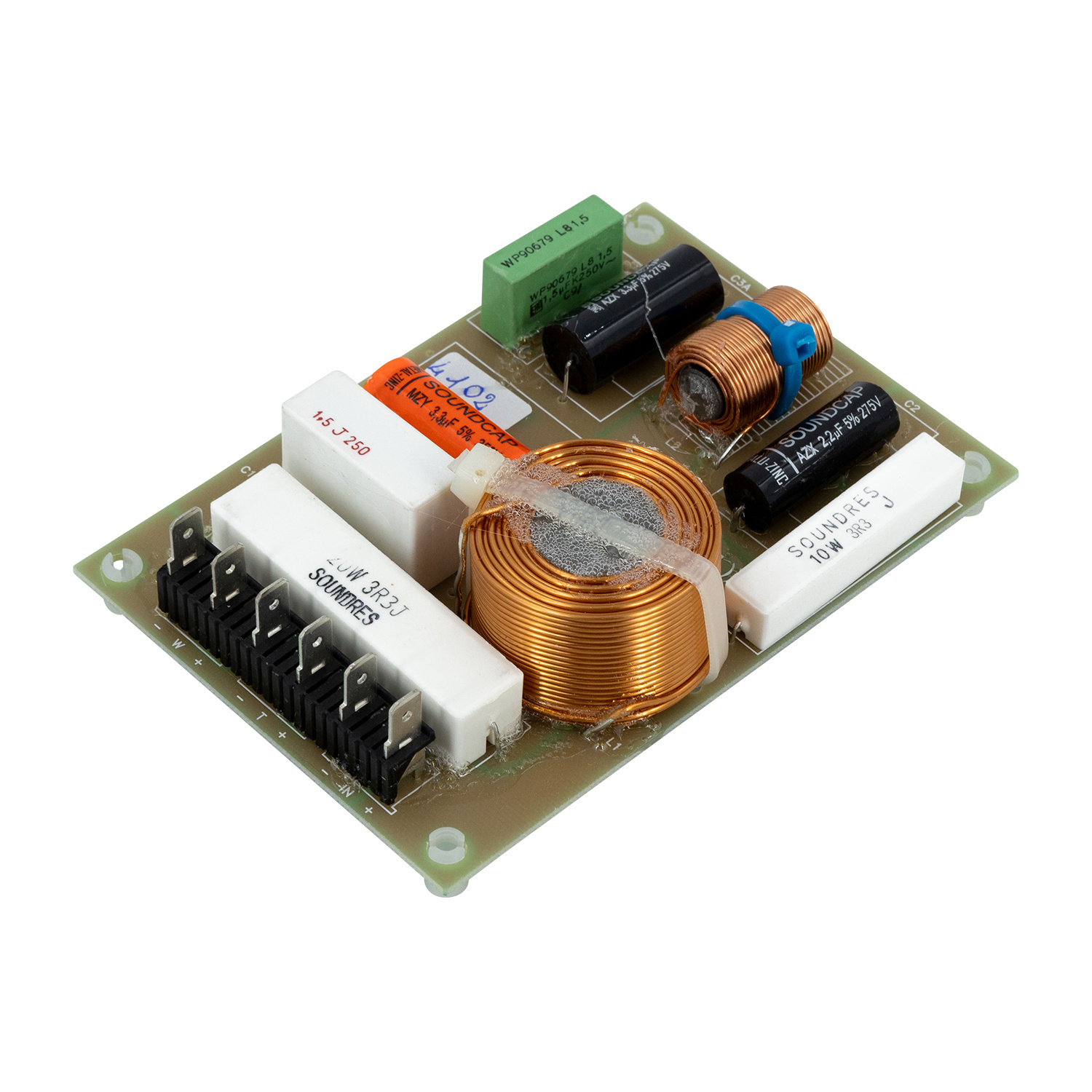

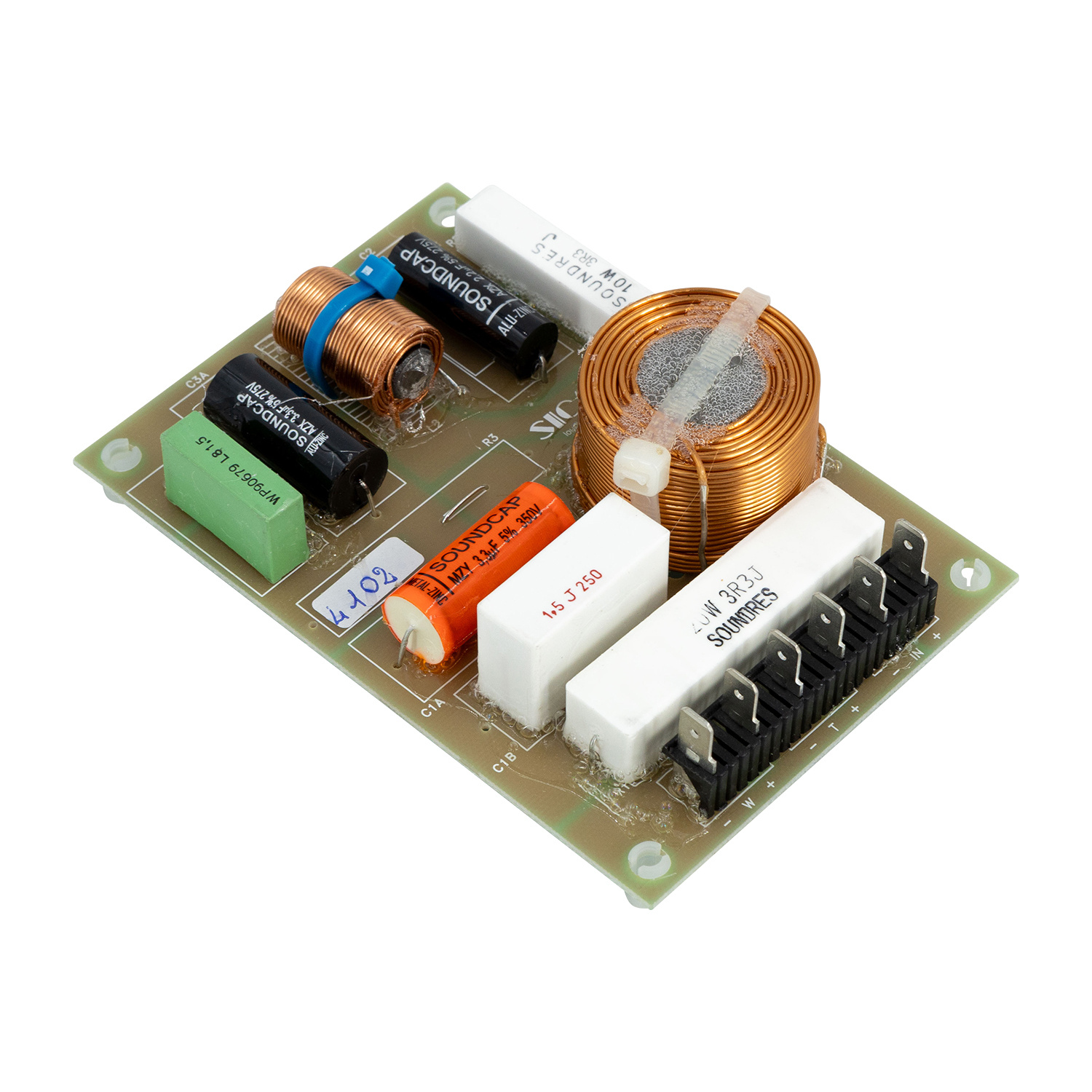

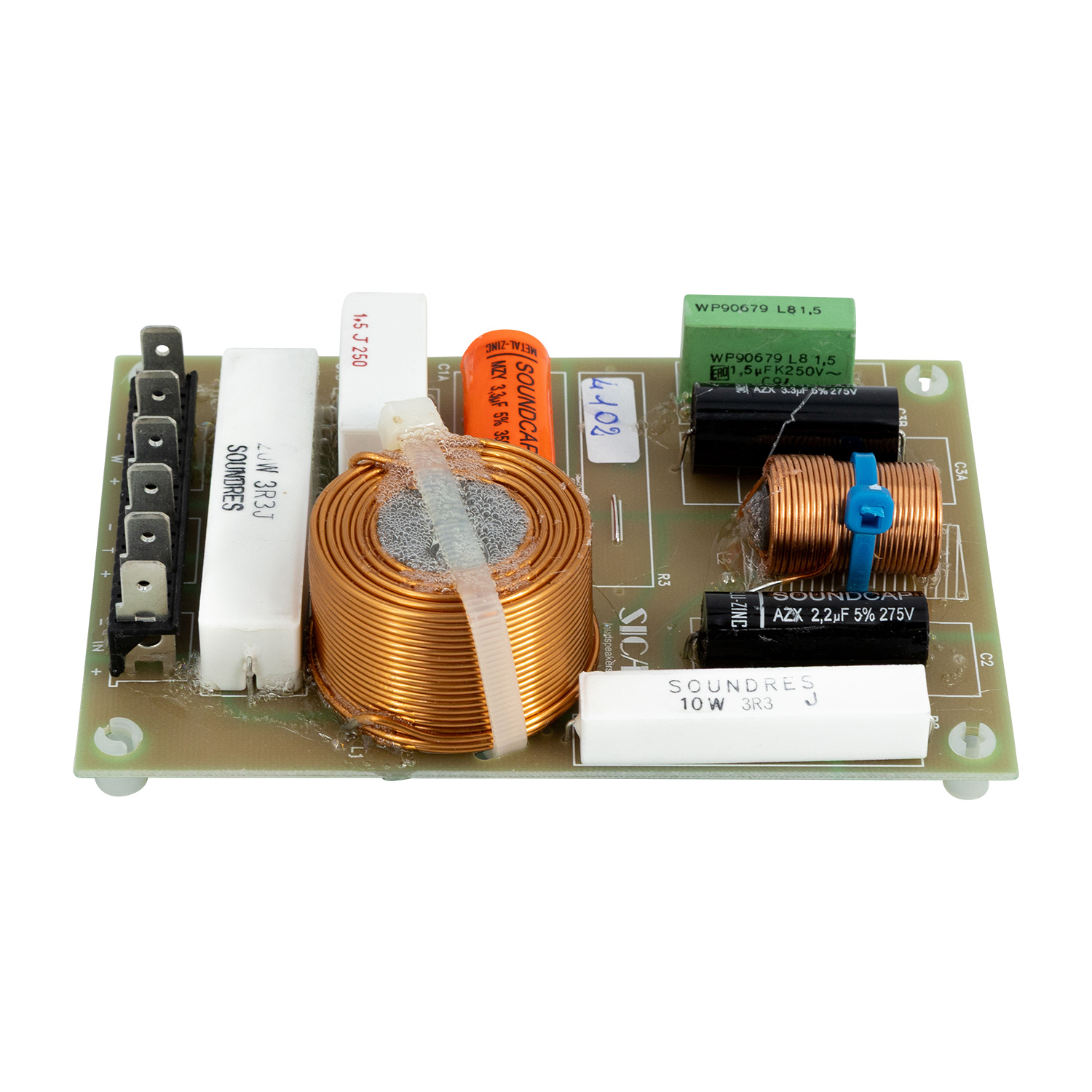

The SICA ZC04102 is crafted to deliver precise audio separation between the woofer and tweeter sections of your coaxial speaker system. Its carefully selected filter components, including inductors and capacitors, provide a steep high-pass slope of 18 dB/oct for the tweeter and a 12 dB/oct low-pass slope for the woofer, ensuring minimal overlap and distortion. The result is a clean, detailed soundstage that brings your music and audio content to life.

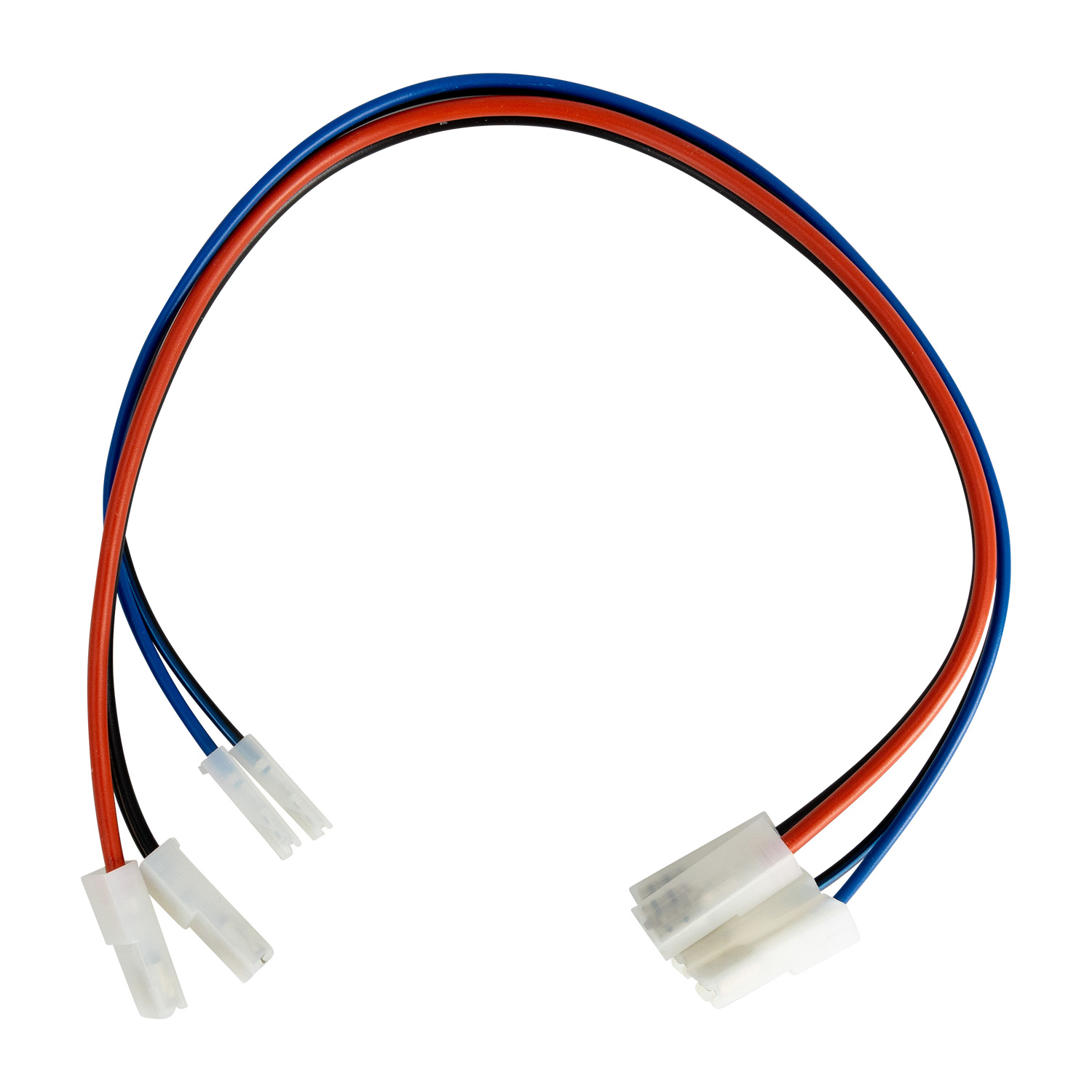

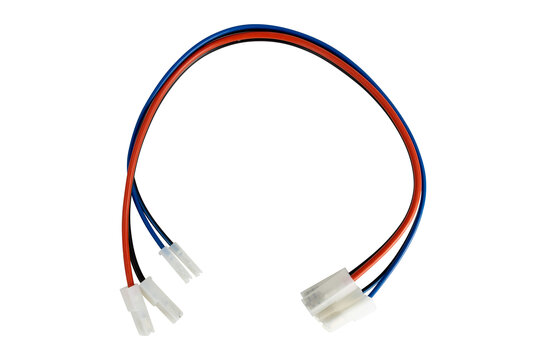

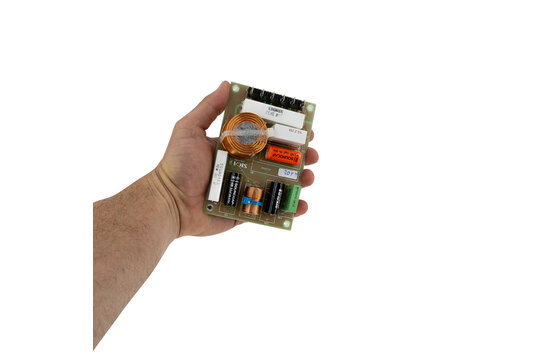

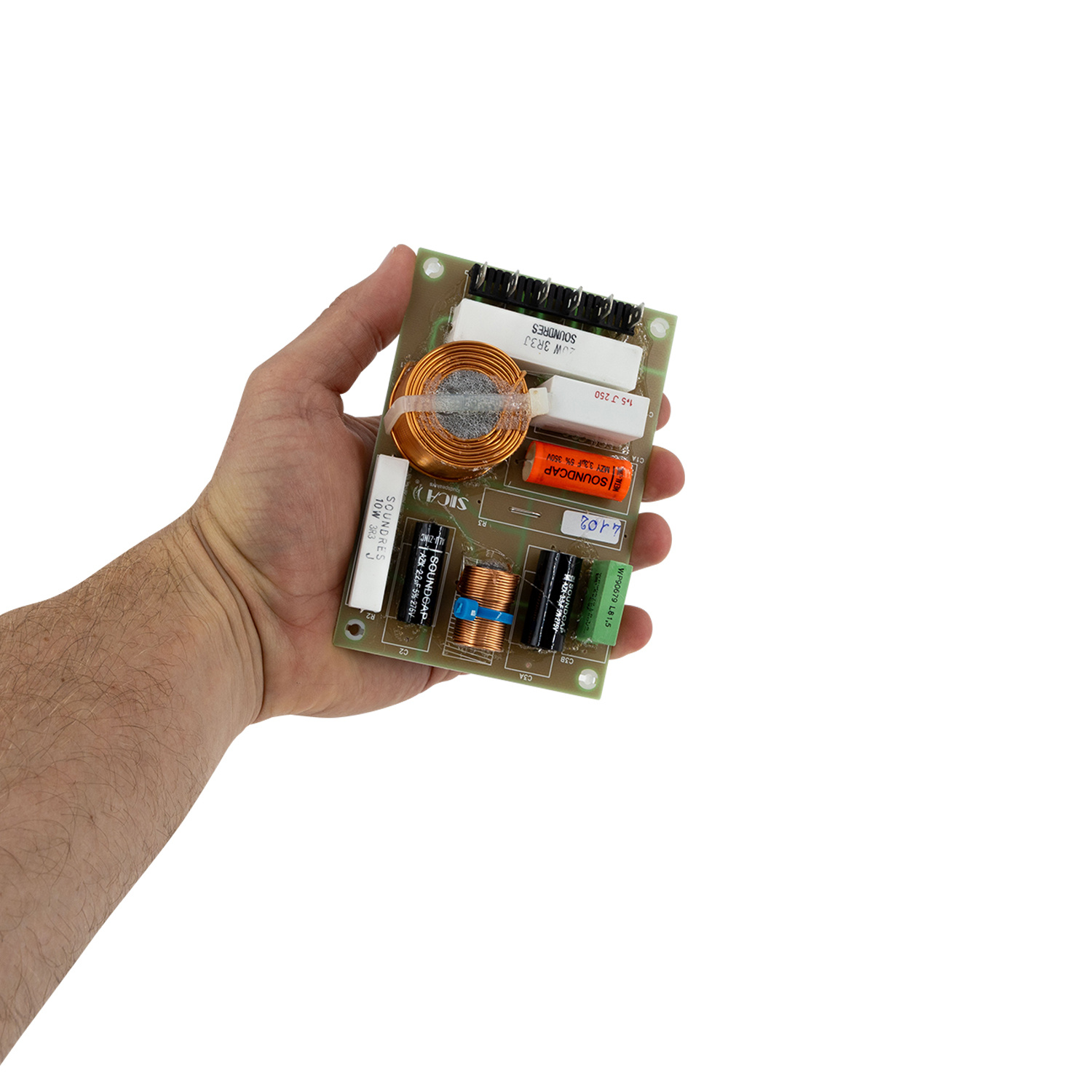

With a nominal impedance of 8 ohms and a compact overall dimension of 131 x 90 mm, this crossover is easy to integrate into a wide range of assembled crossovers projects. The included speaker connection cables and clearly marked connection points streamline the installation process, making it accessible for both enthusiasts and professional builders.
The crossover is ideal for use in vented box enclosures, with recommended cabinet specifications provided for optimal performance. It is designed to function perfectly with an internal volume of 17 liters and a tuning frequency of 50 Hz, utilizing two 46 mm diameter vents, each 150 mm in length. These suggestions help users achieve the best possible frequency response and acoustic results for their DIY or custom DIY speaker kit builds.
Whether you are building a new home audio system or upgrading an existing one, the SICA ZC04102 2-Way crossover offers reliable performance and compatibility for woofers and tweeters in coaxial speaker configurations. Its robust engineering and attention to detail make it a valuable addition for anyone seeking high-fidelity sound reproduction in their audio projects.
Show more
Show more
There are no reviews written yet about this product..
