        CD 78.26/245 - 8 Compression Driver

        SICA CD 78.26/245 - 8 Compression Driver

        €44,95

        4 In stock8 expected on 19-06-2026

        Add to cart

        SICA CD 78.26/245 - 8 Compression Driver

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SICA
        Show all Compression driver
        1" | 8 Ω
        CD 78.26/245 - 8 Compression Driver
        CD 78.26/245 - 8 Compression Driver
        CD 78.26/245 - 8 Compression Driver
        CD 78.26/245 - 8 Compression Driver
        € 37,15€ 44,95 4 In stock8 expected on 19-06-2026
        • -5% Purchase 4 for only € 42,70 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        CD 78.26/245 - 8 Compression Driver
        CD 78.26/245 - 8 Compression Driver
        CD 78.26/245 - 8 Compression Driver
        CD 78.26/245 - 8 Compression Driver

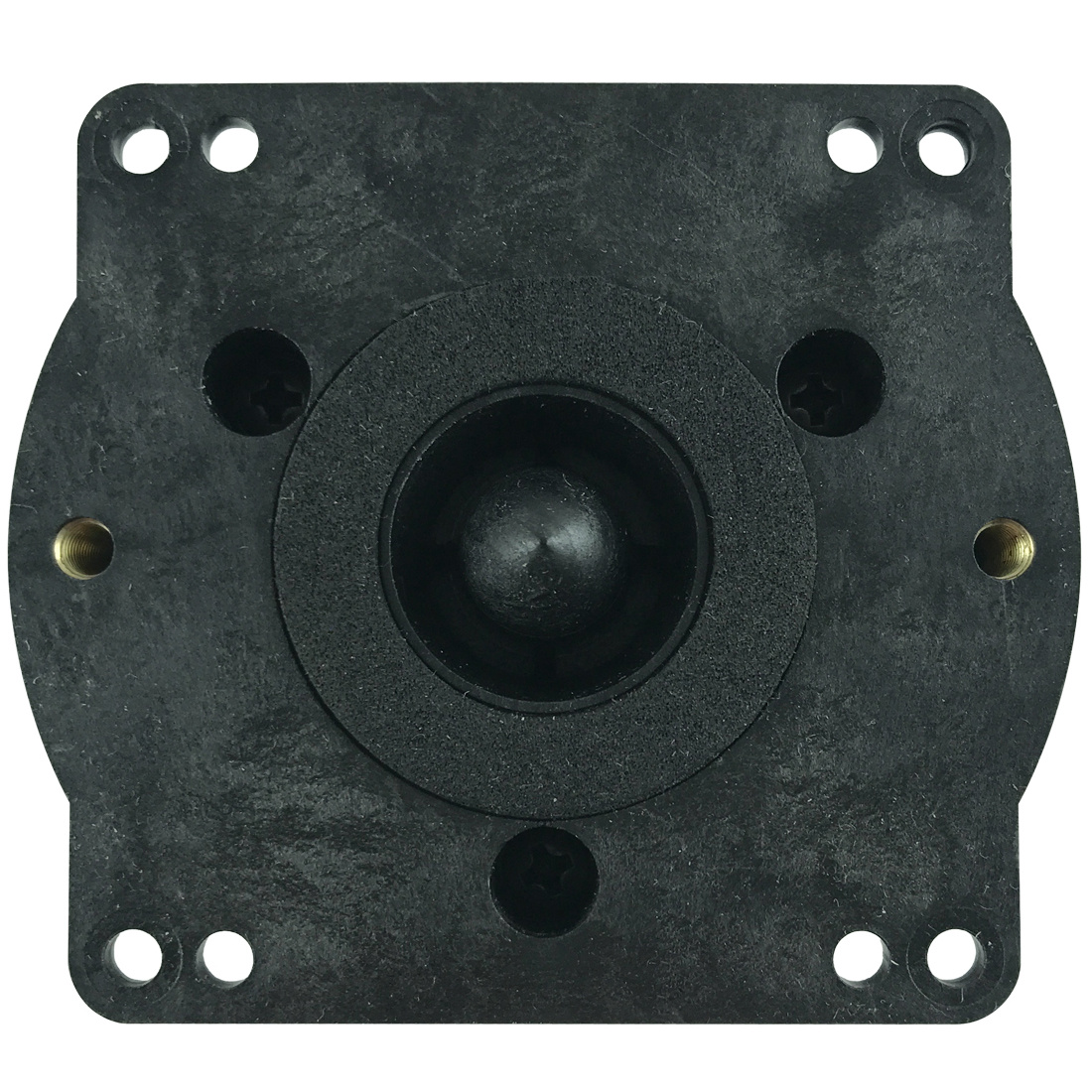

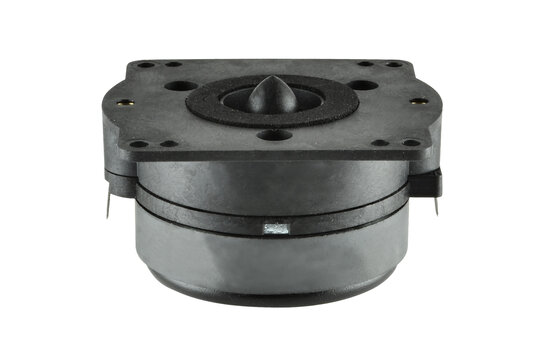

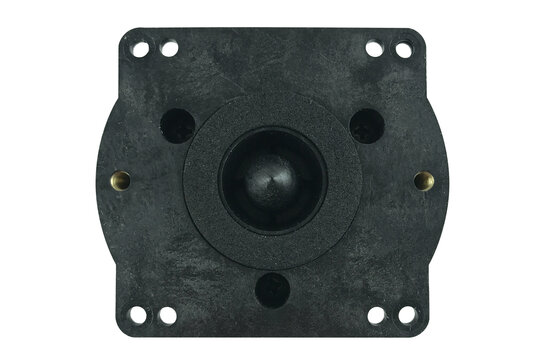

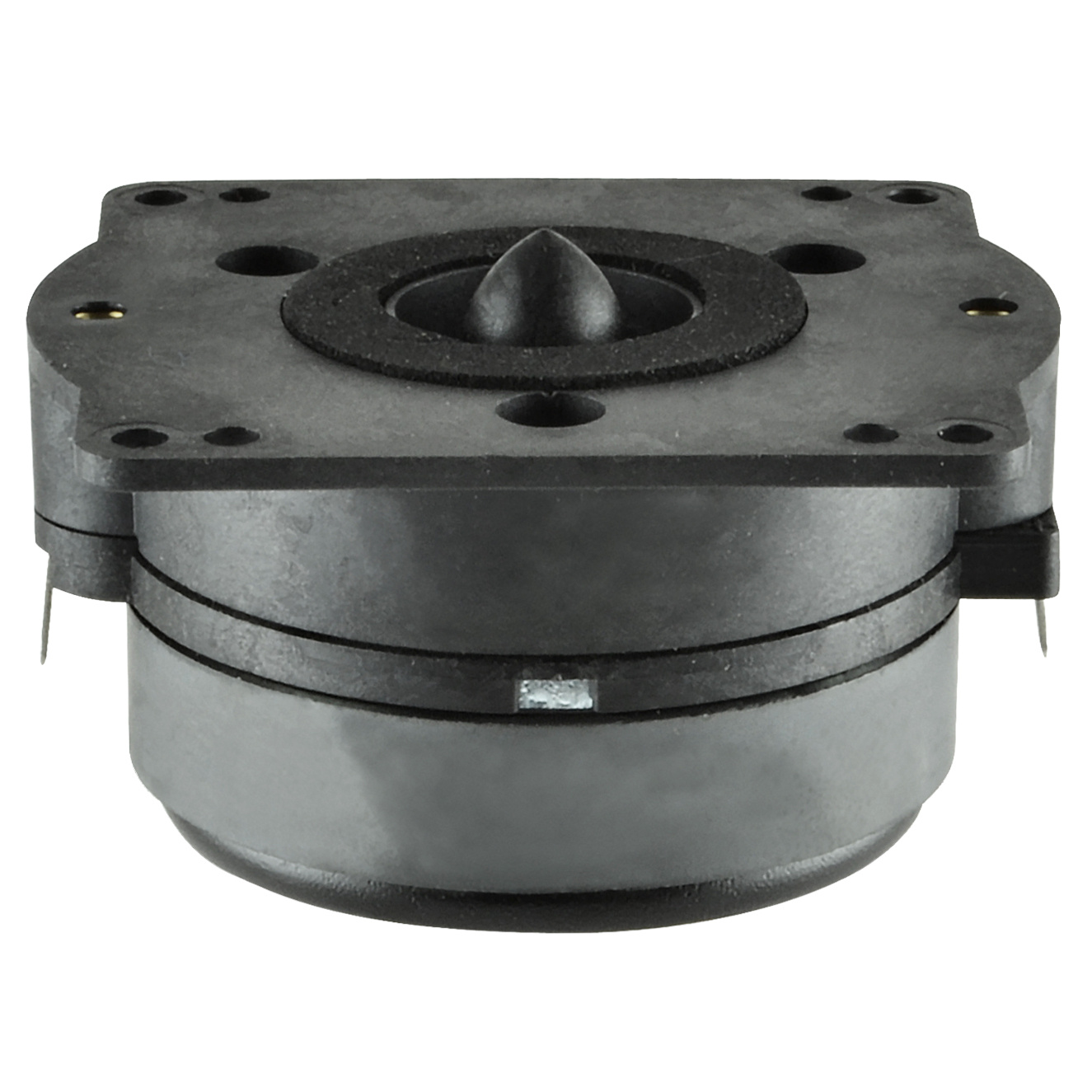

        Product description SICA CD 78.26/245 - 8 Compression Driver

        The SICA CD 78.26/245 - 8 Compression Driver is a compact yet powerful 1-inch compression driver designed for high-performance audio applications. With its 25 mm voice coil, advanced ferrite magnet circuit, and tri-acetate diaphragm, this driver delivers impressive sensitivity and reliability within a small footprint. It is ideal for use in professional and home audio speakers, as well as custom tweeter designs and other precision sound reinforcement systems.



        Highlights of the SICA CD 78.26/245 - 8

        • 1-inch voice coil with Kapton former for excellent thermal stability and power handling
        • Tri-acetate diaphragm ensures clear, natural high-frequency reproduction
        • Ferrite magnet circuit provides strong magnetic flux and efficient output
        • High sensitivity of 105.5 dB for impactful sound with minimal input power



        Product details SICA CD 78.26/245 - 8

        SICA CD 78.26/245 - 8 1" Compression Driver 8 Ohm



        This compression driver features a robust design with a 25 mm voice coil wound on a Kapton former, providing both durability and efficient cooling for high-output scenarios. The tri-acetate diaphragm further enhances sound clarity, enabling the driver to reproduce crisp and articulate high frequencies across a wide range. With a 78 mm nominal diameter and compact mounting dimensions, it easily fits into various enclosure types and professional audio horns.



        Performance is a key advantage of the CD 78.26/245 - 8. It offers a continuous program power handling of 32 W and a rated AES power of 16 W within the 2,500 to 20,000 Hz frequency range. The high sensitivity rating of 105.5 dB at 1 W/1 m ensures that even lower-powered amplifiers can drive this compression driver effectively, making it an excellent choice for both new builds and retrofit applications in audio components and home audio systems.



        Designed for precision, the ferrite magnet circuit produces a flux density of 1.56 T, contributing to the driver’s dynamic response and low distortion characteristics. The recommended minimum crossover frequency is 2.5 kHz, making it compatible with a wide variety of crossover networks and high-pass filters—an important aspect for integrators and DIY enthusiasts working on crossover components or DIY speaker kits.



        For builders and system designers, the SICA CD 78.26/245 - 8 offers flexible mounting options with four 4.5 mm holes on a 95 mm diameter and two M5 holes on a 76 mm diameter. Its net weight of 0.6 kg and overall dimensions of 78 x 88.5 mm ensure easy integration into most enclosures. Whether used in professional PA systems, studio monitors, or high-fidelity home audio environments, this compression driver provides outstanding value and performance for demanding audio components applications.

        Show more

        Specifications

        Article number
        CD 78.26/245 - 8
        EAN
        9509726512930
        Tweeter Type
        Compression Driver
        Cone / Dome Diameter
        25 mm
        Power Handling (RMS)
        20 W
        Power Handling (max)
        40 W
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        107.3 dB
        Resonant Frequency (Fs)
        1.5 kHz
        DC Resistance (Re)
        5.3 Ω
        Overall Outside Diameter
        78 x 88.5 mm
        Depth
        43.6 mm
        Diaphragm Material
        Tri-acetate Film
        Recommended cut frequency
        2.5 kHz

        Show more
