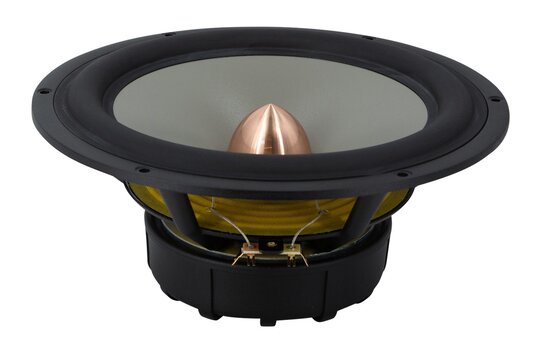

      SEAS Excel W26FX001 - E0026-08S 10" Aluminum Alloy Cone Woofer

      € 413,18€ 499,95 Out of stock: please contact us for accurate delivery times

      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 474,95 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Long term power handling (RMS) is 150 Watts
      • Tremendous bass precision provided by its stiff cone made from aluminum/magnesium alloy
      • Gold plated terminals mounted on a glass fiber reinforced plate to reduce contact resistance and improve reliability



      Product details

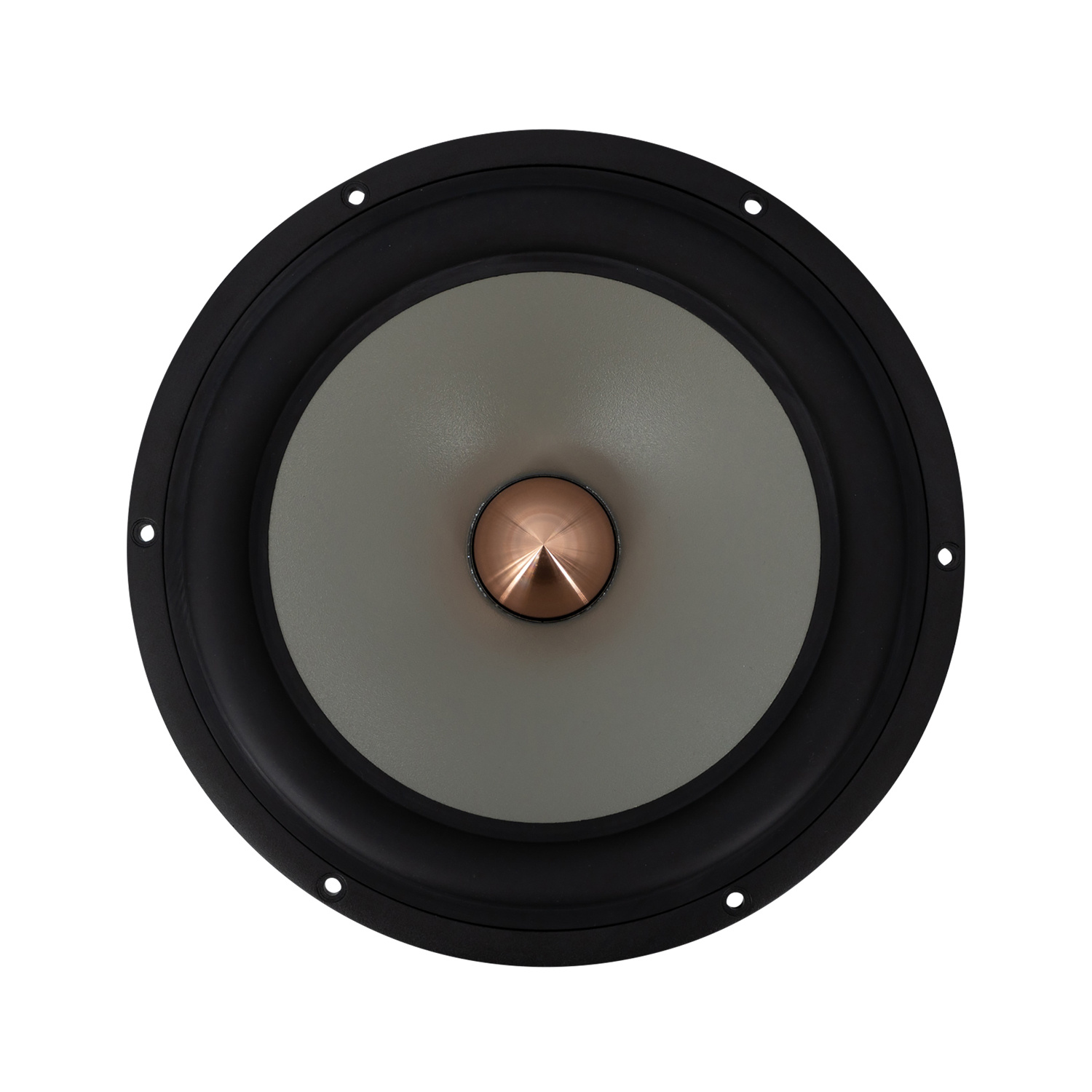

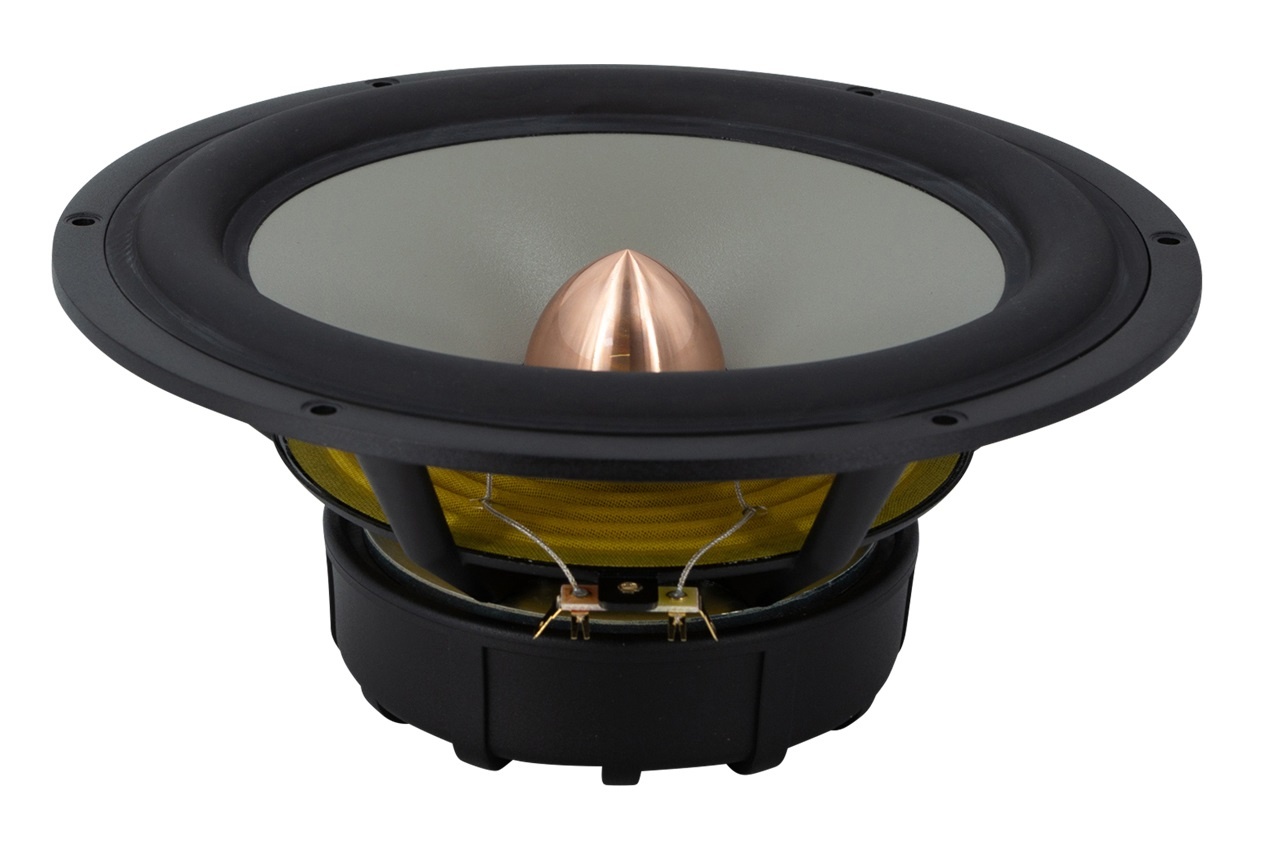

      Seas Excel W26FX001 - E0026-08S 10" Aluminum Alloy Cone Woofer



      The extremely stiff cone made from aluminum/magnesium alloy gives tremendous bass precision. 2” diameter high temperature voice coil with black anodized aluminum coil former for high power handling and reduced power compression.

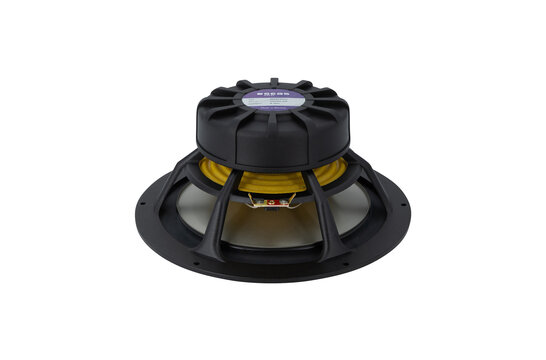

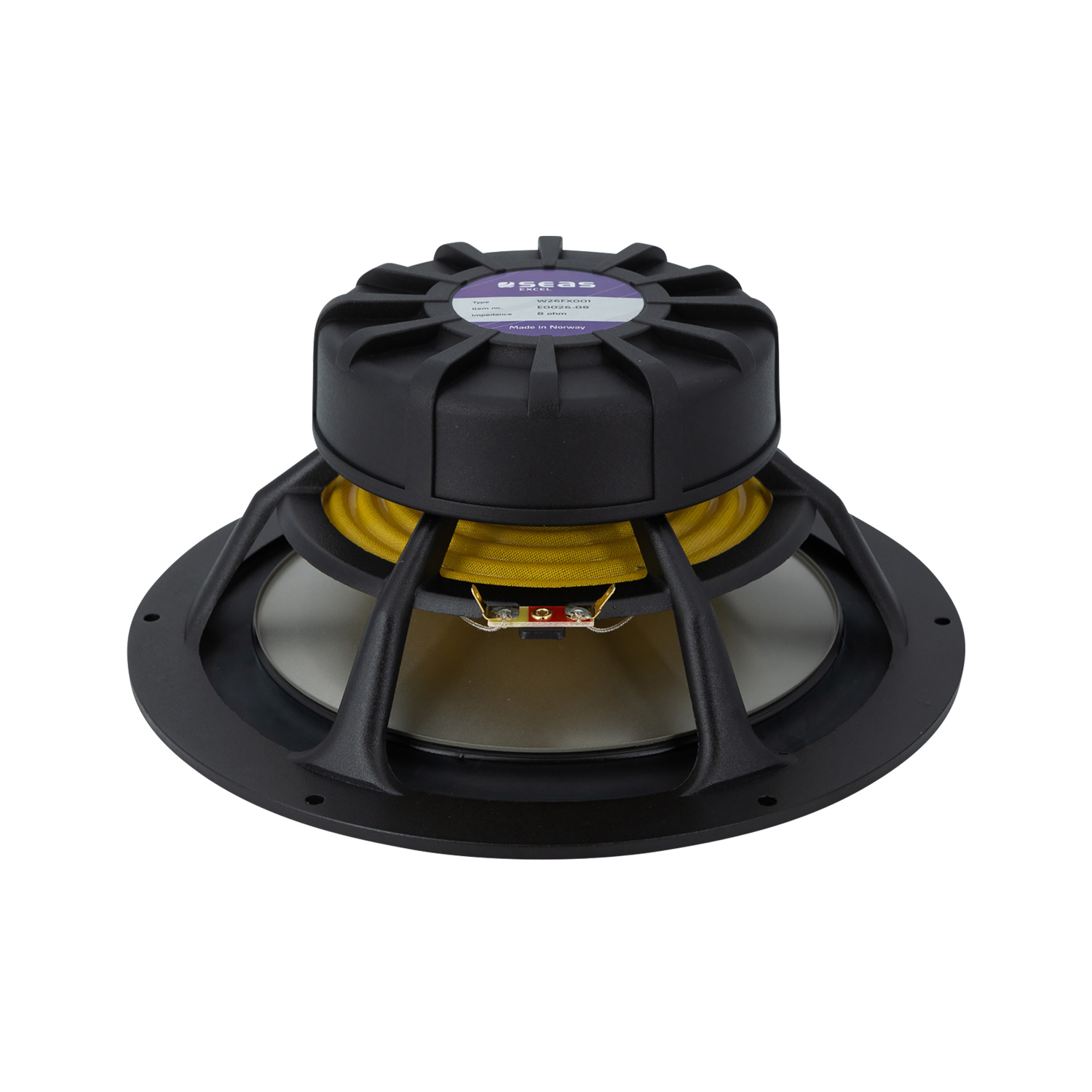

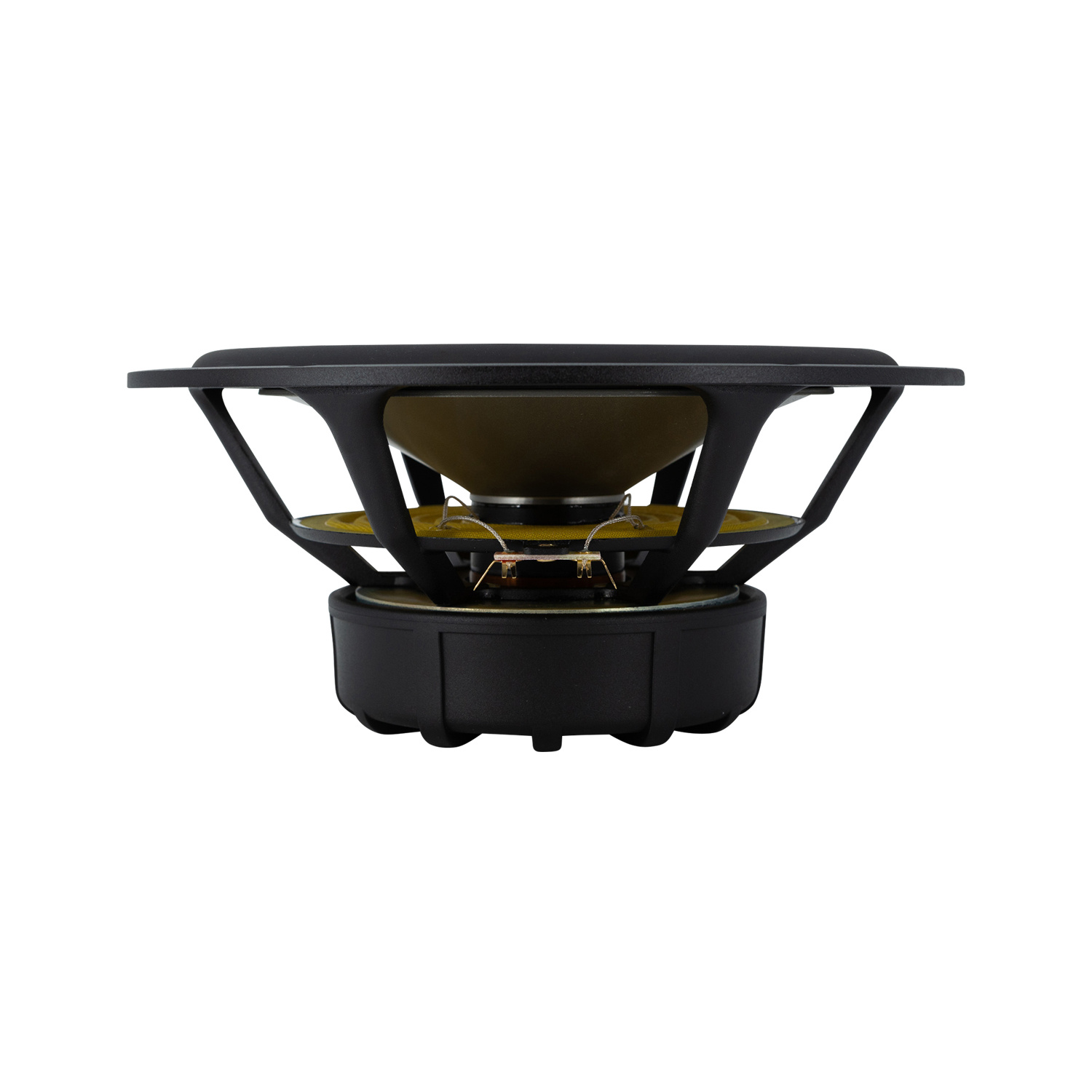

      Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin. Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

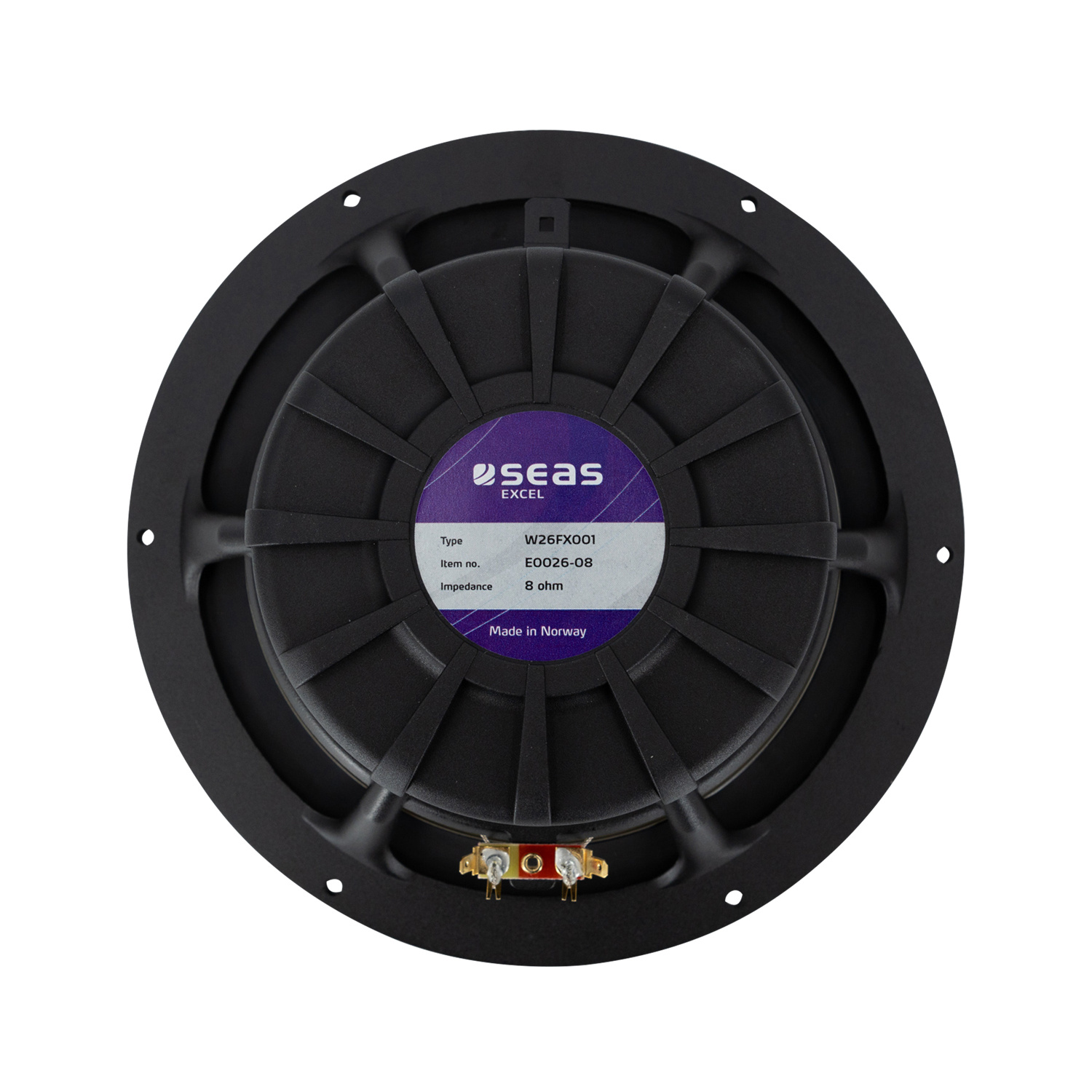

      A solid copper phase plug enhances the performance of the copper rings and improves heat conduction away from the pole piece. Gold plated terminals mounted on a glass fiber reinforced plate to reduce contact resistance and improve reliability.

      Specifications

      Article number
      W26FX001
      Woofer Series
      Excel Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      10"
      Power Handling (RMS)
      150 Watts
      Power Handling (max)
      400 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      87 dB 2.83V/1m
      Frequency Response
      20 to 1,000 Hz
      Voice Coil Diameter
      2"
      Magnet Weight
      45.8 oz.
      DC Resistance (Re)
      6.3 ohms
      Voice Coil Inductance (Le)
      1.43 mH
      Resonant Frequency (Fs)
      20 Hz
      Mechanical Q (Qms)
      2.34
      Electromagnetic Q (Qes)
      0.41
      Total Q (Qts)
      0.35
      Diaphragm Mass Inc. Airload (Mms)
      56.3g
      Mechanical Compliance of Suspension (Cms)
      1.1 mm/N
      Compliance Equivalent Volume (Vas)
      5.72 ft.³
      Maximum Linear Excursion (Xmax)
      7 mm
      Overall Outside Diameter
      10.59
      Overall Depth
      4.54"
      Baffle Cutout Diameter
      9.14"
      # Mounting Holes
      6
