    SEAS Excel W22NY001 - E0045-8S 8" Nextel Cone Woofer

    € 239,63€ 289,95 Out of stock: please contact us for accurate delivery times

    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €275,45 per piece
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    Highlights

    • Long term power handling (RMS) is 90 Watts
    • Paper cone with a unique Nextel coating ensures smooth frequency response and low distortion
    • Excellent choice in a 2-way or for a powerful satellite in a sat/sub system



    Product details

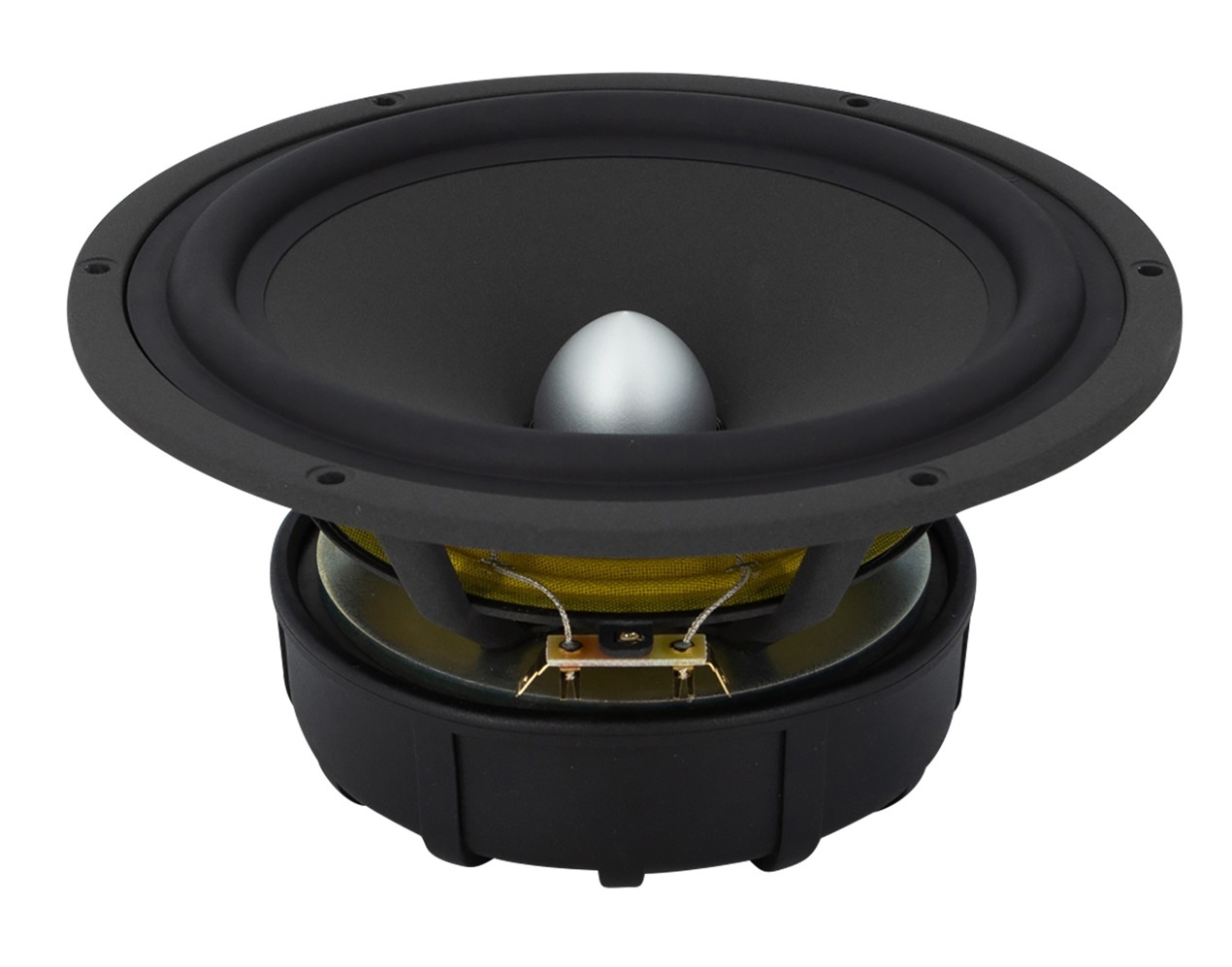

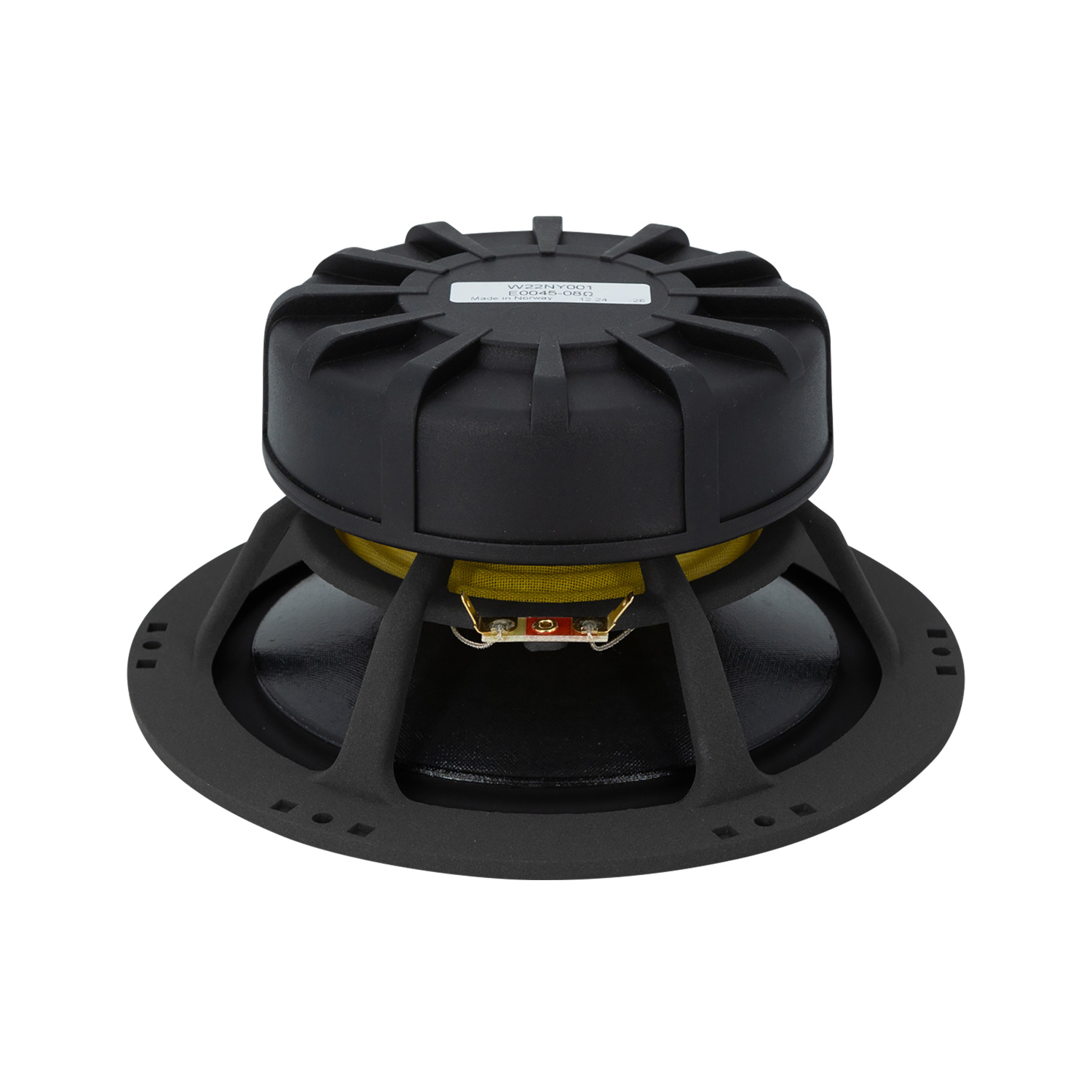

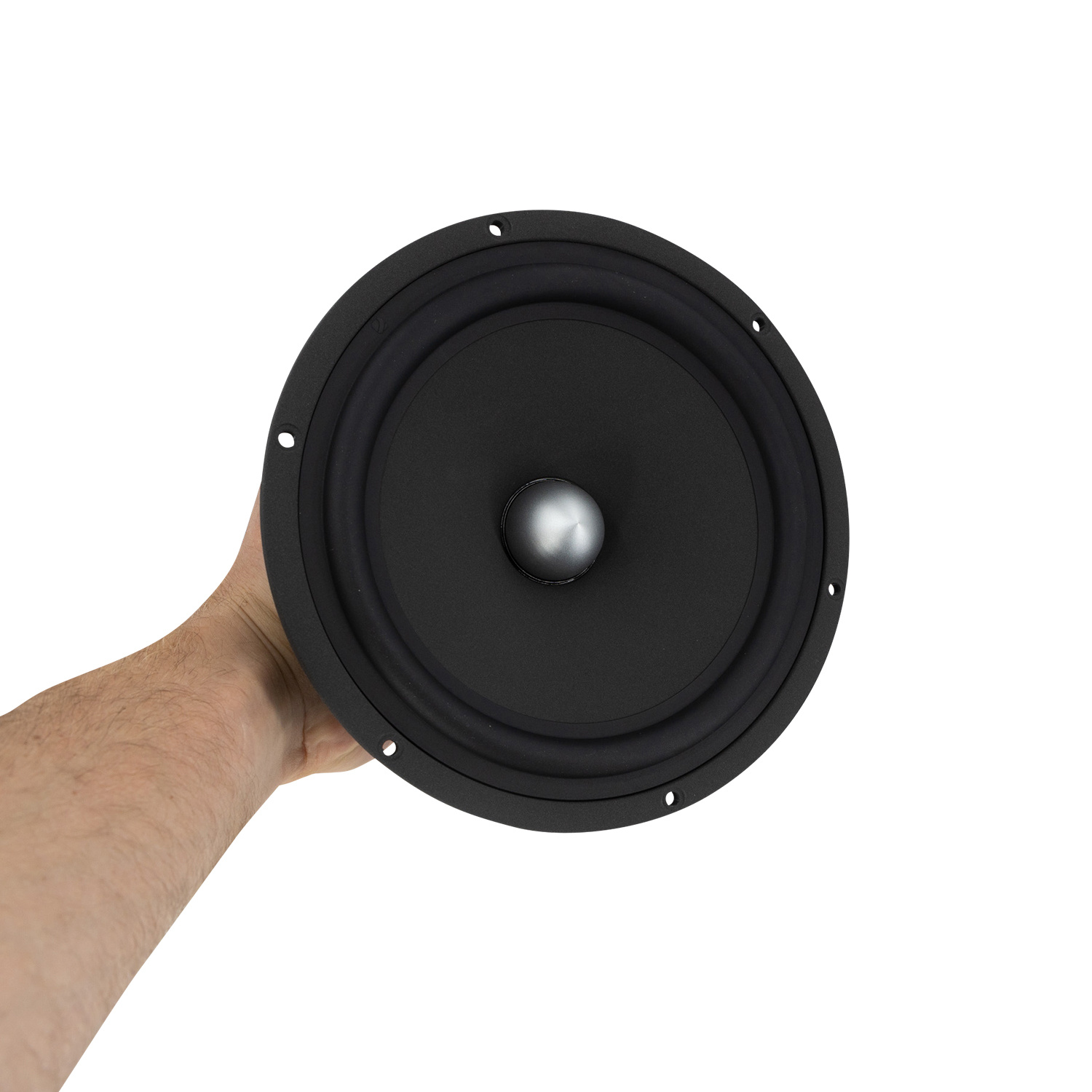

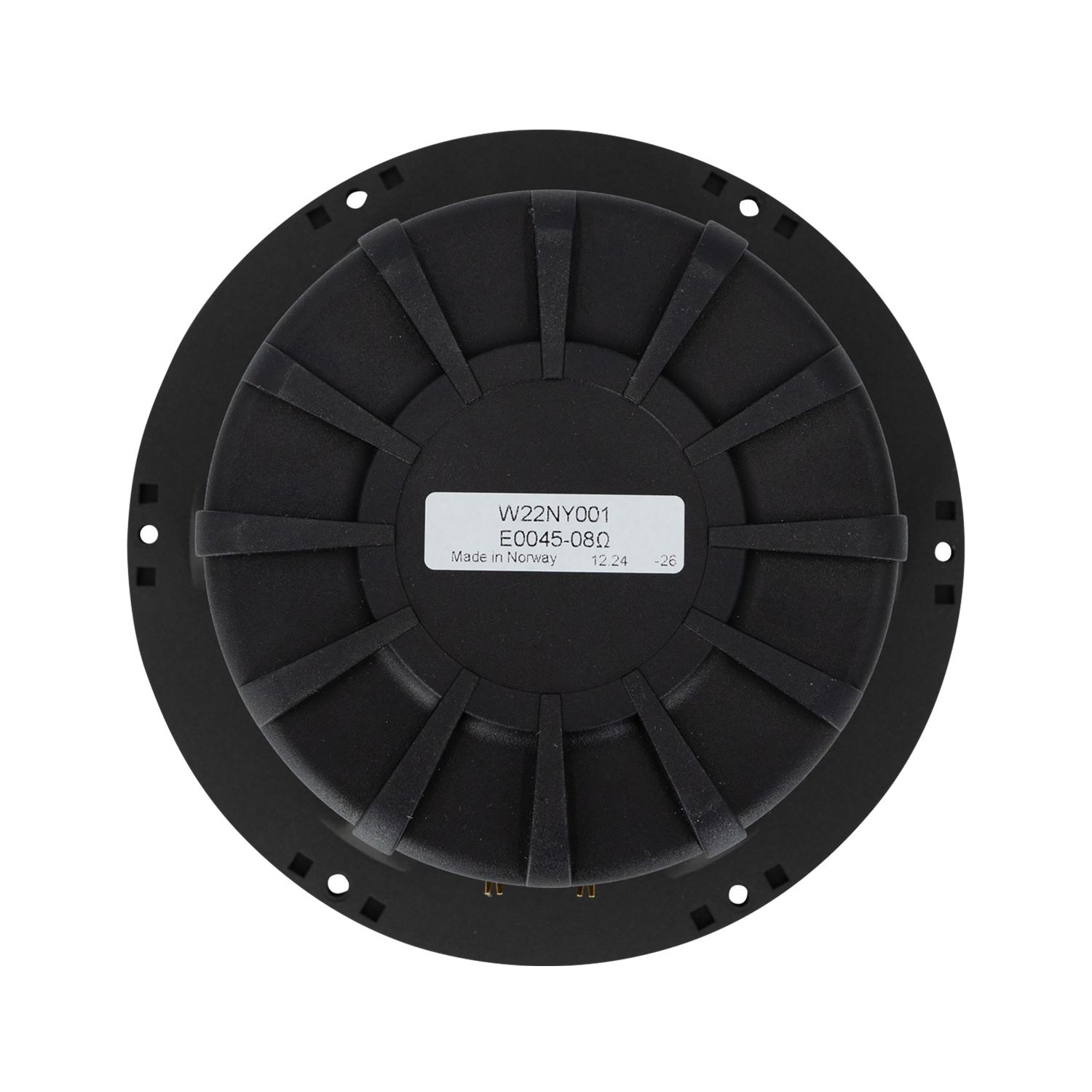

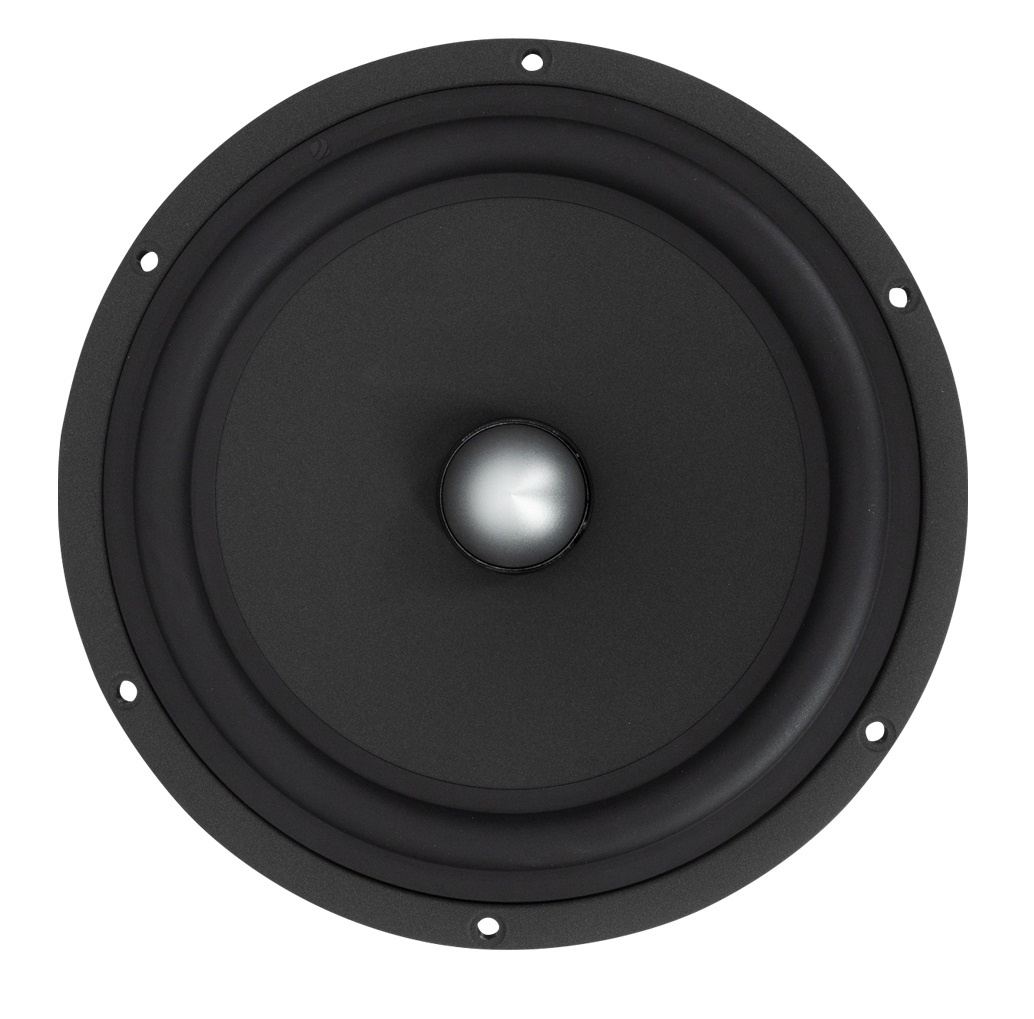

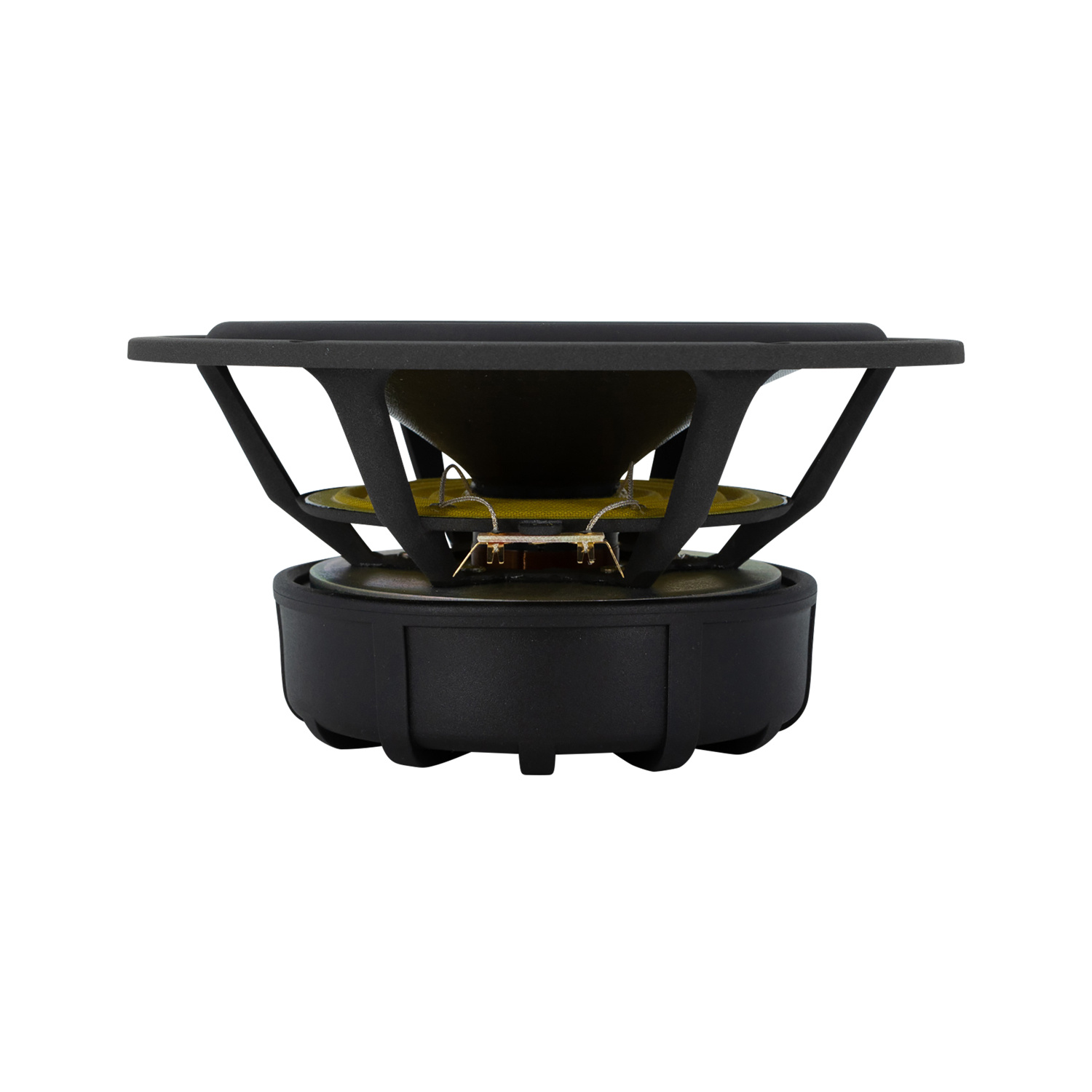

    Seas Excel W22NY001 - E0045-8S 8" Nextel Cone Woofer



    A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion. A large magnet system with a bumped back plate, together with a very long and light weight CCAW voice coil, allow extreme coil excursion with low distortion and excellent transient response.



    Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin. A chrome plated brass phase plug reduces compression due to temperature variations in the voice coil, increase long term power handling capacity and eliminates resonances in the cavity inside the voice coil former.



    The extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum. Exceptionally smooth response.  Excellent choice in a 2-way or for a powerful satellite in a sat/sub system.

    Specifications

    Article number
    W22NY001
    Woofer Series
    Excel Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    8"
    Power Handling (RMS)
    90 Watts
    Power Handling (max)
    250 Watts
    Impedance (Z)
    8 ohms
    Sensitivity
    90 dB 2.83V/1m
    Frequency Response
    30 to 3,000 Hz
    Voice Coil Diameter
    1.53"
    Magnet Weight
    45.8 oz.
    DC Resistance (Re)
    6.1 ohms
    Voice Coil Inductance (Le)
    0.61 mH
    Resonant Frequency (Fs)
    33 Hz
    Mechanical Q (Qms)
    1.73
    Electromagnetic Q (Qes)
    0.36
    Total Q (Qts)
    0.30
    Diaphragm Mass Inc. Airload (Mms)
    20g
    Mechanical Compliance of Suspension (Cms)
    1.2 mm/N
    Compliance Equivalent Volume (Vas)
    2.54 ft.³
    Maximum Linear Excursion (Xmax)
    7 mm
