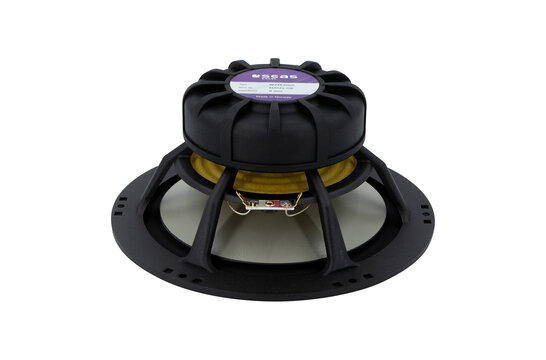

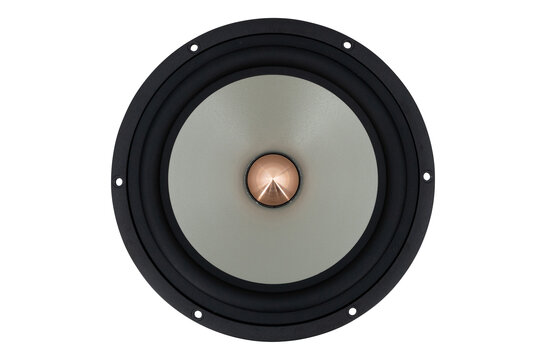

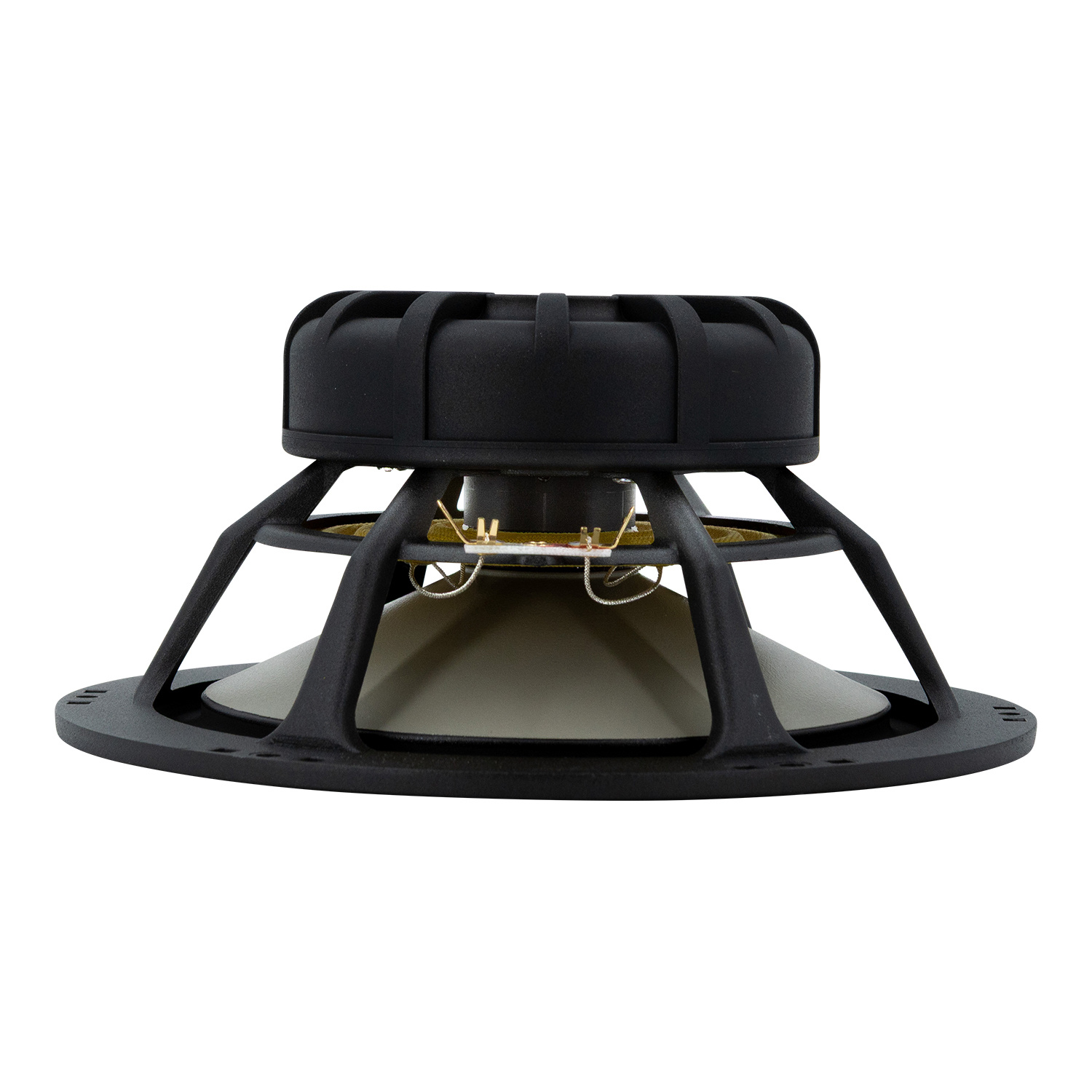

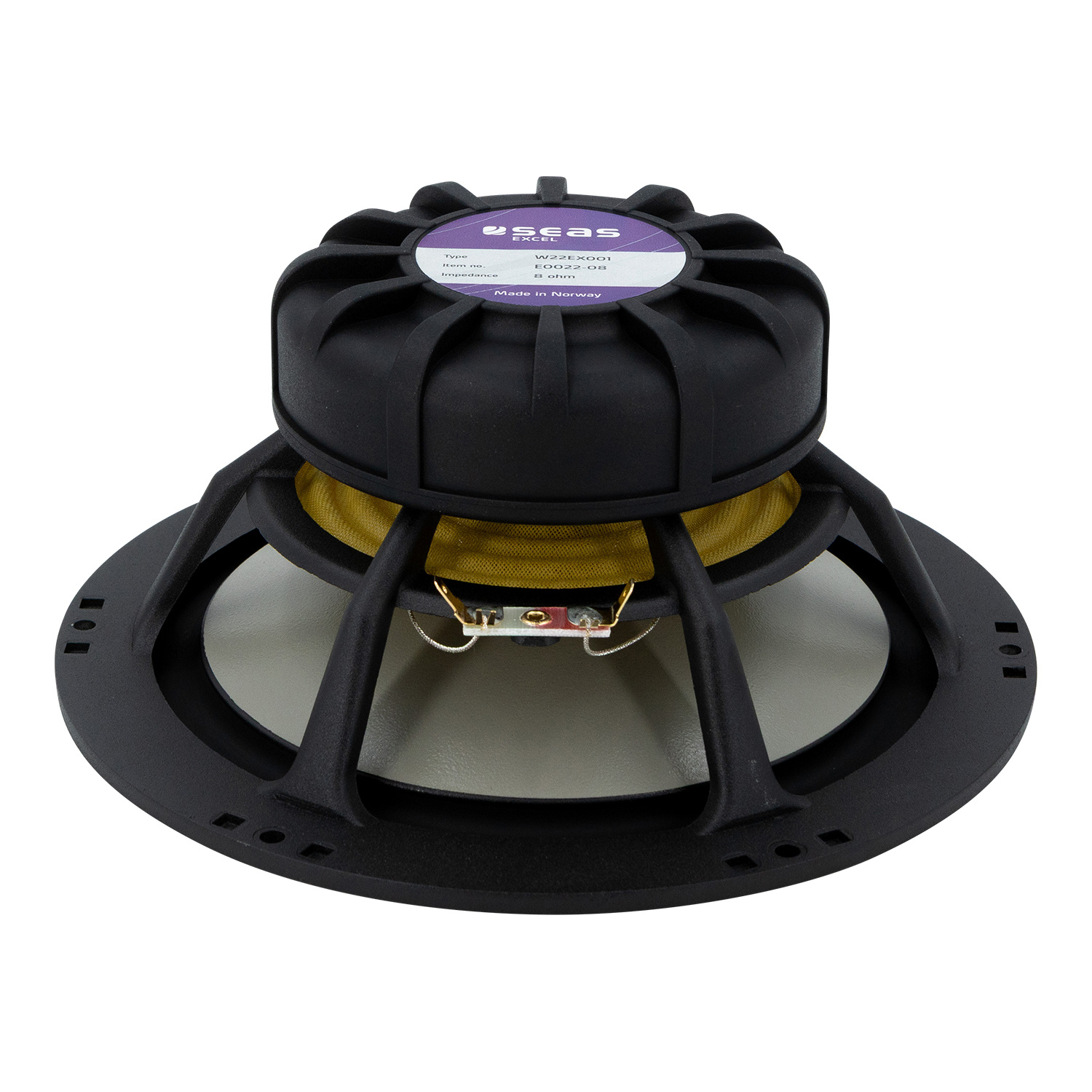

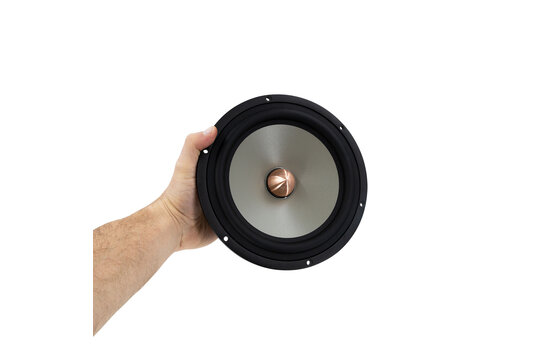

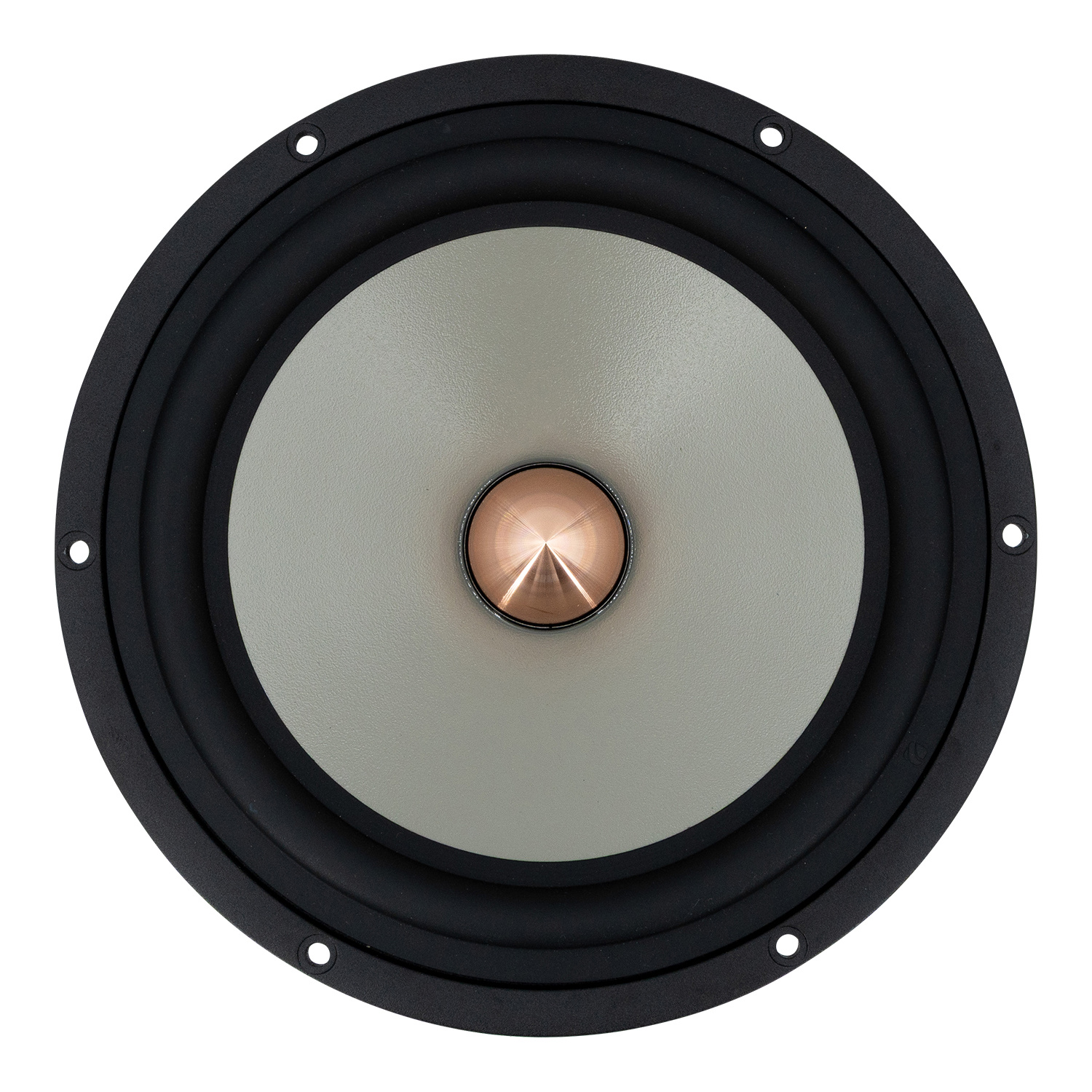

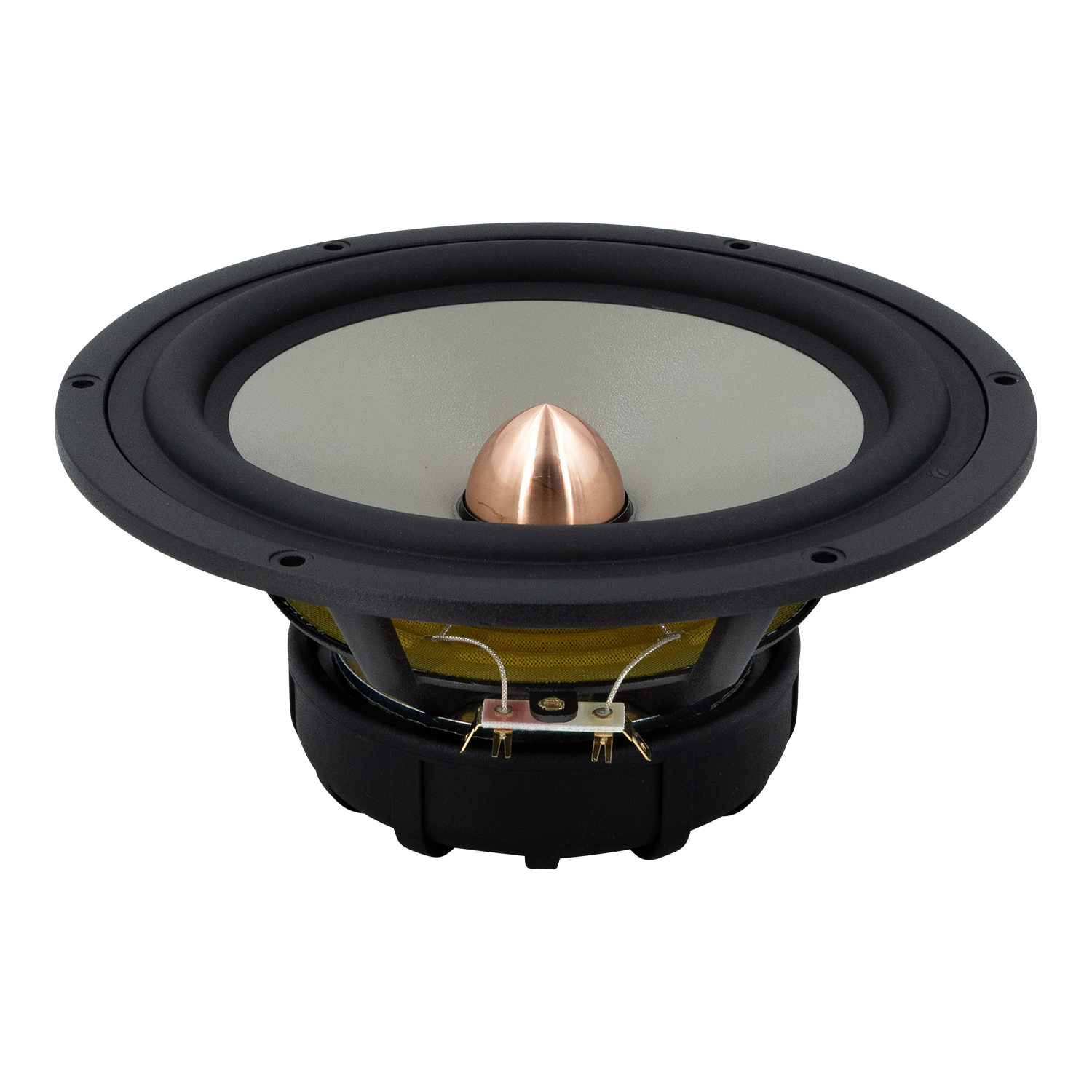

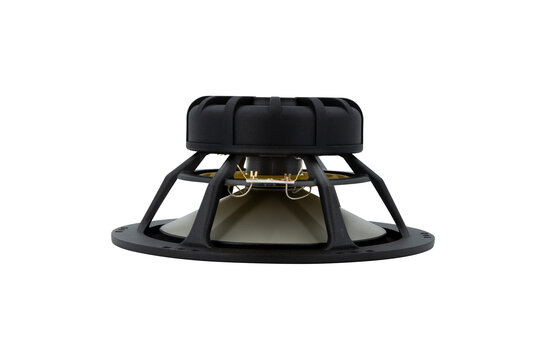

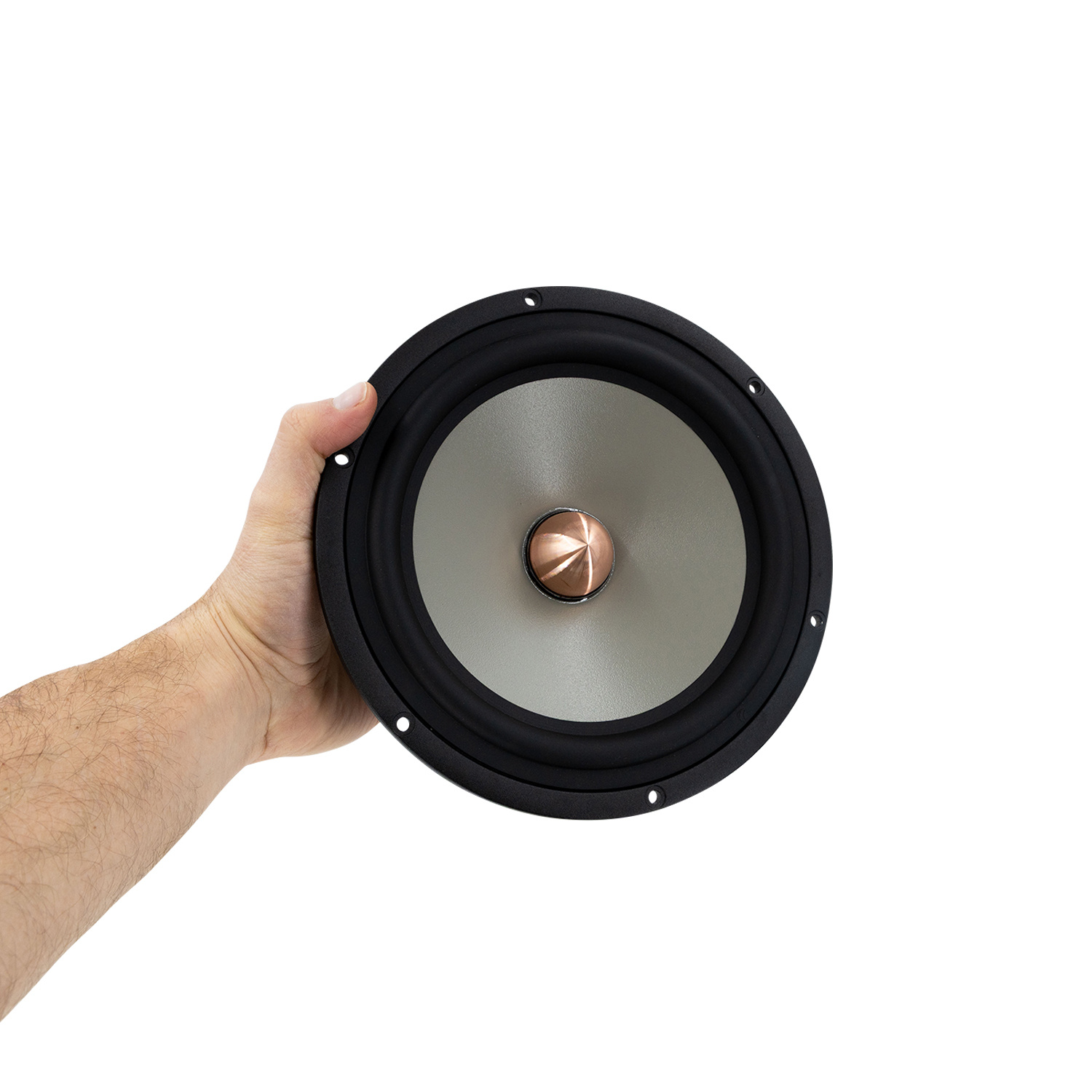

      SEAS Excel W22EX/001 - E0022 8" Magnesium Cone Woofer

      € 305,74€ 369,95 2 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €351,45 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Long term power handling (RMS) is 120 Watts
      • Precision cast and surface treated magnesium cone coupled to a natural rubber surround showing no sign of midrange (edge) resonances
      • Gold plated terminals mounted on a glass fiber reinforced plate reduce contact resistance and improve reliability



      Product details

      Seas Excel W22EX/001 - E0022 8" Magnesium Cone Woofer

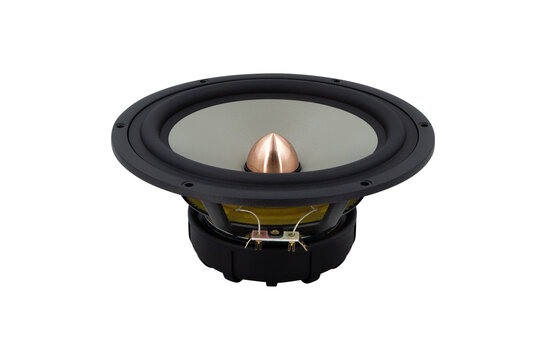

      Precision cast and surface treated magnesium cone coupled to a natural rubber surround showing no sign of midrange (edge) resonances. Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.

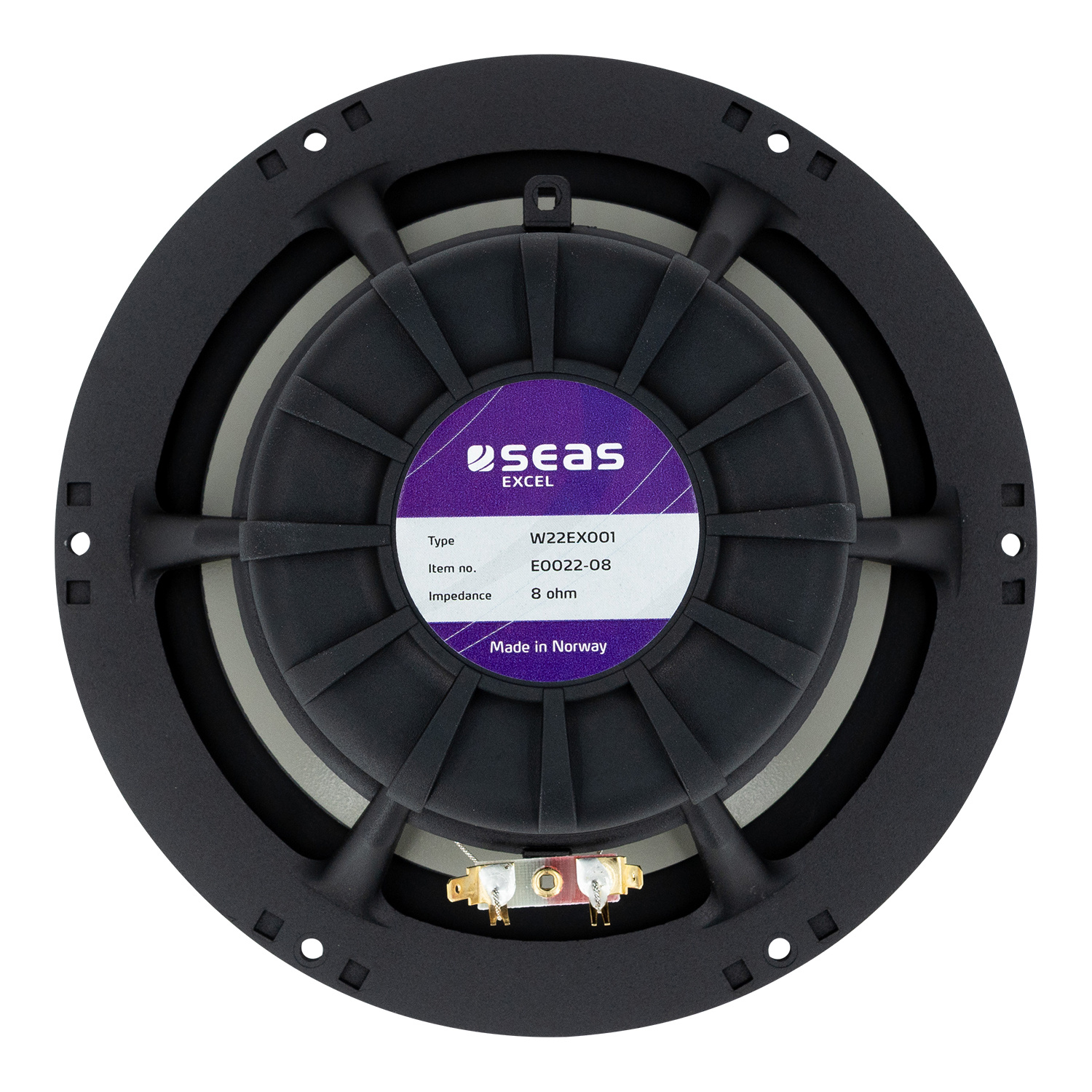

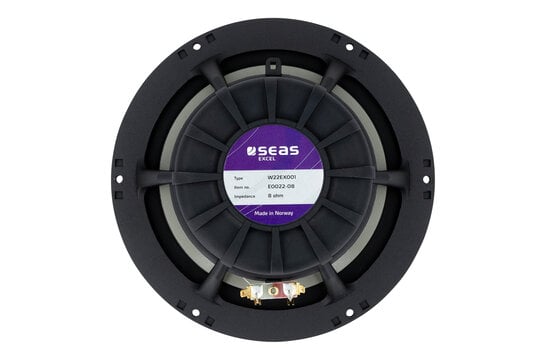

      Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum. A solid copper phase plug enhances the performance of the copper rings and improves heat conduction away from the pole piece. Gold plated terminals mounted on a glass fiber reinforced plate to reduce contact resistance and improve reliability.

      Specifications

      Article number
      W22EX/001
      Nominal Diameter
      8"
      Power Handling (RMS)
      120 Watts
      Power Handling (max)
      300 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      88 dB 2.83V/1m
      Frequency Response
      30 to 2,000 Hz
      Voice Coil Diameter
      1.53"
      Magnet Weight
      22.5 oz.
      DC Resistance (Re)
      6.1 ohms
      Voice Coil Inductance (Le)
      0.61 mH
      Resonant Frequency (Fs)
      25 Hz
      Mechanical Q (Qms)
      2.14
      Electromagnetic Q (Qes)
      0.41
      Total Q (Qts)
      0.34
      Diaphragm Mass Inc. Airload (Mms)
      26.2g
      Mechanical Compliance of Suspension (Cms)
      1.5 mm/N
      Compliance Equivalent Volume (Vas)
      3.46 ft.³
      Maximum Linear Excursion (Xmax)
      5 mm

      Show more

      Reviews

      5 from 5Based on 1 reviews
      Review this product
      5 of 5
      mooie drivers met een zeer goede laag mid /midden weergaven gebruik ze nu in een open baffle opstelling van 100 tot 1400 met active correctie
      By arjan m. on 2 October 2018
