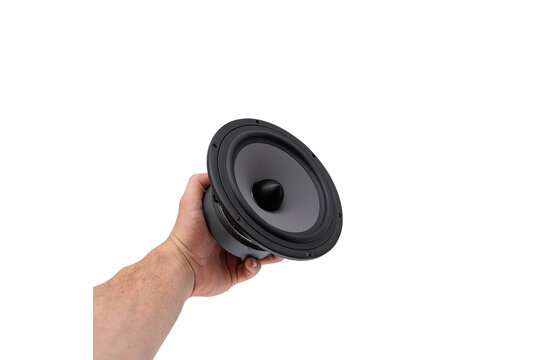

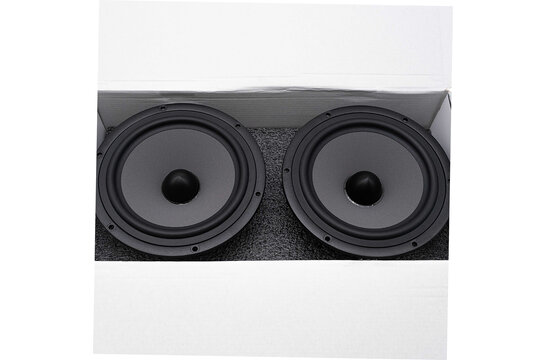

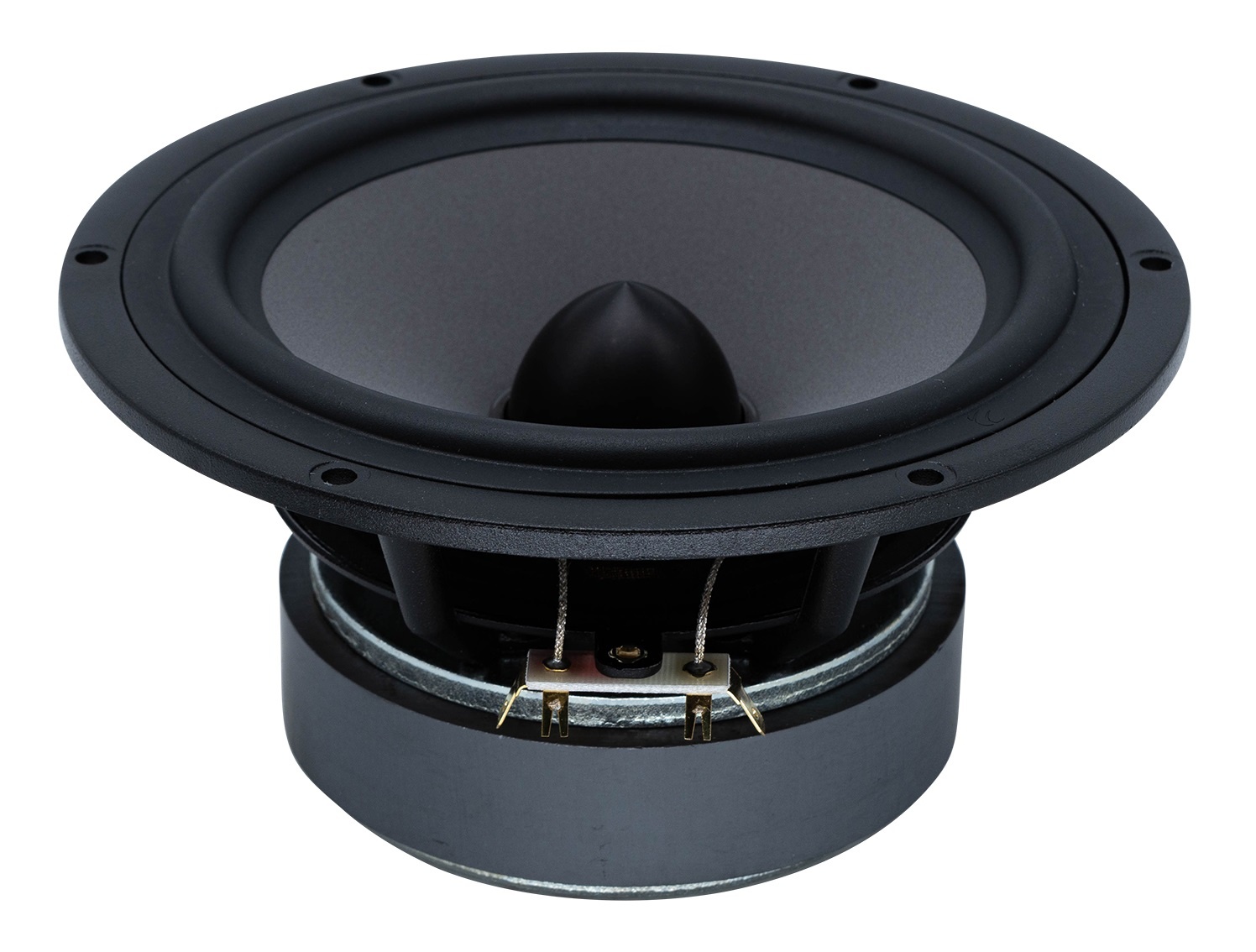

        Excel Nextel W18NX003 - E0096-08 6" Full Range Woofer

        Excel Nextel W18NX003 - E0096-08 6" Full Range Woofer

        €419,95

        SEAS Excel Nextel W18NX003 - E0096-08 6" Full Range Woofer

        3 reviews
        5 from 5
        3 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SEAS
        € 347,06€ 419,95 2 In stock
        • -5% Purchase 4 for only € 398,95 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        The new W18NX003 (E0096-08) continues Seas high-end paper cone heritage with the 2-layer Nextel coating technology and brings the newly updated linear low-distortion magnet system design for maximum sound quality into their range of paper cone woofers.



        Highlights

        • Nextel coating
        • Titanium voice coil former
        • Unique adaptive rubber surround



        Product Details

        SEAS Excel Nextel W18NX003 - E0096-08 6" Full Range Woofer



        The new W18NX003 woofer is a successor to the famous W18NX001 (E0042-08) from SEAS, and it was developed in cooperation with the famous Danish loudspeaker designer, Troels Gravesen. Not surprisingly, Gravesen built another one of its stunning loudspeaker kits using the SEAS W18NX003, and the project was announced in parallel with the driver itself (see below). As SEAS details, the W18NX003 (E0096-08) brings a newly updated linear low-distortion magnet system design for maximum sound quality into its range of paper cone woofers. The new FEA optimized magnet system applies precisely fitted copper parts and, according to SEAS, represents "the state-of-the-art regarding linearity and low distortion."

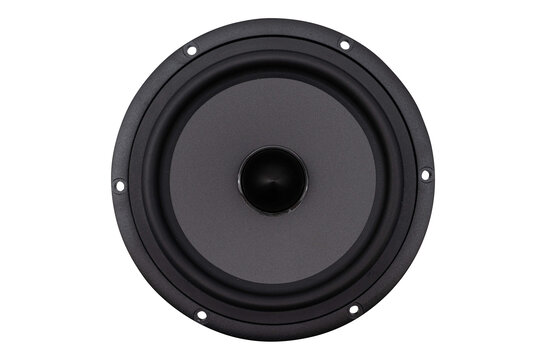

        In this case, the paper cone is top coated with a unique Nextel treatment combined with a back coating for extra damping and giving an unparalleled smooth and detailed paper cone sound. For those not familiar, Nextel is a trademarked range of coatings from German company Mankiewicz Gebr. & Co., famous for its matt, suede-like results, extremely popular in electronics and speaker cabinet finishes used by many European brands.

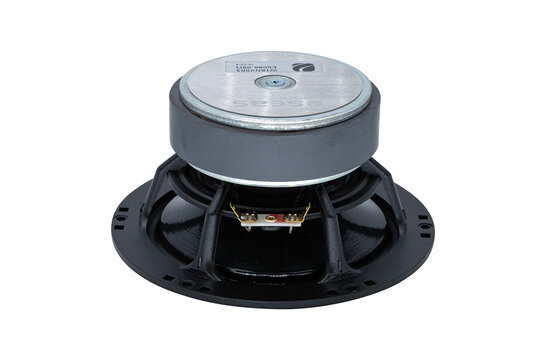

        The titanium voice coil former in the W18NX003 is another refined detail, applied with a long copper clad aluminum winding for excellent force transfer, and resulting in improved transient sound reproduction and large linear excursion. The construction of the former and its connection to the cone allows for very high power-handling, suitable for modern amplifiers (e.g. Class-D).

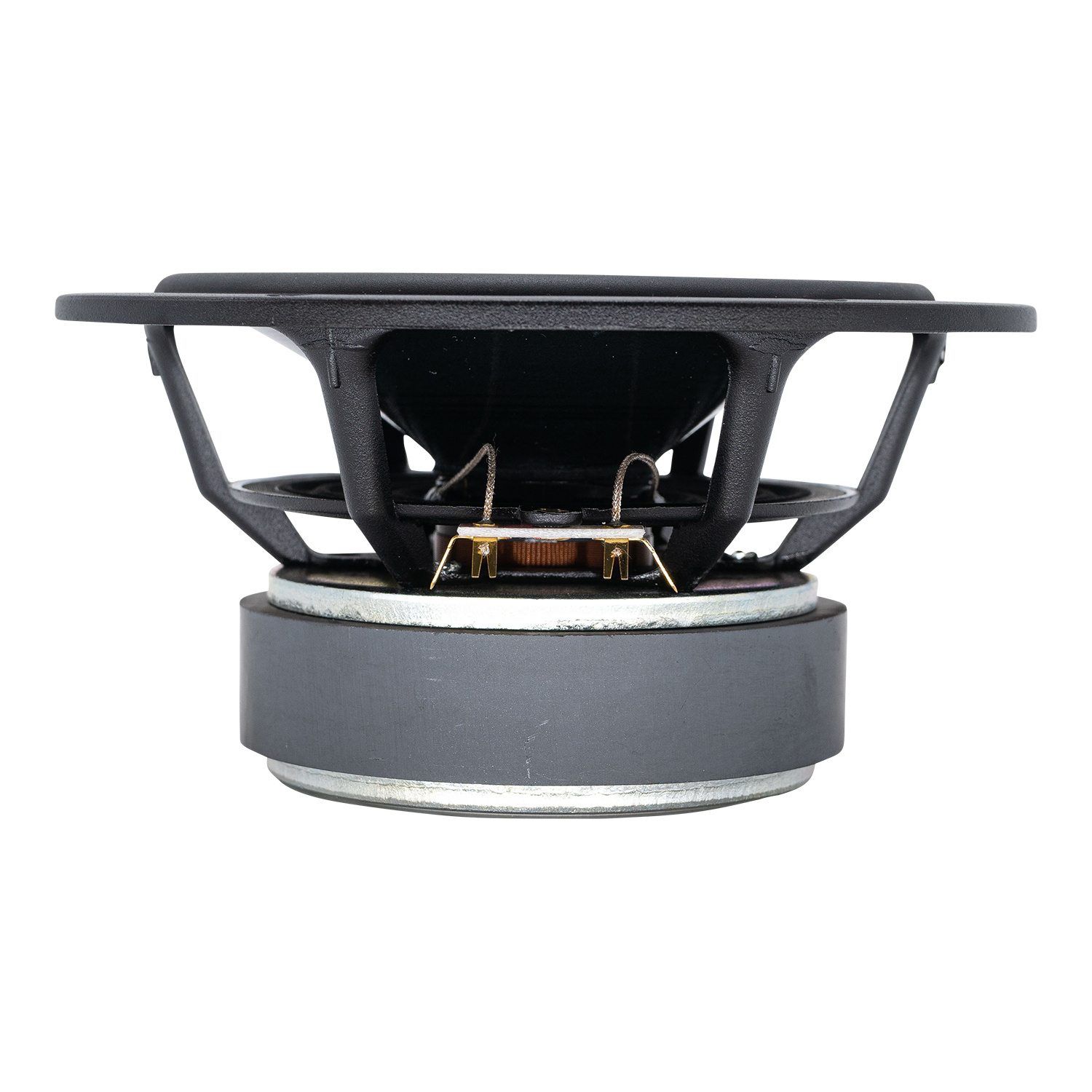

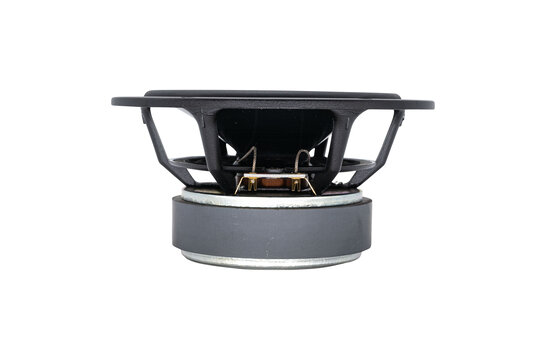

        A unique adaptive rubber surround reduces radial resonances and prevents surround break up at large excursions, while a low mechanical and electromagnetic damping ensure high quality reproduction of even the finest micro details in music. The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket, both above and below the spider, contribute to reduce sound reflection, air flow noise and keep cavity resonance to a minimum.



        Show more

        Specifications

        Article number
        W18NX003
        Woofer Series
        Excel
        Woofer Type
        Full Range Woofer
        Nominal Diameter
        6"
        Power Handling (RMS)
        200 W
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        87.6 dB
        Frequency Response
        20 – 3000 Hz
        Voice Coil Diameter
        39mm
        Magnet Weight
        0.9 kg
        Resonant Frequency (Fs)
        35 Hz
        Mechanical Q (Qms)
        3.11
        Electromagnetic Q (Qes)
        0.38
        Total Q (Qts)
        0.34
        Compliance Equivalent Volume (Vas)
        31 Litres
        Maximum Linear Excursion (Xmax)
        12 mm
        Mounting Hole Diameter
        6

        Show more

        5 of 5
        Der SEAS W18NX003 ist teuer, aber eine deutliche Verbesserung gegenüber dem W18NX001.
        By Dr. Detlef on 18 December 2023
        5 of 5
        I upgraded my next4 loudspeaker und the result is great. More bass contour, better und clearer voice in classic music. The music especially classic music is more realistic and natural. Not cheap, but good result by change the W18NX001 with the W18NX003 without changing the crossover.
        By Detlef on 13 December 2023
