        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms

        SEAS Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms

        €499,95

        4 In stock

        Add to cart

        SEAS Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SEAS
        Show all Bass-mid woofer
        5.5" | 8 Ω
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        € 413,18€ 499,95 4 In stock
        • -5% Purchase 4 for only € 474,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms
        Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms

        Product description SEAS Excel W16NX003 - E0073-08 Bass-midwoofer

        Highlights

        • FEA optimised magnet system
        • Graphene treated magnesium cone
        • Titanium voice coil former
        • Unique radial reinforced rubber surround
        • Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment



        Product details

        Seas Excel Graphene W16NX003 - E0073-08 5.5" Woofer 8 Ohms



        The precision cast, machined and Graphene treated magnesium cone acts as a piston through the working frequency band without showing any sign of midrange resonances.



        A titanium voice coil former with a long copper clad aluminium winding for excellent force transfer, transient sound reproduction and large linear excursion. A unique radial reinforced rubber surround reduces radial resonances and prevents surround break up at large excursions. This combination results in very low mechanical damping for better clarity and brings out the micro details in the music.

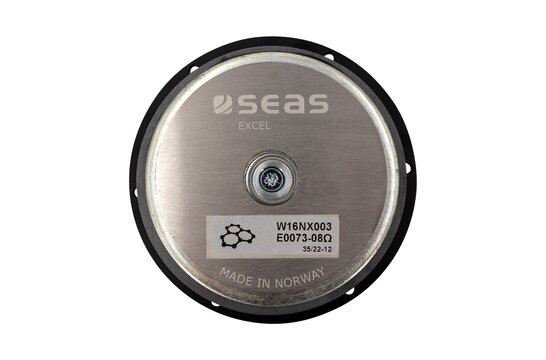

        An FEA optimised magnet system with precisely fitted copper parts for excellent linearity, high power handling and low distortion.

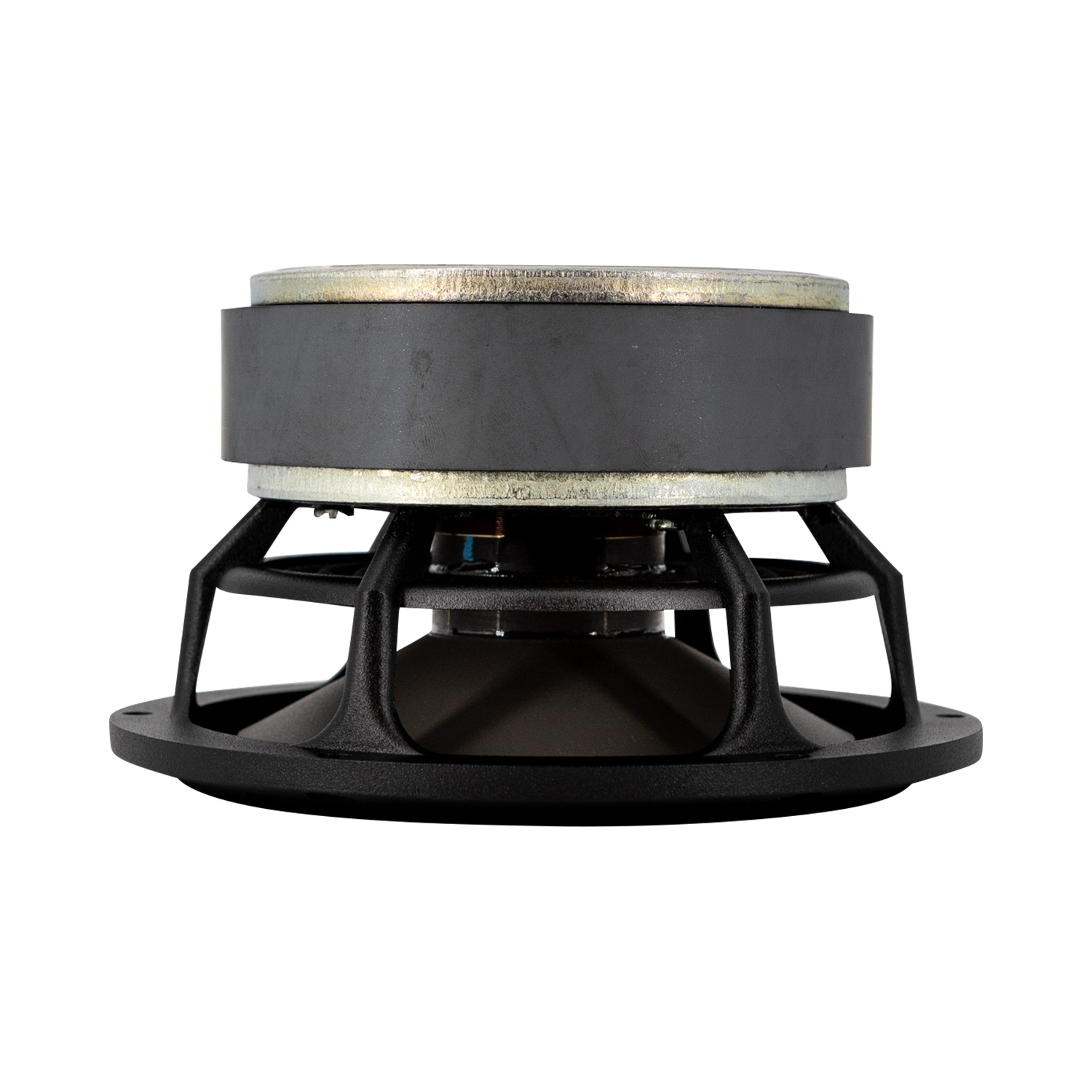

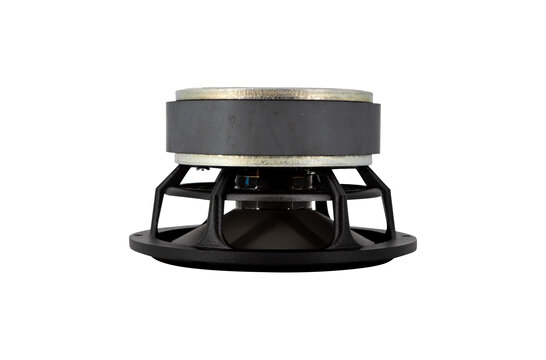

        The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

        Show more

        Specifications

        Article number
        W16NX003
        EAN
        0691046949080
        Woofer Series
        Excel Graphene
        Woofer Type
        Woofer
        Nominal Diameter
        5.5" | 146 mm
        Power Handling (RMS)
        180 W
        Power Handling (max)
        300 W
        Continuous Program Power
        -
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        85.4 dB
        Frequency Response
        20 - 3000 Hz
        Voice Coil Diameter
        39 mm
        Magnet Weight
        0.9 kg
        DC Resistance (Re)
        6.4 Ω
        Voice Coil Inductance (Le)
        0.12 mH
        Resonant Frequency (Fs)
        36 Hz
        Mechanical Q (Qms)
        4.73
        Electromagnetic Q (Qes)
        0.36
        Total Q (Qts)
        0.34
        Diaphragm Mass Inc. Airload (Mms)
        14.2 g
        Moving Mass Of Diaphragm (Mmd)
        0.69 Ns/m
        Mechanical Compliance of Suspension (Cms)
        1.35 mm/N
        Surface Area of Cone (Sd)
        94 cm²
        Volume of Displacement (Vd)
        65.8 cm³
        BL Product (BL)
        7.6 Tm
        Compliance Equivalent Volume (Vas)
        17 L
        Maximum Linear Excursion (Xmax)
        7 mm
        Driver's Mechanical Losses (Rms)
        -
        Cone / Diaphragm Material
        Graphene treated magnesium
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper clad aluminium
        Voice Coil Former
        Titanium
        Dual Voice Coil
        -
        Basket / Frame Material
        Injection moulded metal
        Magnet Material
        -
        Shielded
        -
        Overall Outside Diameter
        146 mm
        Overall Depth
        79 mm
        Baffle Cutout Diameter
        110.0 mm
        Bolt Circle Diameter
        137 mm
        # Mounting Holes
        6
        Sealed Volume
        -
        Sealed F3
        -
        Vented Volume
        -
        Vented F3
        -

        Show more
