        Product description SEAS Excel W16NX001-4 - E0049-04 5.5" Woofer

        The SEAS Excel W16NX001 - E0049-04 is a high-performance magnesium cone bass-midwoofer with 80 W RMS power handling, 4 Ω impedance and 88 dB sensitivity, designed for clean piston-like operation through the audible frequency band.

        Highlights of the SEAS Excel W16NX001 - E0049-04

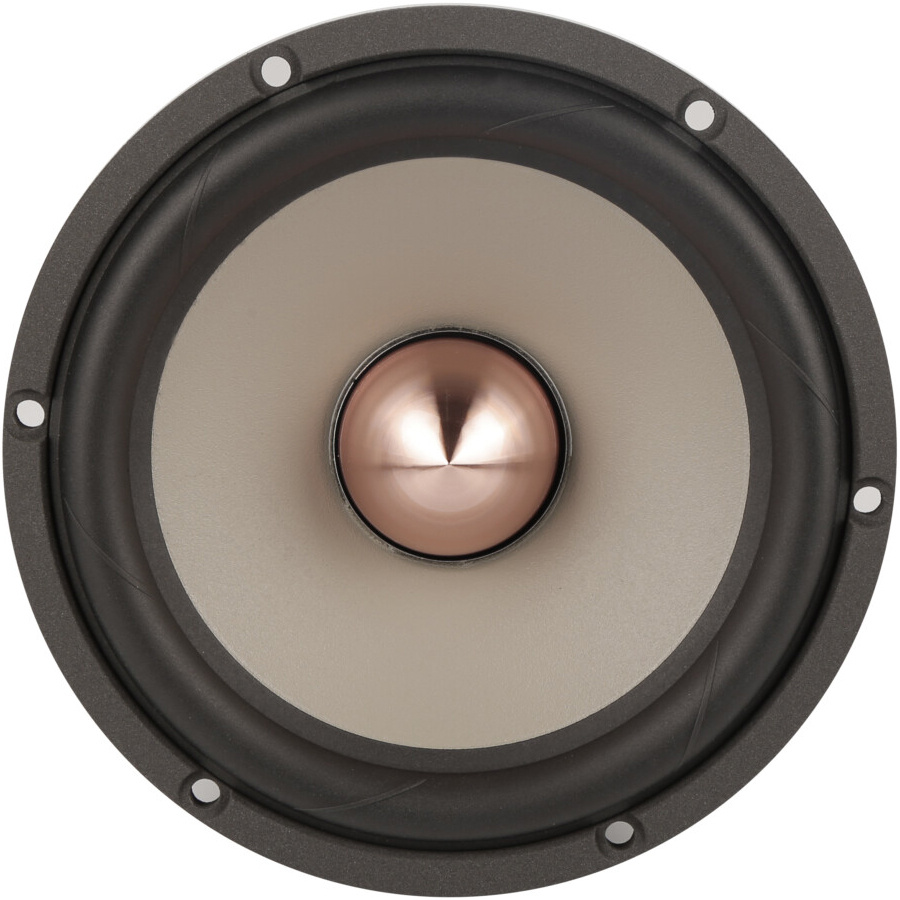

        • Precision-cast, machined and surface-treated magnesium cone for piston-like behaviour
        • Radial reinforced rubber surround reduces radial resonances and helps prevent surround breakup
        • Heavy copper rings reduce nonlinear and modulation distortion while increasing overload margin
        • Copper phase plug reduces compression and eliminates cavity resonances inside the voice coil former
        • 80 W RMS power handling, 250 W maximum power handling and 7 mm maximum linear excursion

        Product details SEAS Excel W16NX001 - E0049-04

        SEAS Excel W16NX001 - E0049-04 146 mm Magnesium Cone Bass-midwoofer 4 Ω

        The SEAS Excel W16NX001 - E0049-04 is built for demanding audio components projects where low distortion, controlled cone behaviour and reliable output are essential. Its precision-cast magnesium cone is machined and surface treated to act as a rigid piston through the audible frequency band, helping the woofer avoid midrange resonances.


        With a 4 Ω impedance, 88 dB sensitivity and a frequency response of 45 to 2500 Hz, this bass-midwoofer is suited to serious loudspeaker designs that require strong bass-mid performance from a compact 146 mm driver. The 39 mm voice coil, 37 Hz resonant frequency and 15 liter Vas support flexible integration in custom designs.


        The motor system uses heavy copper rings mounted above and below the T-shaped pole piece to reduce nonlinear and modulation distortion. A copper phase plug further reduces compression caused by voice coil temperature variations, increases long-term power handling capacity and removes resonances from the cavity inside the voice coil former.

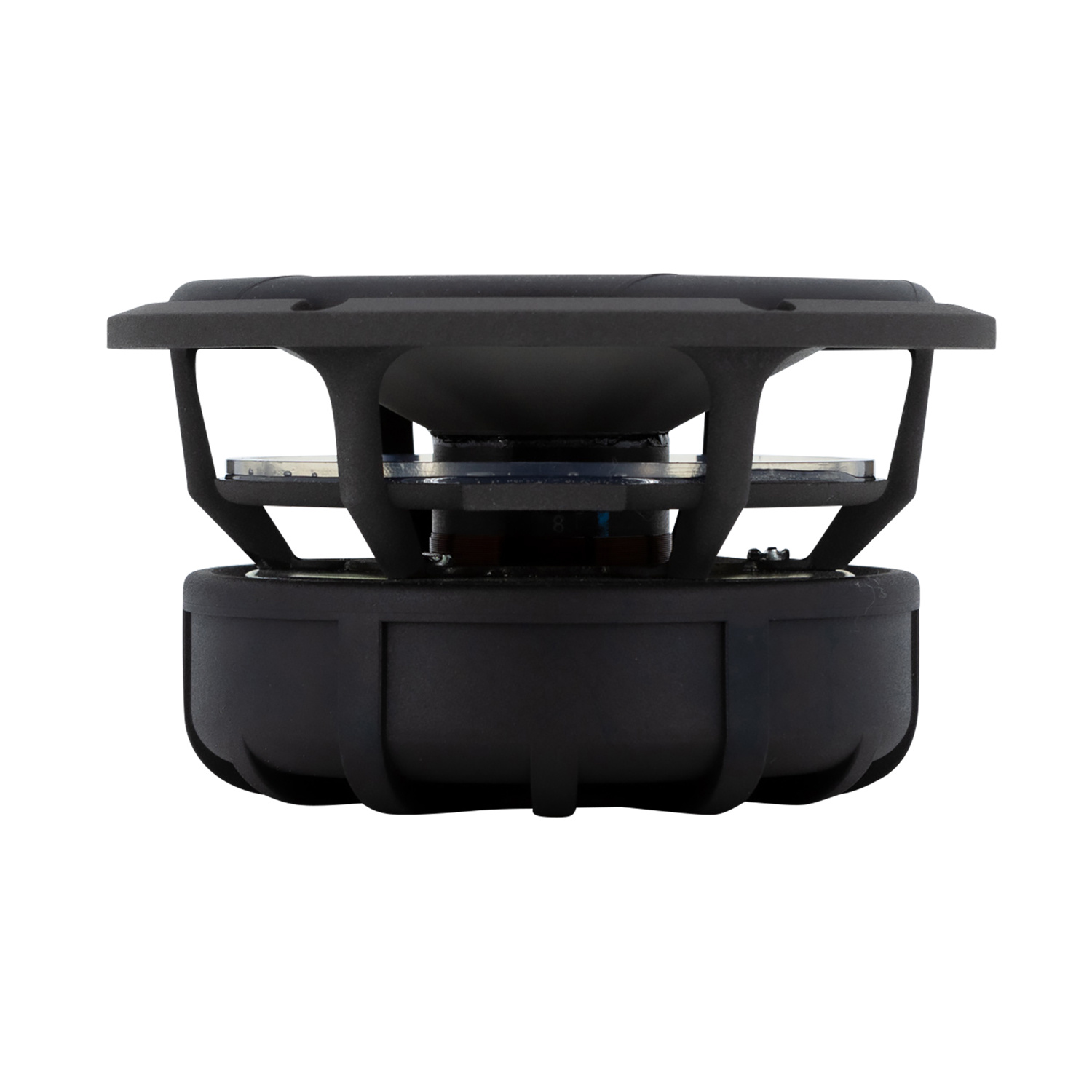

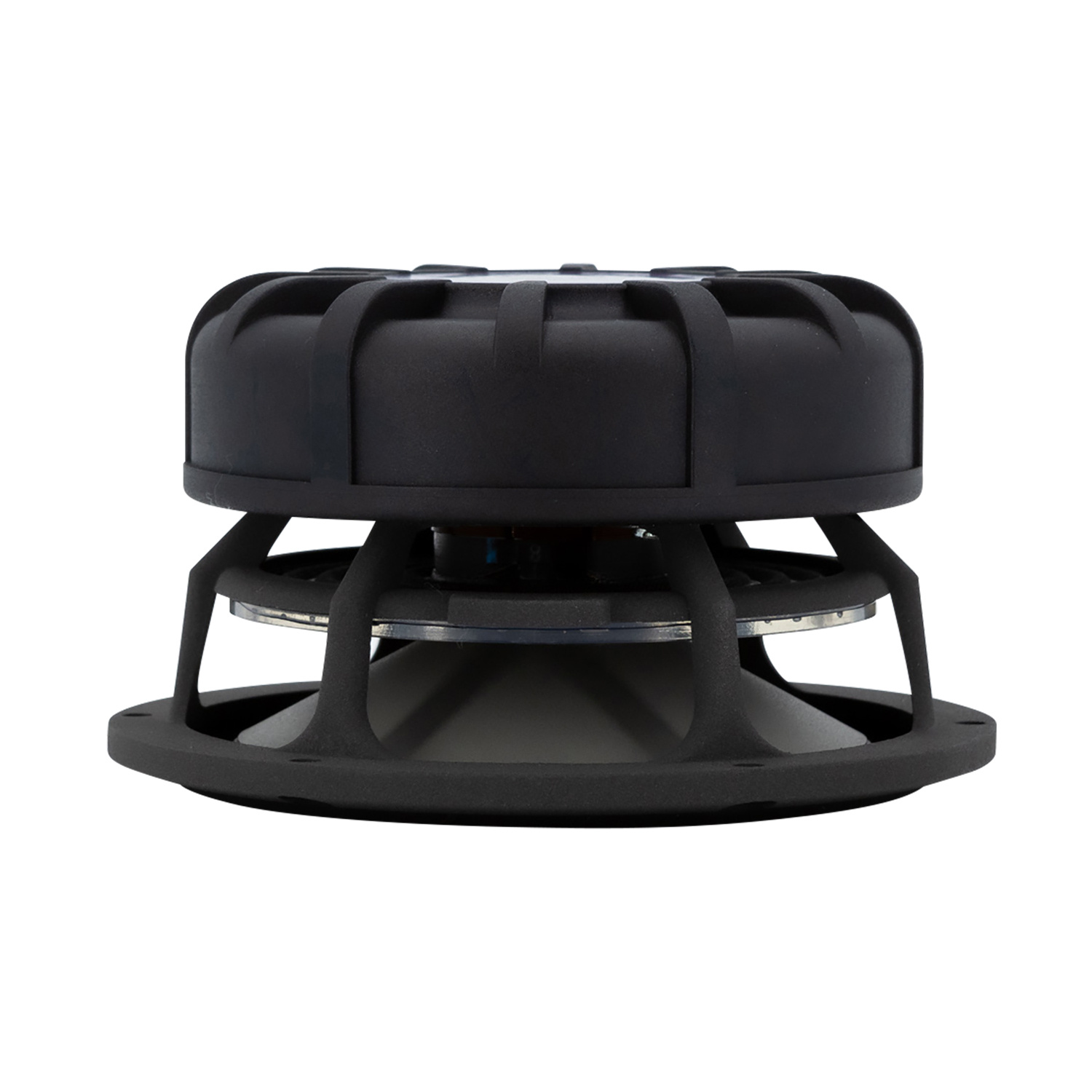

        The injection-moulded metal basket is extremely stiff and stable, keeping critical components aligned under demanding operation. Large windows above and below the spider minimise sound reflections, airflow noise and cavity resonance, while practical installation dimensions include a 126 mm baffle cutout, 73.5 mm overall depth, 137 mm bolt circle and six 5 mm mounting holes for use in precision home audio builds.

        Show more

        Specifications

        Article number
        W16NX001
        EAN
        0696277270163
        Woofer Series
        Excel
        Woofer Type
        Midwoofer
        Nominal Diameter
        6.5 " | 146 mm
        Power Handling (RMS)
        80 W
        Power Handling (max)
        250 W
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        88.0 dB
        Frequency Response
        45 - 2500 Hz
        Voice Coil Diameter
        39 mm
        Magnet Weight
        0.64 kg
        DC Resistance (Re)
        3.0 Ω
        Voice Coil Inductance (Le)
        0.25 mH
        Resonant Frequency (Fs)
        37 Hz
        Mechanical Q (Qms)
        2.66
        Electromagnetic Q (Qes)
        0.38
        Total Q (Qts)
        0.33
        Diaphragm Mass Inc. Airload (Mms)
        14.8 g
        Mechanical Compliance of Suspension (Cms)
        1.3 mm/N
        Surface Area of Cone (Sd)
        94 cm²
        BL Product (BL)
        5.3 N/A
        Compliance Equivalent Volume (Vas)
        15 L
        Maximum Linear Excursion (Xmax)
        7 mm
        Driver's Mechanical Losses (Rms)
        1.34 Ns/m
        Cone / Diaphragm Material
        Magnesium
        Surround Material
        Rubber
        Basket / Frame Material
        Injection moulded metal
        Overall Outside Diameter
        146 mm
        Overall Depth
        73.5 mm
        Baffle Cutout Diameter
        126 mm
        Bolt Circle Diameter
        137 mm
        # Mounting Holes
        6
        Mounting Hole Diameter
        5.0 mm
