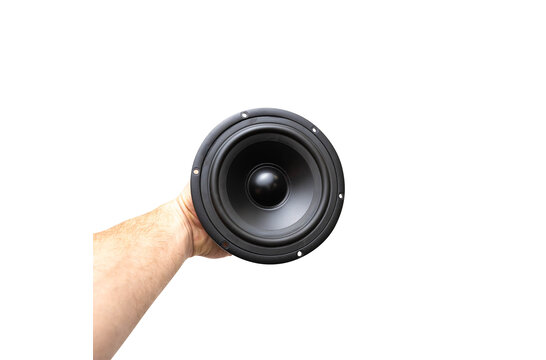

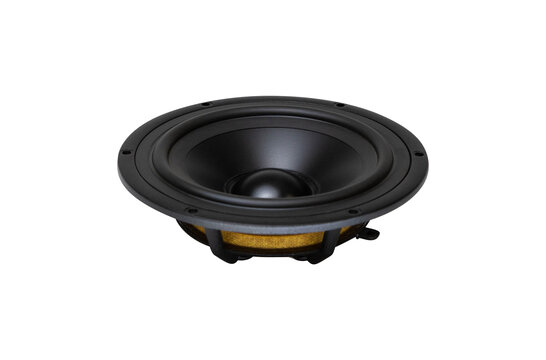

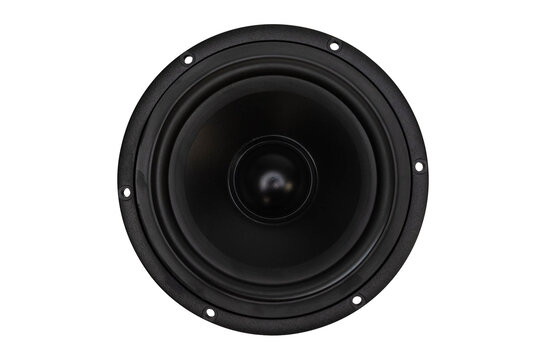

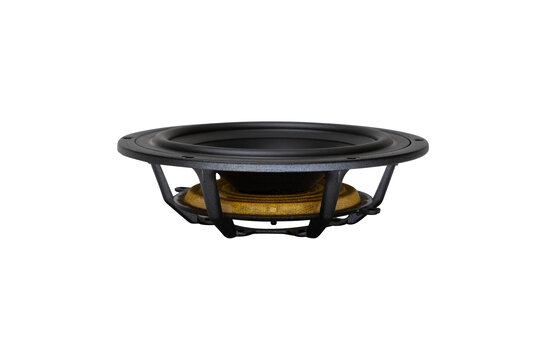

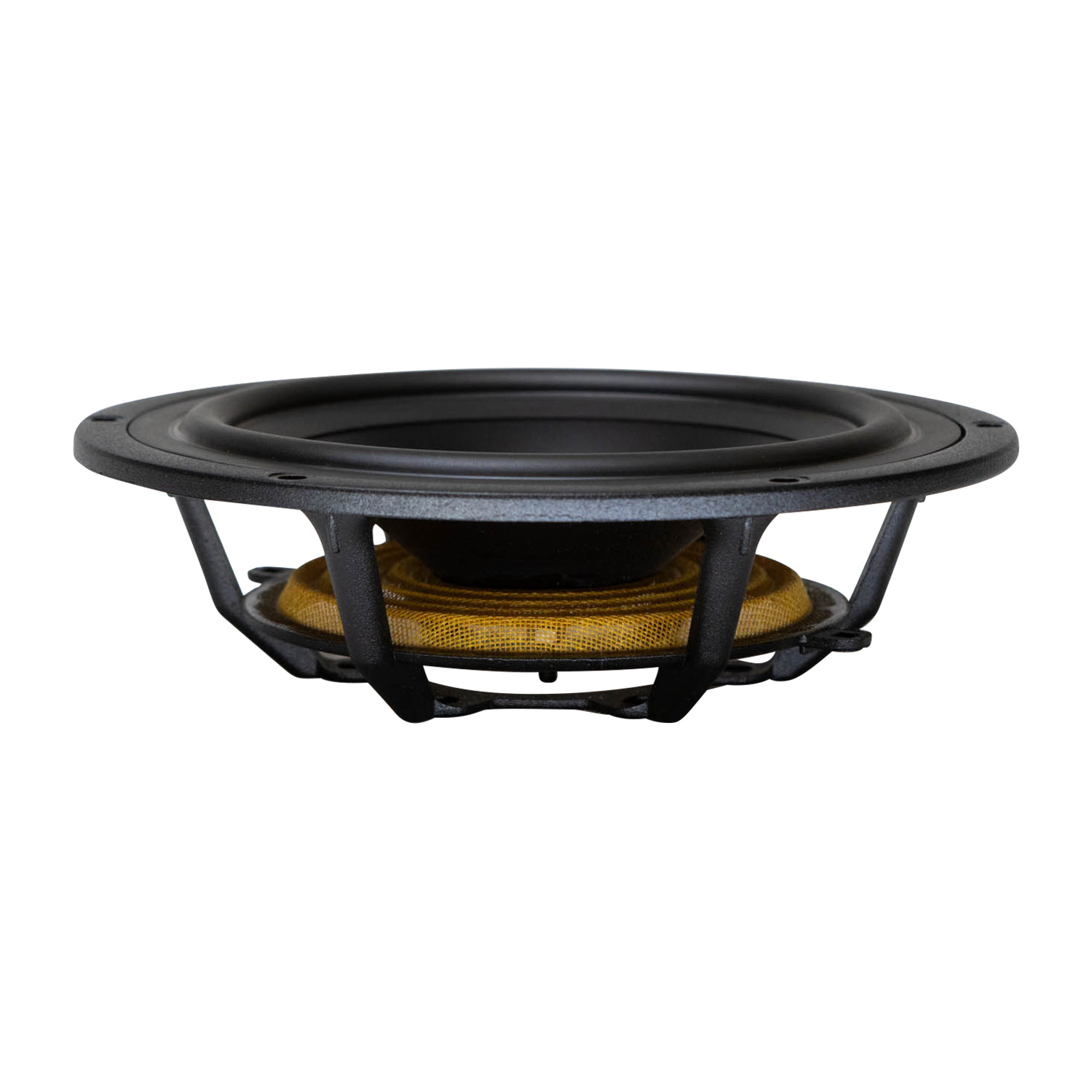

      SEAS SP18R - H9944 6,5'' Passive Radiator

      € 82,60€ 99,95 10+ In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 94,95 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      SP18R is a passive radiator intended for use as an alternative to the port in a bass reflex cabinet, together with an active woofer of similar size or smaller.



      Highlights

      • Brings improvement to the traditional bass reflex port
      • Alternative to the port in a bass reflex cabinet, together with an active woofer of similar size or smaller
      • Easily attach the added mass with the equipped M4mm screw



      Product details

      SEAS SP18R - H9944 6,5'' Passive Radiator



      SP18R is a passive radiator intended for use as an alternative to the port in a bass reflex cabinet, together with an active woofer of similar size or smaller.


      In many applications, the traditional bass reflex port may produce high speed air noise or even have poor effect due to a small port area or a large port length. In such cases, a passive radiator may bring about an improvement.


      The chart below will show you the mass which has to be added to the cone of the passive radiator in order to obtain the desired Helmholtz resonance frequency in a given cabinet volume.

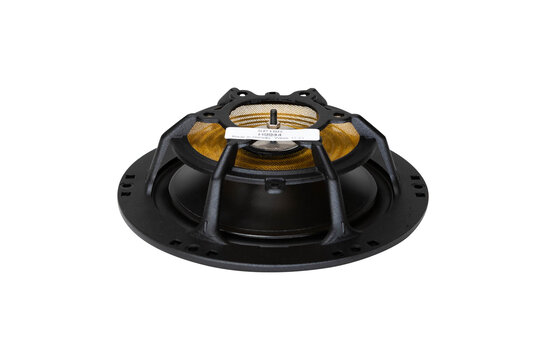

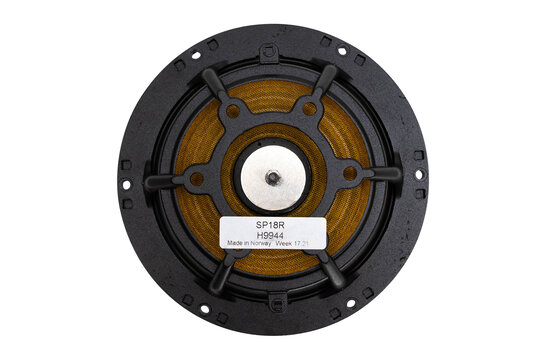

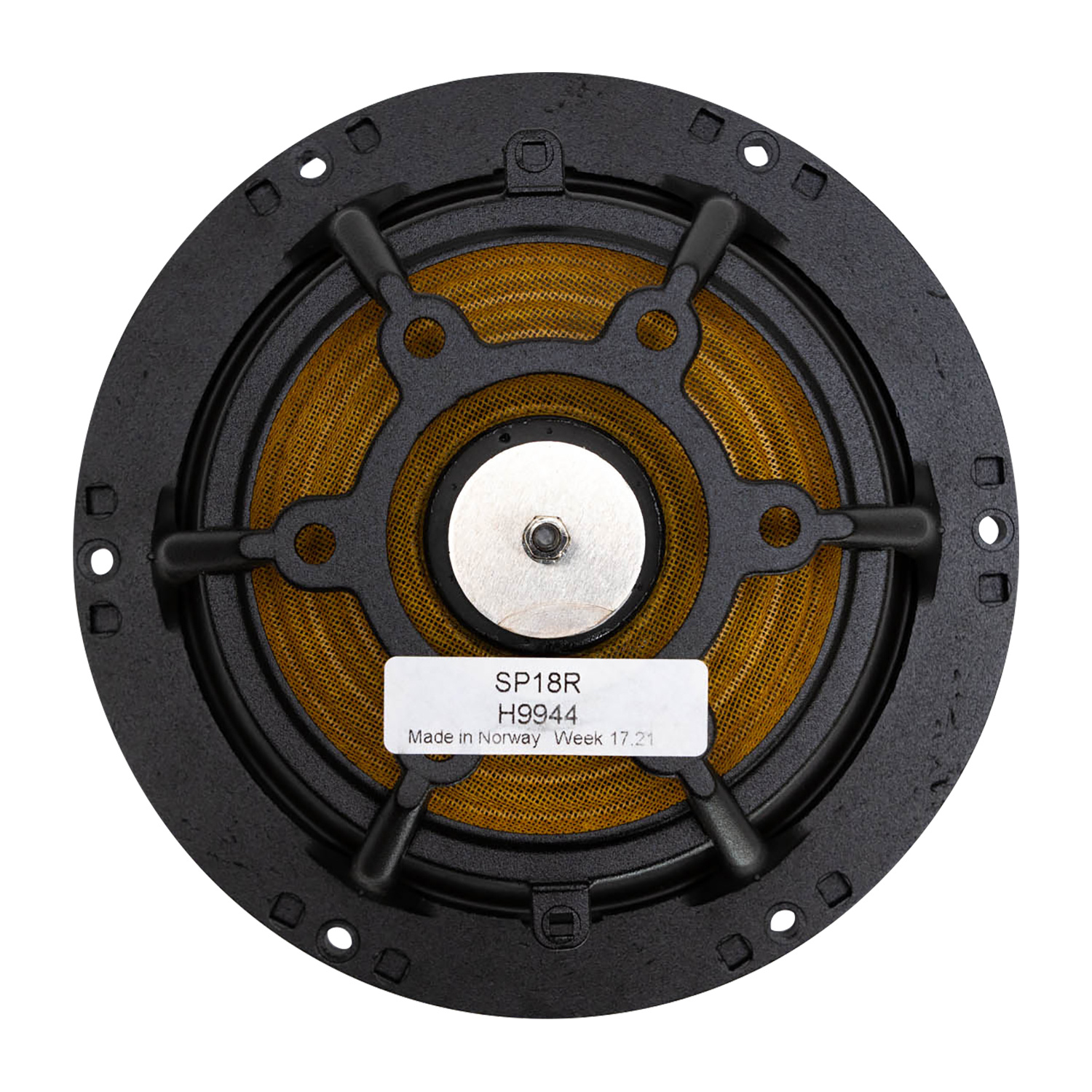

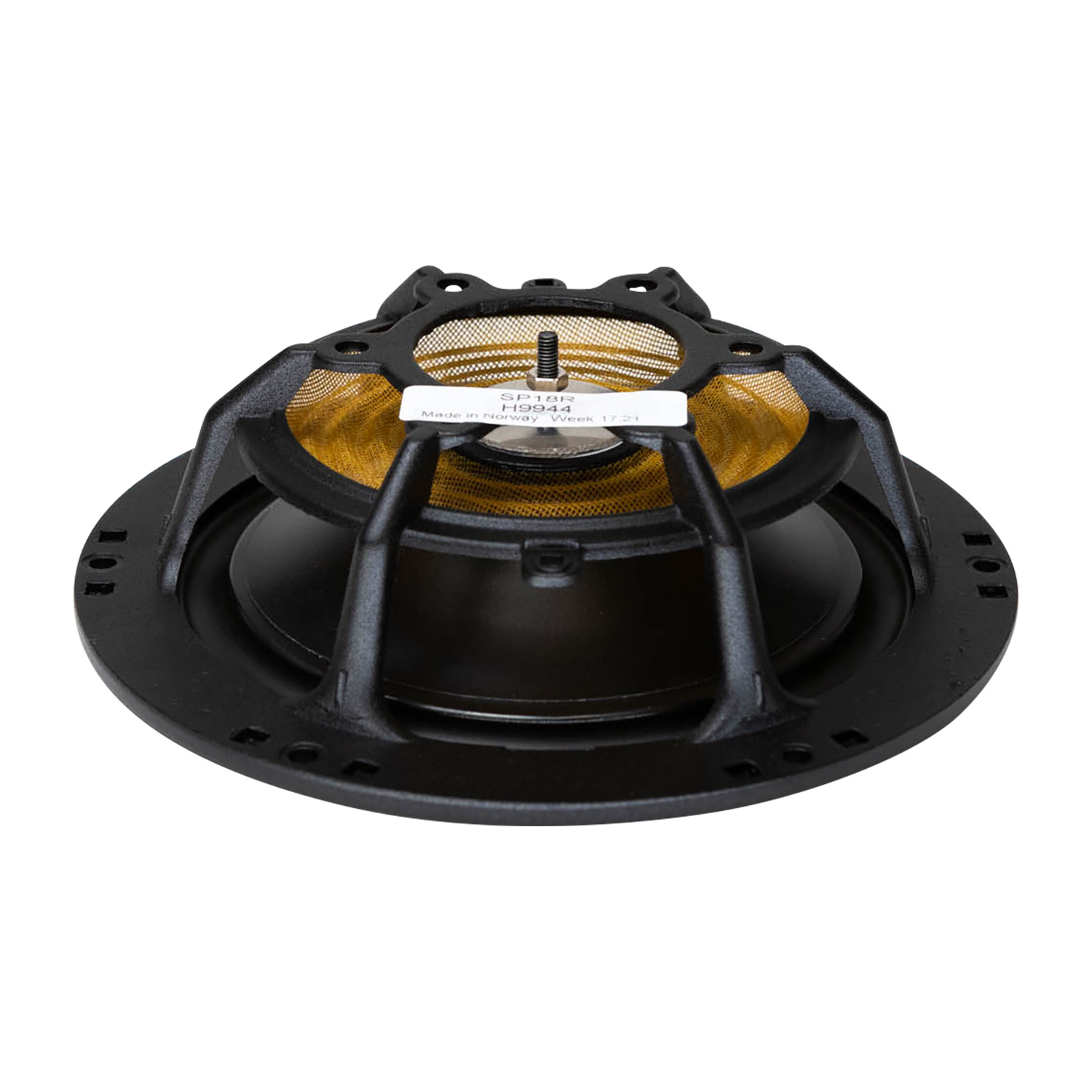

      The passive radiator cone is equipped with an M4mm screw to which you can easily attach the added mass.


      For optimum performance, the passive radiator should be mounted vertically (with horizontal cone axis). This is especially important when a significant additional mass is used.

      Specifications

      Article number
      SP18R
      Woofer Type
      Passive radiator
      Resonant Frequency (Fs)
      26 Hz
      Diaphragm Mass Inc. Airload (Mms)
      21.5 g
      Mechanical Compliance of Suspension (Cms)
      1.74 mm/N
      Surface Area of Cone (Sd)
      130 cm2
      Compliance Equivalent Volume (Vas)
      41 L.
      Maximum Linear Excursion (Xmax)
      19 mm
