        Prestige FA22RCZ - H1597-08 8" Full-range Woofer

        SEAS Prestige FA22RCZ - H1597-08 8" Full-range Woofer

        €239,95

        10 In stock

        Add to cart

        SEAS Prestige FA22RCZ - H1597-08 8" Full-range Woofer

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SEAS
        Show all Full-range woofer
        8" | 8 Ω
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        € 198,31€ 239,95 10 In stock
        • -5% Purchase 4 for only € 227,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer
        Prestige FA22RCZ - H1597-08 8" Full-range Woofer

        Product description SEAS Prestige FA22RCZ - H1597-08 Full-range Woofer

        Highlights

        • Blue-gray paper cone with papyrus fibers
        • Flexible and stable foam rubber surround material.
        • Large, open weave fabric spider
        • Large ferrite ring magnet



        Product details

        SEAS Prestige FA22RCZ - H1597-08 8" Full-range Woofer

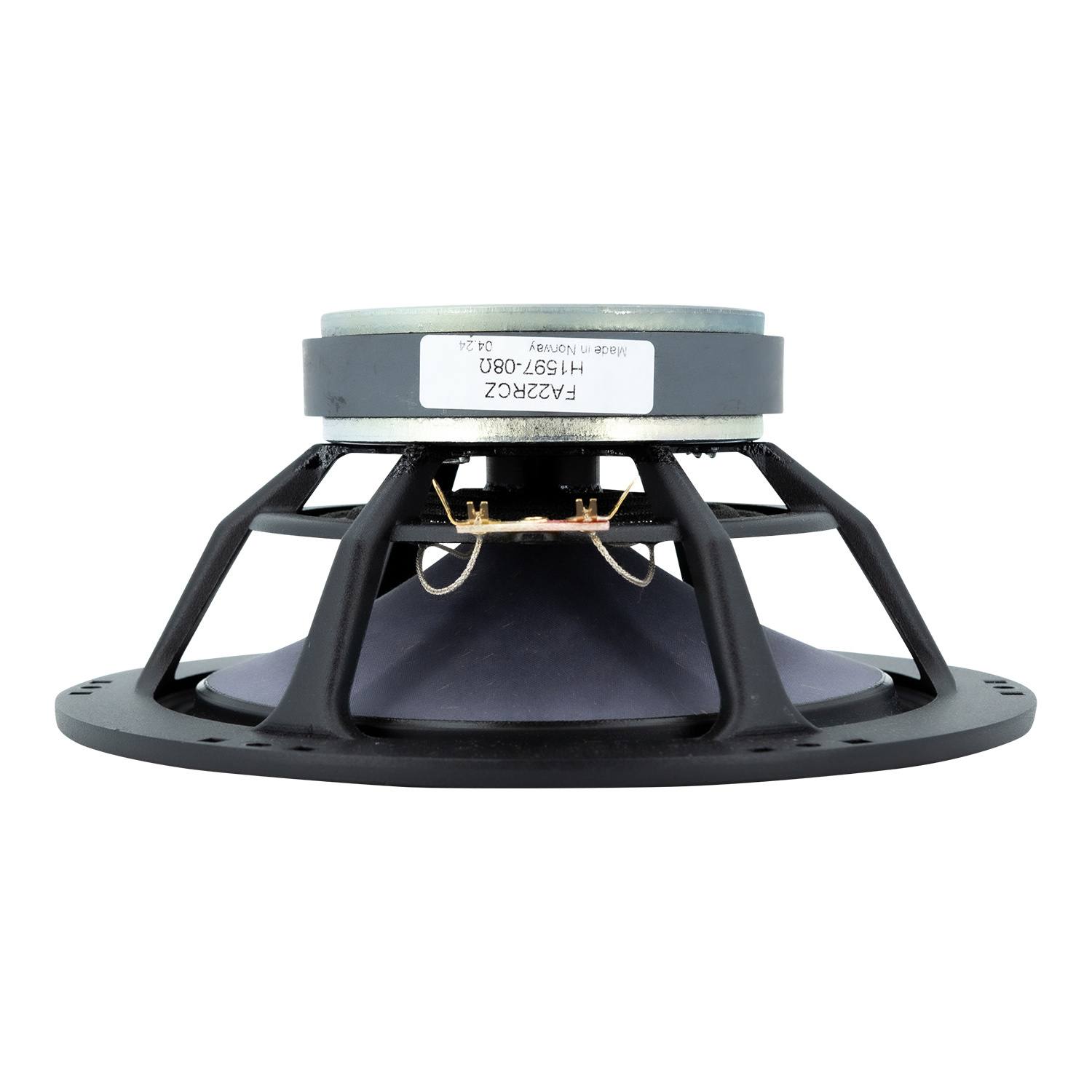

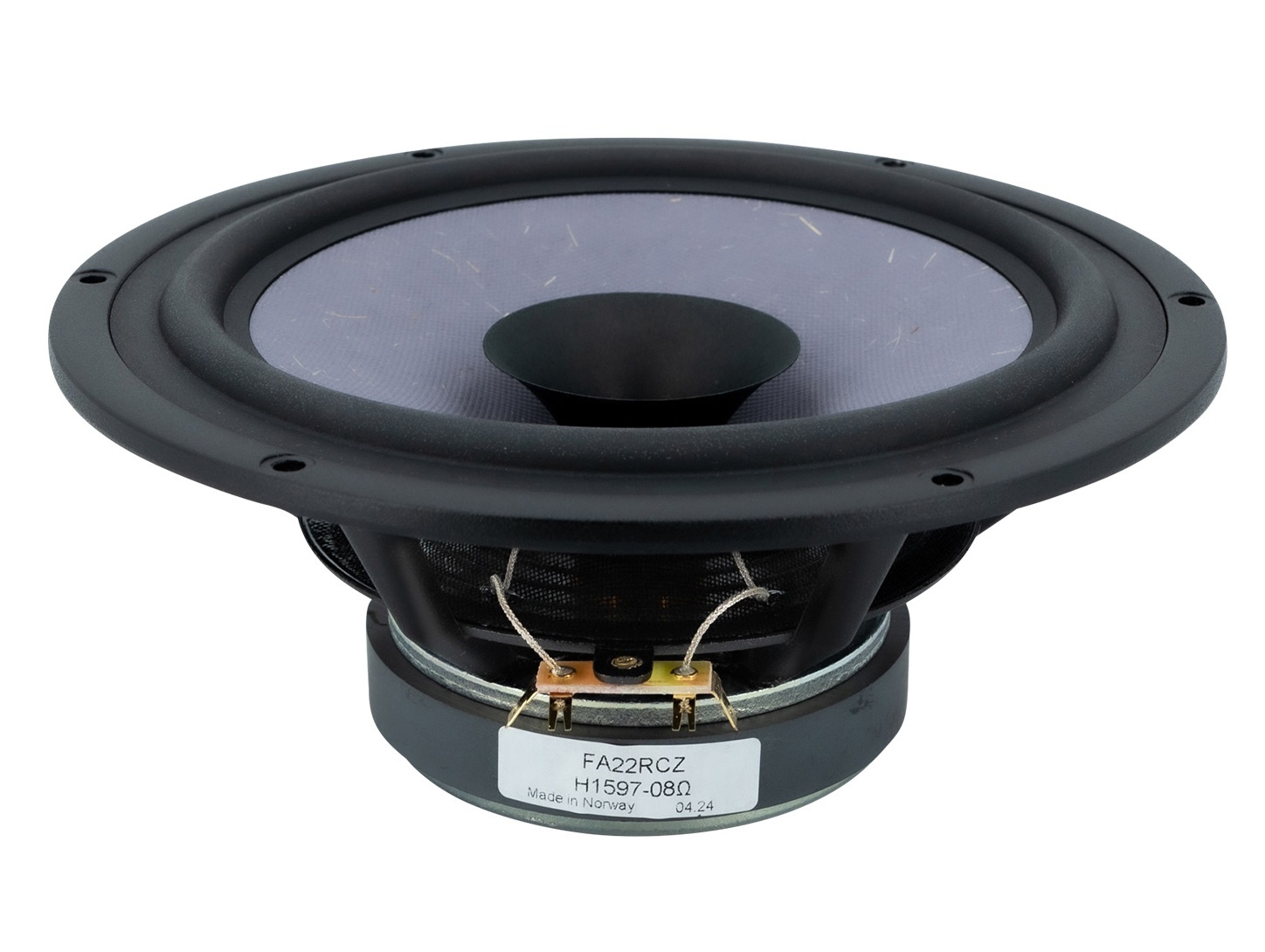

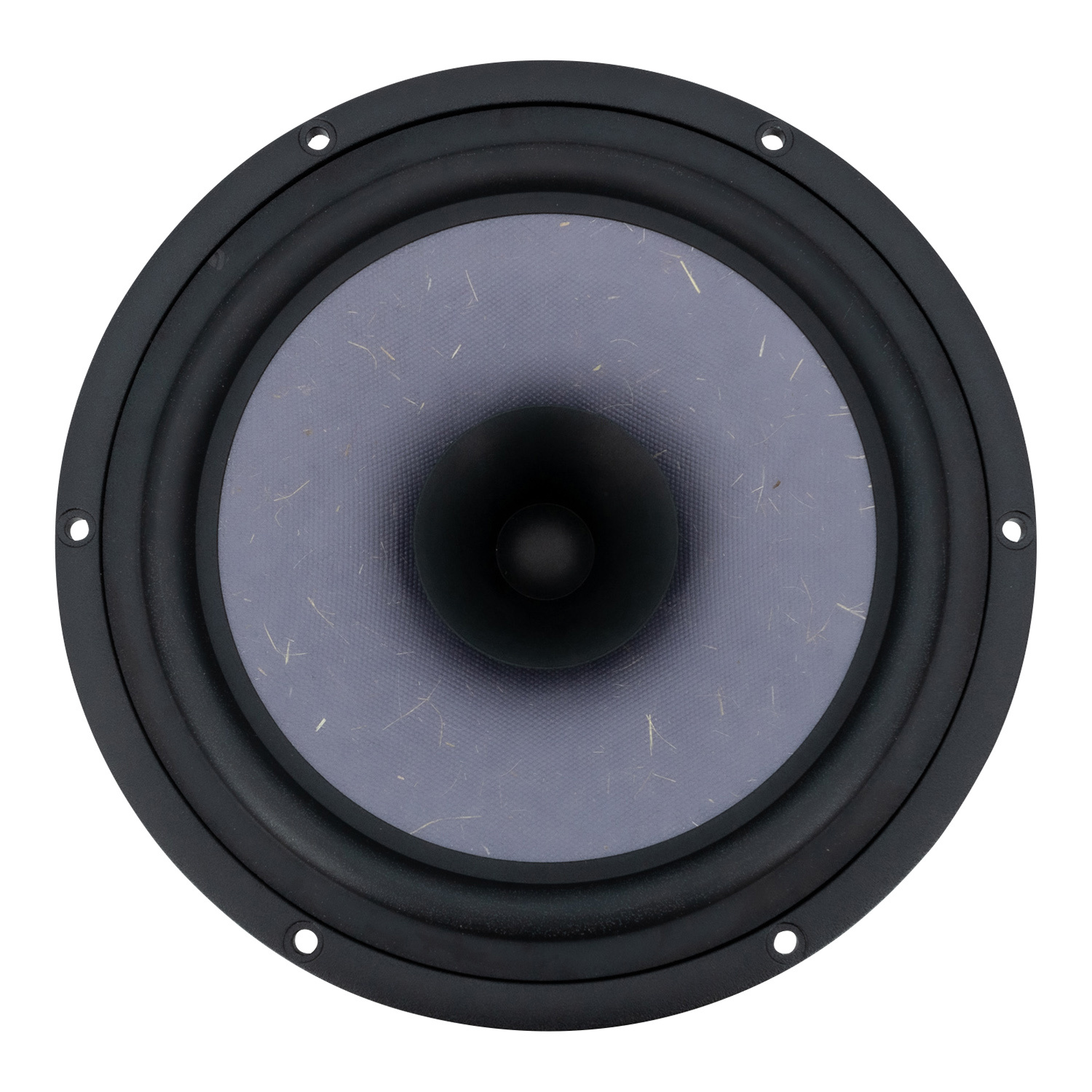

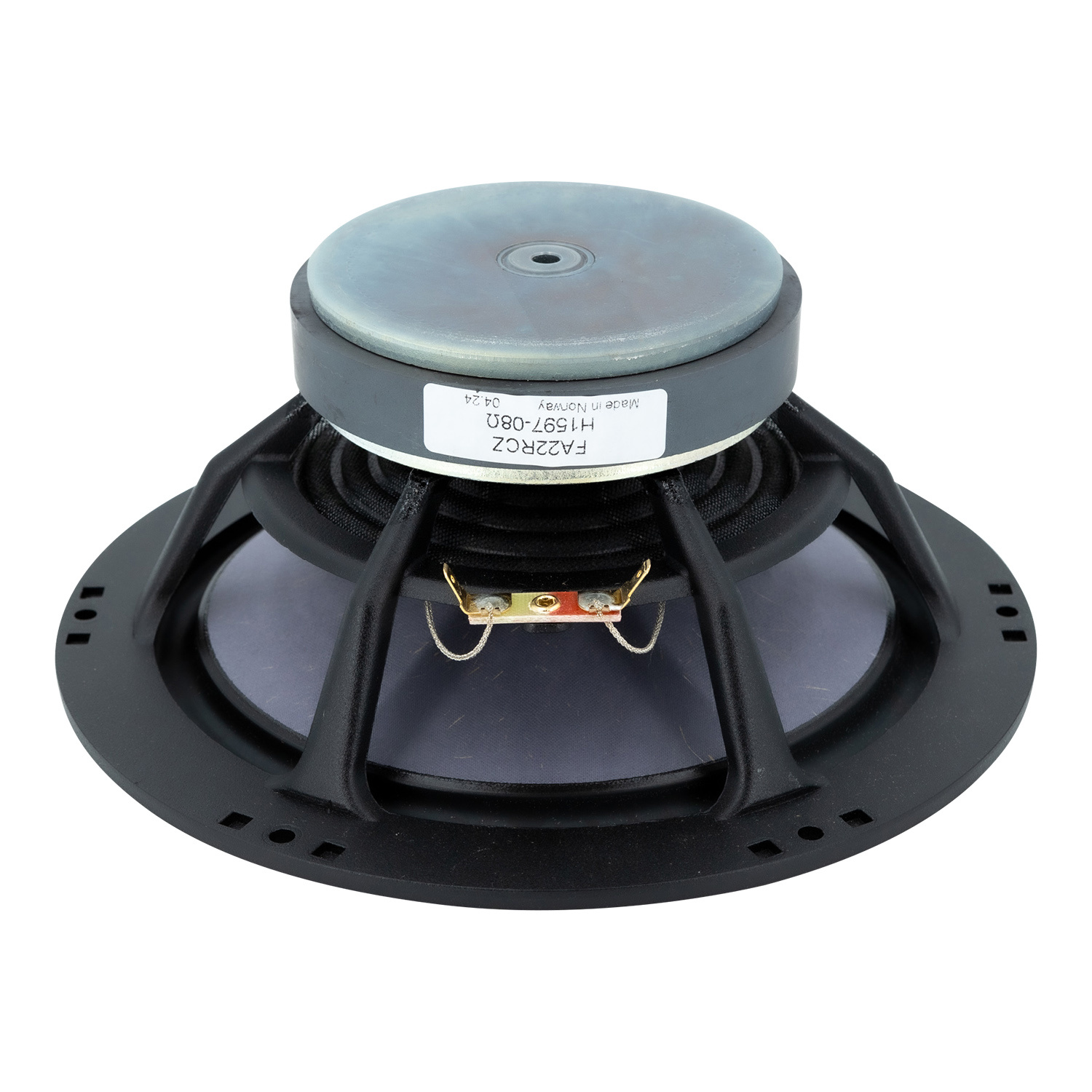

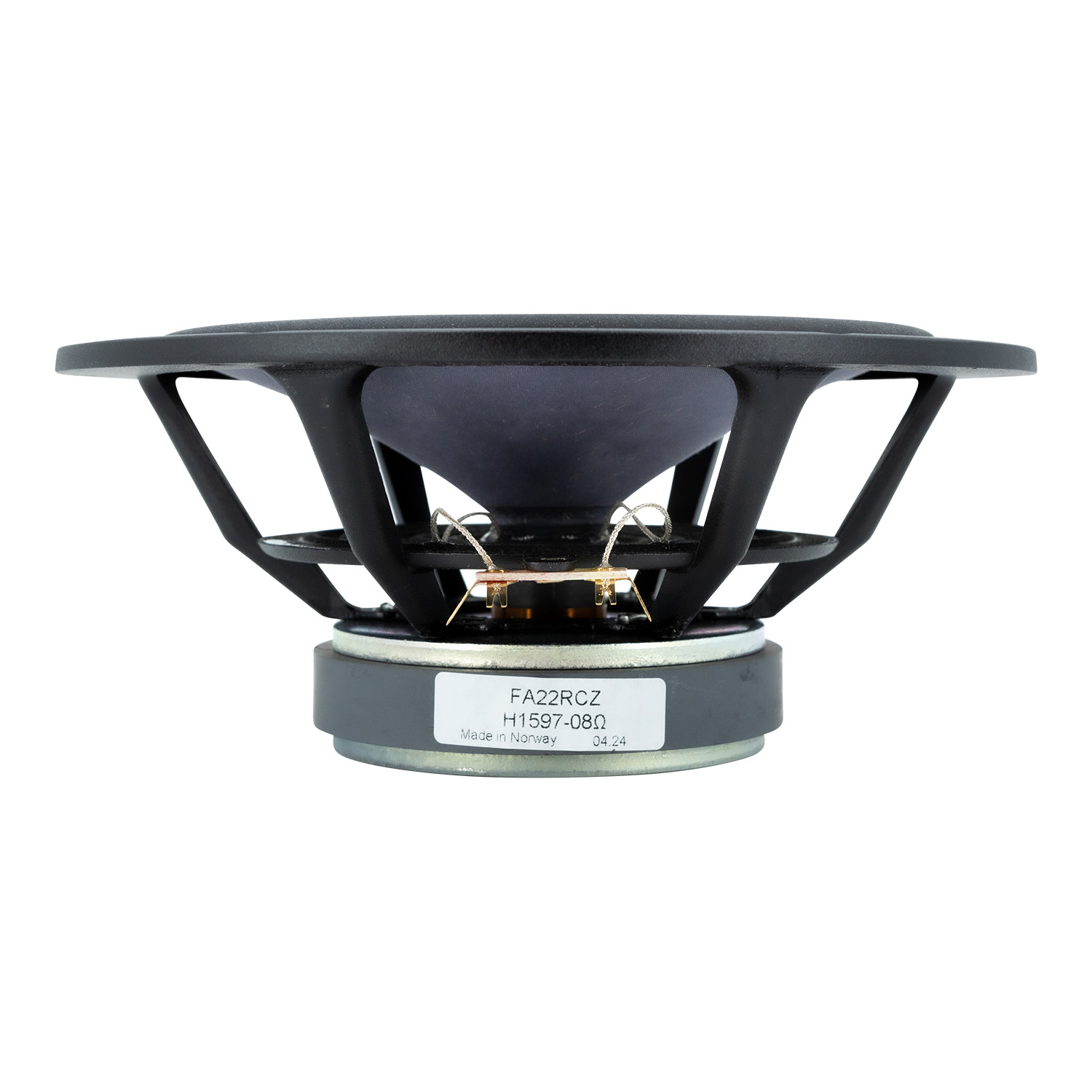

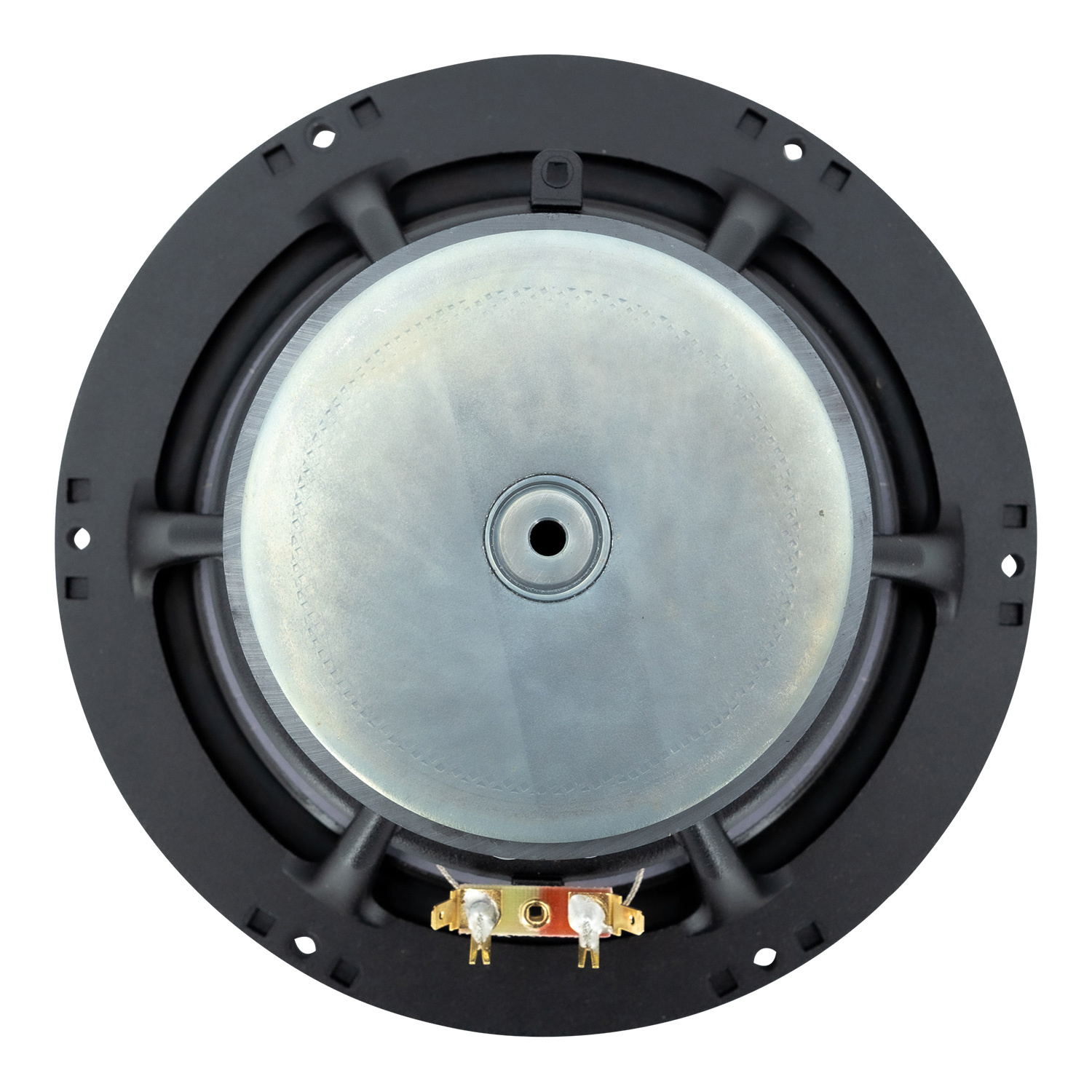

        The FA22RCZ is an 8” full-range driver offering astonishing efficiency and sound clarity. A blue-gray paper cone with papyrus fibers and a high-frequency cone directly coupled to the voice coil set the air in motion. The surround is made from a flexible and stable foam rubber material. The large, open weave fabric spider reflects very little acoustic energy to the cone and offers excellent stiffness linearity. A heat-resistant, nonconductive glass fiber coil former allows a high mechanical Q of the moving system. A large ferrite ring magnet offers a high magnetic gap flux in a cost-efficient way. The pole piece is prolonged forwards and equipped with a deep drawn copper cap to ensure excellent linearity in the force factor and coil inductance. A stiff and stable injection moulded zinc chassis keeps the critical components in perfect alignment. Large windows in the chassis both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

        Show more

        Specifications

        Article number
        FA22RCZ
        EAN
        8785256844418
        Woofer Series
        Prestige
        Woofer Type
        Full Range
        Nominal Diameter
        8 " | 221 mm
        Power Handling (RMS)
        40 W
        Power Handling (max)
        110 W
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        94 dB
        Frequency Response
        30 - 20000 Hz
        Voice Coil Diameter
        26 mm
        Magnet Weight
        0.6 kg
        DC Resistance (Re)
        5.7 Ω
        Voice Coil Inductance (Le)
        0.09 mH
        Resonant Frequency (Fs)
        30 Hz
        Mechanical Q (Qms)
        4.36
        Electromagnetic Q (Qes)
        0.38
        Total Q (Qts)
        0.35
        Diaphragm Mass Inc. Airload (Mms)
        12.6 g
        Mechanical Compliance of Suspension (Cms)
        2.2 mm/N
        Surface Area of Cone (Sd)
        222 cm²
        BL Product (BL)
        6.4 N/A
        Compliance Equivalent Volume (Vas)
        134 L
        Maximum Linear Excursion (Xmax)
        3 mm
        Driver's Mechanical Losses (Rms)
        0.63 Ns/m
        Cone / Diaphragm Material
        Paper
        Surround Material
        Rubber
        Voice Coil Former
        Glass fiber
        Basket / Frame Material
        Injection moulded zinc
        Overall Outside Diameter
        220.6 mm
        Overall Depth
        85.0 mm
        Baffle Cutout Diameter
        186.8 mm
        Bolt Circle Diameter
        209.5 mm
        # Mounting Holes
        6
        Mounting Hole Diameter
        5.0 mm

        Show more

        Reviews

        2 reviews
        Review this product
        5 of 5
        -
        By Batineanu on 29 September 2024
        5 of 5
        I just made some hand thrown ceramic cabinets for these and they sound incredible
