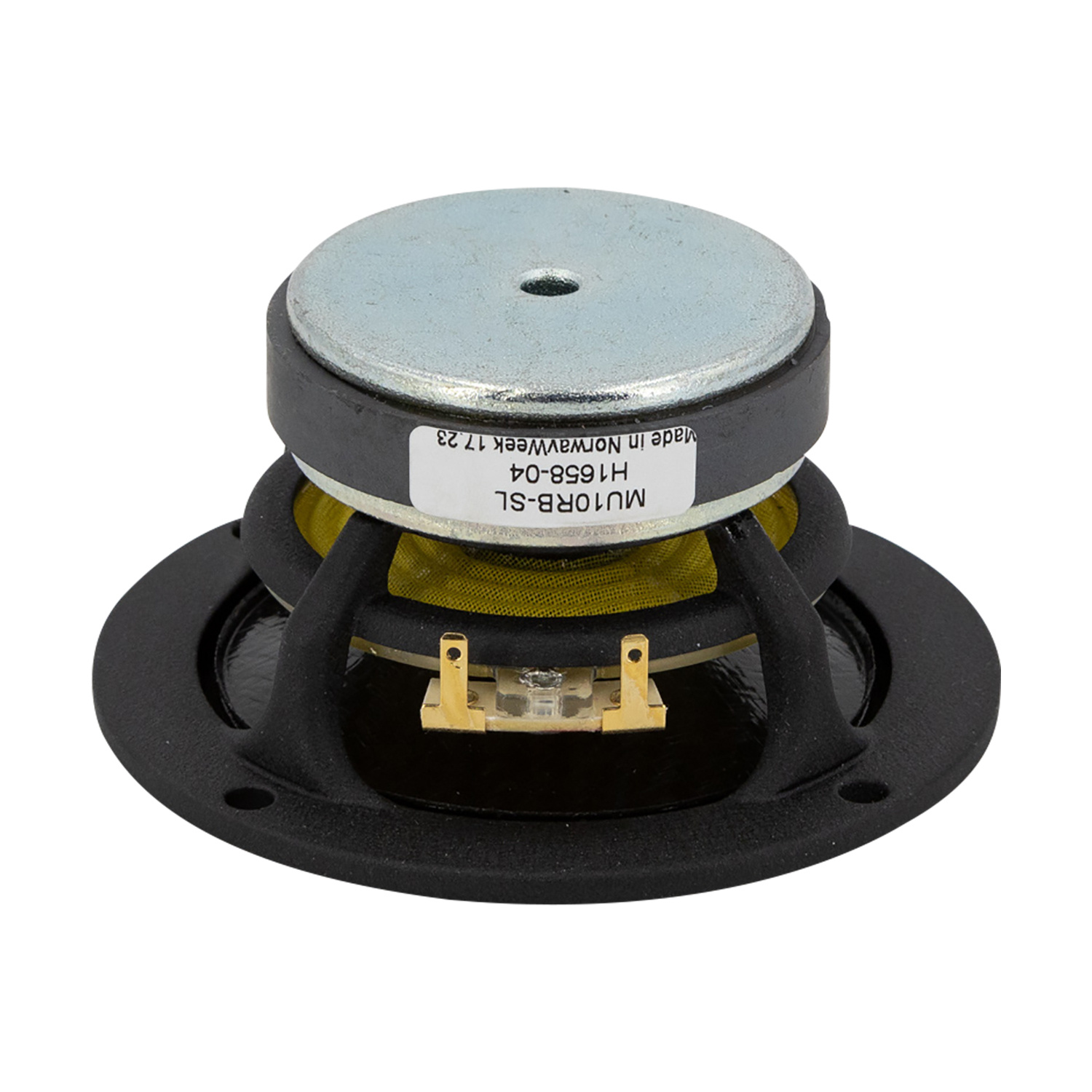

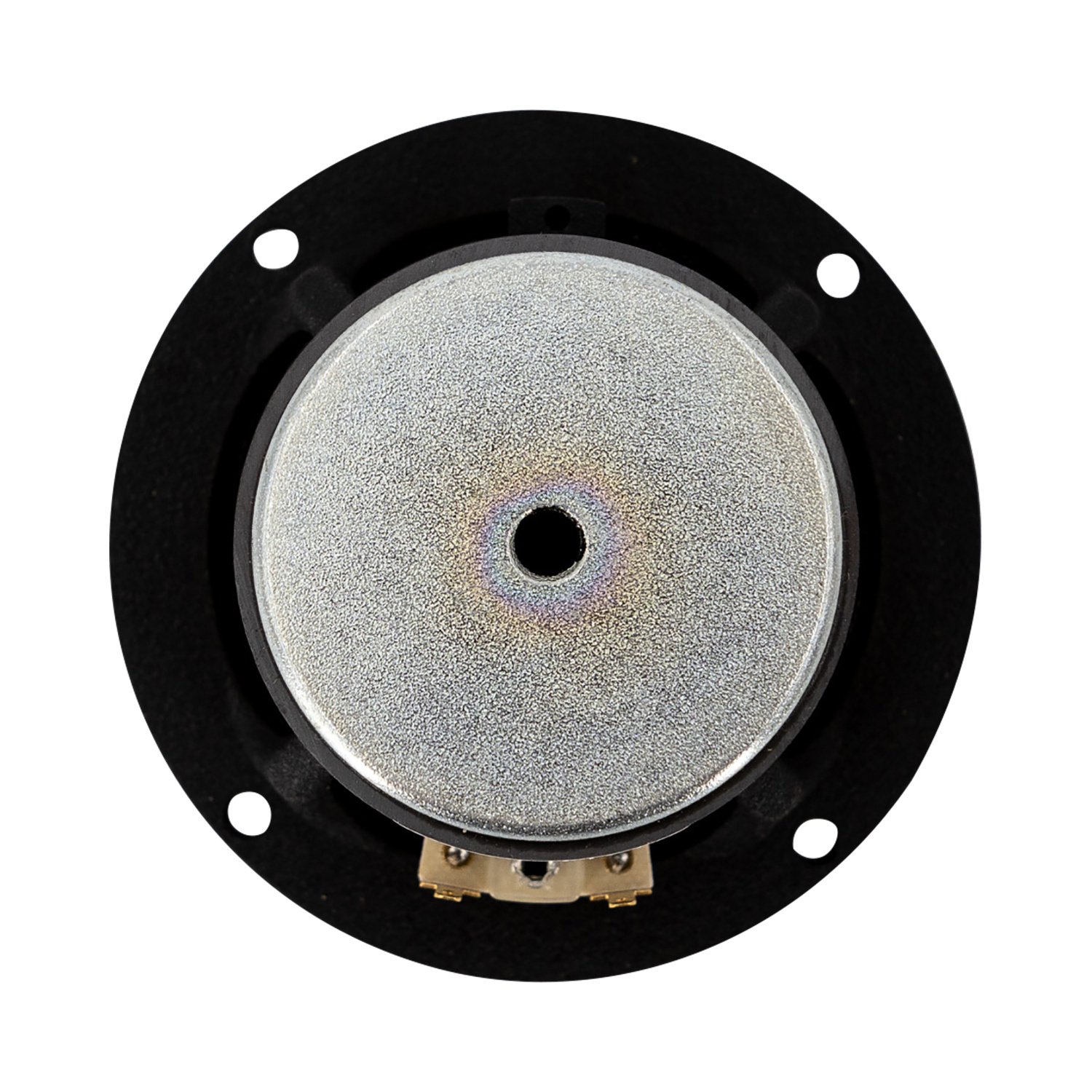

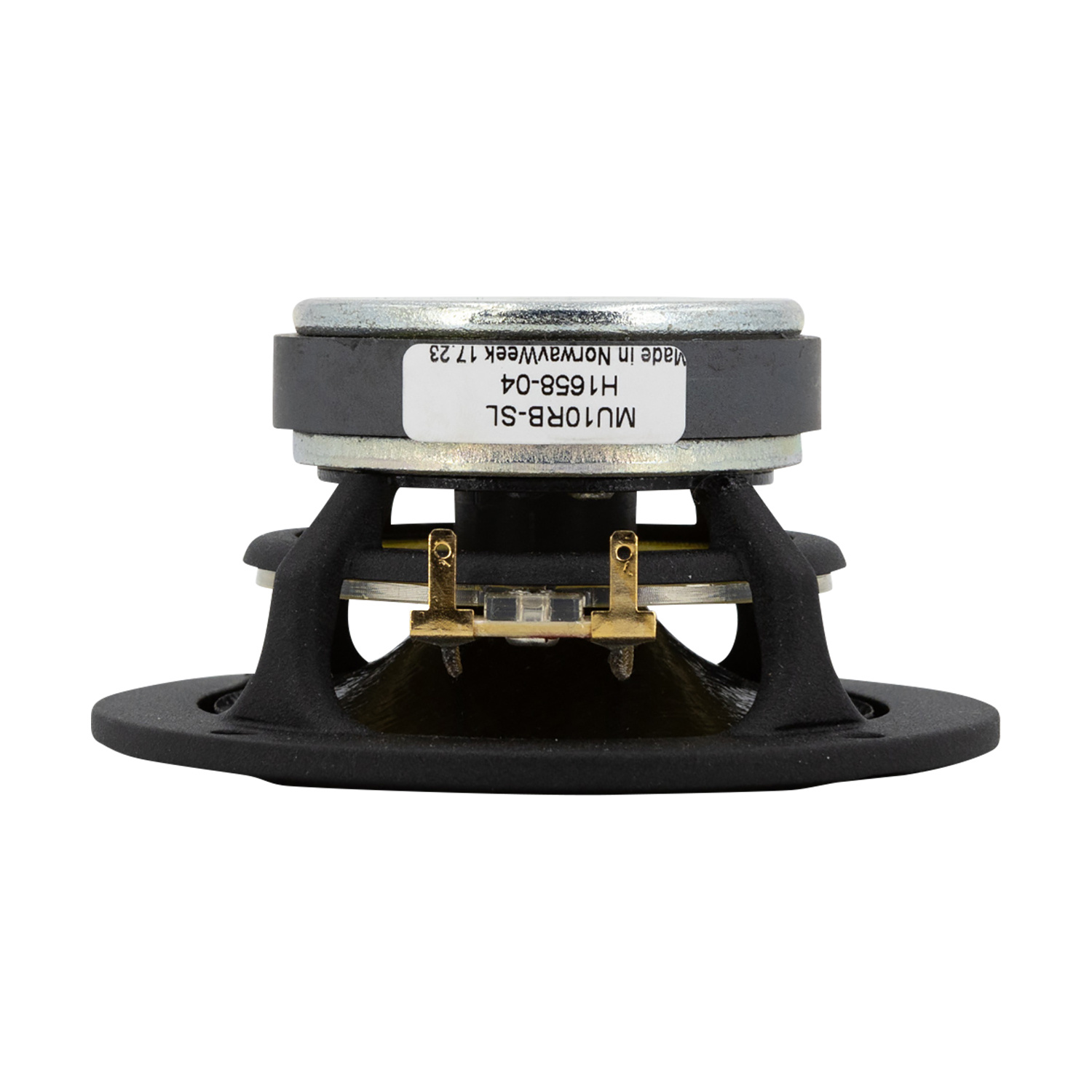

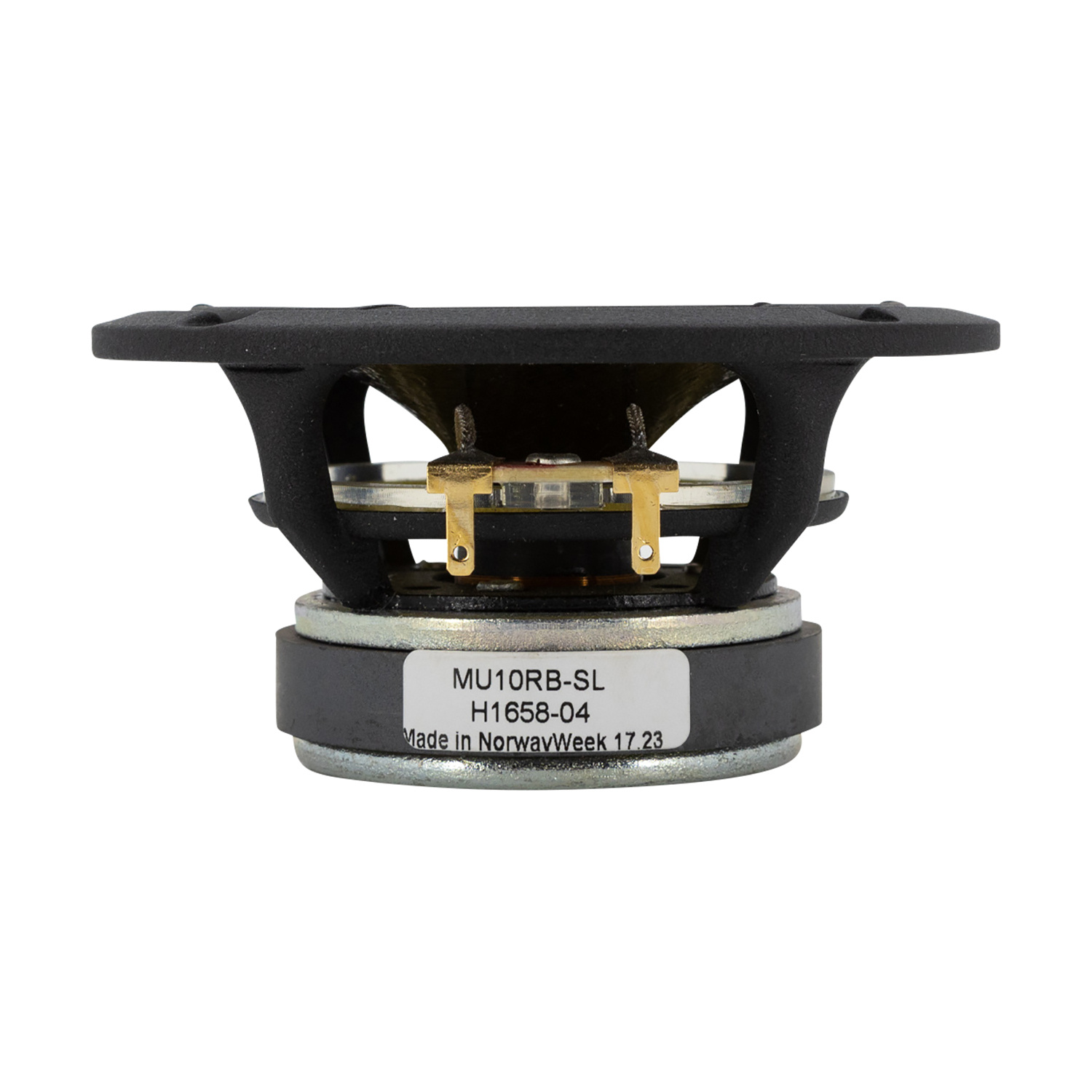

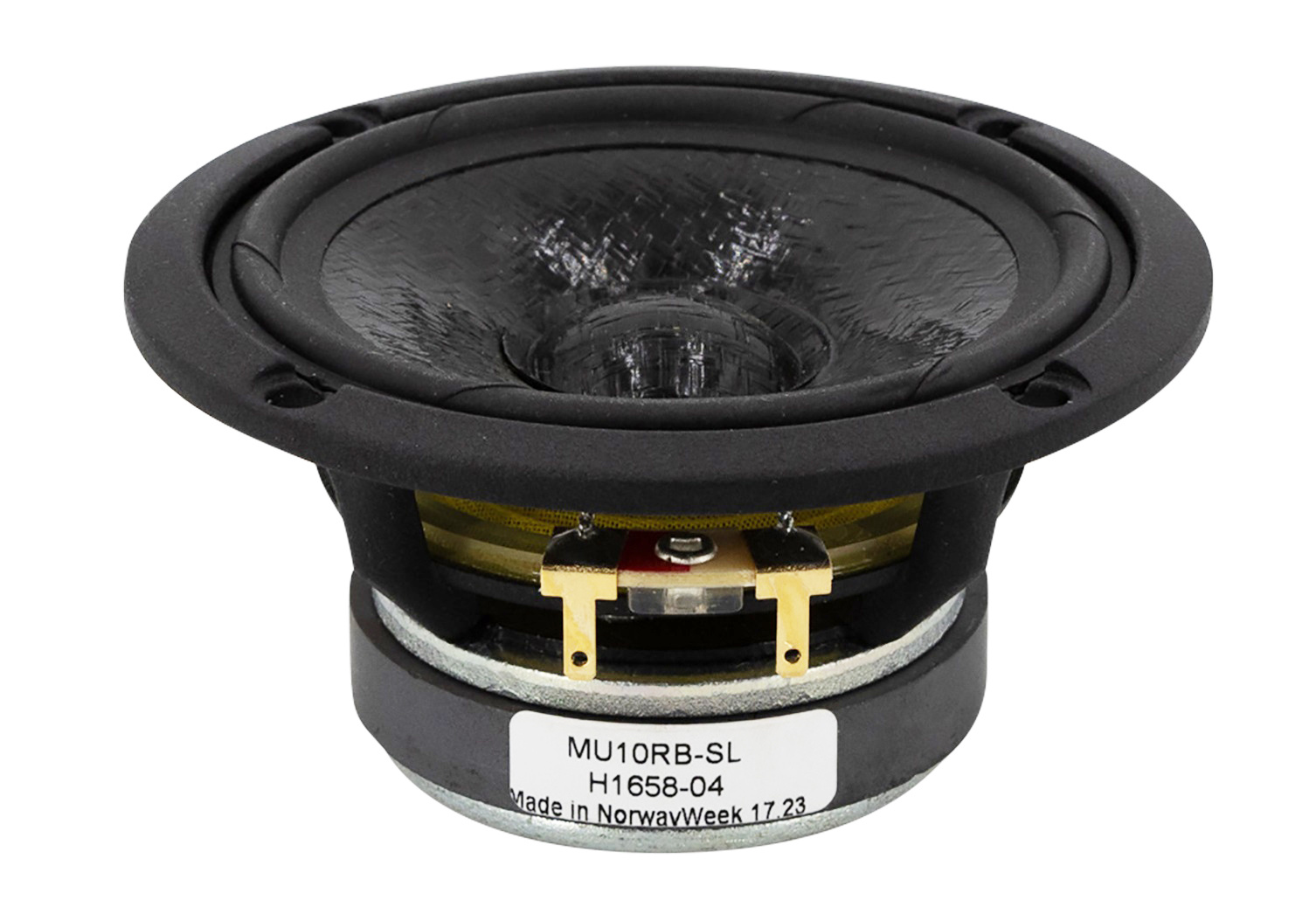

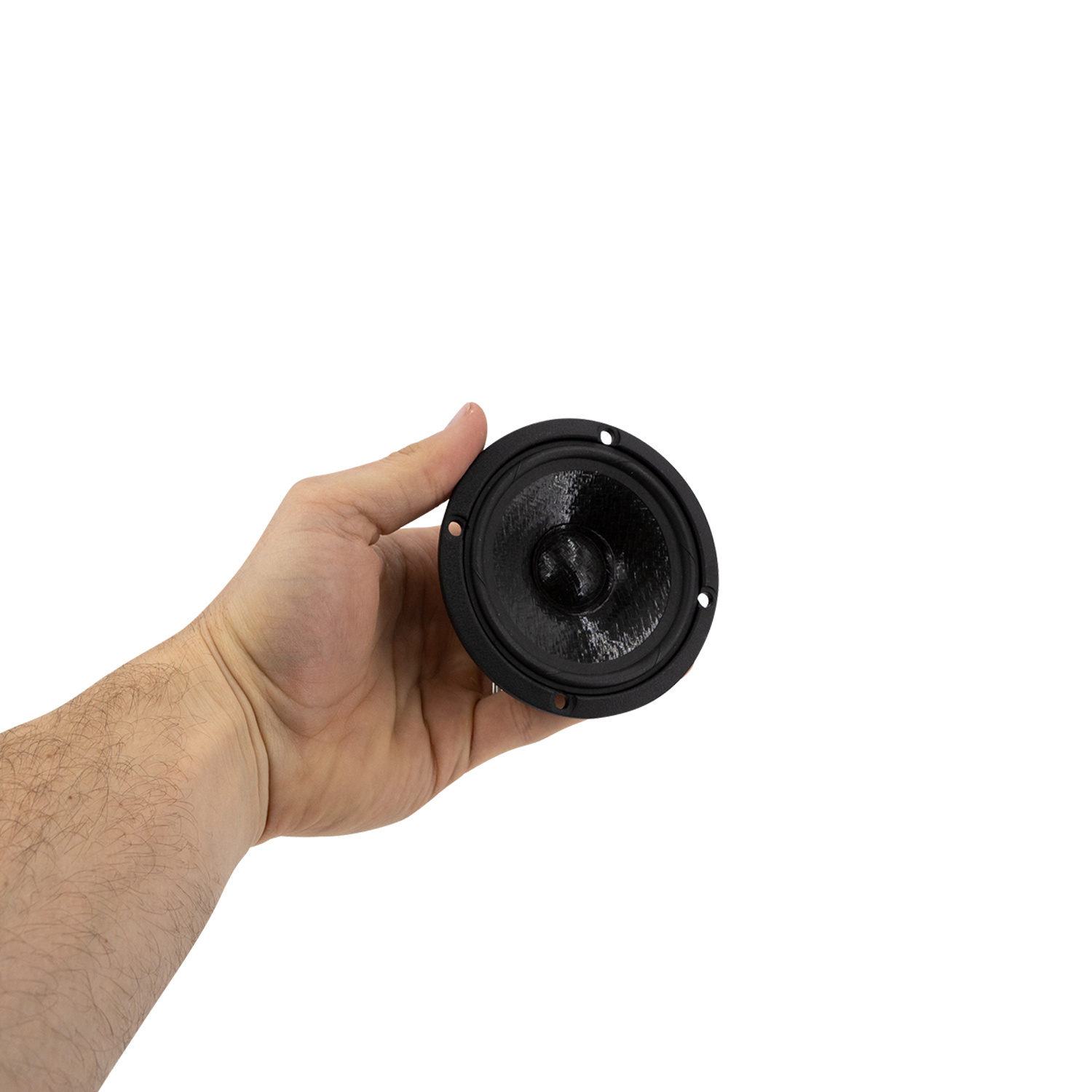

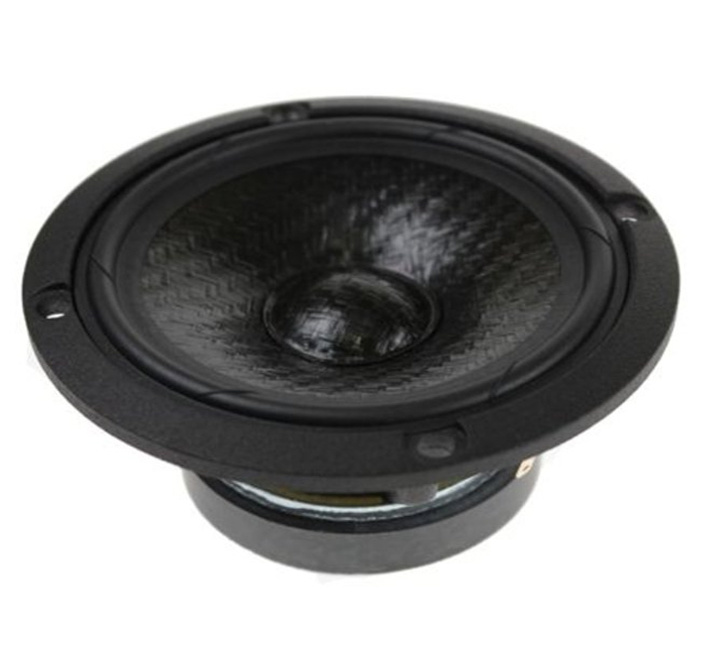

      SEAS Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange

      Brand: SEAS
      Show all Audio components
      4" | 4 Ω
      Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange
      Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange
      Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange
      Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange
      Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange
      Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange
      Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange
      Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange
      € 56,45 2 In stock: delivery time 1-4 business days
      The MU10RB is a 4” midrange driver offering an extraordinary performance and sound clarity. New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response.... Show more
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €53,63 per piece
      +-
      Add to cart
      • Shipping always fully insured and with track & trace
      • Low international shipping rates
      • Same day shipping*
      • In-house technical support
      Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange
      Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange
      Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange
      Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange
      Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange
      Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange
      Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange
      Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange

      Product description

      Highlights

      • Long term power handling (RMS) is 40 Watts

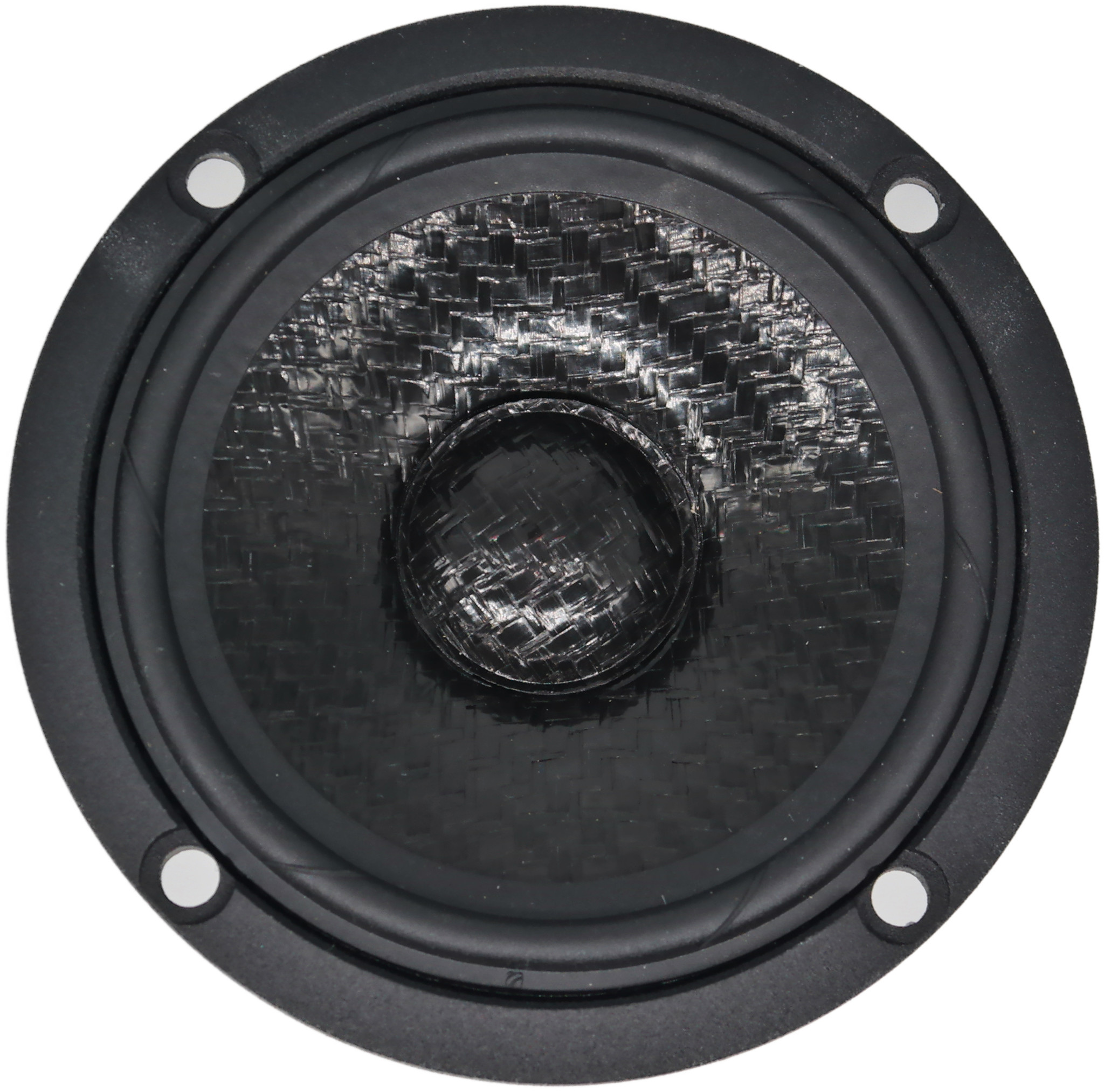

      • New Curv cone, a woven polypropylene with excellent internal damping
      • The pole piece is prolonged forwards and equipped with a deep drawn copper cap to ensure excellent linearity in the force factor and coil inductance



      Product details

      Seas Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange



      The MU10RB is a 4” midrange driver offering an extraordinary performance and sound clarity. New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response.



      A high loss natural rubber surround makes this driver perform its best as a midrange. The large, open weave fabric spider reflects very little acoustic energy to the cone and offers excellent stiffness linearity. A stiff and stable injection molded aluminum chassis keeps the critical components in perfect alignment.



      The pole piece is prolonged forwards and equipped with a deep drawn copper cap to ensure excellent linearity in the force factor and coil inductance. Small size combined with an excellent performance makes this driver the perfect election for any application where limited space is a critical parameter.

      Specifications

      Article number
      MU10RB-SL
      Woofer Series
      Prestige Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      4"
      Power Handling (RMS)
      40 Watts
      Power Handling (max)
      100 Watts
      Impedance
      4 ohms
      Sensitivity
      84.7 dB 2.83V/1m
      Frequency Response
      100 to 20,000 Hz
      Voice Coil Diameter
      0.31"
      Magnet Weight
      3.17 oz.
      DC Resistance (Re)
      3.3 ohms
      Voice Coil Inductance (Le)
      0.14 mH
      Resonant Frequency (Fs)
      100 Hz
      Mechanical Q (Qms)
      1.63
      Electromagnetic Q (Qes)
      1.15
      Total Q (Qts)
      0.67
      Diaphragm Mass Inc. Airload (Mms)
      4.51g
      Mechanical Compliance of Suspension (Cms)
      0.6 mm/N
      Compliance Equivalent Volume (Vas)
      0.03 ft.³
      Maximum Linear Excursion (Xmax)
      2 mm
      Overall Outside Diameter
      3.86"
      Overall Depth
      1.93"
      Baffle Cutout Diameter
      3.15"
      Bolt Circle Diameter
      3.5"
      # Mounting Holes
      4
      Mounting Hole Diameter
      0.2"
