      SEAS Prestige MR18REX/XF - H1699-08/06 7" Coaxial Woofer

      € 181,78€ 219,95 10+ In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 208,95 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Long term power handling (RMS) is 80 Watts (Woofer) and 90 Watts (Tweeter)
      • The coaxially arranged precoated fabric dome high frequency unit has a low resonance frequency and integrates with the cone driver to a point source
      • The pre-coated reed-paper cone acts as a piston throughout the recommended frequency range



      Product details

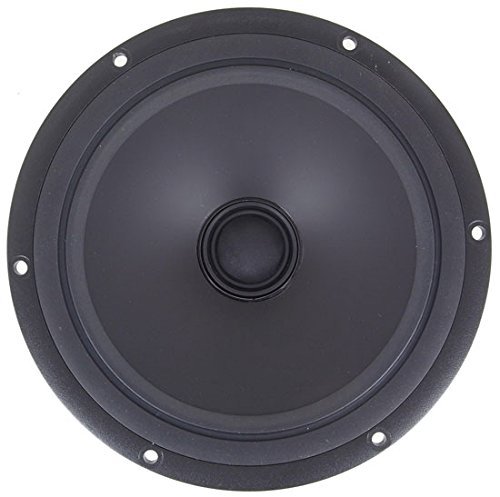

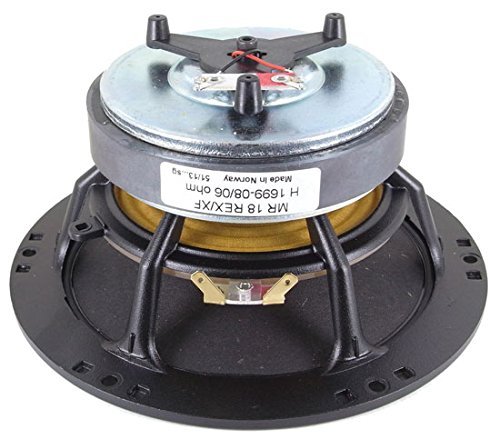

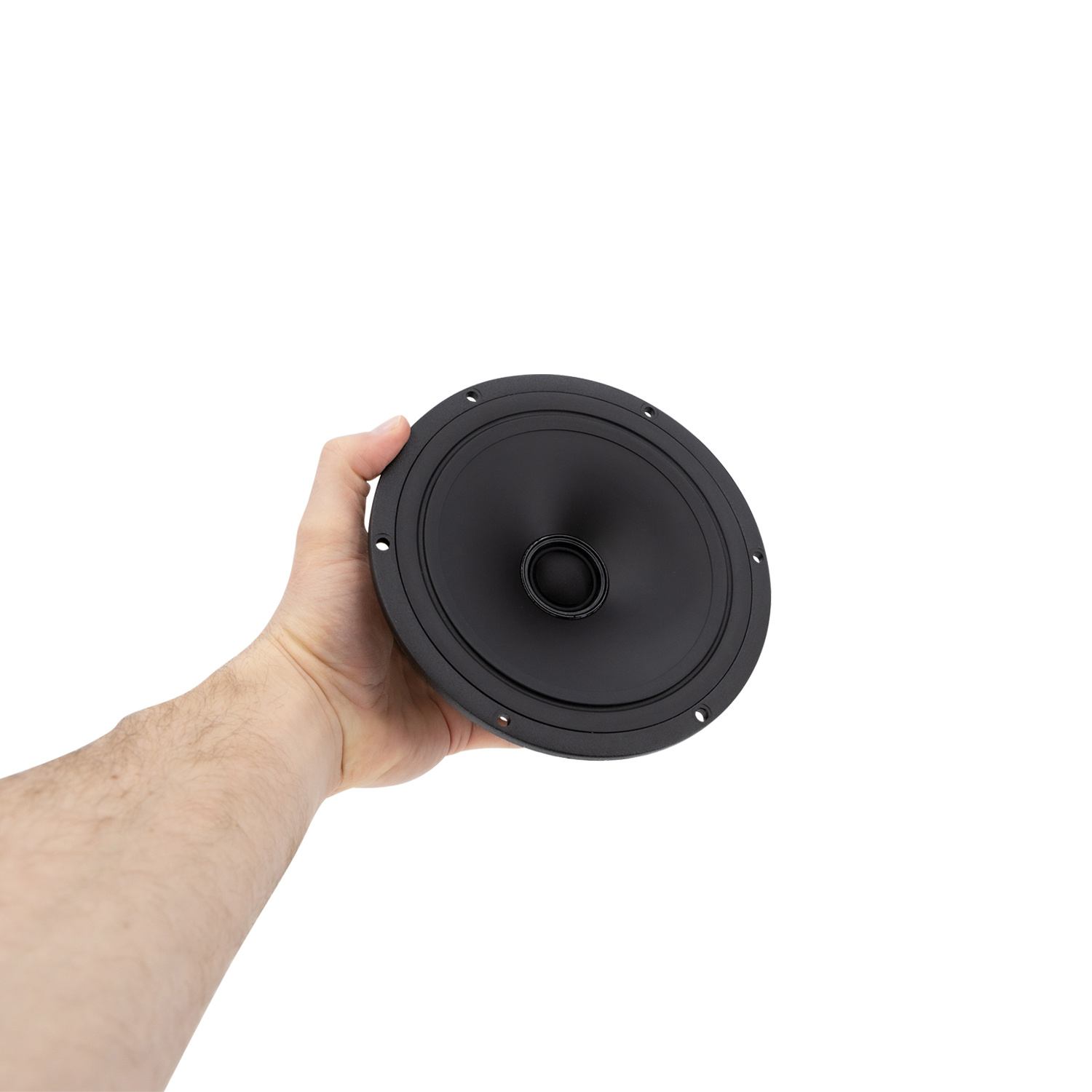

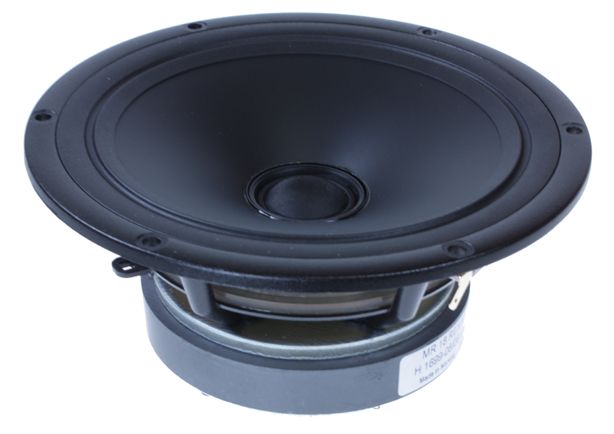

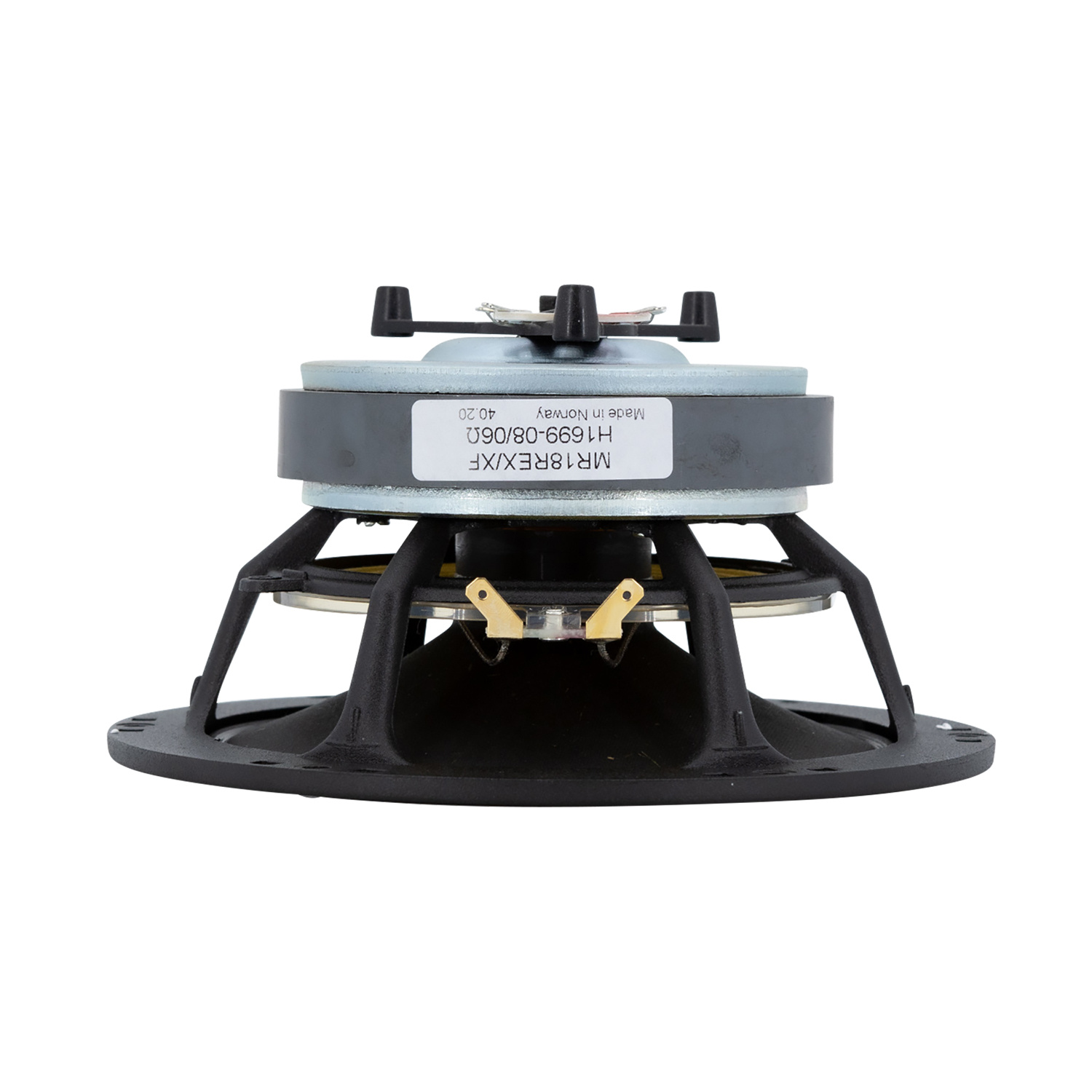

      Seas Prestige MR18REX/XF - H1699-08/06 7" Coaxial Woofer



      The MR18REX/XF is a midrange coaxial loudspeaker providing high quality sound in a very compact format. The cone of the midrange acts as a horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn.



      The coaxially arranged precoated fabric dome high frequency unit has a smooth frequency response and integrates with the cone driver to a point source. Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels. The pre-coated reed-paper cone acts as a piston throughout the recommended frequency range. The completely new rubber surround reduces resonances and prevents surround break up in the midrange band.



      The surround’s small inverted roll, combined with a profile that follows the shape of the cone, results in almost total elimination of diffraction effects on the tweeter’s output.

      Specifications

      Article number
      MR18REX/XF
      Woofer Series
      Prestige Series
      Woofer Type
      Coaxial
      Nominal Diameter
      7"
      Power Handling (RMS)
      80 Watts
      Power Handling (max)
      250 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      89 dB 2.83V/1m
      Frequency Response
      220 - 25,000 Hz
      Voice Coil Diameter
      1.53"
      Magnet Weight
      22.5 oz.
      DC Resistance (Re)
      6.2 ohms
      Voice Coil Inductance (Le)
      0.43 mH
      Resonant Frequency (Fs)
      126 Hz
      Mechanical Q (Qms)
      2.49
      Electromagnetic Q (Qes)
      0.96
      Total Q (Qts)
      0.69
      Diaphragm Mass Inc. Airload (Mms)
      0.16g
      Mechanical Compliance of Suspension (Cms)
      0.1 mm/N
      Compliance Equivalent Volume (Vas)
      0.10 ft.³
      Maximum Linear Excursion (Xmax)
      3 mm
      Overall Outside Diameter
      6.93"
      Overall Depth
      3.69"
      Baffle Cutout Diameter
      5.72"
      Bolt Circle Diameter
      6.54"
      # Mounting Holes
      6
