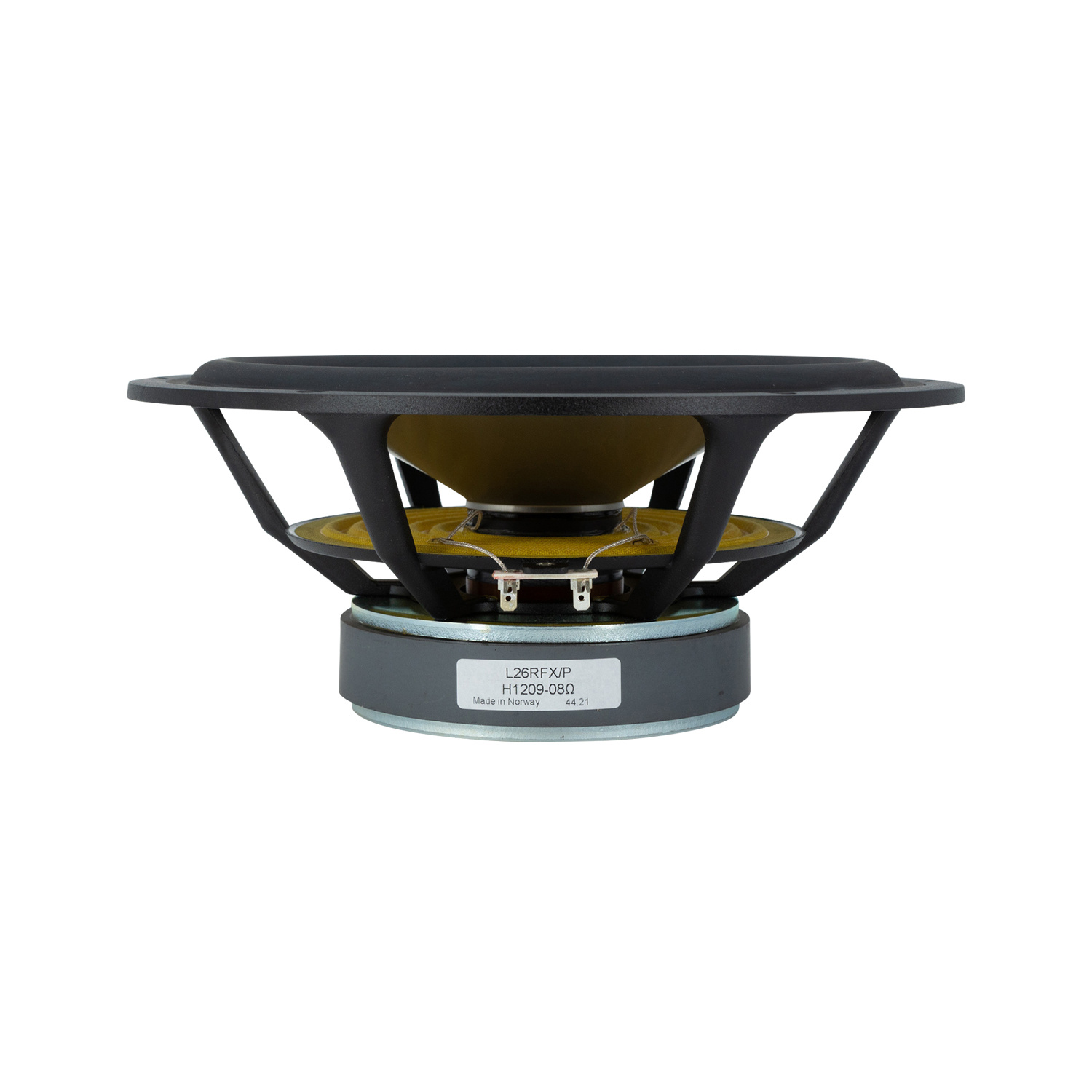

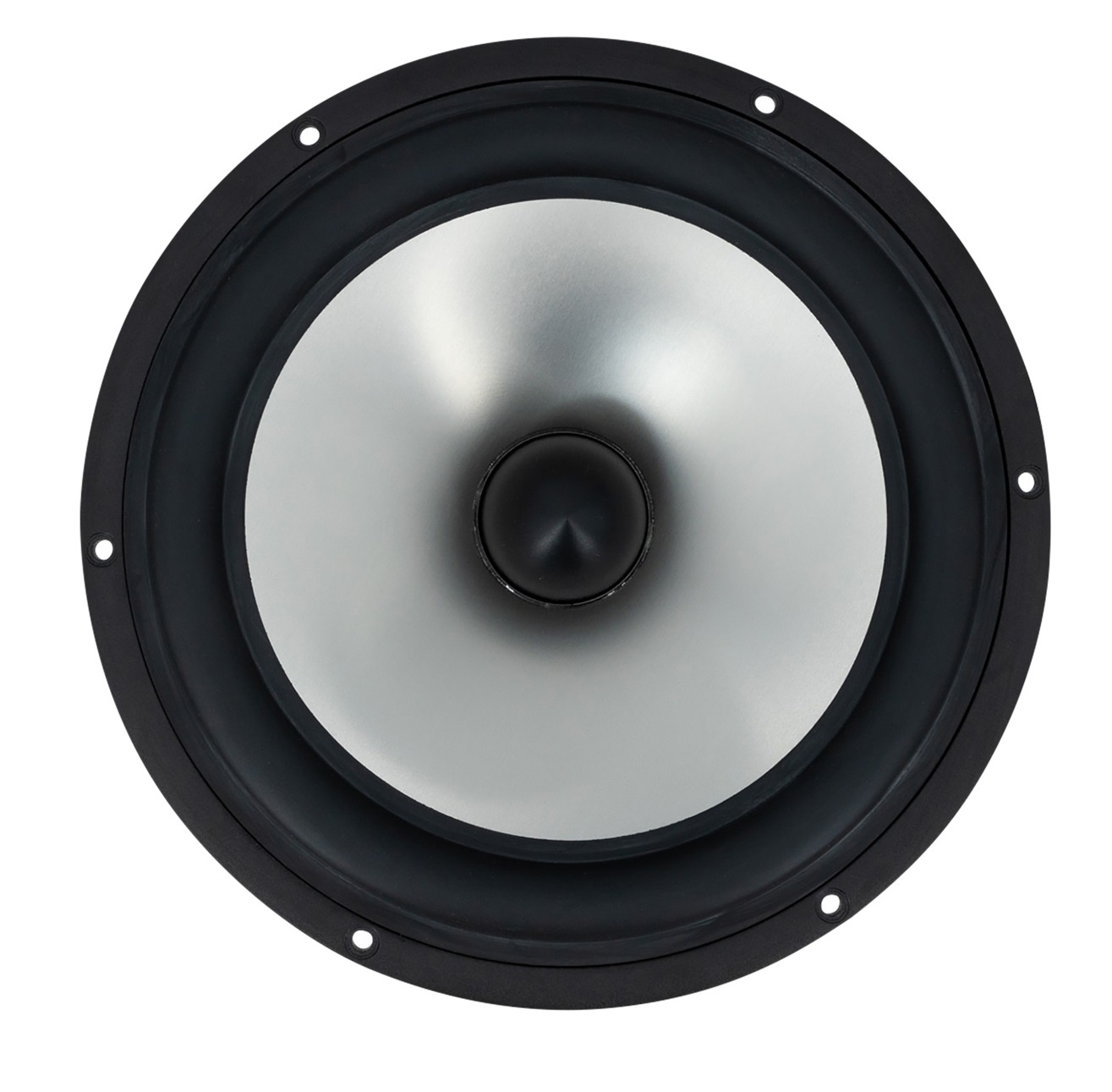

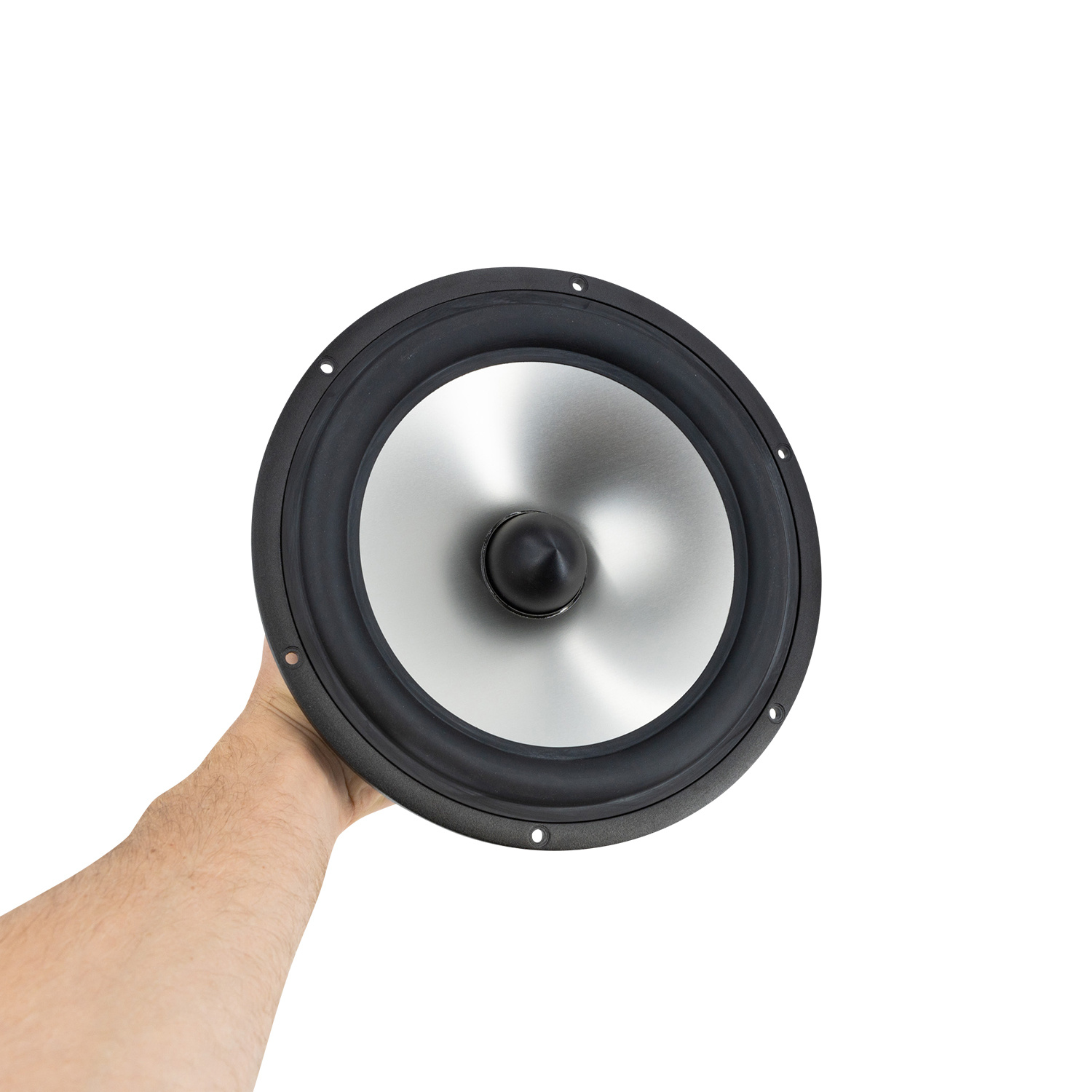

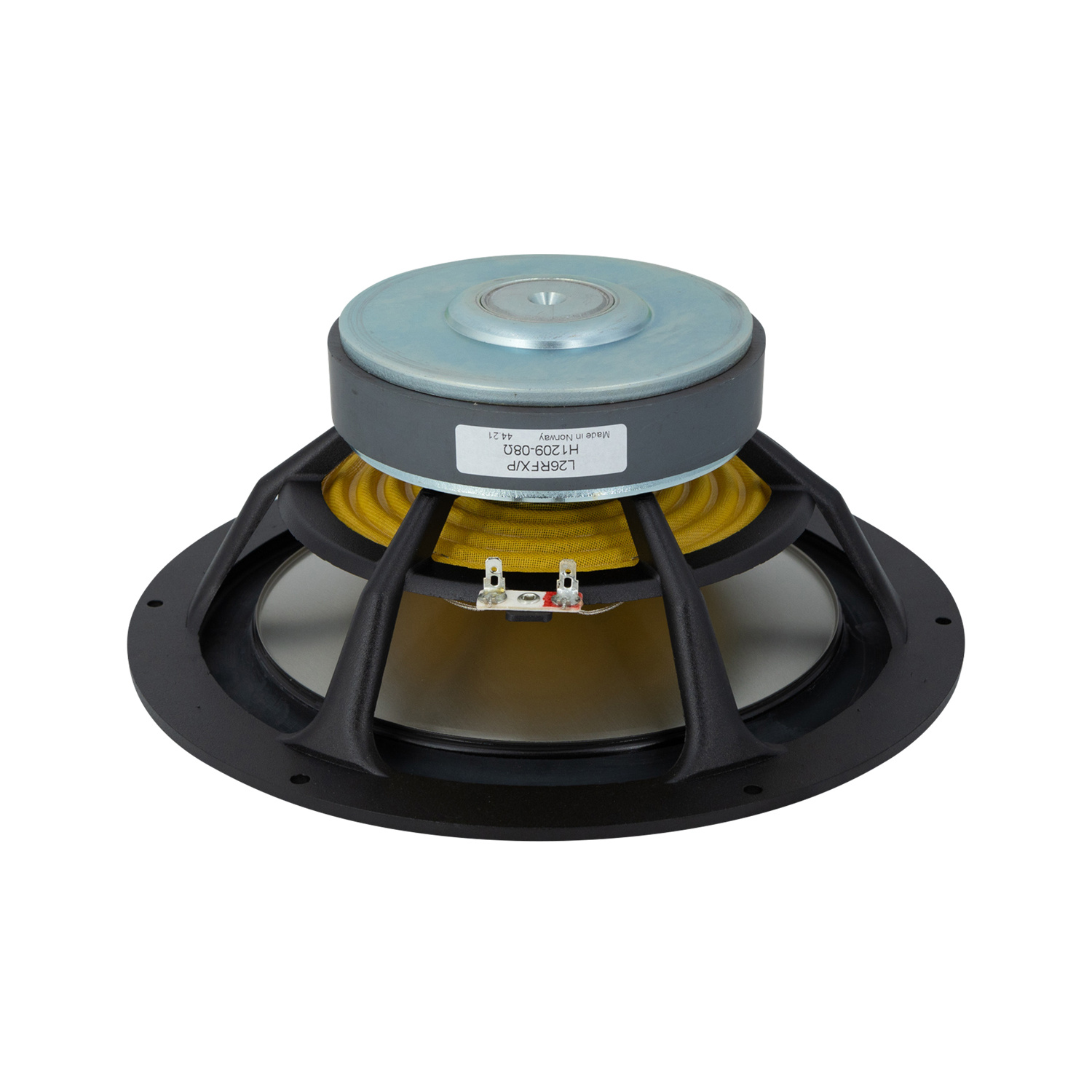

      SEAS Prestige L26RFX/P - H1209 10" Aluminum Cone Woofer

      € 206,57€ 249,95 10+ In stock
      • -5% Order 4 for only € 237,45 per piece

      Buy now, pay later

      • 24h express shipping available
      • Ordered now, shipped on Monday
      • In-house techniscal support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Long term power handling (RMS) is 125 Watts
      • 2” diameter high temperature voice coil with black anodized aluminum coil former gives high power handling and reduced power compression
      • Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment



      Product details

      Seas Prestige L26RFX/P - H1209 10" Aluminum Cone Woofer



      Extremely stiff aluminum cone gives tremendous bass precision. The cone and the low loss rubber surround show no sign of the familiar cone edge resonance and distortion associated with soft cones.



      2” diameter high temperature voice coil with black anodized aluminum coil former gives high power handling and reduced power compression. Large magnet system gives good sensitivity and transient response. Phase plug reduces compression due to temperature variations in the voice coil, eliminates resonances that would occur in the volume between the dust cap and the pole piece and increases the power handling capacity.



      Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

      Show more

      Specifications

      Article number
      L26RFX/P
      Woofer Series
      Prestige Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      10"
      Power Handling (RMS)
      125 Watts
      Power Handling (max)
      300 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      88 dB 2.83V/1m
      Frequency Response
      20 to 1,000 Hz
      Voice Coil Diameter
      2"
      Magnet Weight
      45.8 oz.
      DC Resistance (Re)
      6.3 ohms
      Voice Coil Inductance (Le)
      1.83 mH
      Resonant Frequency (Fs)
      20 Hz
      Mechanical Q (Qms)
      2.15
      Electromagnetic Q (Qes)
      0.39
      Total Q (Qts)
      0.33
      Diaphragm Mass Inc. Airload (Mms)
      53g
      Mechanical Compliance of Suspension (Cms)
      1.2 mm/N
      Compliance Equivalent Volume (Vas)
      6.03 ft.³
      Maximum Linear Excursion (Xmax)
      7 mm
      Overall Outside Diameter
      10.59"
      Overall Depth
      4.46"
      Baffle Cutout Diameter
      9.14"
      Bolt Circle Diameter
      10.08"
      # Mounting Holes
      6
      Mounting Hole Diameter
      0.2"

      Show more
