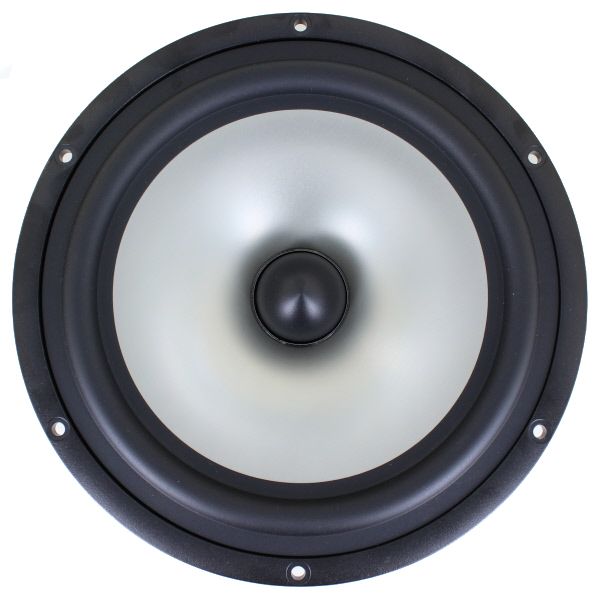

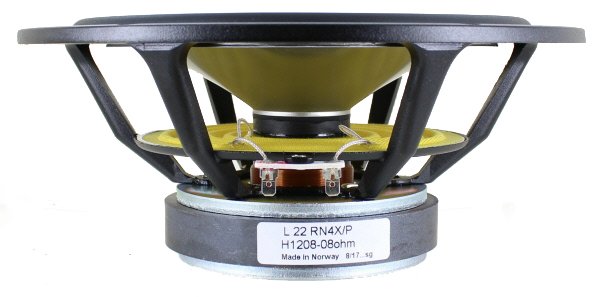

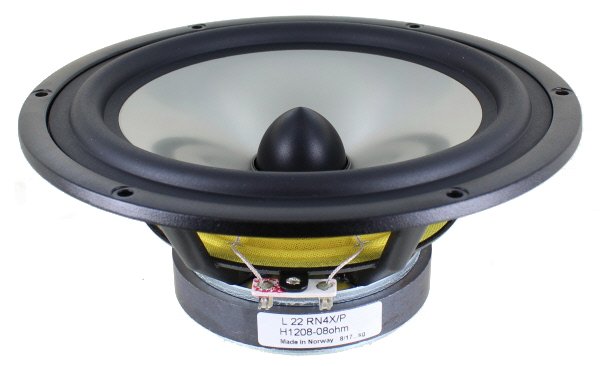

SEAS Prestige L22RN4X/P - H1208 8" Aluminum Cone Woofer

Brand: SEAS

Show all Woofer

Compare

8" | 8 Ω

Prestige L22RN4X/P - H1208 8" Aluminum Cone Woofer

Prestige L22RN4X/P - H1208 8" Aluminum Cone Woofer

Prestige L22RN4X/P - H1208 8" Aluminum Cone Woofer

Prestige L22RN4X/P - H1208 8" Aluminum Cone Woofer

Prestige L22RN4X/P - H1208 8" Aluminum Cone Woofer

Prestige L22RN4X/P - H1208 8" Aluminum Cone Woofer

Prestige L22RN4X/P - H1208 8" Aluminum Cone Woofer

Prestige L22RN4X/P - H1208 8" Aluminum Cone Woofer

€ 107,40€ 129,95 9 In stock

24h express shipping available
Same day shipping
In-house technical support
45-day cooling-off period to return

Request quotation

Do you have a question about this product?

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Highlights

Long term power handling (RMS) is 110 Watts
Extremely stiff aluminum cone provides tremendous bass precision
Large magnet system provides reasonably high efficiency and low Q

Product details

Seas Prestige L22RN4X/P - H1208 8" Aluminum Cone Woofer

Extremely stiff aluminum cone gives tremendous bass precision. The cone and the low loss rubber surround show no sign of the familiar cone edge resonance and distortion associated with soft cones. 4-layer, extremely long, high temperature voice coil wound on an aluminum voice coil former gives a high power handling capacity.

Phase plug reduces compression due to temperature variations in the voice coil, eliminates resonances that would occur in the volume between the dust cap and the pole piece and increases the power handling capacity. Large magnet system provides reasonably high efficiency and low Q.

Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

Show more

Specifications

Article number: L22RN4X/P
Woofer Series: Prestige Series
Woofer Type: Midwoofer
Nominal Diameter: 8"
Power Handling (RMS): 125 Watts
Power Handling (max): 300 Watts
Impedance (Z): 8 ohms
Sensitivity: 86.5 dB 2.83V/1m
Frequency Response: 20 to 1,000 Hz
Voice Coil Diameter: 1.53"
Magnet Weight: 22.5 oz.
DC Resistance (Re): 6.1 ohms
Voice Coil Inductance (Le): 3.76 mH
Resonant Frequency (Fs): 21 Hz
Mechanical Q (Qms): 3.13
Electromagnetic Q (Qes): 0.29
Total Q (Qts): 0.27
Diaphragm Mass Inc. Airload (Mms): 40g
Mechanical Compliance of Suspension (Cms): 1.4 mm/N
Compliance Equivalent Volume (Vas): 3.28 ft.³
Maximum Linear Excursion (Xmax): 7 mm
Overall Outside Diameter: 8.69"
Overall Depth: 3.76"
Baffle Cutout Diameter: 7.34"
Bolt Circle Diameter: 8.25"
# Mounting Holes: 6
Mounting Hole Diameter: 0.2"
